Ericsson SFP RDH10247/2 Gigabit Ethernet SFP 1.25G 1310nm 10km SMF CPRI Transceiver Module

Product Description

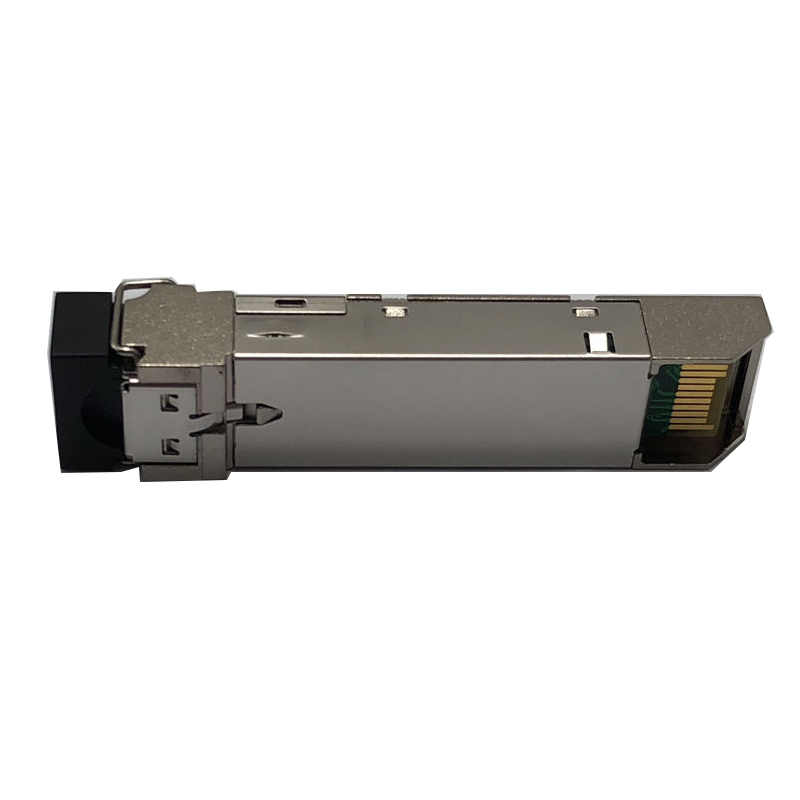

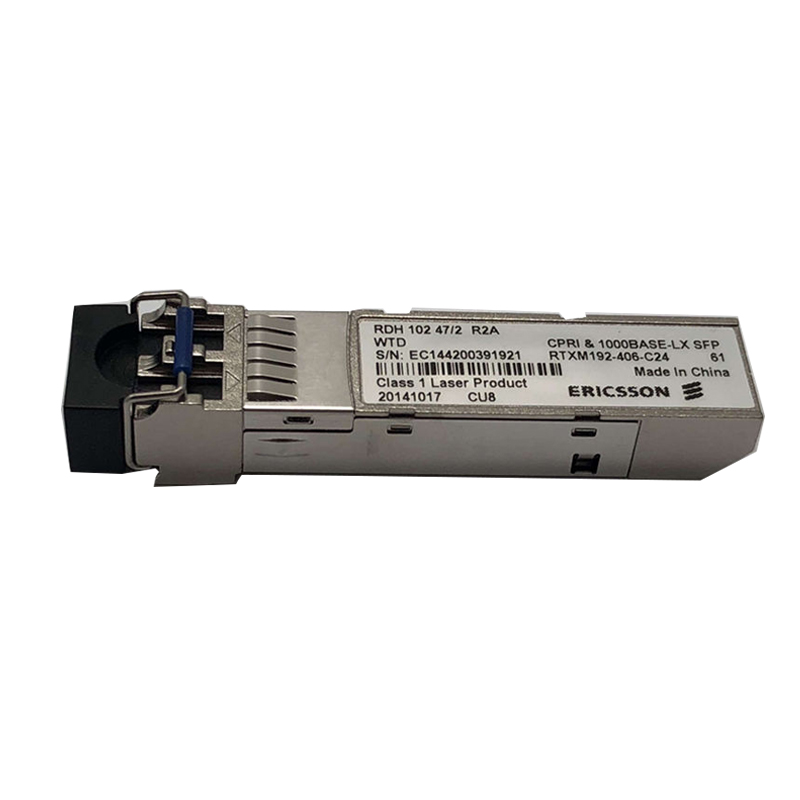

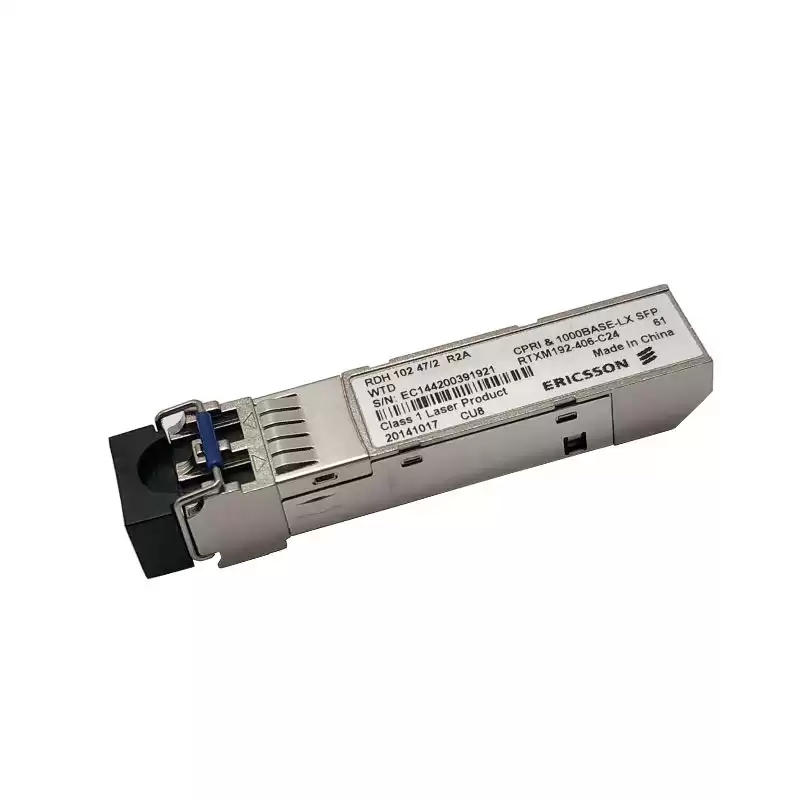

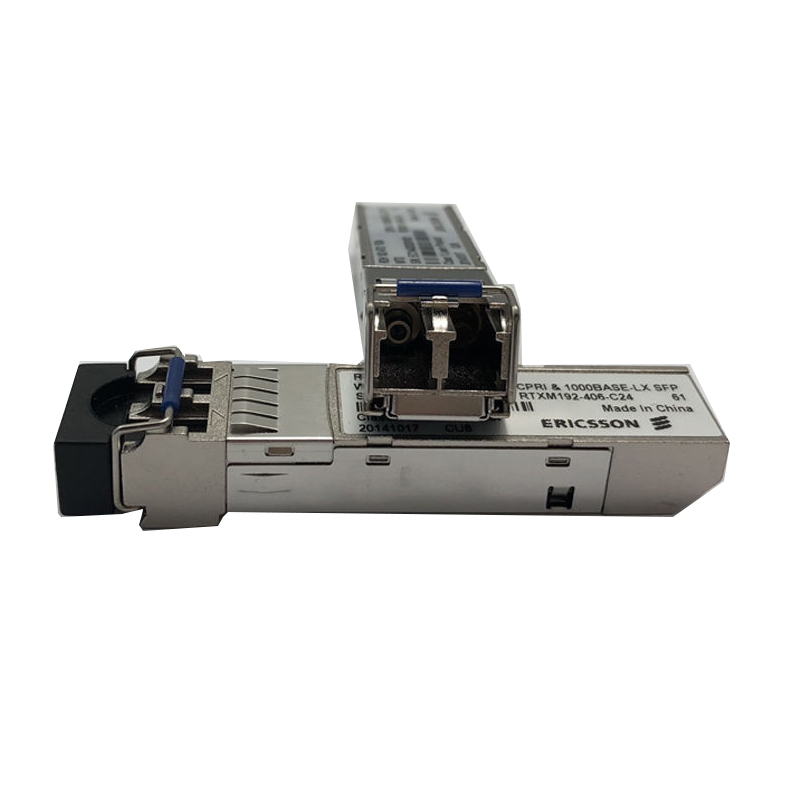

Ericsson compatible RDH 102 47/2 is SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 12 dB, with in most cases is enough to reach about 10 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry.

This transceiver use top quality FP Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Ericsson compatible RDH 102 47/2 operates in Standard 0°-70°C temperature range and has Double LC interface. SFP support 100-2.67Gbps data rate and such applications as STM-16 (2.488 Gbps)|STM-4 (622Mbps)|STM-1 (155Mbps)|100M Ethernet (100Mbps)|Gigabit Ethernet (1.25 Gbps)|1G Fiber Channel (1.0625 Gbps)|2G Fiber Channel (2.125 Gbps)|OTU1 (2.66Gbps)|ODU0 (1.244Gbps)|ODU1 (2.498Gbps)|CPRI option 3 (2.458 Gbps)|CPRI option 2 (1228.8 Mbps).

 SFP Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are SDH/SONET Links of Backbone, LTE 4G RRU and BBU Interconnections in C-RAN Frounthaul, Different Ethernet and Fiber Channel SAN Links in Enterprise Networks and other optical links.

Product Details

Our Advantages

We have Ericsson  RDH10247/2  for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Ericsson  RDH10247/2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Ericsson  RDH10247/2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
