Overview

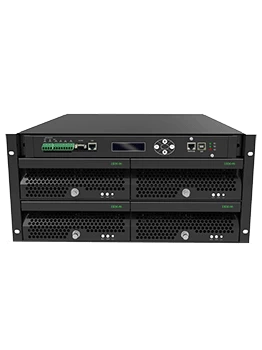

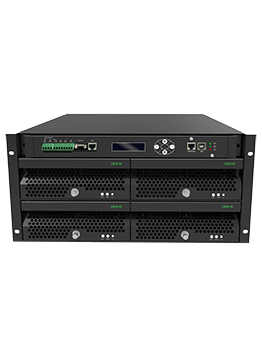

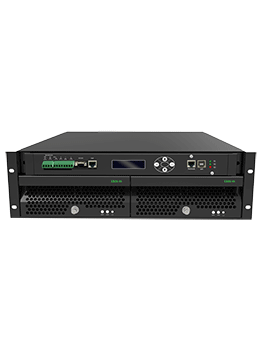

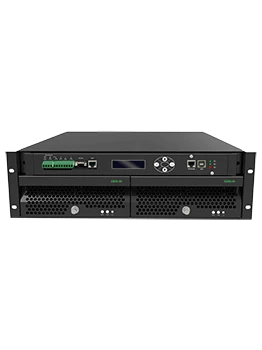

Sicon ERMS Uninterruptible Power Supplies is an embedded rack-mount online UPS with 1 phase ups module of low and medium power developed by SCU. With flexible structure, it could be embedded into standard 19 inch cabinet or work independently for de-centralized power supply. Sicon ERMS provides integrated power solution. Internal battery module and output PDU are available for optional configuration. It features superb input and output performance indexes. As a product with the smallest size, the highest efficiency and the greatest power density in the industry, it boasts extremely high cost-efficiency.
ups install reference | more about sicon plant | sicon support
6-36kVA Feature
19''shelf embedded structure
UPS module: 6 kVA; System: 12kVA, 24 kVA, 36kVA.
Online double Conversion ups (VFI-SS-111) · Rational redundant structure · N+X redundancy
Great performance index
overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
N+X module-level redundancy UPS System
Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
Each module automatically even shares the input and output current, all UPS modules share batteries
Battery management:
Battery discharge management, auto-transfer between floating and even charging, temperature compensation
Monitor Function
C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
B/S-Oriented Architecture which is available to check via IE
Standard configuration Manual bypass, RS232, RS485, dry contacts for local and remote communication
Optional SNMP, Modbus adapters
Optional configuration Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)

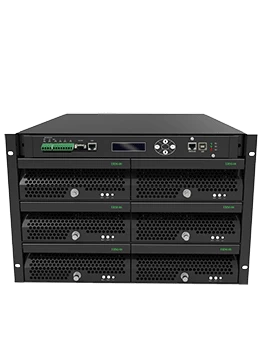

ERMS-36/6 with 3pcs or 6pcs ups module available with 3/1, 3/3, 1/3.
Application
Small server room, network, bank, security, transportation, broadcast&TV network, HealthCare, Communication, Finance
|
