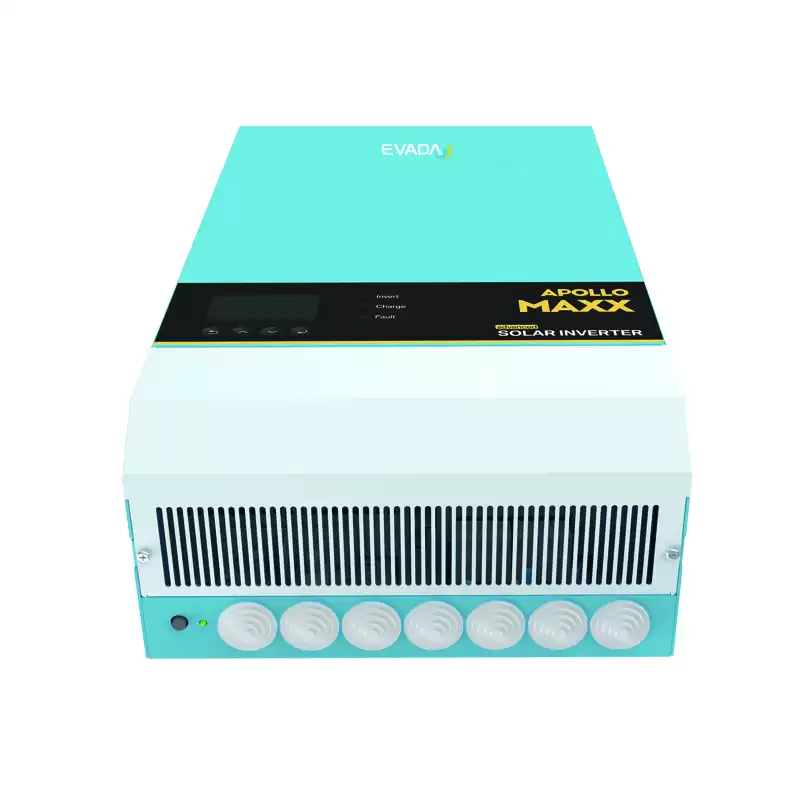

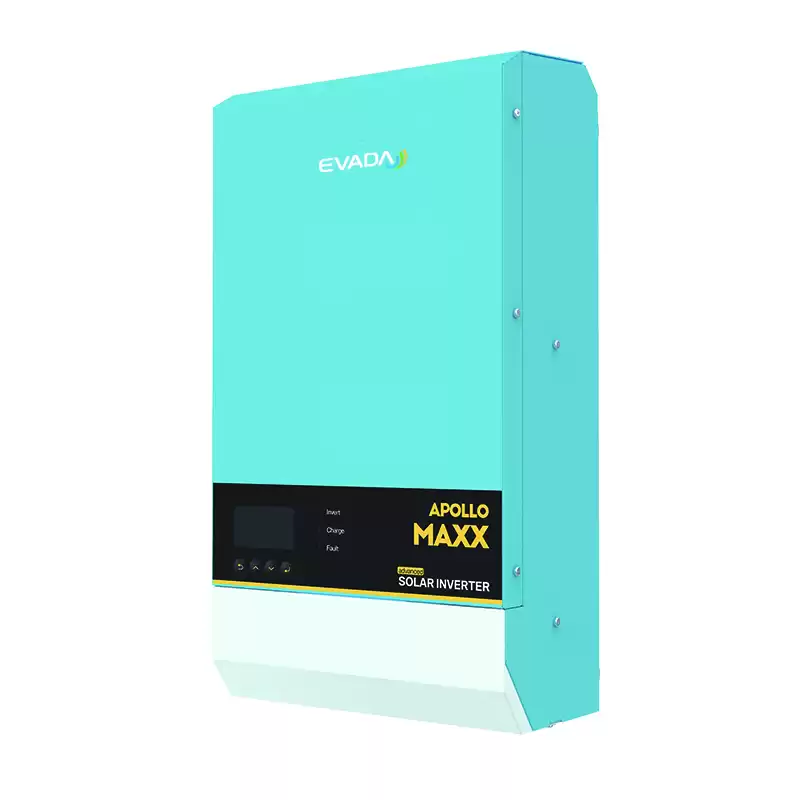

ESI MAX off-grid Solar Inverter(2-5KW)

Capacity: 2~5kW

DC Voltage: 24/48V

Product Introduction:

ESI Max is a powerful all in one solar inverter that integrates with multiple functions, including a high-performance true sine wave inverter, a powerful battery charger, a MPPT charge controller, a high-speed automatic transfer switch and two outputs for load management.




Description:

ESI Max all in one solar inverter can be used in multiple applications, With a simple setting, you can compose a DC coupling system, power backup system or solar hybrid system. Its distinguishing surge capability makes it capable to power most of demanding appliances such as fridge,freezer, water pump and air-conditioner, etc.

with the function of power assist& power control, it can be used to work with a limited AC source such as generator or limited arid.

ESI Max can automatically adjust its charging current to protect the grid or the generator from overload. It can also work as the supplement source to the generator or grid once the temporary Peak power appears.


Advantages:
●Transformer Based
●All in one, plug and play design for easy installation
●Applicable for DC coupling system, solar hybrid system and power backup system
●Parallel and three phase capability
●Typical Oms UPS class transfer speed, max<2ms
●Power assist power control enable small generator to handle big loads and meet the demand of the limited aric
●Extremely high inverter efficiency up to 96%
●Extremely high MPPT efficiency up to 98%
●Harmonic Distortion<2%
●Extremely low self-consumption power
●High performance designed for all kinds of inductive loads
●TBB premium ll battery charging management
●Built in battery SOC estimation
