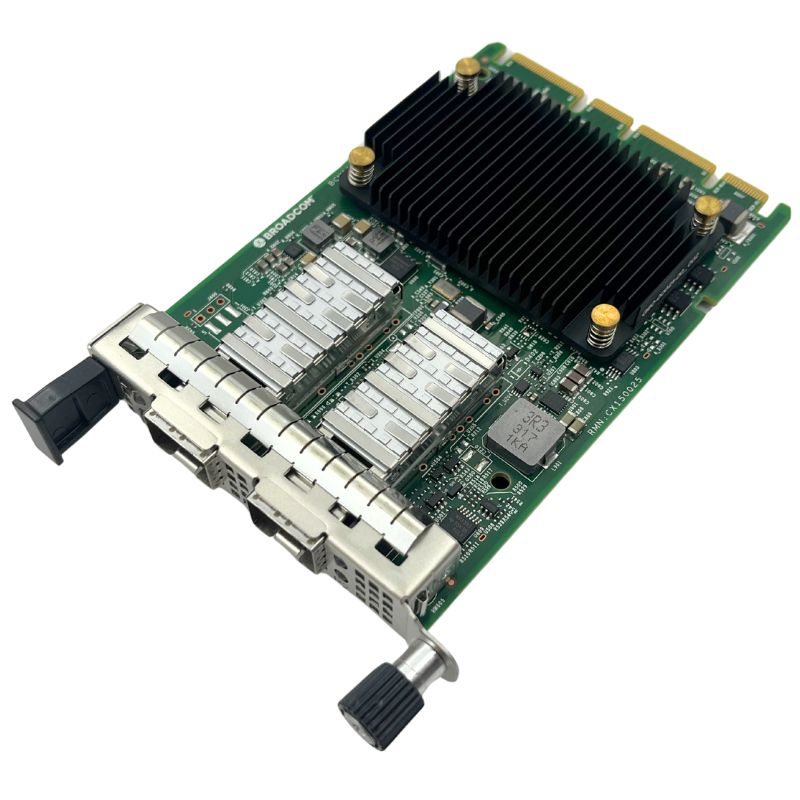

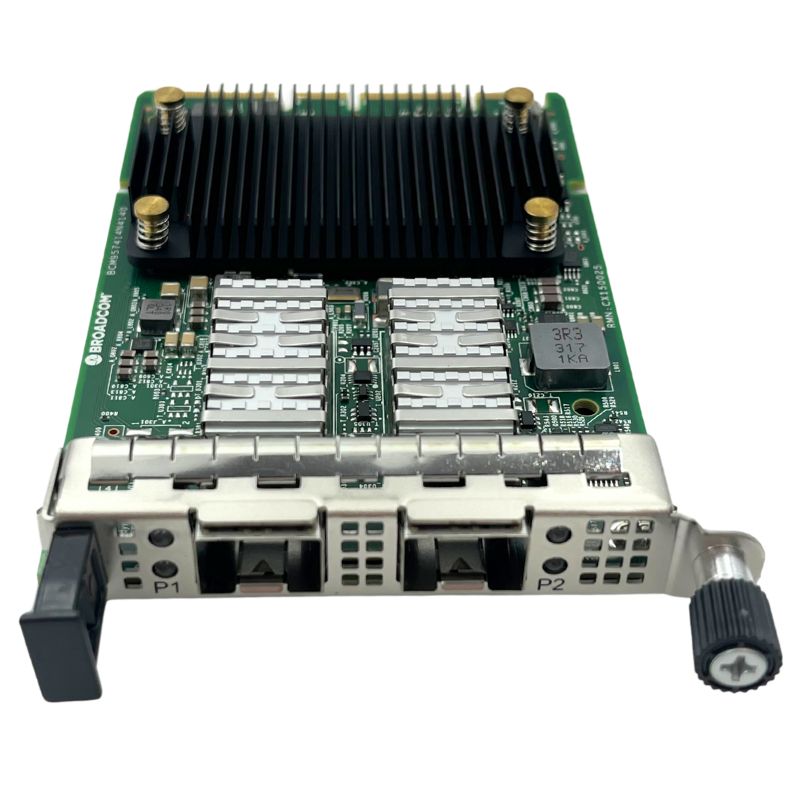

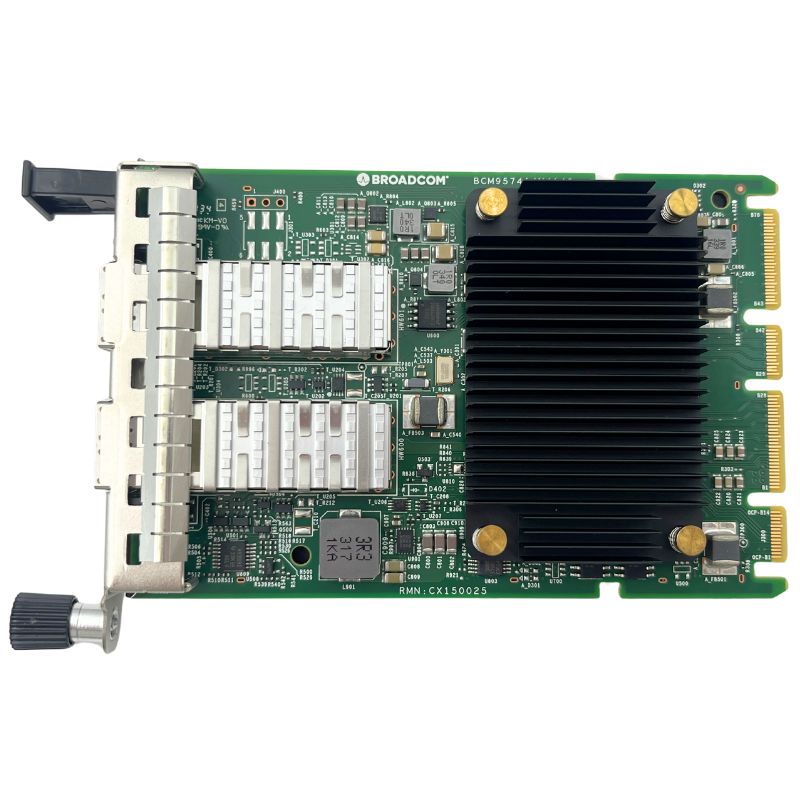

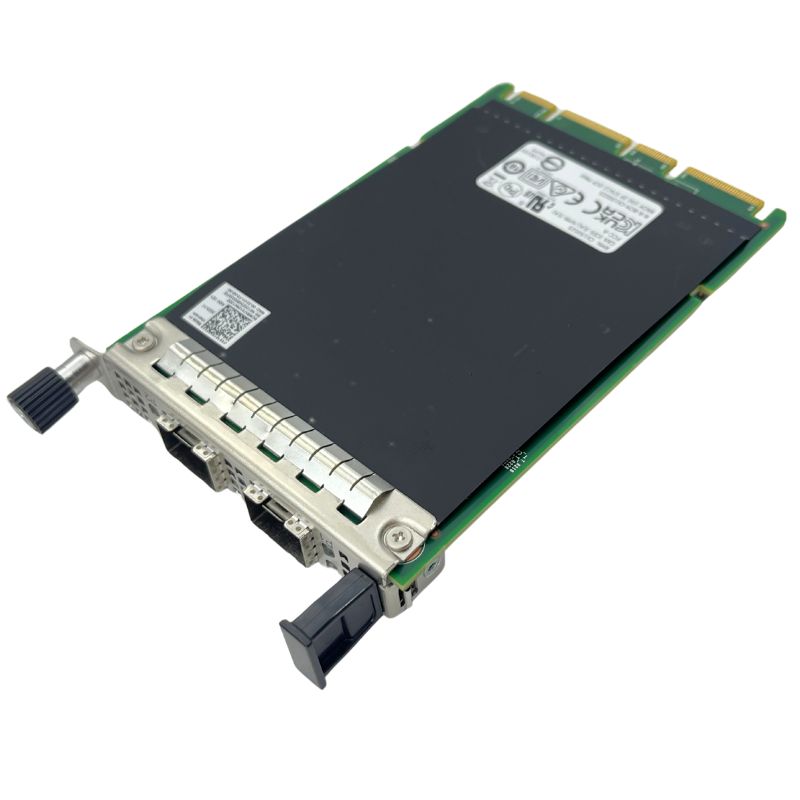

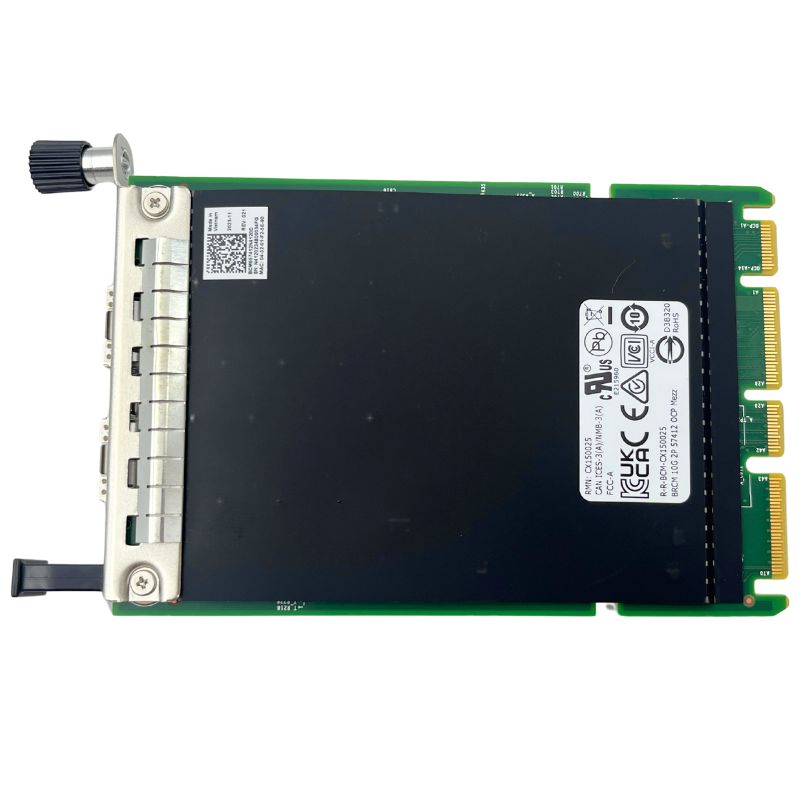

Ethernet Network Interface Card BCM957412N4120C

Dual-Port 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0
Model BCM957412N4120C
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type
 Open Compute Project mezzanine (OCP) 3.0
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享
BCM957412N4120C 10 Gb/s Ethernet PCI Express 3.0 x8 OCP 3.0
Applications
The BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter, designed in compliance with the Open Compute Project (OCP) 3.0 specification in a small form factor. It features two SFP+ network connectors and supports both SFP+ optical modules and copper direct-attach cables. The adapter is powered by the BCM57412 25GbE MAC controller, which includes an integrated dual-channel 10GbE SFI transceiver.
Key Features
  • The dual-port pluggable media interface supports connections to either a 10G SFP+ optical transceiver or a copper direct-attach cable.
  • It is fully compliant with the SFF-8402 standard and adheres to the x8 PCI Express 3.0 specification.
  • The interface features SR-IOV with support for up to 128 virtual functions (VFs) and includes Function-Level Reset (FLR) capability.
  • It enables virtual network termination for protocols such as VXLAN, NVGRE, Geneve, and GRE encapsulation/decapsulation, along with vSwitch acceleration.
  • Additionally, it provides tunnel-aware stateless offloads and supports Data Center Bridging (DCB) features, including PFC, ETS, QCN, and DCBX.
  • The interface also supports RDMA over Converged Ethernet (RoCE), Network Controller Sideband Interface (NC-SI), and MCTP over SMBus.
  • It integrates PCIe-based UART and KCS interfaces, supports jumbo frames up to 9 KB, and includes advanced congestion avoidance mechanisms.
  • Further capabilities include multiqueue, NetQueue, and VMQ support, as well as IPv4 and IPv6 offloads.
Specification
Model BCM957412N4120C
Ports 1Gb Ethernet / 10Gb Ethernet SFP+ x 2
PCI Specification Revision PCIe 3.0
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Processor BCM57412

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
