Ethernet Network Interface Card BCM957504-N1100G


Single-Port 100 Gb/s QSFP56 Ethernet PCI Express 4.0 x16 OCP 3.0 SFF Network Adapter
Model BCM957504-N1100G
Ports Single
ASIC BCM57504
System Interface Type
 PCIe 3.0 x16
Warranty 3 Years

Facebook Twitter Pinterest LinkedIn 分享
BCM957504-N1100G 100 Gb/s Single-Port QSFP56 PCIe 3.0 x16
Applications

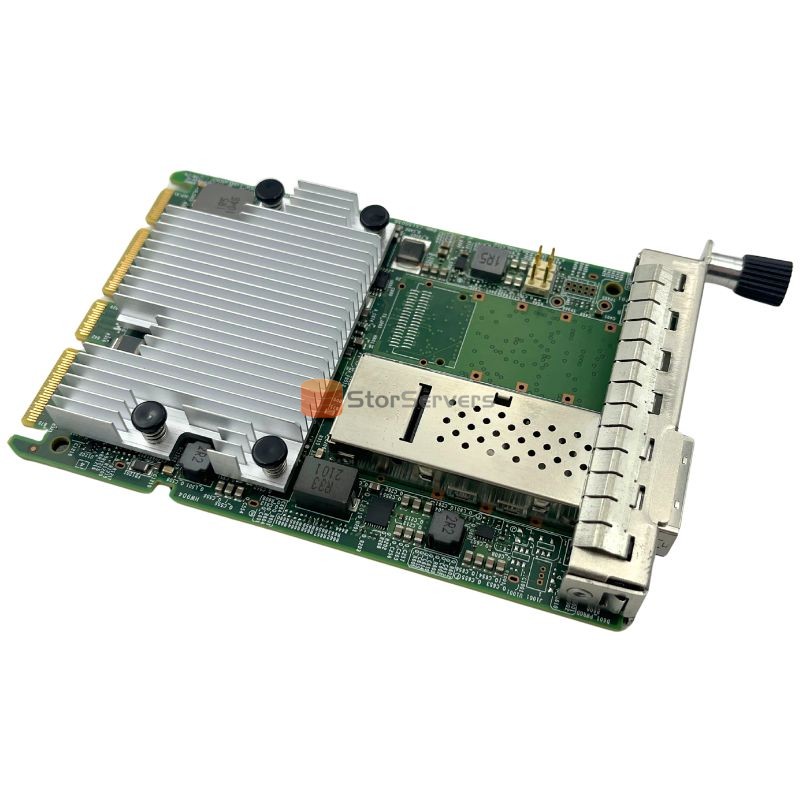

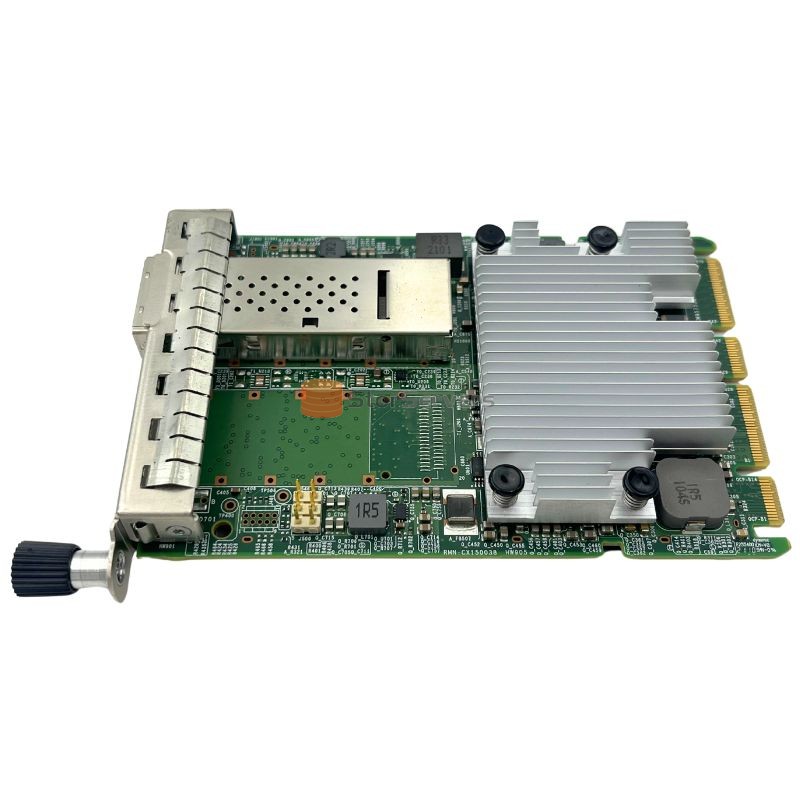

  The Broadcom BCM957504-N1100G is a single-port 100 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with one QSFP56 network connector. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated single-channel 100GbE SFI transceiver.
Key Features
  • Single-port pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable.
  • Industry’s most secure PCIe adapter solution leveraging Broadcom’s BroadSAFE technology
  • Supports Ethernet 50G PAM-4 and 25G/10G NRZ signaling.
  • Multi-Host up to four hosts.
  • Fully compliant with the SFF-8402 standard.
  • x16 PCI Express 4.0 compliant.
Specification
Model BCM957504-N1100G
Data Rate Per Port 100 Gb/s
Connector Type QSFP56
Bracket Height

half-height OCP 3.0
Controller BCM57504
Systems Interface Type PCIe 4.0 x16

Lead time

Quantity (pieces) 1-10 10-60 >60
Lead time (days) 3 3-5 To be negotiated
