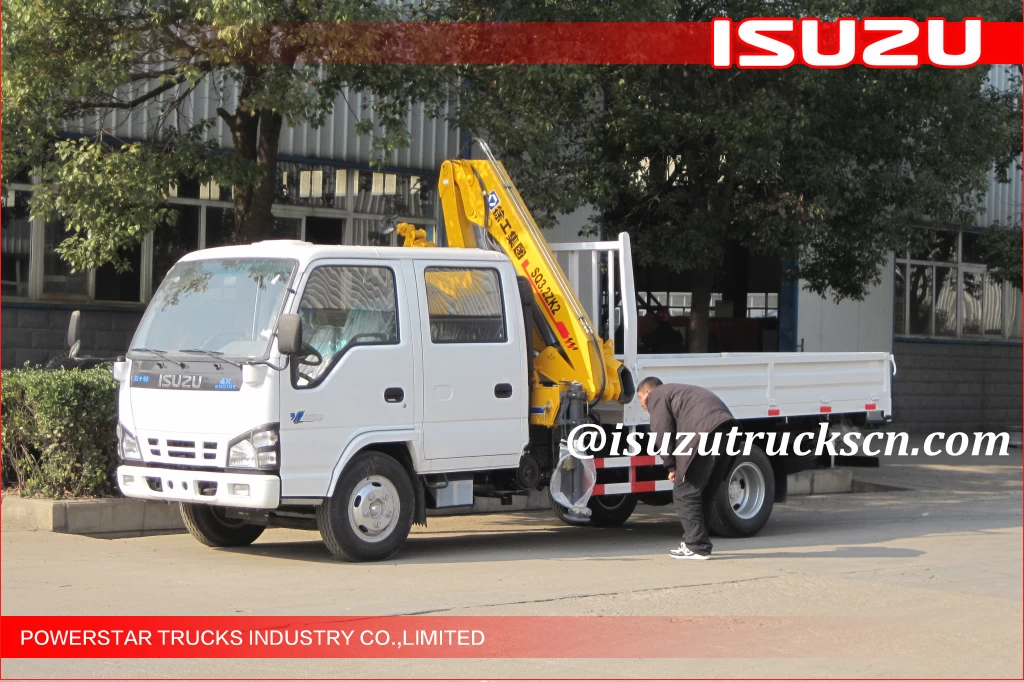

Ethiopia 3.2ton Isuzu Truck with Telescopic Boom Truck Crane



 Ethiopia 3.2ton Isuzu Truck with Telescopic Boom Truck Crane

Description:

Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks



Areas of Application and Use:

   General Materials Lifting of various size and load with standard Hook arrangement for Construction Sites / Mines / Projects / Logistics Requirements

   Handling Concrete Block for Building / Projects through Rotary Brick Clamp

   Man Lift or Cherry Picker for Maintenance on Electricity Poles / Overhead Lines etc, thru Person Carrying Basket

   Erection of Light Post through Auger

   Handling of Wood Logs (Forestry)

   Garbage Handling with Clamshell Bucket

   Palletized Load Handling thru Pallet Fork

  Tyre Manipulator Application

  Scrap Handling through Orange Peel Clamp



Features:

  Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime

  All Structural made of High Strength Steel

  Easy to mount and Minimum space required for Mounting

  Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

  Optional Chassis 4x2, 6x4,8x4 and engine power

  Optional Crane brand:  XCMG, UNIC, PALFINGER, HIAB

  Optional Crane type:  Telescopic boom crane or knuckled boom crane

  Radio Remote Control Available as an Optional Fitment

  Top Seat Control are optional  (where the Operator Seat is attached to the Main Boom)

  Crane capacity :  2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons



Main specifications:

Model

PT5075TSC

Driving Type

4x2    (Left hand drive)

Wheelbase

3360 mm

Cab

Forward control over engine, all-steel-welded construction

Crane System

Max Lifting Capacity

3200 kg

Max Lifting Moment

6.8 T.M

Recommend Power

14 kw

Max Oil Flow of Hydraulic System

25 L/min

Max Pressure of Hydraulic System

20 MPA

Oil Tank Capacity

30 L

Rotation Angle

All Rotation

Engine

Model

4KH1-TCG40

Type

Diesel, turbo charged inter-cooled, 4 cylinder

Max. Power

88 KW (120 HP)

Gearbox

MSB 5-shift, mechanical type, 5 forward and 1 reverse with

Tire

7.00-16

Color

Red    (Any color & logos up to wish)

Max Speed

100 km/h

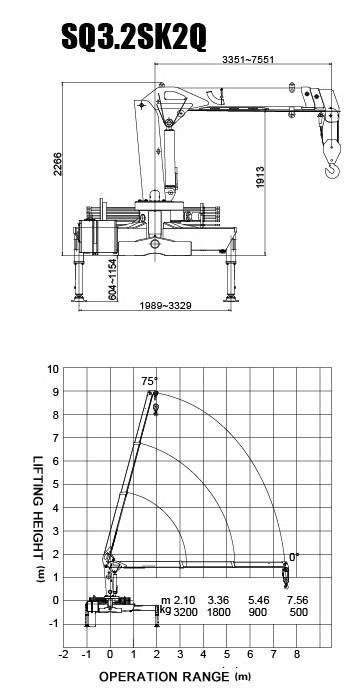

Dimension drawing

 3.2ton Isuzu Truck with Telescopic Boom Truck Crane

Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
