Single output 200W 7.5V 26.7A open frame switching power supply with ETL certification
Description:
K26-UP200S series 200W 7.5Vdc switching power supply has built-in active PFC function,100-240V AC input voltage and output voltage adjustable with 2 years warranty, it can used in industrial automation products.
Features:
1, 200W 7.5V 26.7A power supply with universial AC input;
2, 7.5V 200w power supply have short circuit, overload, overvoltage and over temperature protection;
3, 200W 7.5V power supply with built-in active PFC function;
4,This smps has high efficiency and used in stage lighting and CCTV system etc.
|
Parameter
|
|
Item NO.
|
K26-UP200S7.5
|
K26-UP200S9
|
K26-UP200S28
|
K26-UP200S60
|
|
OUTPUT
|
DC OUTPUT VOLTAGE
|
+7.5V
|
+9V
|
+28V
|
+60V
|
|
OUTPUT RATED CURRENT
|
26.7A
|
22A
|
7.2A
|
3.4A
|
|
OUTPUT CURRENT RANGE
|
0-26.7A
|
0-22A
|
0-7.2A
|
0-3.4
|
|
DC OUTPUT POWER
|
200W
|
198W
|
201.6W
|
204W
|
|
RIPPLE & NOISE
|
100mVp-p
|
100mVp-p
|
280mVp-p
|
600mVp-p
|
|
DC VOLTAGE ADJ.
|
6.75~8.25V
|
8.1~9.9V
|
25.2~30.8V
|
32.4~39.6V
|
|
OUTPUT V. TOLERANCE
|
±1%
|
|
LINE REGULATION
|
±0.5%
|
|
LOAD REGULATION
|
±0.5%
|
|
SETUP,RISE,HOLD UP TIME
|
500ms,50ms,20ms
|
|
INPUT
|
INPUT VOLTAGE RANGE
|
90-264V AC
|
|
AC CURRENT
|
1.2A @ 220V AC
|
|
INPUT FREQUENCY
|
47-63 Hz
|
|
EFFICIENCY
|
>85%
|
>88%
|
>89%
|
>89%
|
|
|
POWER FACTOR
|
>0.99@110V;>0.95@220V
|
|
INRUSH CURRENT
|
COLD START 20A/115V，40A/230V
|
|
LEAKAGE CURRENT
|
<0.75mA@240V AC
|
|
PROTECTION
|
OVERLOAD PROTECTION
|
110~200%,TYPE:HICCUP RESET:AUTO RECOVER
|
|
OVER VOLTAGE
|
9-12V
|
14-16V
|
33-36V
|
68-75V
|
|
|
OVER TEMP. PROTECTION
|
105℃.Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
|
|
FUNCTION
|
|
|
|
ENVIROMENT
|
WORKING TEMP., HUMIDITY
|
-20~50℃，10~90% RH， non-condensing
|
|
STORAGE TEMP., HUMIDITY
|
-20~85℃，10~95% RH
|
|
TEMP. COEFFICIENT
|
±0.03%/℃(0~50℃)
|
|
VIBRATION
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
GB4943,EN60950-1
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC STANDARDS
|
MEET EN55022 CLASSA，EN61000-3-2
|
|
OTHER
|
DIMENSION
|
193*59*35mm
|
|
WEIGHT
|
0.5Kg
|
|
NOTE
|
1. ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.
2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.
3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.
4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD.
5.LOAD REGULATION IS MEASURED FROM 20% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.
|

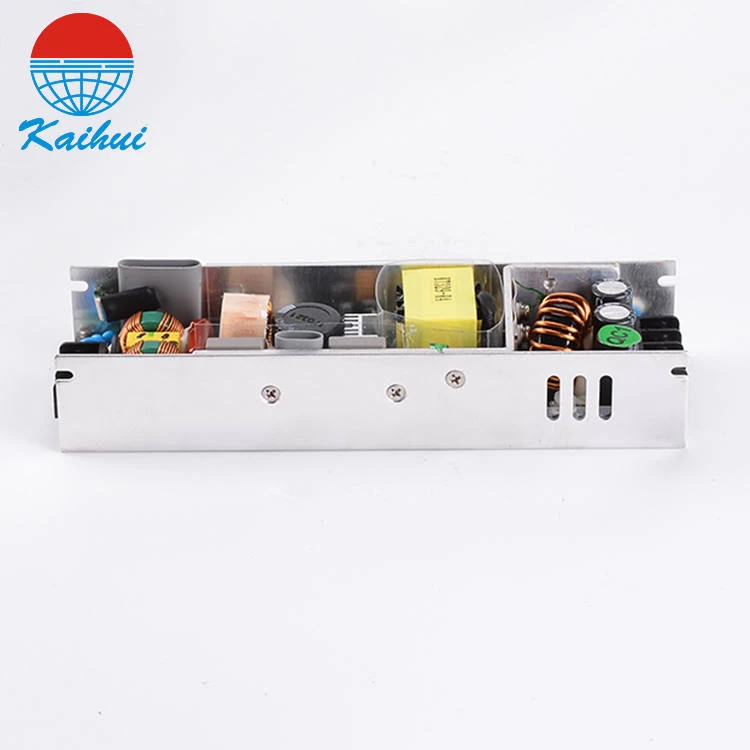

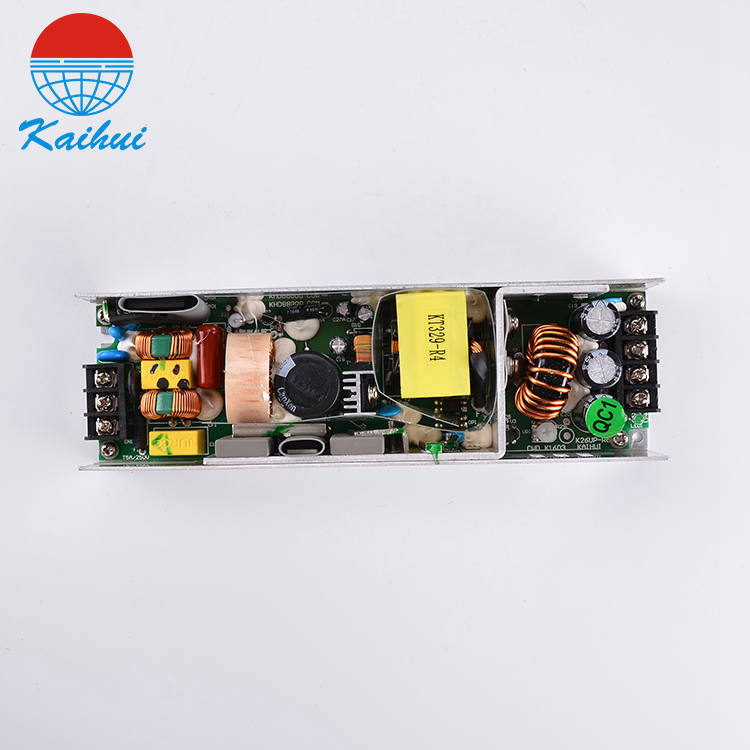

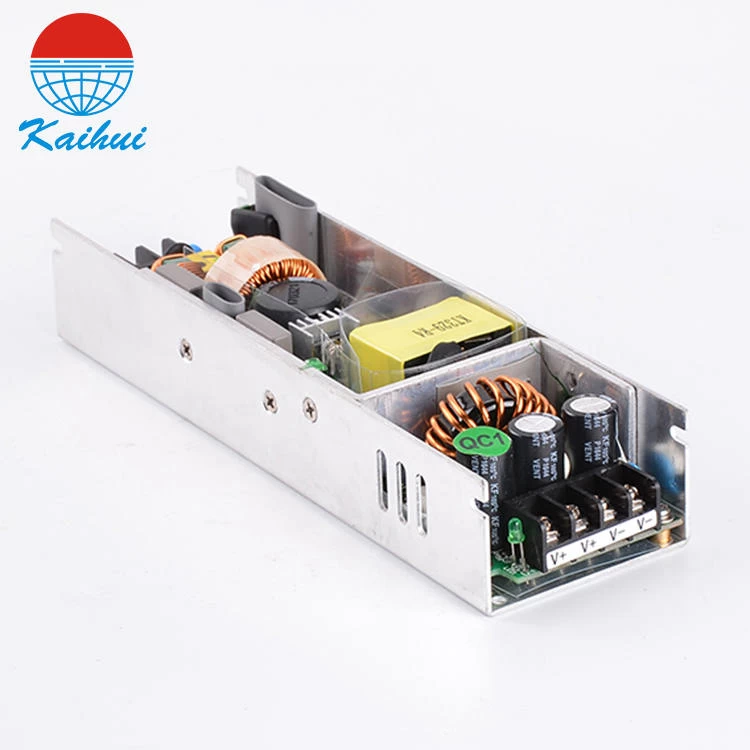

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
