ETL Approved 12V 24V 36V 48V DC Switching Power Supply 50W Open Frame SMPS
Features:
1,12V switching power supply with High efficiency, low temperature rise;
2, 12V DC power supply with Built-in filters, low output noise;
3, 12V 4A power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
5, 50W SMPS can be Used to LED light and other equipments etc.
Parameter
|
|
Item No.
|
KPSH50-12
|
KPSH50-24
|
KPSH50-36
|
KPSH50-48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
4A
|
2A
|
1.5A
|
1A
|
|
Current Range
|
0-4A
|
0-2A
|
0-1.5A
|
0-1A
|
|
Rated Power
|
48W
|
48W
|
48W
|
48W
|
|
Ripple
|
100mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
0.5A/220V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
82%
|
84%
|
84%
|
85%
|
|
Inrush Current
|
Cold start 15A@115V,30A@230V
|
|
Leakage Current
|
<1mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P:3KV,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS A
|
|
Others
|
Dimension
|
92*46*30mm(L*W*H)
|
|
Weight
|
0.15kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

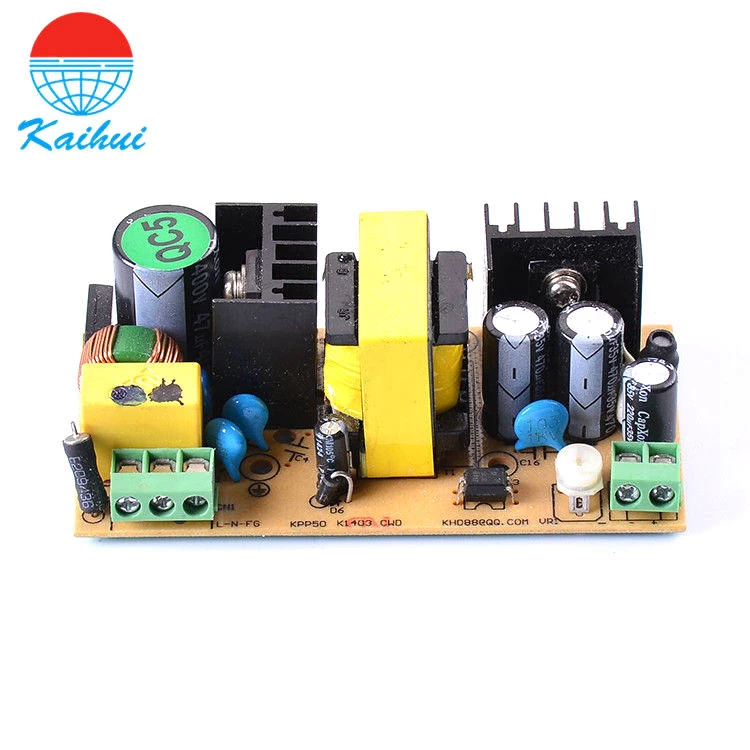

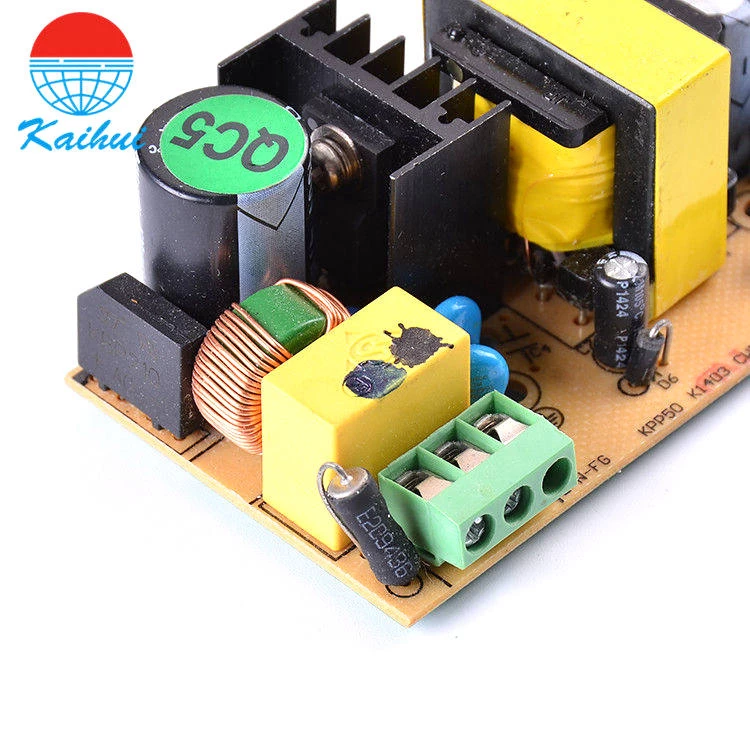

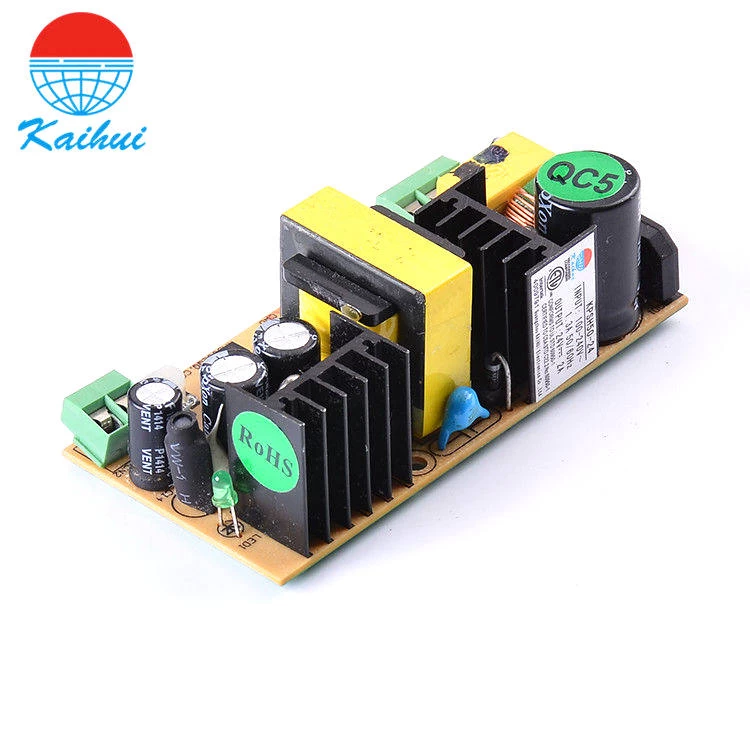

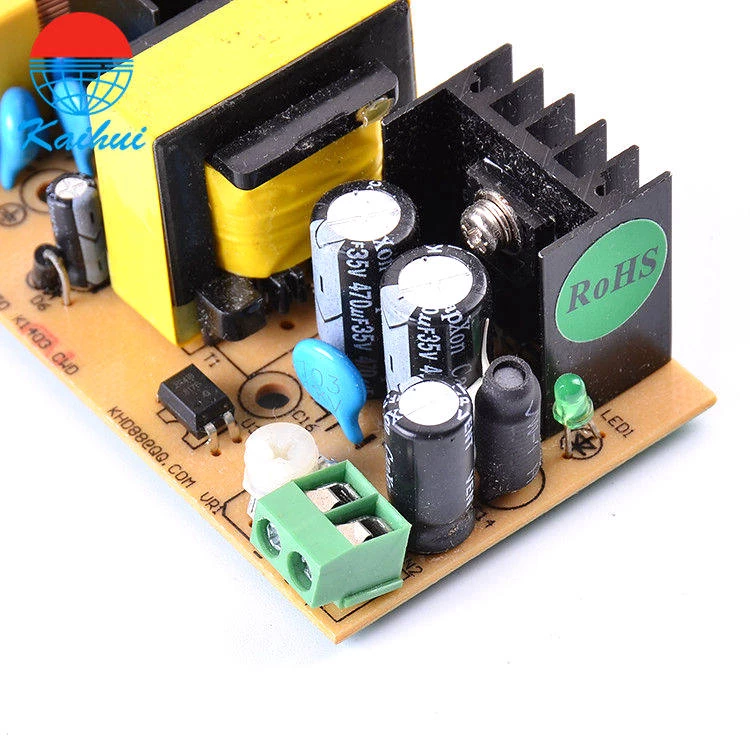

Product picture:
