ETL CCC CB approved 200W 24V 8.5A switching power supply single output with cover
Description:
K26B-UP200S series 200W 24V smps belongs to samll size single output and enclosed type switching power supply,certification is complete such as ETL,CCC,CB etc. and high quanlity,it is used in game machine and amplifier equipment.
Features:
1, 200W high efficiency 24V switching power supply, low temperature rise;
2, Built-in PFC function power supply, low output noise;
3, Wide range of AC input voltage,24V 200W single output power supply with cover;
4, Short circuit, over load, over voltage,over temperature protection;
5, 24V 8.5A smps used in LED light,high-end audio etc.
Parameter
|
|
Item NO
|
K26B-UP200S12
|
K26B-UP200S24
|
K26B-UP200S36
|
K26B-UP200S48
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
+36V
|
+48V
|
|
Rated Current
|
16.7A
|
8.5A
|
5.6A
|
4.2A
|
|
Current Range
|
0-16.7A
|
0-8.5A
|
0-5.6A
|
0-4.2A
|
|
Rated Power
|
200.4W
|
204W
|
201.6W
|
201.6W
|
|
Ripple & Noise
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC
|
|
Input Current
|
1.2A@220V AC
|
|
Input Frequency
|
47~63Hz
|
|
Power Factor
|
>0.99@110V;>0.95@220V
|
|
Efficiency
|
＞88%
|
＞90%
|
＞90%
|
＞92%
|
|
Inrush Current
|
Cold start 15A@115V,30A@230V
|
|
Leakage Current
|
<0.75mA@240V
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
---
|
|
Over Temp., protection
|
>105℃，recovers automatically after temperature goes down
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
MEET EN55022 CLASS B EN61000-3-2
|
|
Others
|
Dimension
|
148*60*35mm(L*W*H)
|
|
Weight
|
0.4kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

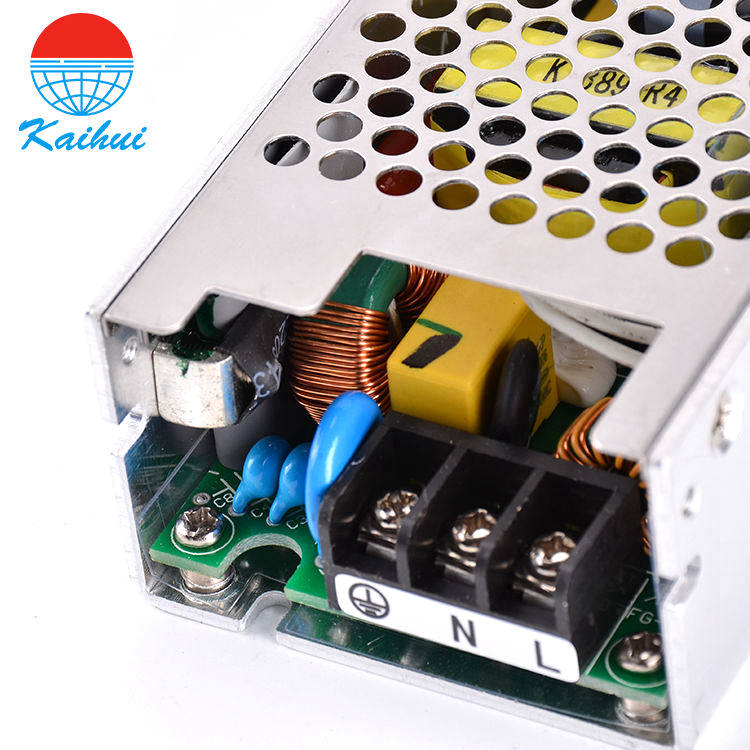

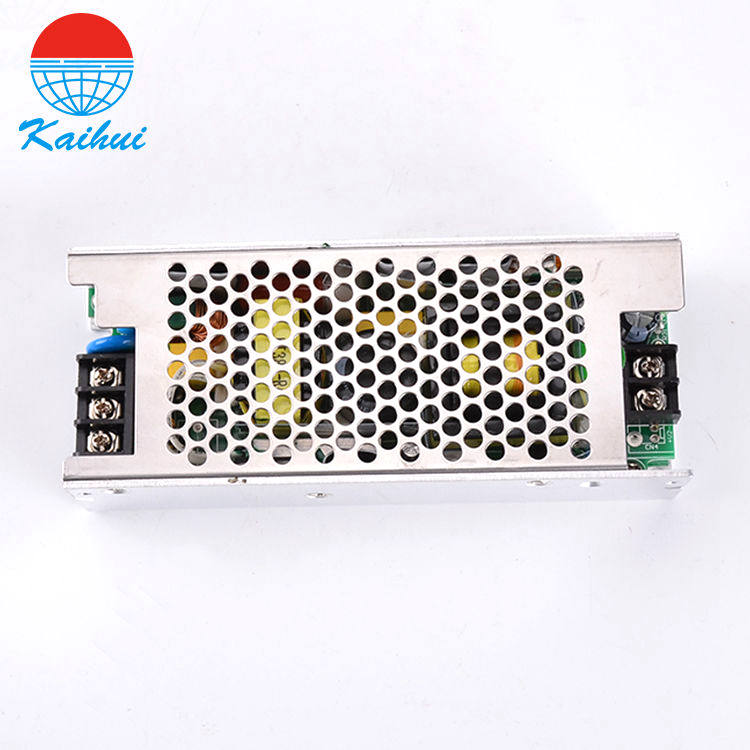

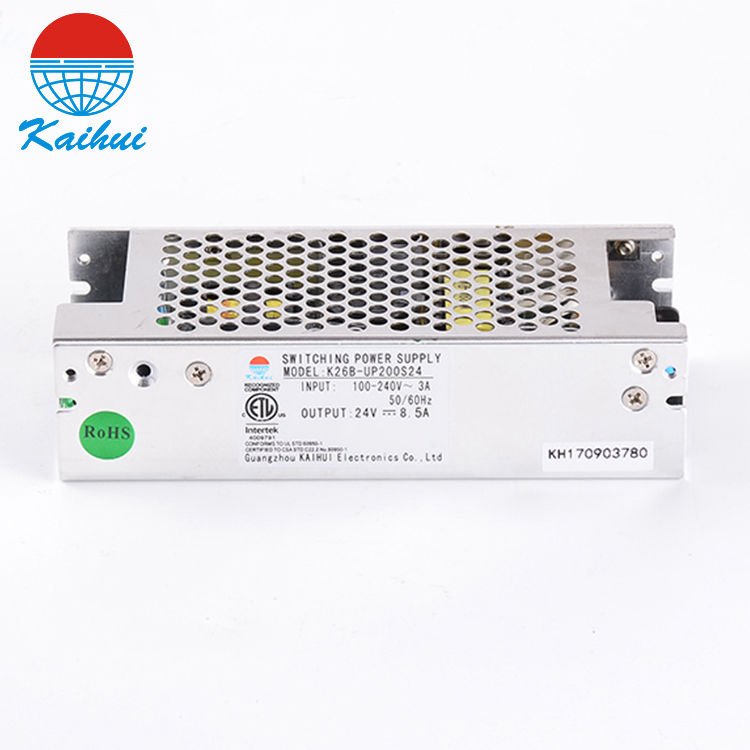

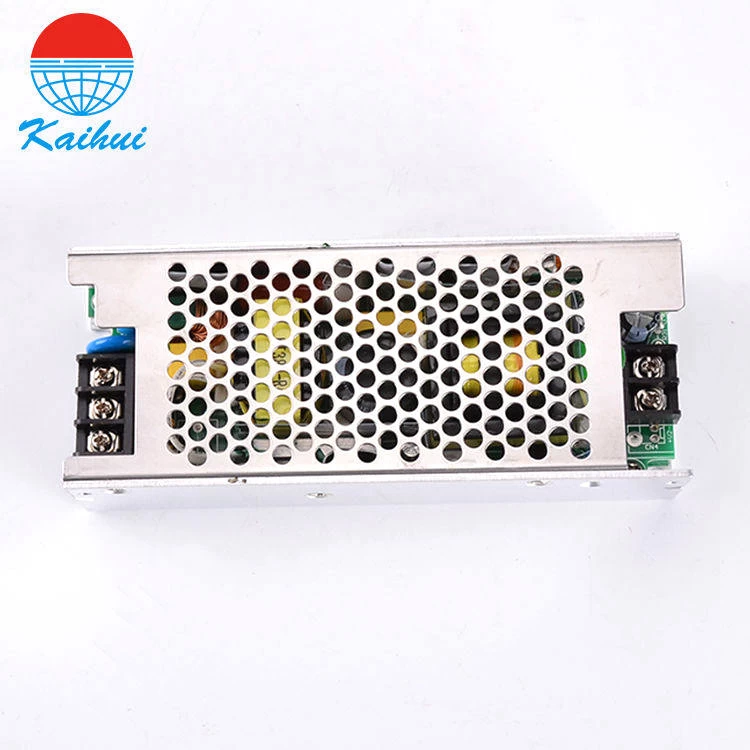

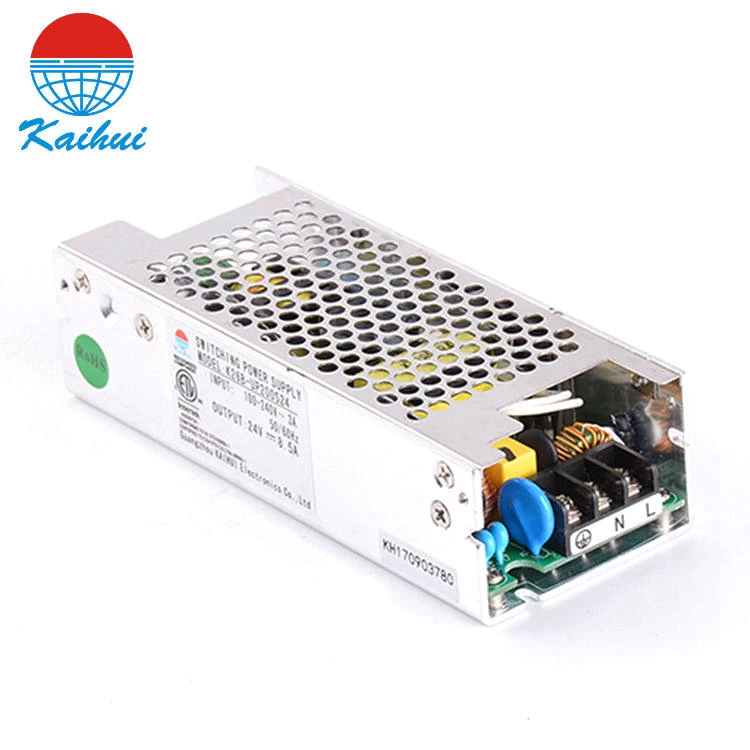

Product picture:
