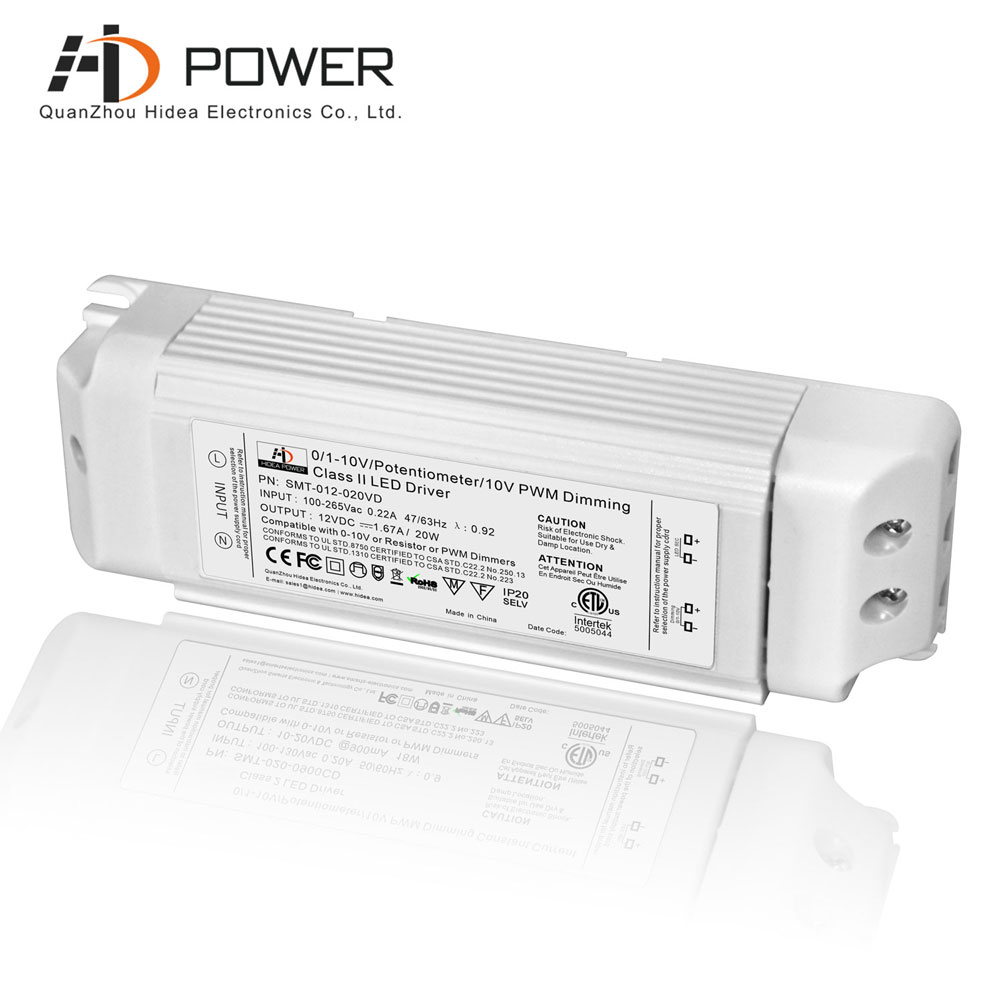

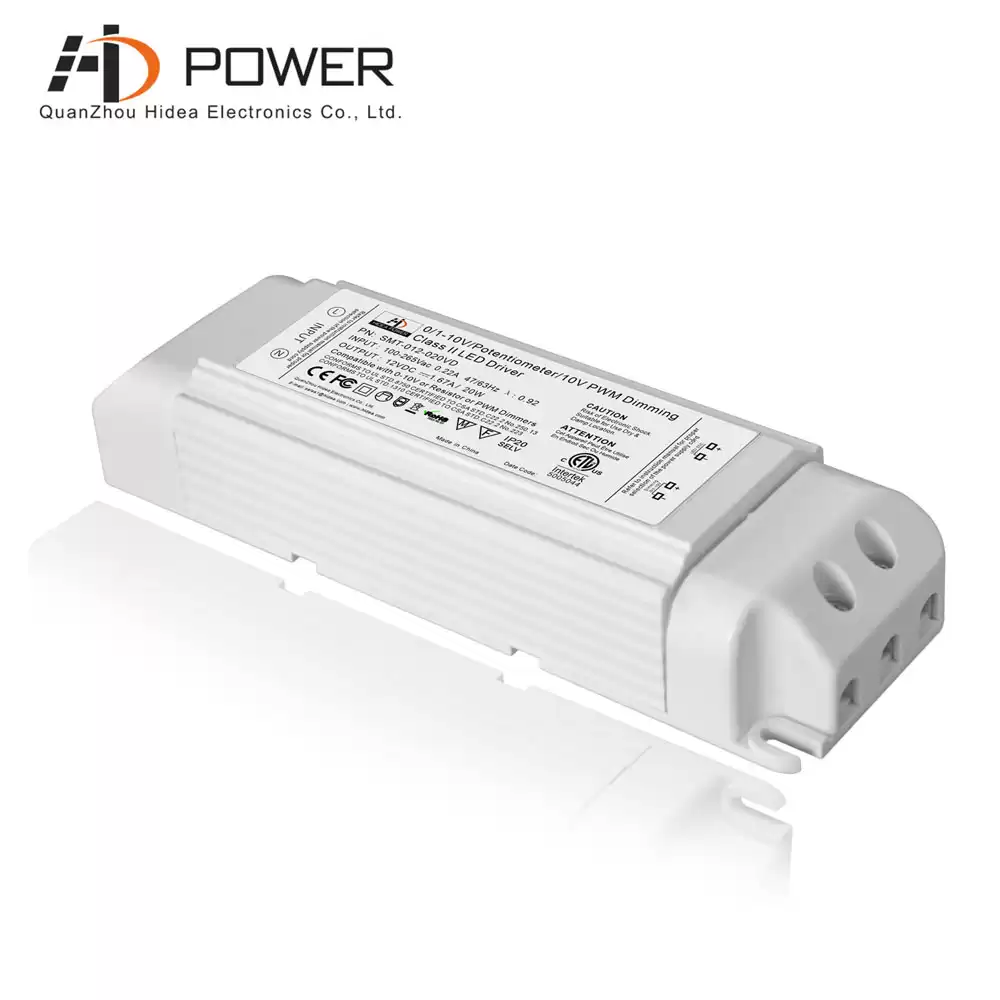

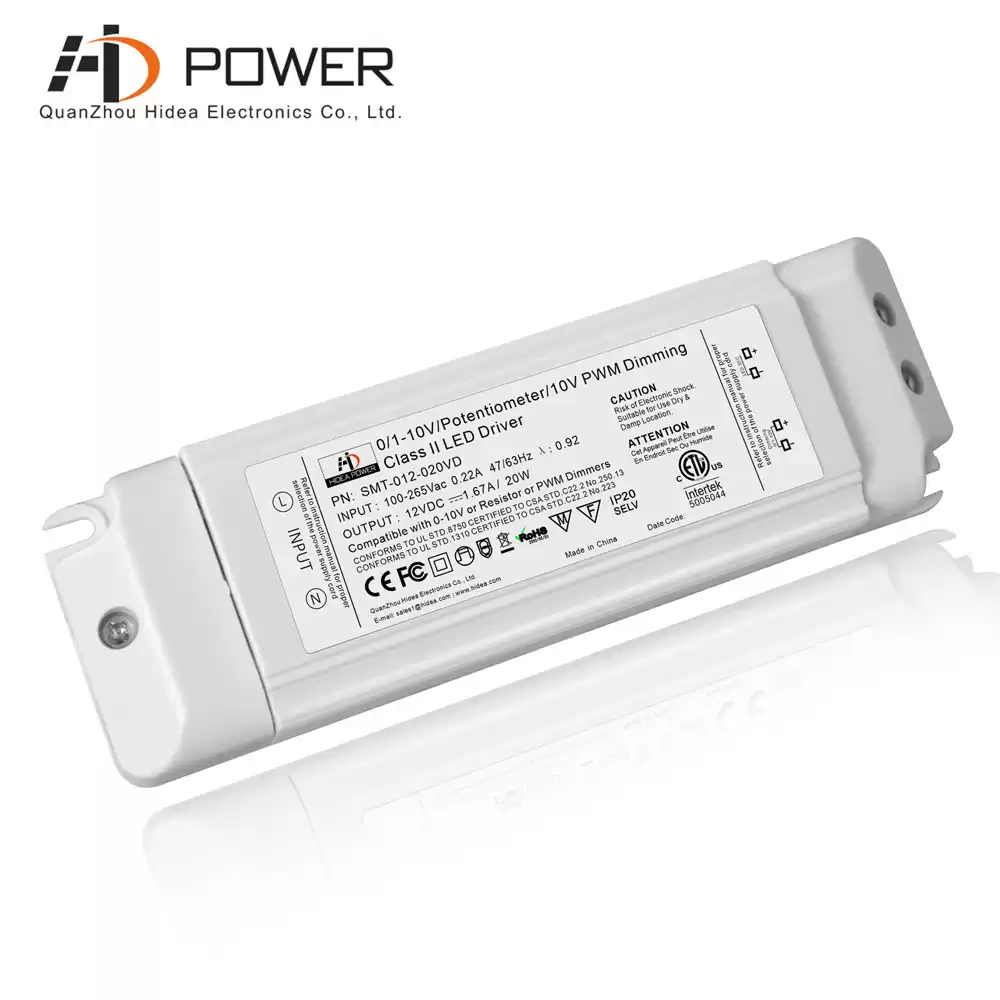

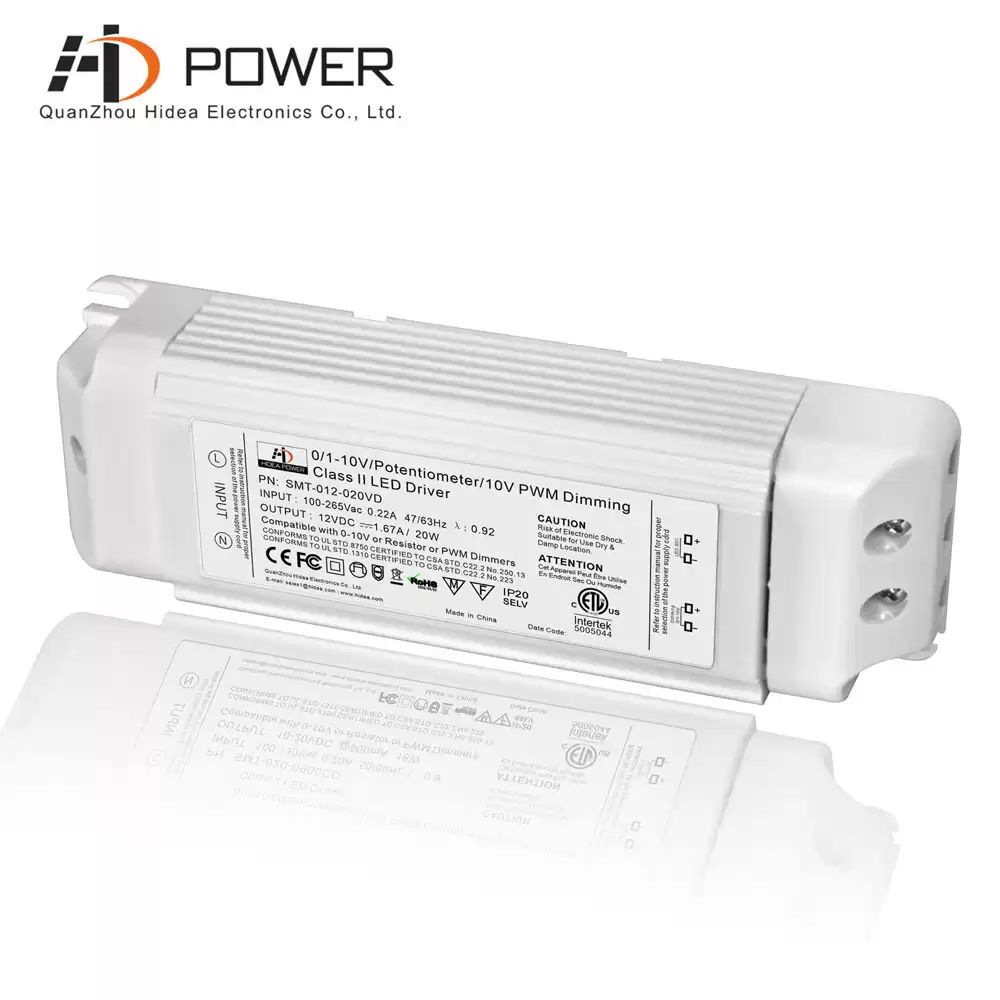

ETL CE 0 10v dimming led driver 12v 24v 20w

This dimming driver 20w is 0-10v dimmable constant voltage power supply,  ETL and CE listed for using in US and EU market, work with DELLUM white led strip.


  • Size140*45*27mm
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)20W
  • Input Voltage100-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming Mode0-10V Dimming
  • Weight160g
  • CertificationETL
  • Warranty5 Years

ETL CE 0 10v dimming led driver 12v 24v 20w


0 10v dimming driver 12v 20w is constant voltage type power supply, without PWM output, 5 years warranty, work well with LUTRON 0-10v dimmers.


  Specification

Model SMT-012-020VD SMT-024-020VD
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 0~1.66A 0~0.83A
Rated power 20W 20W
Input Voltage Range 100~130VAC / 170~265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.90/110V, PF≧0.90/220V
Full Load Efficiency(Typ.)       >88%/110V           >88% 220V
AC Current(Typ.)       0.23A/110V           0.11A/220V
Leakage current ﹤0.7mA/110V, 220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition   is removed
Over voltage ≦280VAC
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+50℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Others Weight 0.16Kg
Size 140*45*27mm(L*W*H)
packing 320*280*215mm/50pcs /CTN   145*50*36mm for inner box
Notes 1. All parameters NOT specially mentioned are measured at 110V,220VAC input , rated load and 25℃of ambient temperature.
2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire   terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Light Type

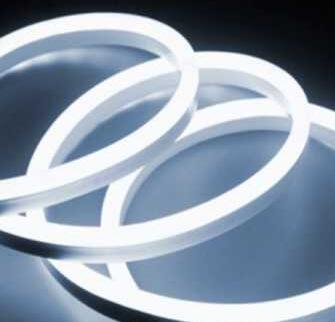

ETL listed led driver 24v 20w indoor plastic IP20 type. widely use in luminare led lighting., work with DELLUM LED IP65 (Waterproof) NEON UL 3014(120) LED Strip White.



  Related Products

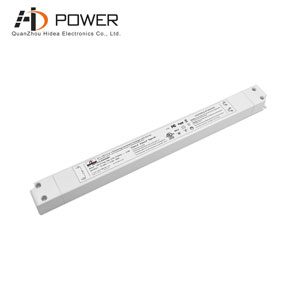

0 10v dimming driver12v 30w slimline type 0-10v dimmable led driver, ip20 plastic type, 7 years warranty.
