ETL CE approved 400w 36v open frame single output switching power supply smps for LED stage lighting industrial

Single output 36V open frame Switching power supply 400W for LED beam lamp lighting and General electronic machinery etc.

Facebook Twitter Pinterest LinkedIn 分享

Description

220Vac to 36Vdc power supply 11A

Description:

K18-UP400S36 model is the 36V 400W power supply with 90-264Vac input voltage with compact size, certificated by CE and ETL, widely used to the stage lights,beauty products and other equipments.

Features:

1, 400W high efficiency 36V single output switching power supply；
2, Built-in active PFC function power supply；
3, 36V 400W power supply with wide range of AC input voltage；
4, It have short circuit, over load, over voltage,over hearting protection;

5, 400W 36V power supply used in LED driver,stage light etc.

Parameter
Item NO.		K18-UP400S12	K18-UP400S24	K18-UP400S28	K18-UP400S36	K18-UP400S48	K18-UP400S60
Output	Output Voltage	+12V	+24V	+28V	+36V	+48V	+60V
	Rated Current	33.4A	16.7A	14.3A	11A	8.3A	6.7A
	Current Range	0-33.4A	0-16.7A	0-14.3A	0-11A	0-8.3A	0-6.7A
	Rated power (natural air cooling)	350W
	Rated power (forced air cooling)	400W	400.8W	400.4W	396W	398.4W	402W
	Ripple	200mVp-p	240mVp-p	280mVp-p	360mVp-p	480mVp-p	600mVp-p
	Adjustable output range	±5%
	Output Accuracy	±1%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Set up,Rise,Keep up time	500ms,50ms,5ms
Input	Input Voltage range	90-264V AC
	Input current	3A @ 220V AC
	Input frequency	47-63 Hz
	Efficiency	90%	92%	93%	93%	93%	93%
	Power factor	>0.99@110V;>0.95@220V
	Inrush current	Cold start 15A/115V，30A/230V
	Leakage Current	<3.5mA@240V AC
Protection	Overload protection	110~200%,Hiccup protection, automatic recovery
	Output overvoltage protection	15-18V	28-33V	32-36V	42-46V	55-60V	70~80V
	Over temperature protection	The case temperature is>105°C, the output is off, and the recovery is automatic.
Others
Environment	Working temperature, humidity	-20~60℃(follow the load shedding curve), 10~90% RH, no condensation
	Storage temperature, humidity	-20~85℃，10~95% RH
	Temperature drift	±0.03%/℃(0~50℃)
	vibration	10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
Safety&EMC Standards	Safety standard	GB4943,EN60950-1:2006
	Withstand voltage	I/P-O/P:3KVAC；I/P-FG:1.5KVAC；O/P-FG:500VAC
	Insulation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
	EMC standard	EN55015 CLASSB; EN61000-3-2
Others	Demension	1278239mm
Others	Weight	0.6Kg
Remarks	1. All parameters 220V AC input, rated load, ambient temperature 25℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output from 0% to 100% load change load measured.

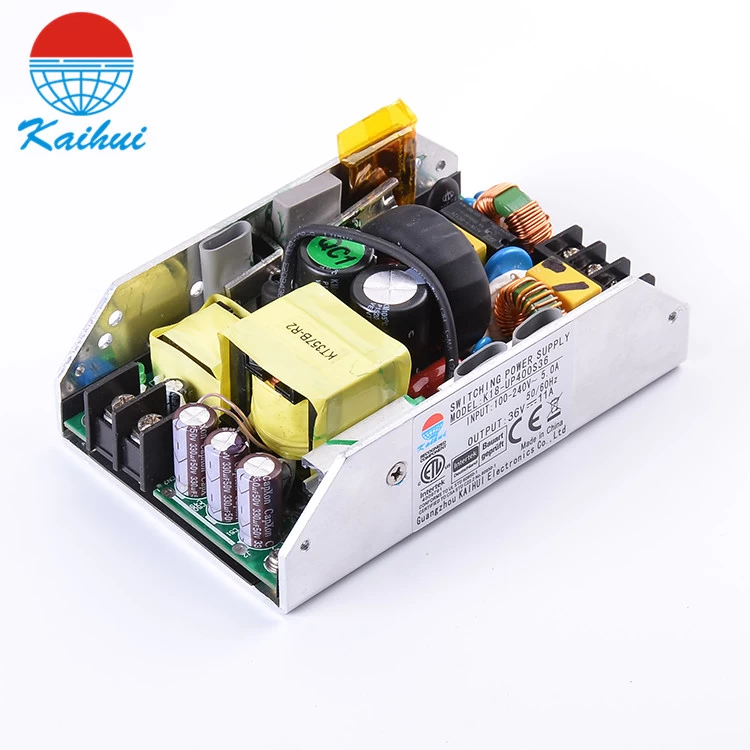

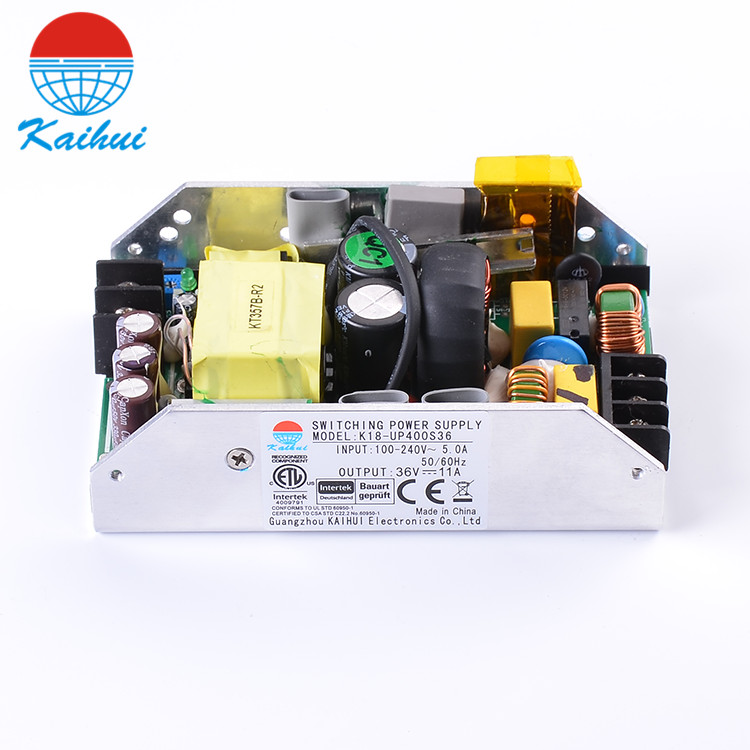

Product picture:

FAQ

Q1. Can I have a sample order for power supply?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: Do you accept OEM/ODM for the switching power supply?

A2: Yes. we do.

Q3:How about the quality?

A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%

Q4:What is PFC?

A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:

Apparent Power=Input Voltage x Input Current (VA)

Real Power= Input Voltage x Input Current x Power Factor (W)
