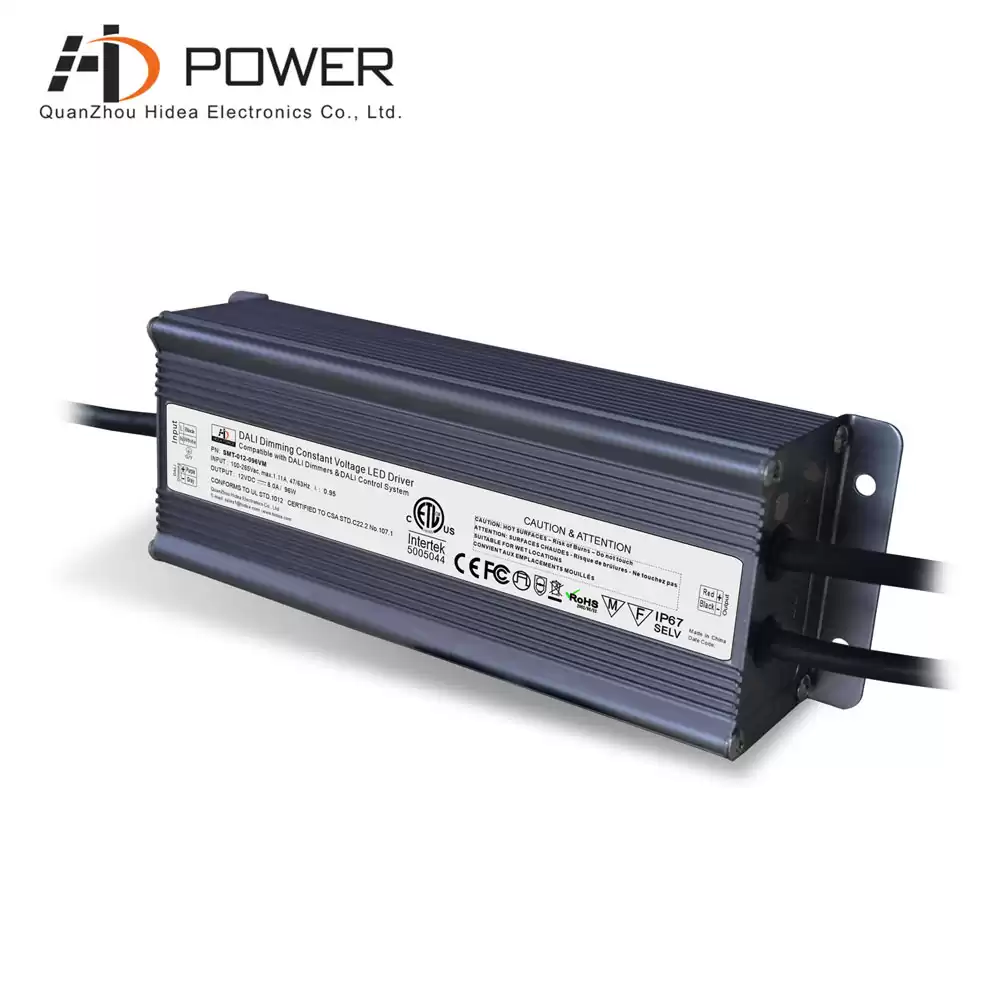

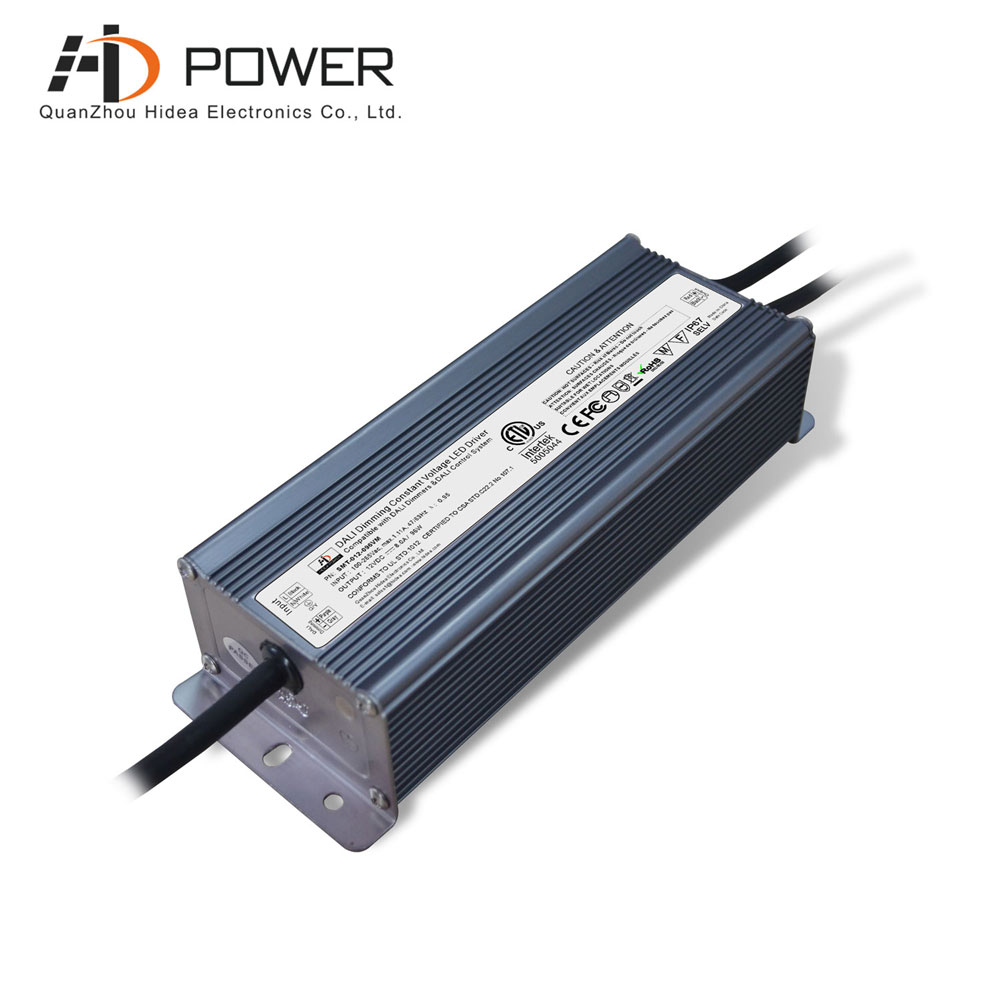

ETL CE Dali dimming 12V 96W waterproof led driver IP67 rated

This dali dimmable led driver operates in 12vdc output and 96watt. For 24vdc, this model can meet Class 2 standard. It is compatible with GLLS LED strips for smooth dimming effect.


  • Size230*69*45mm
  • Shape & SizeStandard Size
  • Output Voltage12/24Vdc
  • Output Power(Watt)96W
  • Input Voltage100-265Vac
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDALI Dimming
  • Weight1300g
  • CertificationETL
  • Warranty5 Years

Smarts 12v 24v dali led driver comply with international ETL/CE/ROHS safety certification. The driver has the feature of simple setting, easy installing and smooth dimming.


  Specification

Model SMT-012-096VM SMT-024-096VM
Output DC Voltage 12VDC 24VDC
Voltage Accuracy ±0.5V
Rated current 0~8.0A 0~4.0A
Rated power 96W 96W
Input Voltage Range 100-265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.90/100V~ 220V
Full Load Efficiency(Typ.)  >88%(110,220V)
AC Current(Typ.)   1.10A@110VAC
Leakage current ﹤0.70mA/110, ﹤0.72mA/220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Current ≦1.4*I out
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment   Working TEMP. -40~+50℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13, IP67
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
Others Weight 1.3Kg
Size 230*69*45mm(L*W*H)
packing 355*215*215mm/10pcs/CTN    240*70*50 mm for inner box
Notes 1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Light Type

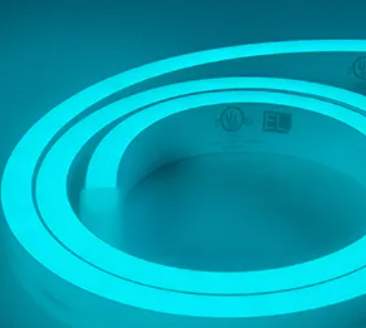

The Dali waterproof led driver is built-in PFC function, and the high power factor is up to 90%. IP67 design for indoor and outdoors applications. With single light, like Environmental Lights LED neon, it performs well.
