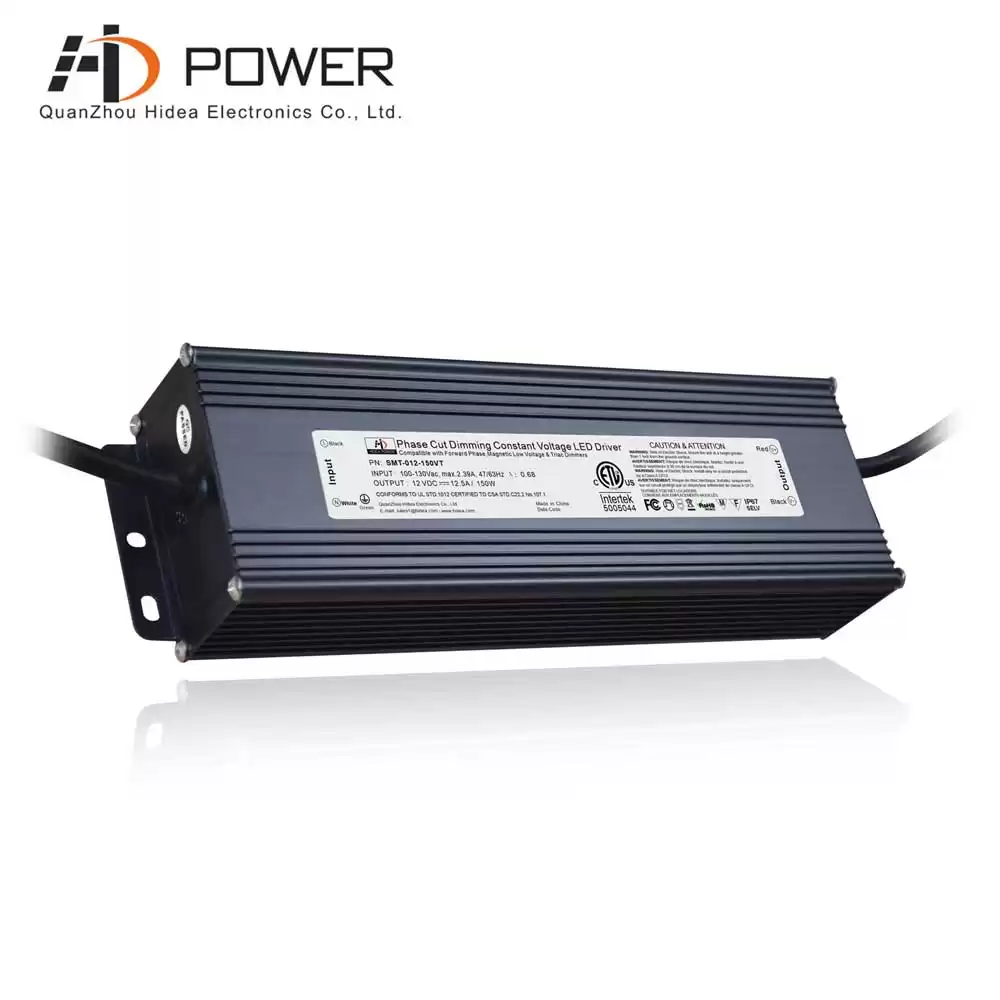

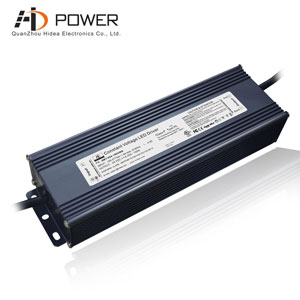

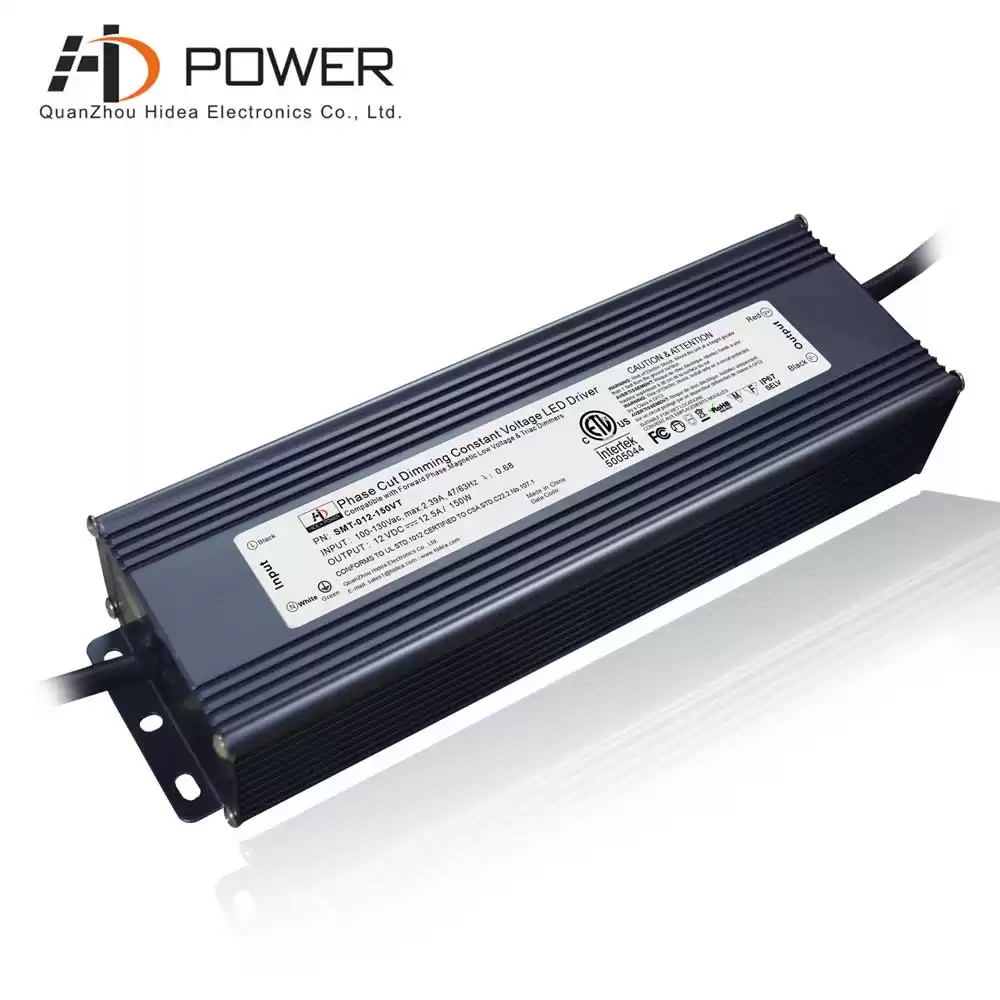

The led driver 24v 150w is 100-130v/170-265v input, which are popular to USA/Europe market, and they are definitely compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers, it's easy for installation and save more time when drive Dia light LED Linear IP67.
Specification
|
Model
|
SMT-012-150VT
|
SMT-024-150VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
12.5A
|
6.25A
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
84%
|
86%
|
|
AC Current(Max.)
|
2.4A
|
2.4A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL1012
|
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge about 4KV)
|
|
Others
|
Weight
|
1.65Kg
|
With junction 2.38Kg
|
|
Size
|
256*78*47mm (L*W*H)
|
406*87*60mm (L*W*H)
|
|
packing
|
305*295*210mm 10PCS/CTN
|
445*350*205mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
Smarts led driver 24v 150w had the protection like overload, over temprature and over current protection, that would be safety when it working with Dia light LED Linear 3,300-7,900 lumens.
