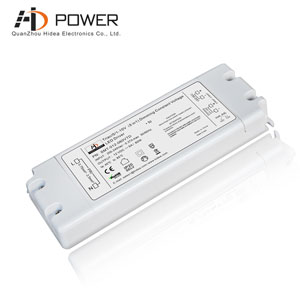

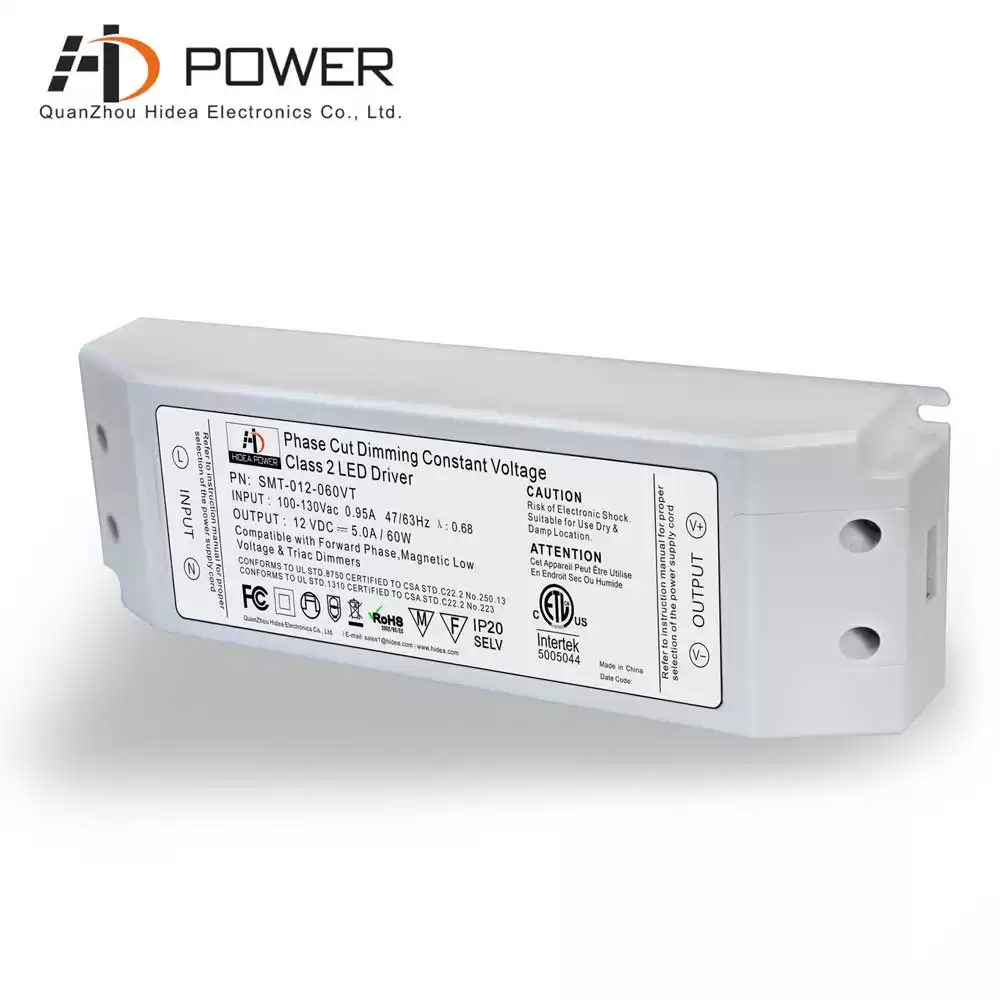

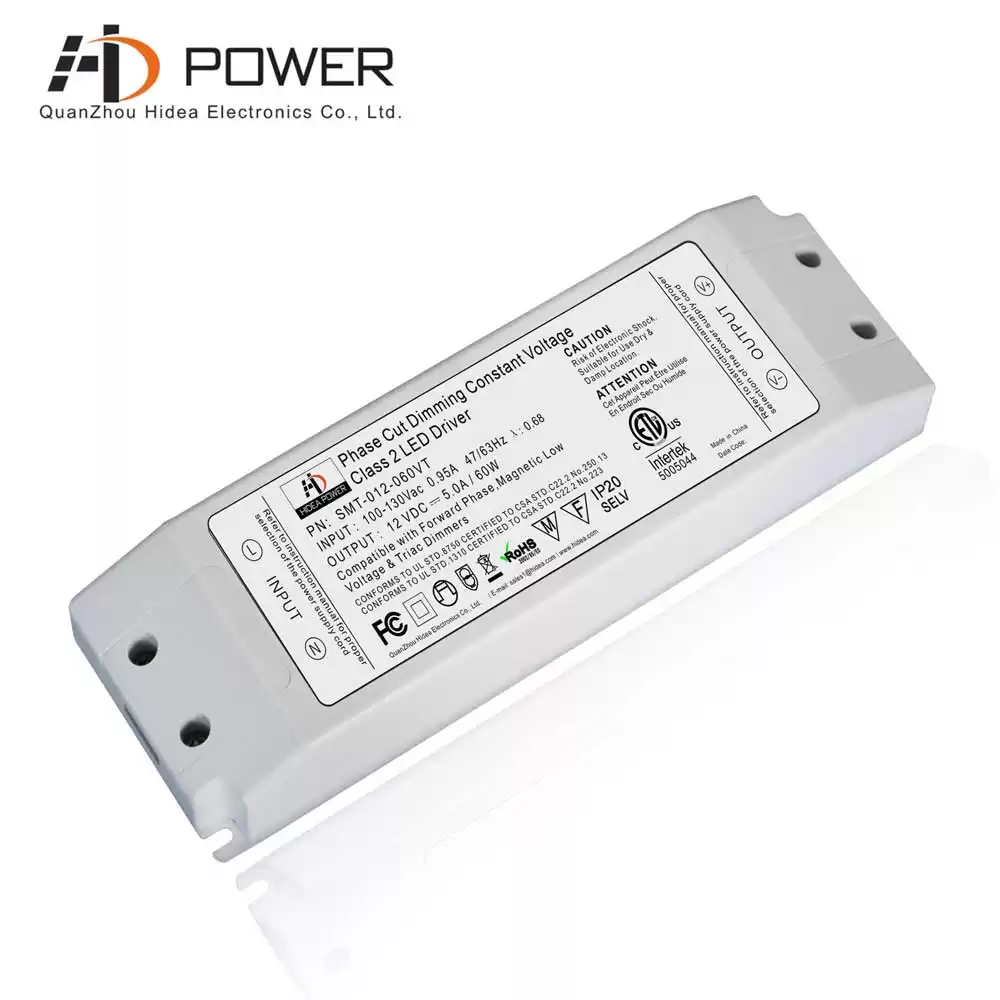

60W TRIAC dimmable led driver input voltage range is 100-130VAC / 170-265VAC constant voltage working mode, working efficiency up to 85%, has passed ETL certification, complies with global safety lighting regulations, and has a five-year warranty
Specification
|
Model
|
SMT-012-060VT
|
SMT-024-060VT
|
|
output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5A
|
2.5A
|
|
Rated power
|
60W
|
|
input
|
Voltage Range
|
100-130VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
85%
|
87%
|
|
AC Current(Max.)
|
1.0A
|
1.0A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750+UL1310 Class 2 unit
|
|
Safety& EMC
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
others
|
Net. Weight
|
1.07kg=0.55(driver)+0. 52kg(JB12-1)
|
|
Size
|
350*77*37mm(L*W*H)
|
|
Packing
|
430*375*190mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 110VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type

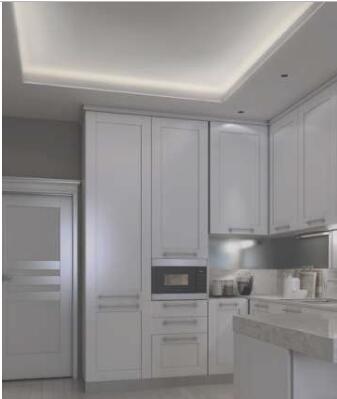

Utilizing the latest energy efficient LED technology, the BAZZ led strip lights integrated LED self adhesive strip will instantly illuminate any space in your home with a soft white light. Use it with led driver 12v 60w to light up shelves, book cases, closets or any counter tops in your home.
