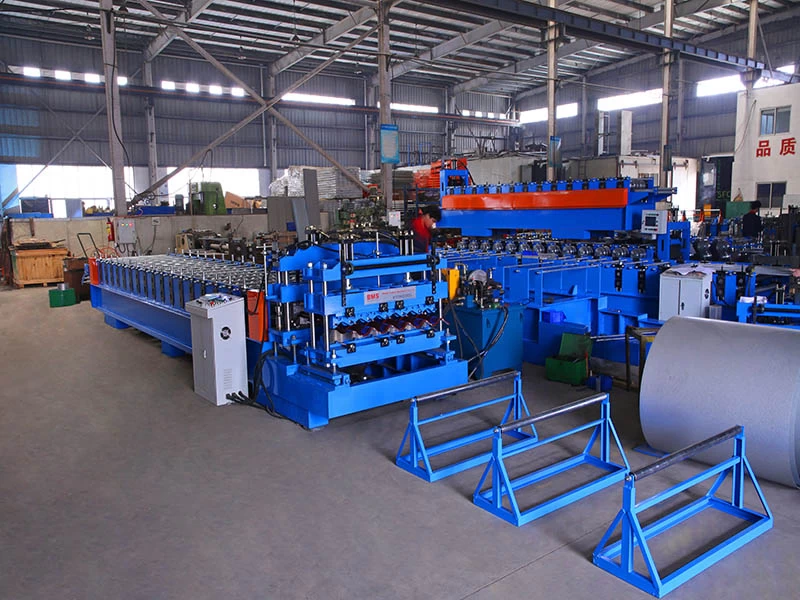

European Type Glazed Tile Roof Machine


No fold and broken happen after pressing.

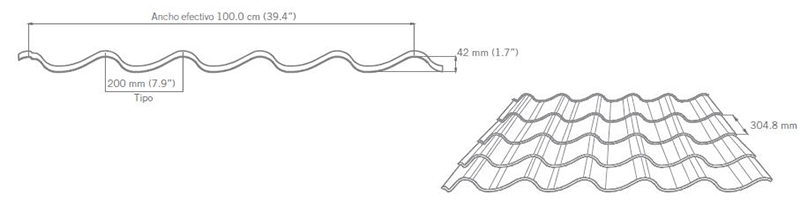

Glazed Tile Roof Roll Forming Machine For YX42-200-1000 Profile



Click here to view the video


Glazed tile roof roll forming machine


Profile



Glazed tile roof roll forming machine



Material

Effective width: 1000mm
Feeding width: about 1219mm
Material Thickness: 0.4-0.6mm
Applicable material:Galvanized Steel(GI),PPGI
With yield strength 235-345Mpa


Work Follow

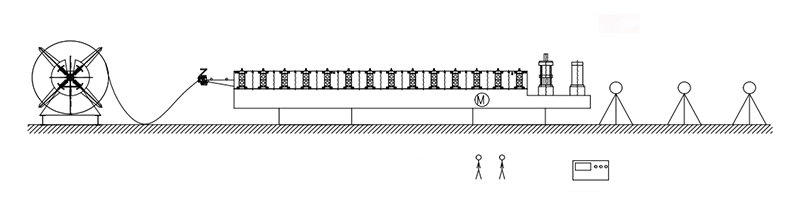

Decoiler→Manual Pre-Cutter→Guide Feeding →Roll Forming System→Hydraulic Post Cutter →Exit Rack


Glazed tile roof roll forming machine


Machine Components


1) Manual Decoiler: one set

Un-powered, Manually control steel coil inner bore shrinkage and stop.Max Feeding width: 1250mm,coil ID range 508mm±30mm.Capacity: Max. 5 Ton.



Manual Decoiler


2) Pre-Cutter

With manual pre-cutter for easy operation and save material:The pre-cutter is connected with PLC control system,PLC is calculating profile length within roll forming. Once material is required to change,PLC is calculating the length for total quantity and remind operator production finishes and able to manual shearing material before roll forming so as to change material for new production.It is the advanced function and good for production to save material, no waste.


Glazed tile roof roll forming machine

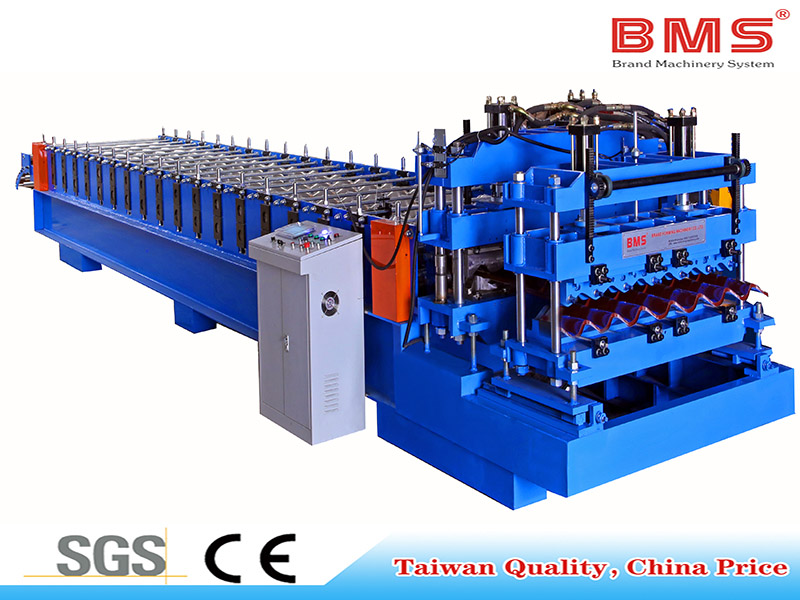

3) Main Machine

With feeding material guide, body frame made from H400 type steel by welding.
Side wall thickness: Q235 t18mm.

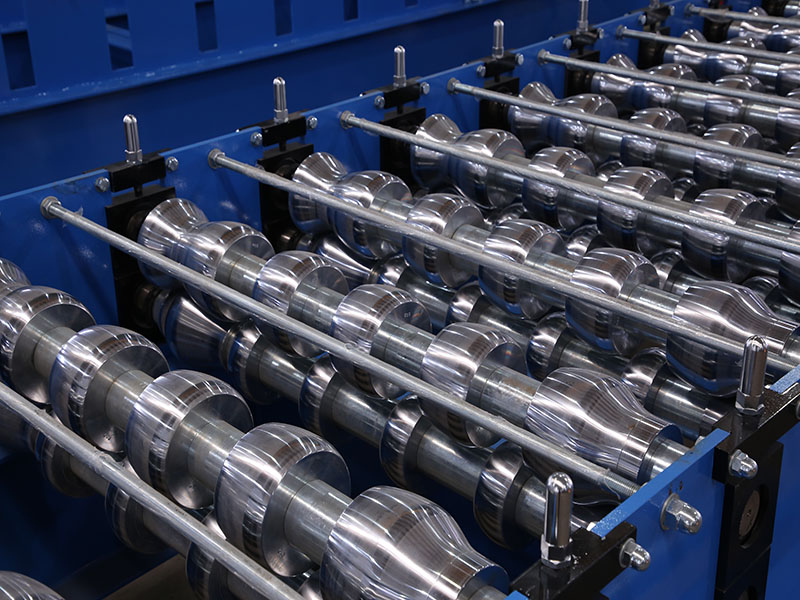

Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated.
with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).
Shafts Diameter=ф75/85mm,precision machined.
Gear/Sprocket driving,about 18-steps to form.
Main Motor=7.5KW , Frequency speed control.


Glazed tile roof roll forming machine

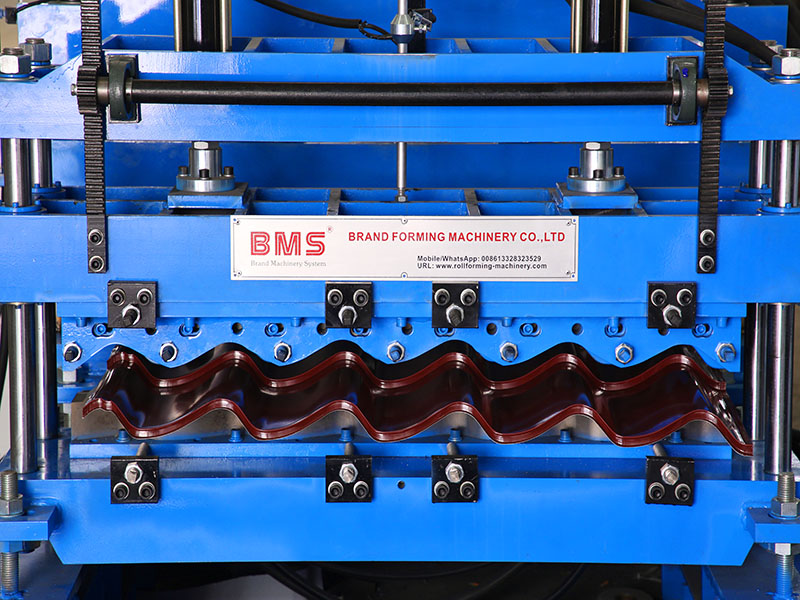

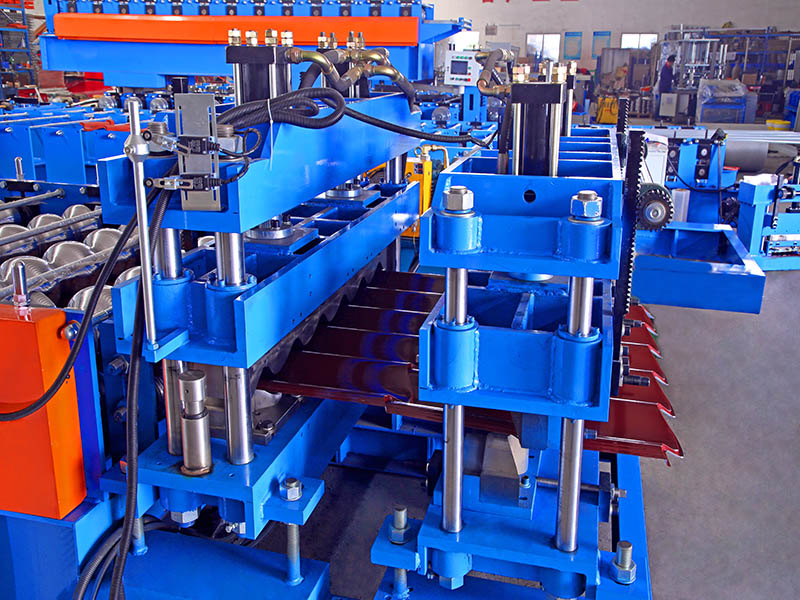

4Hydraulic Stair-Pressing and Cutting Device

2-steps Pressing Method:clamp sheet first, and then press, which No fold and broken happen after pressing, make the finished tile appearance looks beautifu,Stair depth=13mm
Cutter frame made from high quality 20mm steel plate by welding
Stop to press, post cut, stop to cutting, two pieces cutting blades, no blanking cutting, no waste material
Hydraulic motor:5.5KW ;Cutting pressure: 0-14Mpa
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station


Glazed tile roof roll forming machine



Glazed tile roof roll forming machine

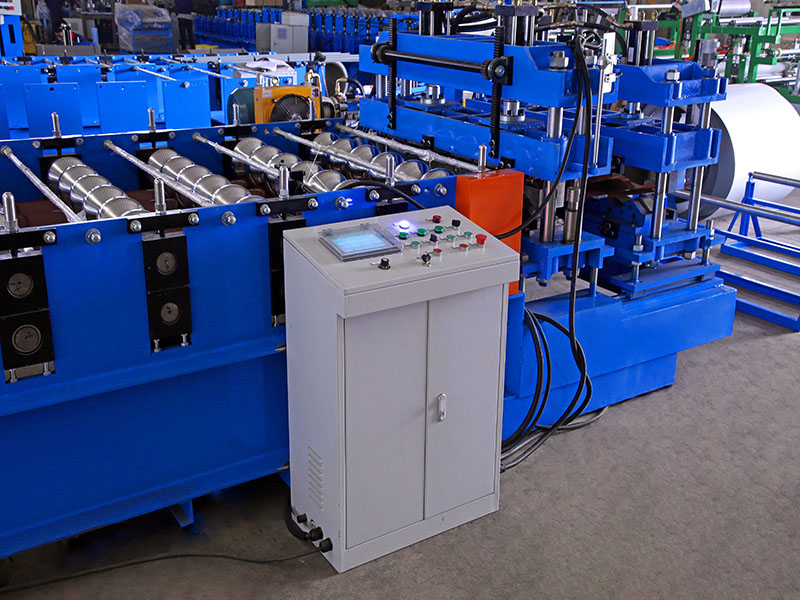

5) PLC Control System

Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Glazed tile roof roll forming machine



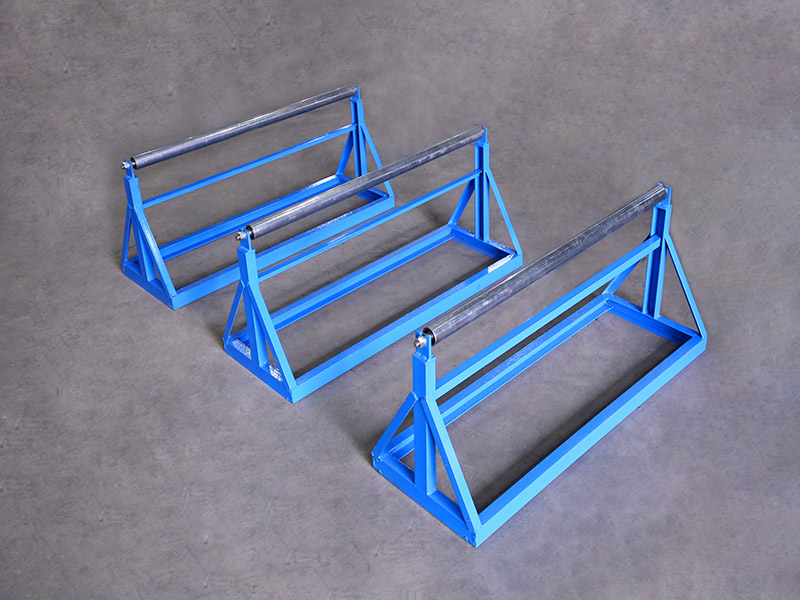

6)Exit Rack

Un-powered, Three units,with rollers on it for easy movement.


Glazed tile roof roll forming machine

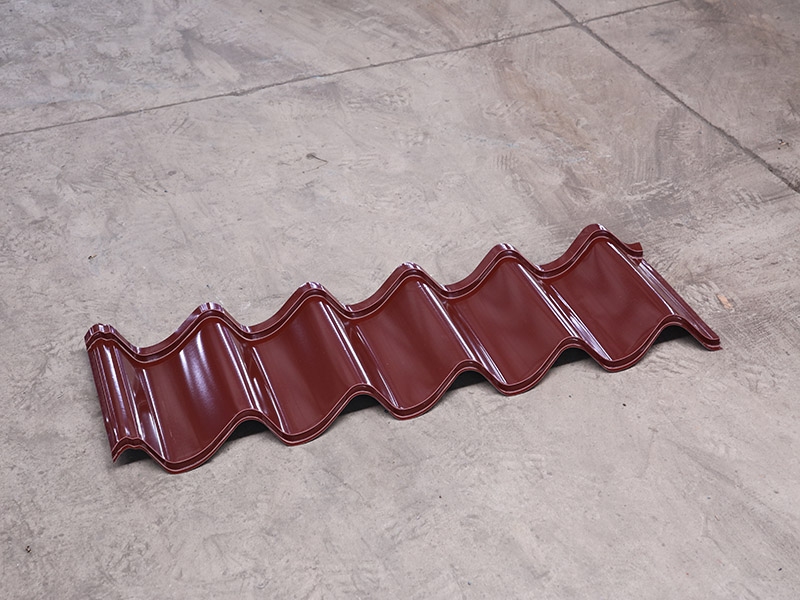

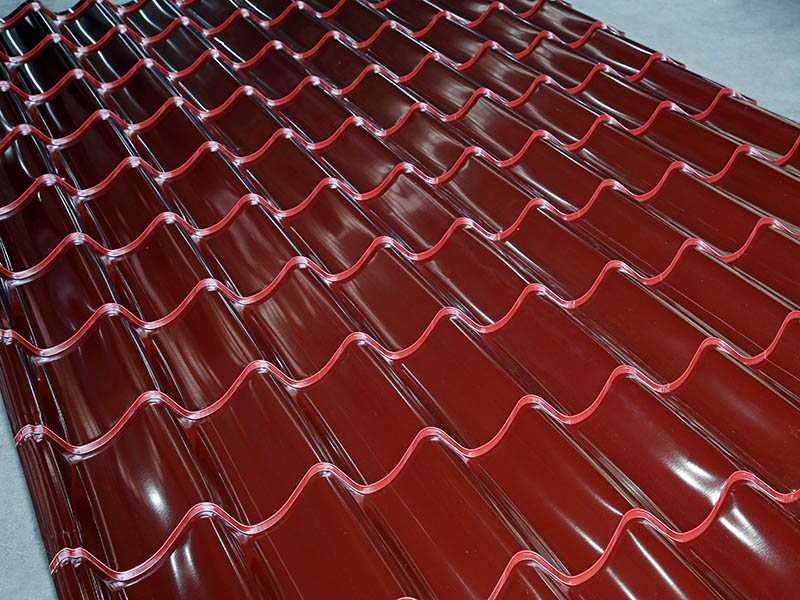

7)Product Show



Glazed tile roof roll forming machine


Glazed tile roof roll forming machine



Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.


Packing Style



After-Sale Service

1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms Of Trade

1.Minimum order quantity (MOQ): 1 Set
2.Delivery time: about 45 workdays
3.Port of loading: port of Xiamen
4.Type of payment: by T/T or by L/C
5.Export:to more than 50 countries and regions, including Taiwan, UK, France, Singapore,
Greece, Australia, USA, Mexico, Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, etc
