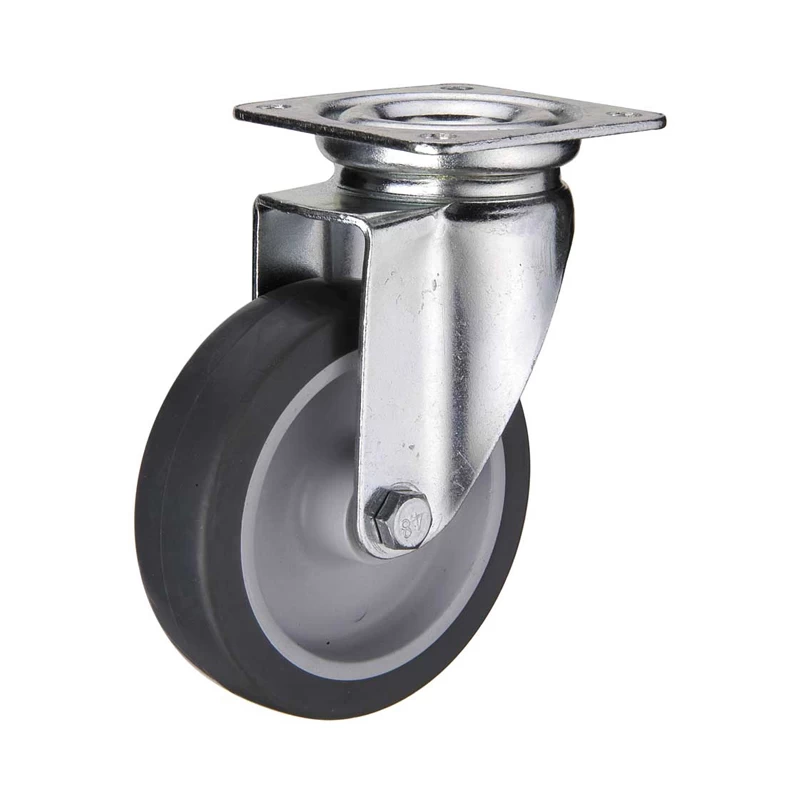

European type TPR top plate swivel caster 2.5 inch
Housing:
Made of pressed steel, zinc plated.
Double ballrace swivel head.
Wheel:
Material: Thermoplastic rubber
Hardness: 80±5 Shore A
Bearing type: Plain bearing
Temperature: -20°C~80°C
(mm)
Item No.
|
Wheel
Diameter
|
Overall
Height
|
Caster
Type
|
Top
plate
|
Hole
Distance
|
Hole
Dia
|
Wheel
Material
|
Weight
Capacity
|
W36060TPR
|
60x22
|
89
|
Swivel
|
60x60x2
|
45x45
|
6.3
|
TPR
|
50 KG
|
W36080TPR
|
80x22
|
108
|
Swivel
|
60x60x2
|
45x45
|
6.3
|
TPR
|
60 KG
|
W36100TPR
|
100x27
|
134
|
Swivel
|
76x70x2
|
60x50
|
8.3
|
TPR
|
70 KG
|
W36125TPR
|
125x27
|
158
|
Swivel
|
76x70x2
|
60x50
|
8.3
|
TPR
|
80 KG
|
Feature of swivel caster wheel assembly:
-
Type available: Swivel / Fixed / Double brake / Bolt hole (with brake) / Threaded stem (with brake).
-
Silent thermoplastic rubber wheel, widely used for indoor products.

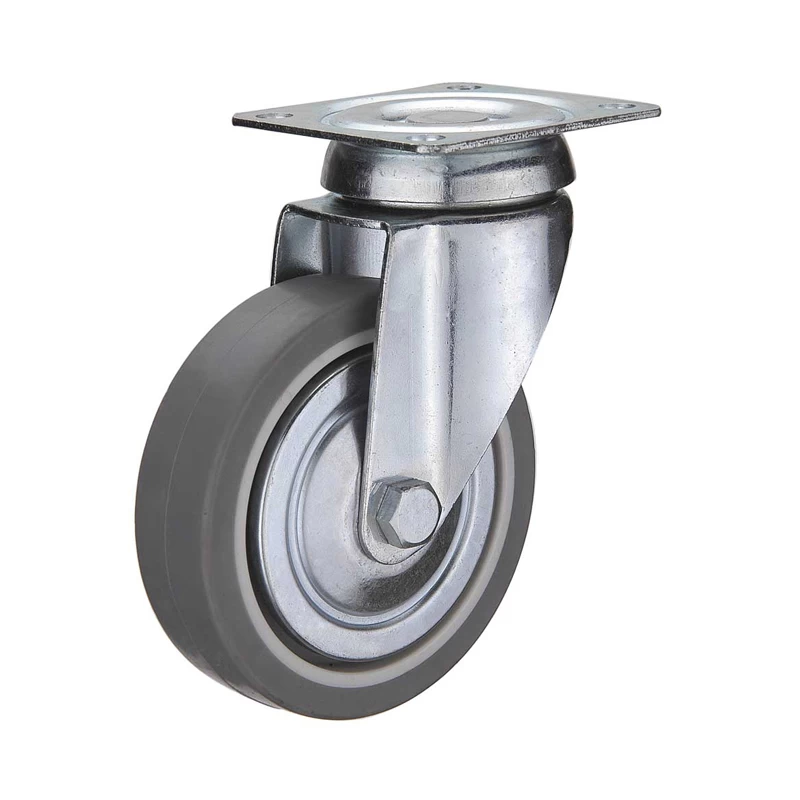

Other option of non marking swivel casters:
Without thread guard
