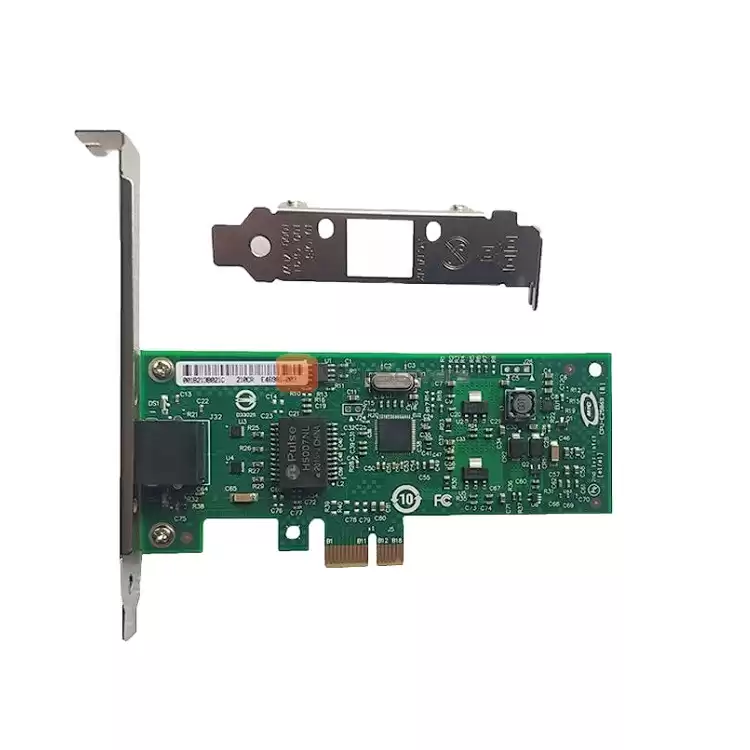

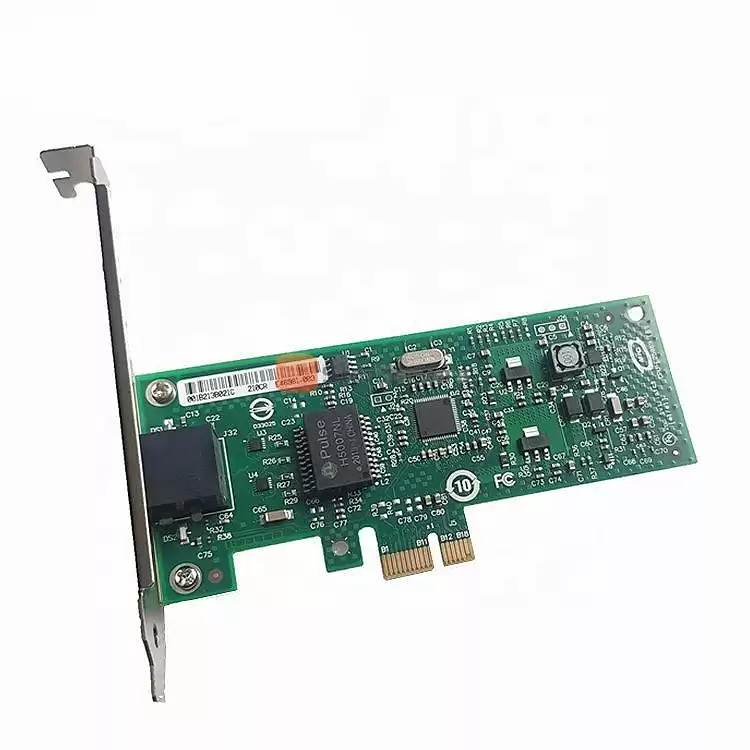

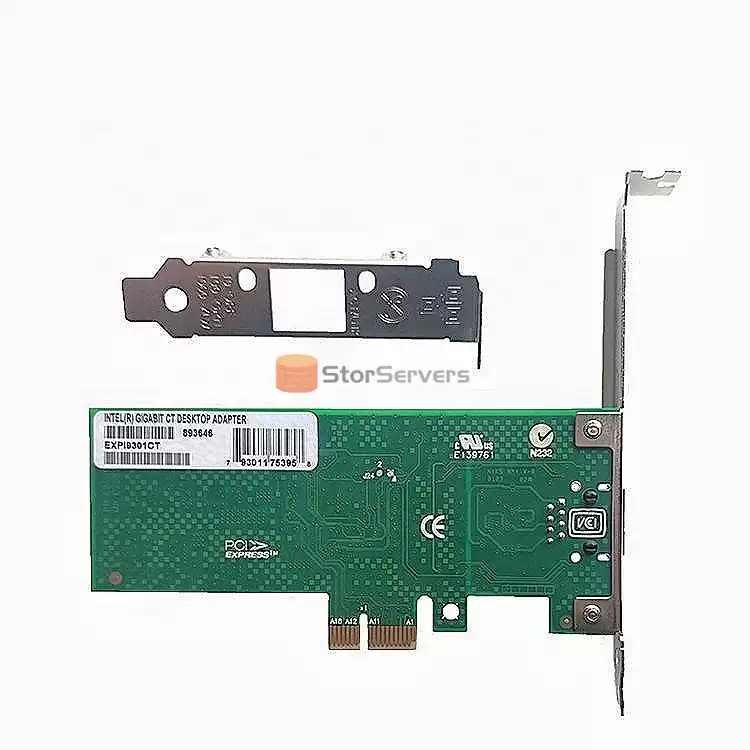

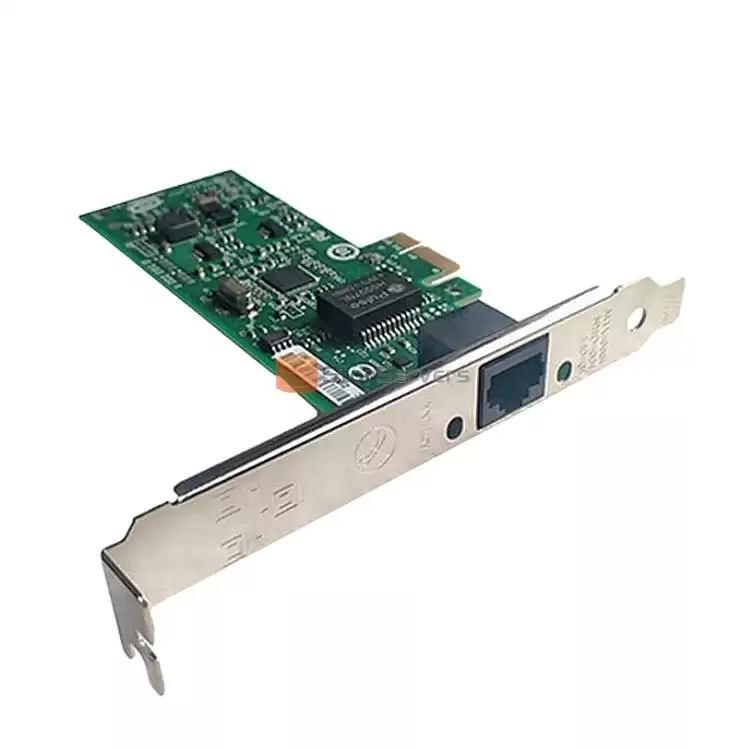

EXPI9301CT 82574L Ethernet Gigabit CT Desktop Adapter
Features
- 82574L Gigabit Ethernet Controller
- Interrupt moderation
- PCI Express* x1 slot compatible
- Compatible with Fast Ethernet and Ethernet
- 10/100/1000 Mbps auto-negotiation
- Support for most network operating systems
- Advanced configuration and power interface(ACPI); Wake on LAN*(WoL); Preboot ExecutionEnvironment(PXE)
- Remote Management Support
- PROSet Utility for Microsoft* Device Manager
- Advanced cable diagnostics
- Benefits
- High performance and reliability; low power
- Delivers increased performance while significantlv reducing CPU usage
- Designed for high performance on PCl Express desktop architecture while maintaining compatibility with PCl applications
- Reduces deployment and training costs and enables easy, quick migrationto Gigabit Ethernet
- Automatically compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks
- Enables widespread deployment
- Enables low-power consumption, remote wake, and remote booting
- Reduces support costs with remote management based on industry-wide standards
- Provides point-and-click power over individual adapters, advanced adapter features,connection teaming, and virtual local area network (VLAN) confiquration
- Dynamically tests and reports network problems (error rate, cable length) and automatically compensatesfor cable issues (cross-over cable, wrong pin-out/polarity)
Specification
| Product P/N |
EXPI9301CT |
| Connectorst |
R45 |
|
Product Codes
|
EXPI9301CT EXPI9301CTBLK |
| Data rate supported per port |
10, 100, and 1000 Mbps |
|
Bus type
|
PCI Express 1.1 (2.5 GT/s) |
| Bus width |
x1 lane PCI Express operable in x1, x4, x8, x16 slots |
| Bus speed (x1, encoded rate) |
2.5 Gbps uni-directional; 5 Gbps bi-directiona |
|
Interrupt levels
|
INTA,MSI,MSI-X |
| IEEE support |
802.3z* |
Hardware certifications
|
FCC B,UL,CE, VCCI,BSML, CTICK,MIC
|
Controller-processor
|
82574L
|
Typical power consumption
|
1.9 W
|
Operating temperature
|
0°C to 55° C(32°F to 131°F)
|
Storage temperature
|
-40°C to 70°C(-40°F to 158°F)
|
Storage humidity
|
90% non-condensing relative humidity at 35°C
|
| Availability |
In Stock |
