F Female to BNC Male 50ohm RF Coaxial Connector Adapter

F Type adapters Features:

  • Allow to interface F connectors with BNC, F, N, RCA, SMA or UHF connectors;
  • Has female to female, female to jack, female to male, female to plug, male to female, male to jack, male to male or male to plug gender combinations;
  • Has bulkhead or mountless configurations;
  • Has standard or Push-On interfaces;
  • Has straight or right angle versions;
  • Standard or high performance designs.

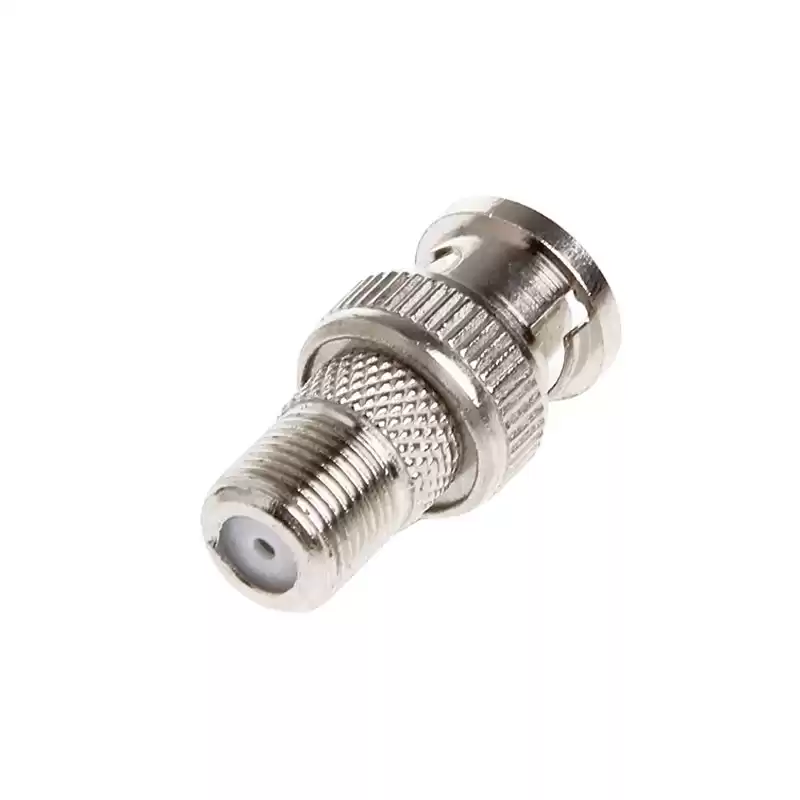

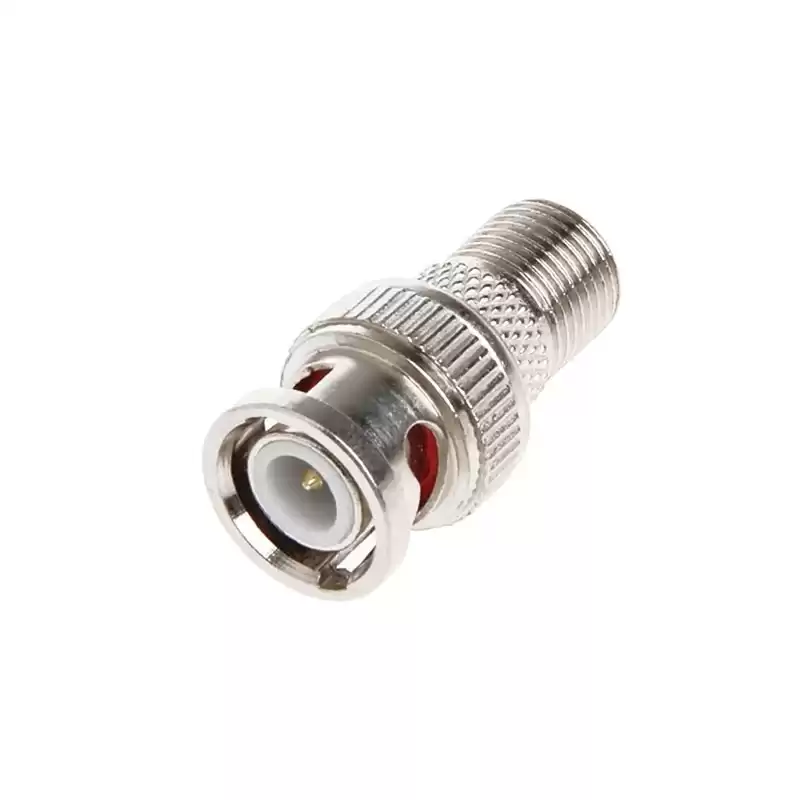

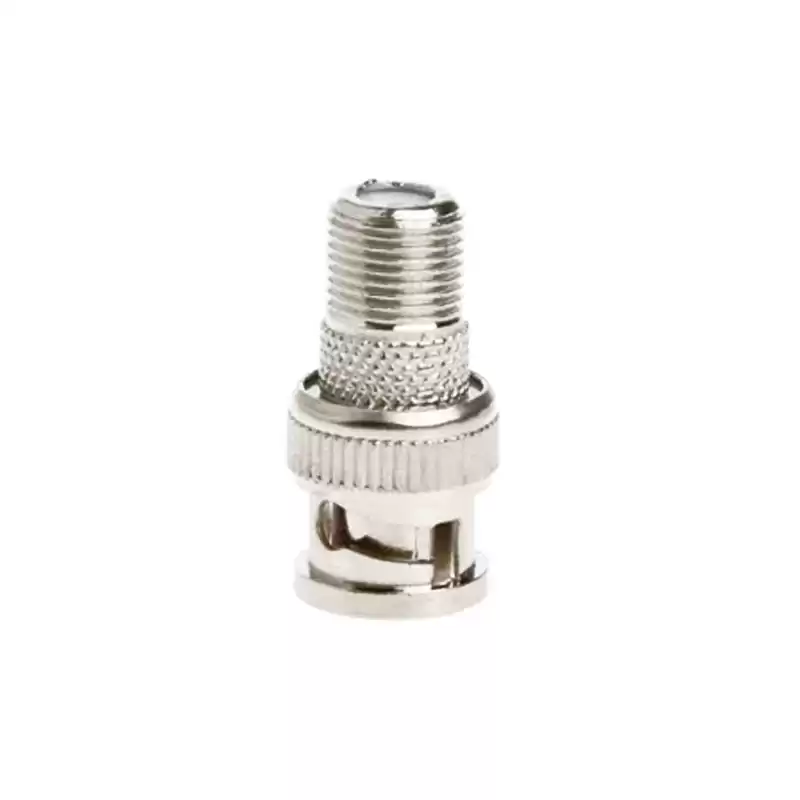

F Female to BNC Male 50ohm RF Coaxial Connector Adapter



The F Type Adapter has different F to BNC adapter gender, that is a between series coaxial adapter, The F to BNC adapters has female to female, female to male or male to female gender combinations. This F Type female to BNC male adapter has a maximum frequency of 3GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series F
Adapter Side 1 Style Female
Adapter Side 2 Series BNC
Adapter Side 2 Style Male
Frequency (Max GHz) 3GHz
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass/Zinc Alloy
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Antennas DAB Aerial Adapter
  • Coaxial Cables
  • Radio Scanners
  • Ham Radio Transceivers
  • CB Radio Handheld&Amateur Radio Transceivers
  • CB Radio Handheld&Amateur Radio
