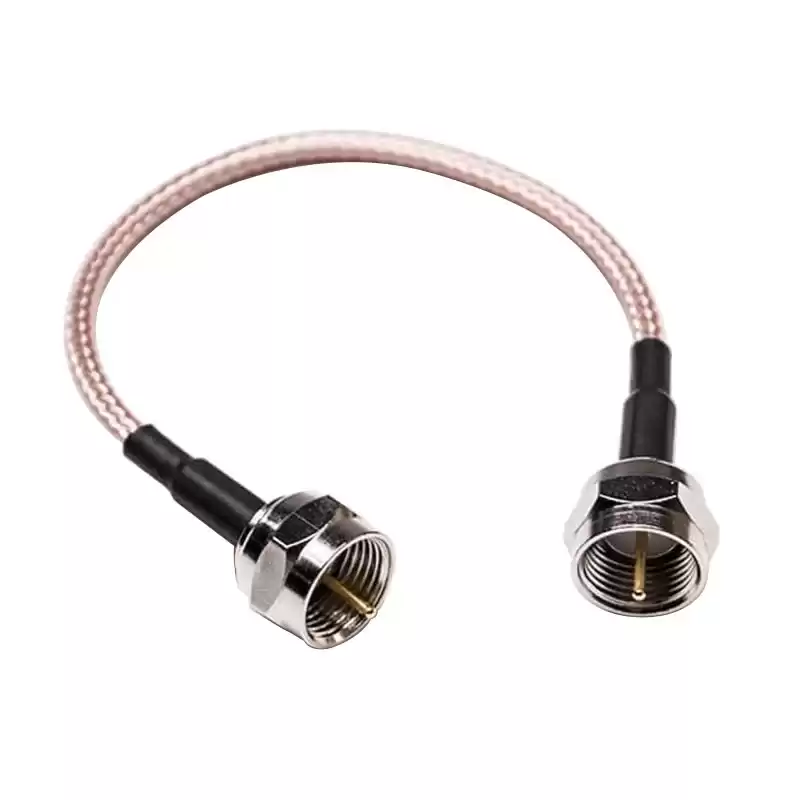

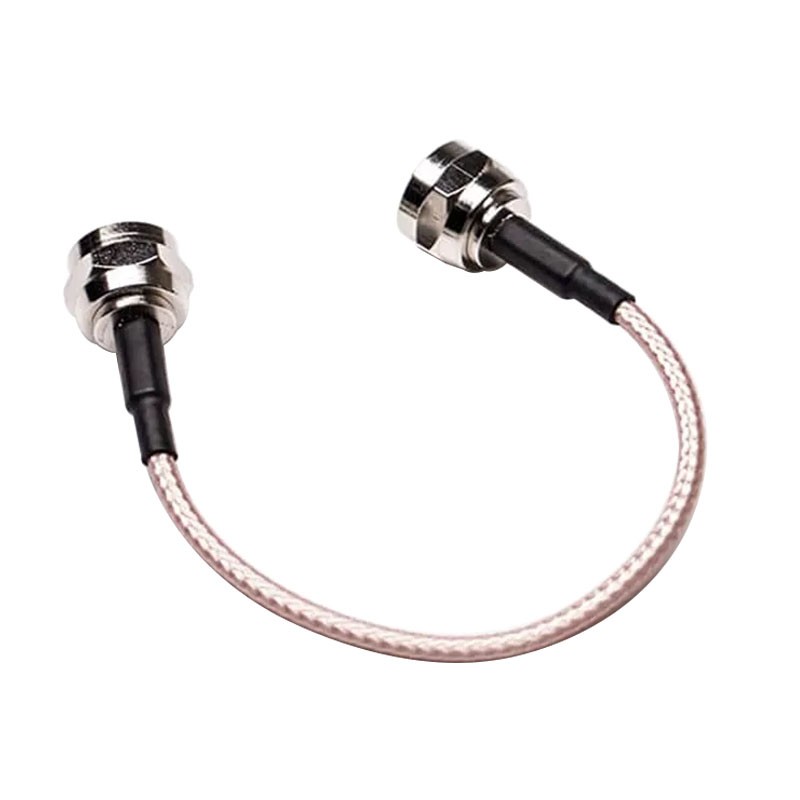

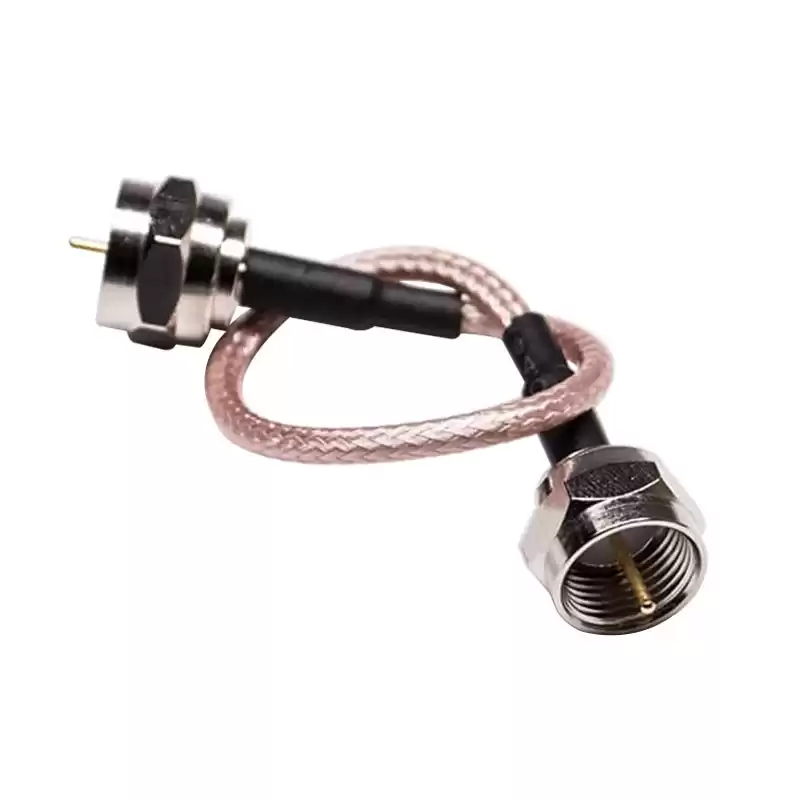

F Type Male to F Type Male Connector Cable Assembly with RG316 Coax Cable

F Type Cable assembly Features:

  • Can be combined with BNC, SMB, F or N connector;
  • Body Can be bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use flexible cable.



F Type Male to F Type Male Connector Cable Assembly with RG316 Coax Cable



The Type F cable assembly can use flexible coaxial cable such as RG11, RG179, RG187, RG59, RG6 or RG6-CATV cable; the body of F to F cable assembly is right angle or straight connector which is female to female, male to female or male to male gender. This F male to F male cable assembly uses a 75ohm straight type F for connector 1 and a 75ohm Straight F for connector 2, Cable is flexible cable type RG316.



Specifications


Connector 1 Series F
Connector 1 Style Str Male
Cable Type RG316
Connector 2 Series F
Connector 2 Style Str Male
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50 or 75
Low PIM No
Max Frequency 3GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material Brass
Body Finish Nickel/Ternary alloy
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Radio Scanners
  • Antennas DAB Aerial Adapter
  • CB Radio Handheld&Amateur Radio Transceivers
  • Ham Radio Transceivers
  • CB Radio Handheld&Amateur Radio






Product Tags F Male to F Male Cable Assembly          F Male to F Male Connector Assembly          F to F Cable Assembly          F to F Coaxial Cable Assembly          F to F Connector Assembly          F Male to F Connector Assembly
