F22.50 Spring Hammer Impact Testing

ZLT-CJ3, Universal model ,test the mechanical integrity of product enclosures, according to IEC60068-2-75 Ehb, EN, UL, CSA and other international Standards



F22.50 Spring Hammer Impact Testing


Modle : ZLT-CJ3 , equivalent to PTL Model No. F22.50

Adjustable models with five impact energies of 0,20 J± 0,02 J, 0,35 J±0,03 J, 0,50J±0,04J, 0,70 J±0,05 J and 1,0 J±0,05 J, mass of striking element is 250 g.


Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC60068-2-75 Ehb, EN, UL, CSA and other international Standards.


Product Details

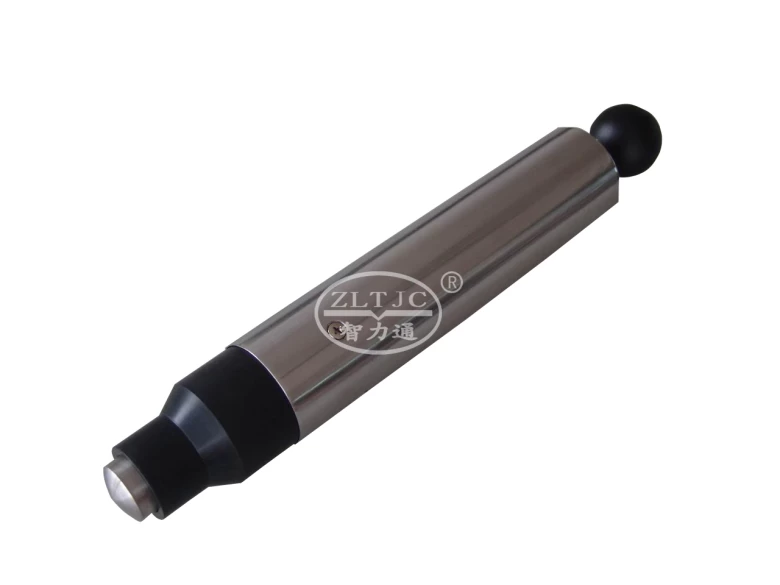

Body: Includes release mechanism and striking element guide, mass 1250 g, outside diameter 50mm.
Striking element: With cocking knob and with hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g, length approx.310mm.
Release Cone: mass 60 g, release force ≤10N.
Impact Force: Single force and adjustable models available in impact energies of 0.20, 0.35, 0.50, 0,70 and 1,0 J, mass of striking element is 250g.

Custom padded carrying case included.





  Model:ZLT-CJ1:Single impact energy models(0,14J ±0,014 J, 0,20J± 0,02J, 0,35J ±0,03 J, 0,50J±0,04 J, 0,70J±0,05 J or 1,0 J±0.05 J, select)


Model:ZLT-CJ2:Impact energy of 2J±0,1J,mass of striking element is 500g, hammer heads made of steel with r=25 mm, 10 N release force.



 Model:ZLT-CJ5: Impact energy of 5 J±0,25 J, mass of striking element is 1.7 kg, hammer heads made of steel with r=25 mm, 10 N release force.




Conforms To: IEC60068-2-75 Test Ehb, IEC60065, IEC60335-1, IEC60598-1, IEC60745-1.



For lighting luminaire, impact hammer is also used for each level of IK rating according to IEC 60598:

Degrees of protection against external mechanical impacts



IK01

IK02

IK03

IK04

IK05

IK06

IK07

IK08

IK09

IK10

0.14J

0.2J

0.35J

0.5J

0.7J

1J

2J

5J

10J

20J
