Fabric Roll Packaging Film for Automated Wrapping & Moisture Protection

This Fabric-Specific Packaging Film is a high-performance packaging material developed to address the core challenges in the storage and transportation of fabrics within the textile industry. Featuring a unique formula design, it combines three core advantages: high conformability, strong protective properties, and ease of operation. It not only provides comprehensive protection for fabric quality but is also fully compatible with various automatic packaging machines. It is widely suitable for packaging roll materials such as woven fabrics, knitted fabrics, and chemical fiber fabrics.



Facebook Twitter Pinterest LinkedIn 分享
Core Product Characteristics

Manufactured using state-of-the-art three-layer co-extrusion blown film technology, this product features a precision temperature control system and online gauge measurement. This ensures a thickness tolerance within ≤±5%, guaranteeing consistent tensile strength and adhesion across the entire roll.

During the melting phase, high-shear compounding technology creates a homogeneous blend of additives and the polyethylene base, significantly enhancing toughness and puncture resistance. The surface is treated with a specialized plasma modification process (Corona treatment) to optimize self-adhesion without leaving adhesive residue, meeting the stringent standards of high-cleanliness industries. Finished rolls are wound using constant tension control to prevent telescoping or deformation, ensuring smooth runnability in downstream applications.

Core Pain Points & Solutions

Fabric Packaging Challenges Our Solution Outcome
Load Stability Addresses poor fixation of loose or irregular rolls that are prone to shifting. Integrated wrapping design adapts to various roll shapes, providing superior load containment.
Contamination (Moisture/Mildew) Hermetic sealing capability to isolate goods from ambient moisture and dust. Keeps fabric clean and dry, effectively preventing mildew and water damage.
Transit Damage & Edge Wear High-conformity wrapping secures the roll structure tightly. Preserves the integrity of the fabric roll, significantly reducing edge damage during logistics.
Production Technology:

Material Formulation: The inner layer utilizes a PE/EVA resin blend for superior flexibility and cling. The core layer employs Metallocene LLDPE combined with a specialized anti-puncture masterbatch to maximize protective strength. The outer layer features HDPE with weathering-resistant additives to enhance abrasion resistance and anti-aging properties.

Functional Modification: We incorporate a proprietary anti-block additive. Through molecular-level engineering, the film's cutting performance is optimized, fundamentally resolving issues of blade residue build-up and "angel hair" (filament) formation.



Performance Comparison

Comparison Dimension Our Fabric-Specific Film Traditional Materials (Standard Film/Kraft Paper)
Automation Compatibility Proprietary formula prevents blade sticking and fibration; uniform gauge ensures smooth feeding; perfectly compatible with high-speed automatic wrappers. Prone to gumming up blades, film breakage, and slippage; results in frequent machine downtime and maintenance.
Protective Performance Excellent moisture/dust barrier; high puncture/abrasion resistance; stable performance from -30°C to 60°C. Kraft paper absorbs moisture; standard films have higher vapor transmission rates and weaker puncture resistance.
Cost Efficiency High stretch ratio means less film per roll; non-stick properties reduce tool wear and cleaning costs. Low stretch ratio increases material consumption; blade residue causes rapid tool wear and costly downtime.
Packaging Throughput Designed for automated lines, ensuring jam-free operation and maximum output speed. Often relies on manual packing or suffers from poor automation compatibility, reducing overall efficiency.

Customization Options

Tailor the film specifications to your exact requirements

⚡
Functional Additives Enhance performance with UV Stabilizers (for outdoor storage), Anti-Static agents (ESD), or VCI (Anti-Corrosion) technology.
?
Custom Printing Rotogravure printing available for corporate logos, branding, or handling instructions directly on the film.
?
Color Options Available in Transparent (Clear), Blue (Protective), Black (Security/Opaque), or custom colors to match your brand.
?
Size & Gauge Fully customizable Thickness (30-100μm), Width (up to 2500mm), and Roll Length to fit your machinery.



Fully Integrated Manufacturer: Quality Control from Resin to Finished Product

1. Material Consistency
We meticulously source virgin polymer resins, guaranteeing superior quality and consistency starting from the raw material stage.

2. Advanced Manufacturing:
Our state-of-the-art extrusion and production lines are equipped with rigorous testing for UV resistance, tensile strength, and puncture resistance.

3. Quality Assurance:
From film blowing to final winding (and converting), every roll undergoes strict inspection to meet ISO safety and performance standards.

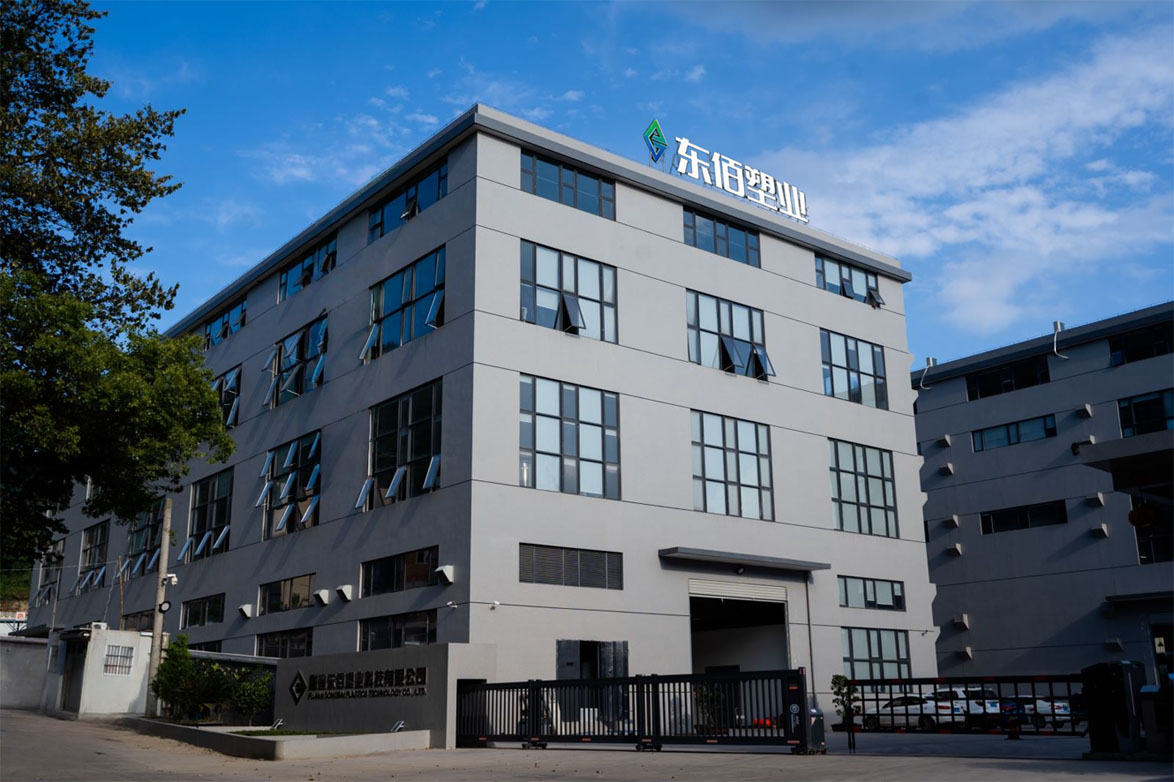

Factory Vertical Integration

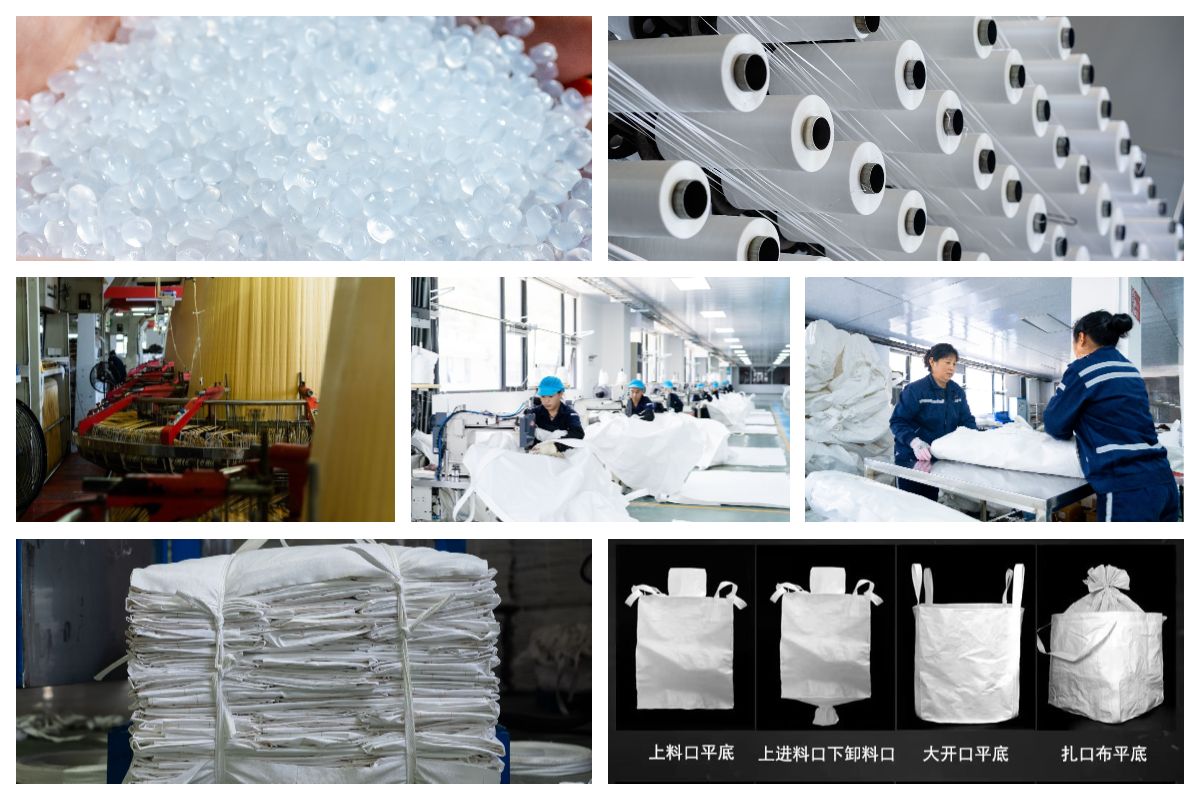

Production Process Visualization

Production Process



Next Product
Prev Product
Product Tags Moisture Barrier Film For Fabric Rolls          Automated Wrapping Film For Textile Rolls          Anti Mildew Packaging Film For Textiles          Dust Protection Film For Fabric Packaging          Water Resistant Packaging Film For Fabrics          Sealed Packaging Film For Fabric Rolls
