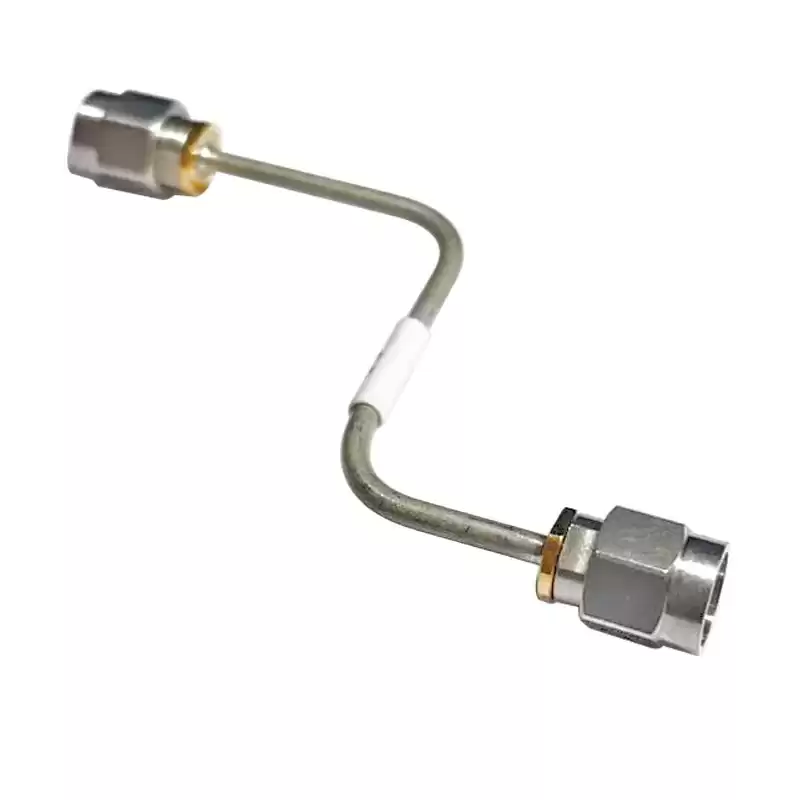

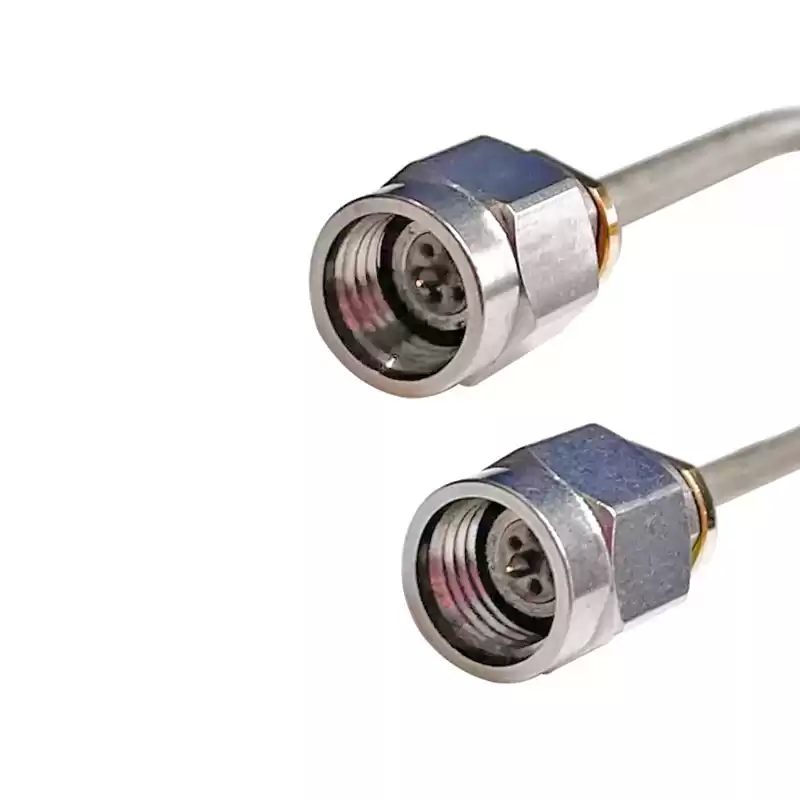

Factory Customizable 2.92mm Male to 2.9mm Male Connector Cable Assembly with Semi-Rigid RF Coaxial Cable
The 2.92mm cable assembly can use flexible, formable or semirigid coaxial cable such as RG405, RG402 Cable; the body of 2.92mm to 2.92mm cable assembly is straight connectors which is female to female, male to female or male to male gender. This 2.92mm male to 2.92mm male cable assembly uses a 50ohm straight 2.92mm for connector 1 and a 50ohm straight 2.92mm for connector 2, Cable is 50ohm semi-rigid Cable.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
2.92mm |
| Connector 1 Style |
Str Male |
| Cable Type |
Semi-Rigid Cable |
| Connector 2 Series |
2.92mm |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
40GHz |
| Working Temperature |
-65°C to +165°C |
| ELECTRICAL DATA |
|
Body Material
|
Stainless Steel |
Body Finish
|
Passivated |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- VNA network analyzer
- RF and microwave test instrument
- production line test
- ATE system
- laboratory
