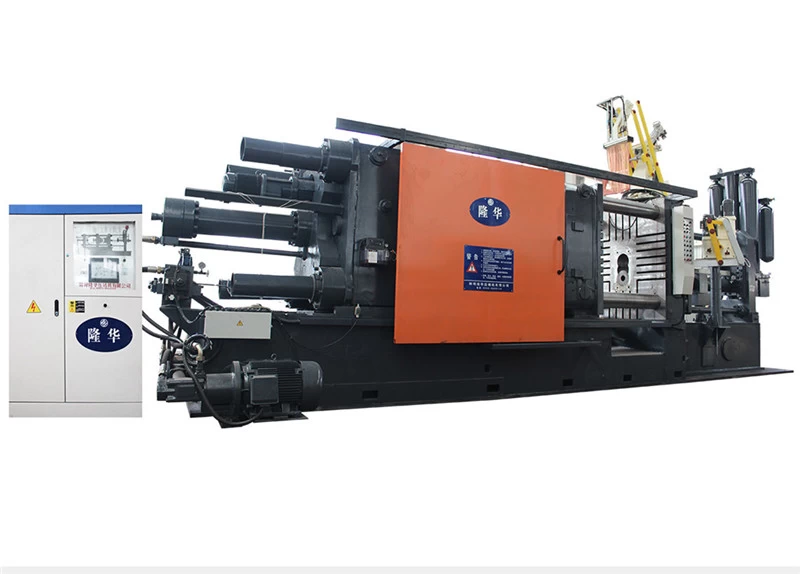

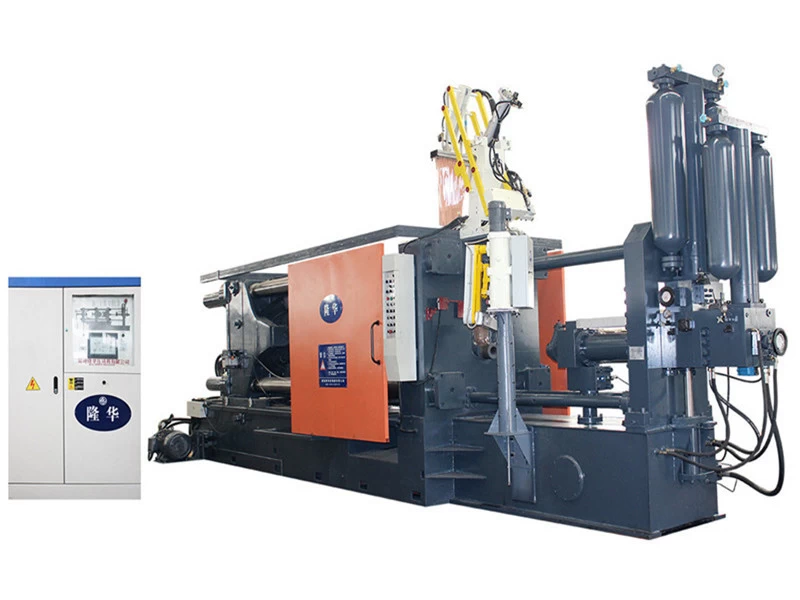

Factory Directly Sell aluminium alloy die casting machines(LH-1300T )

The die casting machine has a perfect die casting control system.



Product Item


Factory Directly Sell aluminium alloy die casting machines(LH-1300T )






Types of die casting machines

We sell aluminum die casting machines



LH SERIES OF STANDARD PARAMETER TABLE (LH-1300 T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

16

CLAMPING FORCE

KN

13000

SPACE BETWEEN TIE BARS

MM

1100*1100

TIE BAR DIAMETER

MM

¢230

DIE OPENING STROKE

MM

1000

INJECTION FORCE(INTENSIFY)

KN

1075

PLUNGER LAUNCH DISTANCE

MM

320

INJECTION POSITION

MM

--160  --320

PLUNGER DIAMETER

MM

¢100----¢140

INJECTION STROKE

MM

880

CASTING PRESSURE (INTENSIFY)

MPA

137---70

CASTING FIANGE PROTRUSION

MM

25

CASTING FIANGE DIAMETER

MM

240

MAX CASTING AREA UNDER 40MPA

CM

3125

INJECTION WEIGHT(AL)

KG

25.4

DIE HEIGHT(MIN--MAX)

MM

450~1180

EJECTOR FORCE

KN

570

EJECTOR STROKE

MM

200

MOTOR CAPACITY

KW

30*2

MACHINE DIMENSIONS  (L*W*H)

M

11.8*3.7*4.2

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

75

OIL TANK CAPACITY

L

2800



PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE


Characteristics of Horizontal Cold ChamberDie Casting Machine

1.Thisdie casting machineis suitable for die-casting of various non-ferrous alloys and ferrous metals (not common at present);

2.Die casting machinemodels are available;
3.Thedie casting machinehas the advantages of few operation, high efficiency and easy automation;
4.The injection position ofdie casting machineis easy to adjust, which can adapt to the opening of eccentric gate, or the center gate;

5.The injection system ofdie casting machinehas high technical content;

6.The classification and segmentation of the injection process of the die casting machine are obvious and easy to be realized. which can meet the different requirements of the die casting process to a large extent, and adapt to the production of various types and requirements of the die casting;
