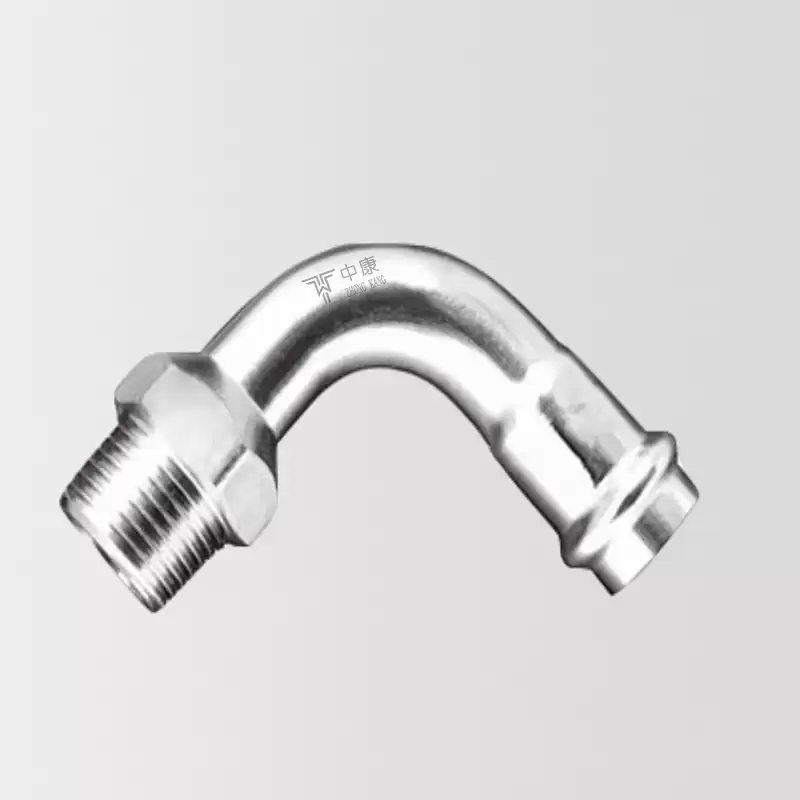

Elbow90° With Male Threaded End is often used to change the direction of the pipeline by 90 degrees, with one press end, and the other female thread of valve or other fitting.
The ZHONGKANG Press fitting System in stainless steel is the ideal solution for installing drinking water systems as the AISI 316L/304L stainless steel used is completely hygienic and highly corrosion resistant. Easy and fast installation with simple press tools can save time and improve job productivity and profitability.Its reliable, high-quality components also make it suitable for heating, cooling, compressed air and fire-extinguishing systems in the civil, industrial and marine sectors.
The o-ring gaskets, made of black EPDM, are resistant to aging, heat and chemical additives and are therefore particularly suitable for all types of treated water.
Conditions of usage:
- Maximum operating pressure: 16 Mpa
- Operating temperature: -20 °C +85 °C
- Maximum temperature: 120 °C
