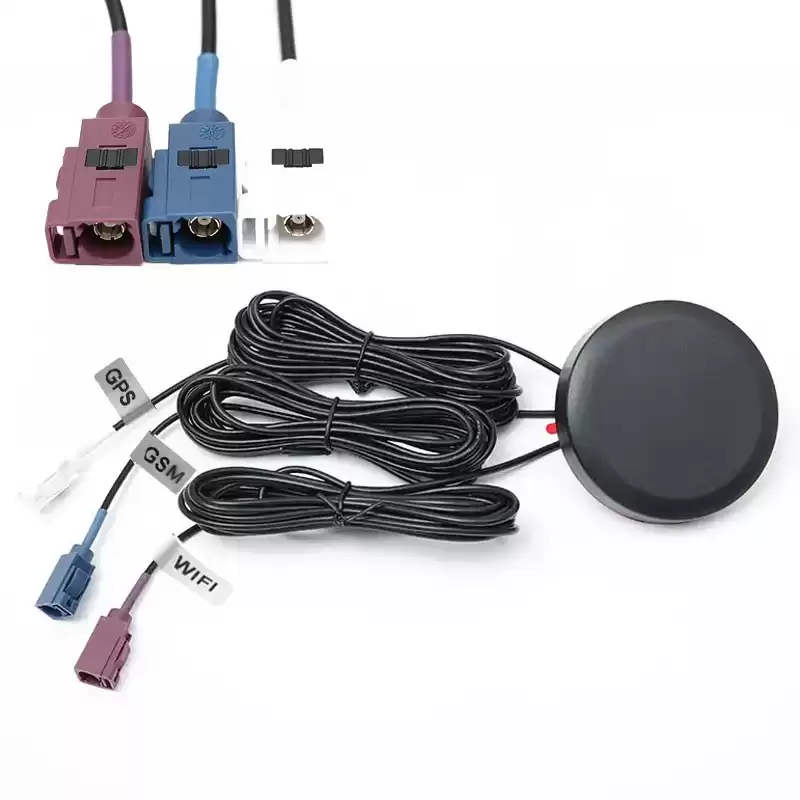

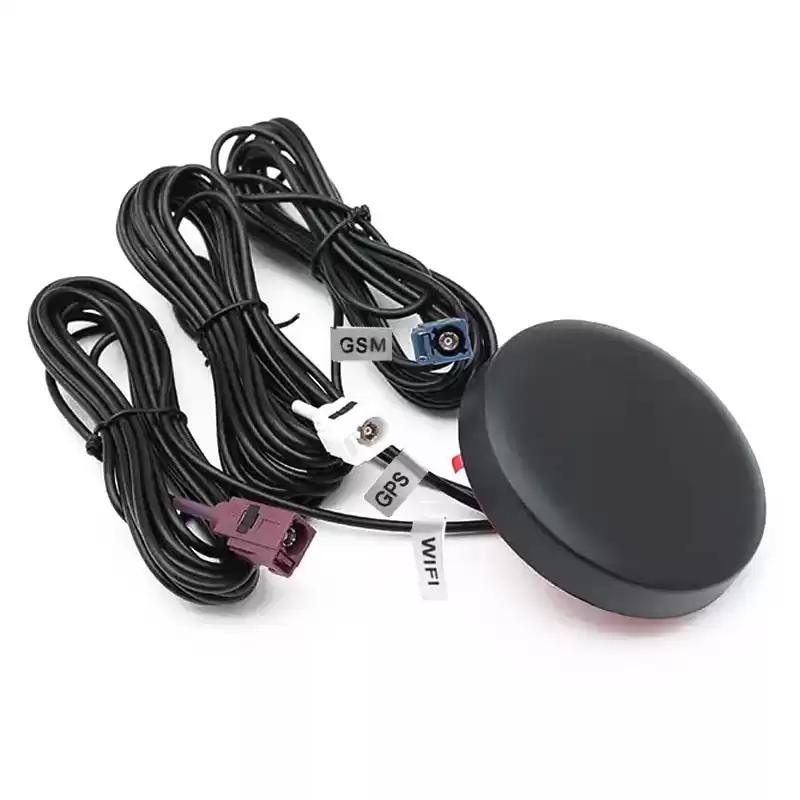

Factory Omni Directional Outdoor Waterproof 3 in 1 GSM WiFi GPS Screw Mount Combo Antenna with Fakra Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



Factory Omni Directional Outdoor Waterproof 3 in 1 GSM WiFi GPS Screw Mount Combo Antenna with Fakra Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
GSM Frequency Range(MHz) 824-960/1710-2170MHz
Gain(dBi) 3
WIFI Frequency Range(MHz) 2400-2483MHz
Gain(dBi) 3
GPS(GLONASS) Frequency Range(MHz) 1575.42MHz/1602-1610MHz
Gain(dBi) 28±3
VSWR  ≤1.5
Input Impedance(Ω)  50
Cable Type RG174
Connector Type  SMA Male
Mounting Screw
Housing Black
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram
