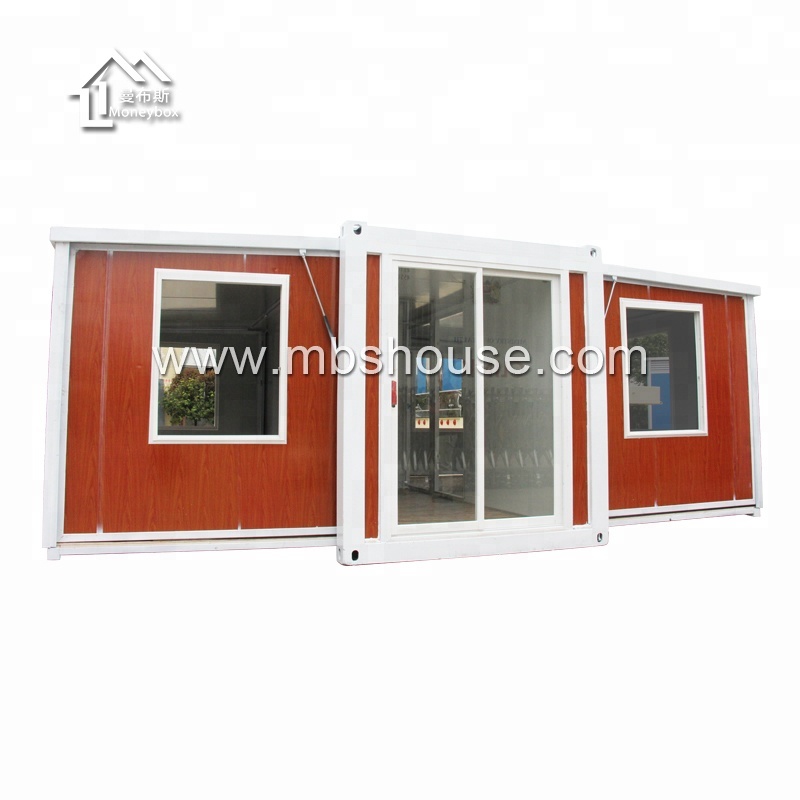

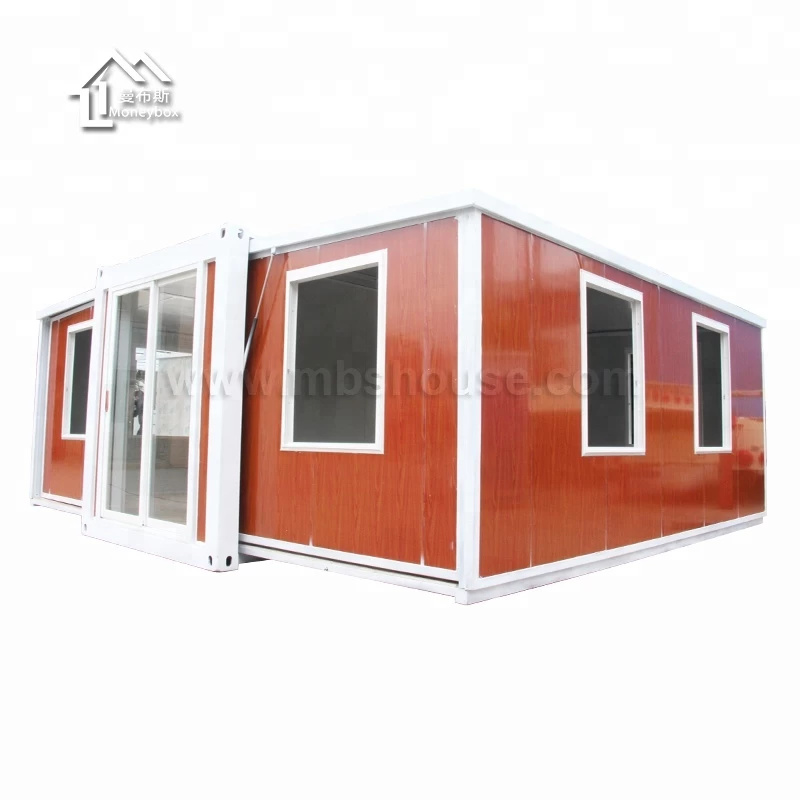

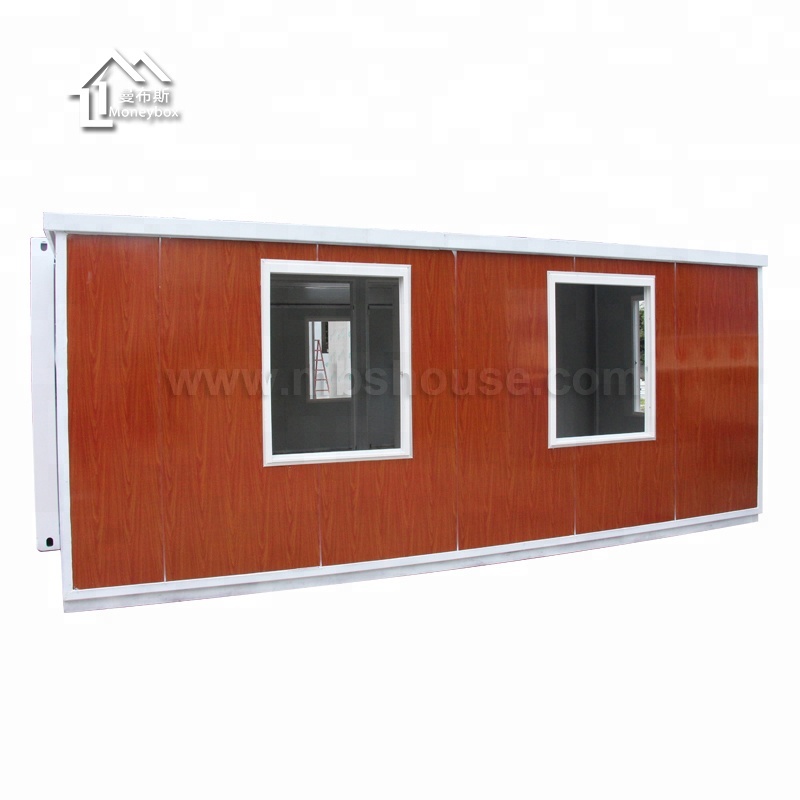

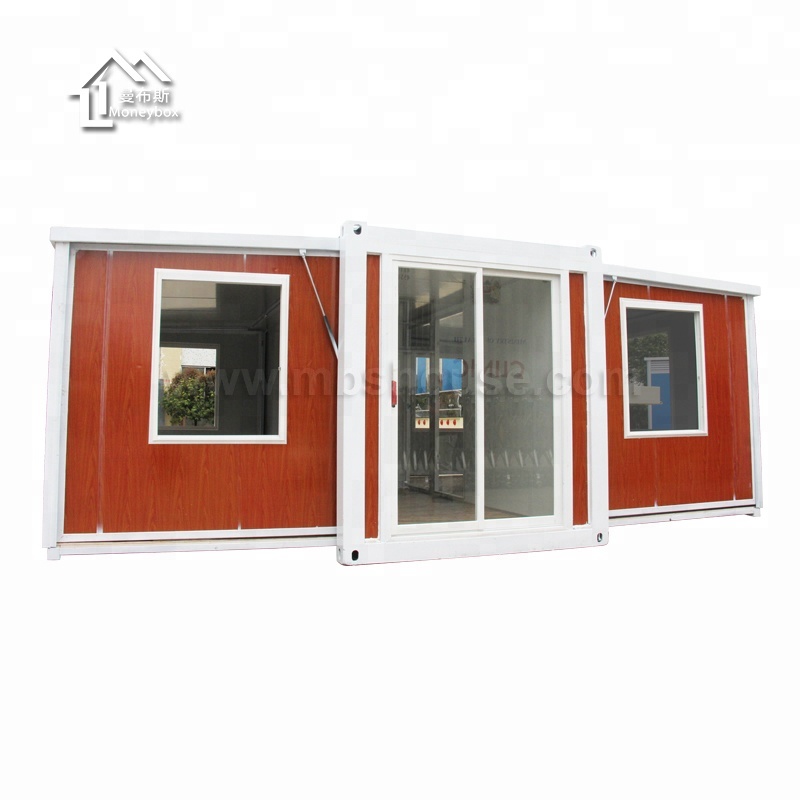

Factory Portable Ready Made 2 Bedroom Expandable Container House

expandable container hosue with two bedrooms for vacation house/hotel



Factory Portable Ready Made 2 Bedroom Expandable Container House


        Product Character

        1.Structure is reliable: Light steel structure system is safe and reliable

        2.Easy assembly and disassemble: The house can be used repeatedly.

        3.Beautiful decoration: The prefab house have bright and bland colour, with good decoration effect.

        4.Flexible layout: Door and windows and other partition can be assembled in any transverse axes sites.

        5.Using life: All the light steel structures have antisepsis-spraying treatment.Using life more than 15 years.

        6.Eco-friendly and economical:Easy to assemble and disassemble, low wastage, without building rubbish.

Factory Portable Ready Made 2 Bedroom Expandable Container House

No Description Specification
Standard Dimensions
1 Size 5800mm(L)x6300mm(W)x2500mm(H)
2 Packing Size 5800mm(L)x2250mm(W)x2500mm(H)
Specification
1 Frame Structure 2.0mm-4.0mm Cold formed profile steel / Square tube
2 Decoration Primer Coat: epoxy zinc-rich primer two layers
Finishing Coat:alkyd honed painting white color/Polishing,Derusting
3 Roof 2mm Bending steel plate
4 Ceiling 50mm color steel sandwich panel(or carved metal insulation board)
5 Wall 50mm color steel sandwich panel (or 75mm/10mm )
6 Flooring 15mm fiber cement board+2mm PVC floor
(or 12mm/18mm/20mm CCA+10mm composite wood )
7 Door 50mm Metal composite door(glass wool/Phenolic Foam Board)
8 Window PVC glass sliding window(4mm thickness glass)
9 Packing Flat down packing
Technical Parameter
1 Temperature (-45°C) to 50 °C
2 Anti-seismic Grade 8
3 Wind Resistance 100km/h
4 Floor live load 2KN/m2
5 Roof live load 0.5KN/m2
6 Life span more than 15 years

Factory Portable Ready Made 2 Bedroom Expandable Container House
