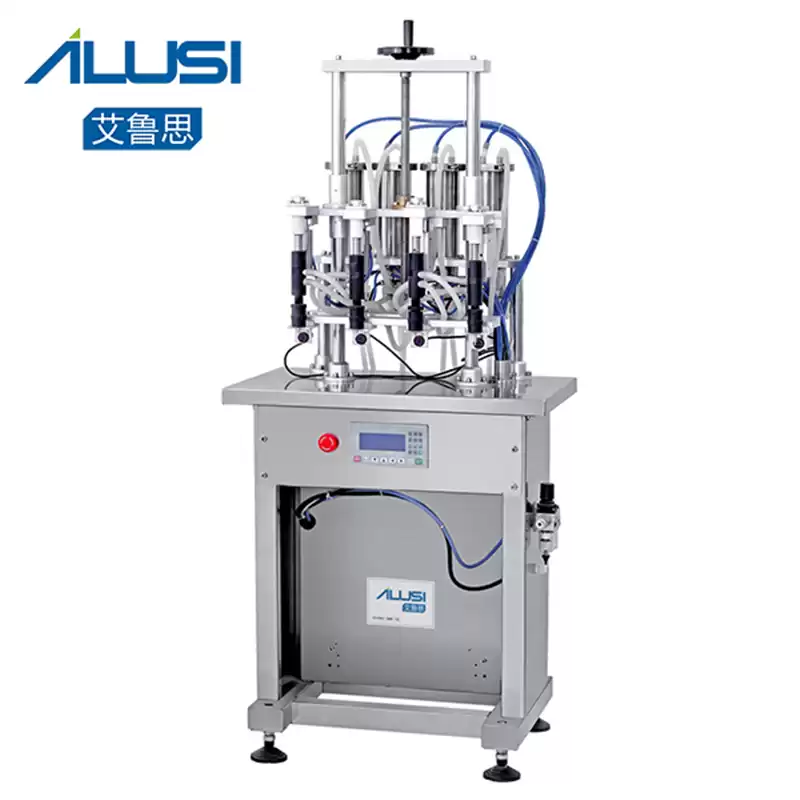

Factory Price 4 Nozzles Perfume Filling Machine

The design concept of our company's 4 Nozzles Perfume Filling Machine is: through the filling head, the vacuum generator realizes a partial sealing environment in the liquid return bottle and the bottle to be filled, and generates a partial vacuum (negative pressure), which is vacuumed.



Product Description:

1. Perfume filling machine has the feature of compact structure, rationality, simple operation and convenient maintenance and also the performance of fixing the surface and counting.

2. The height of surface can be adjusted. Components and parts which touched will adopts304 stainless steel. It suitable for the glass bottle, plastic bottle which draw out vacuum and uneasy to distortion. Generally, it has two kinds: common one and explosion resistant one. When customer order it, please point out which one you want.

3. Explosion resistant ones or adopts explosion resistant measure. Other part of the machine is same.

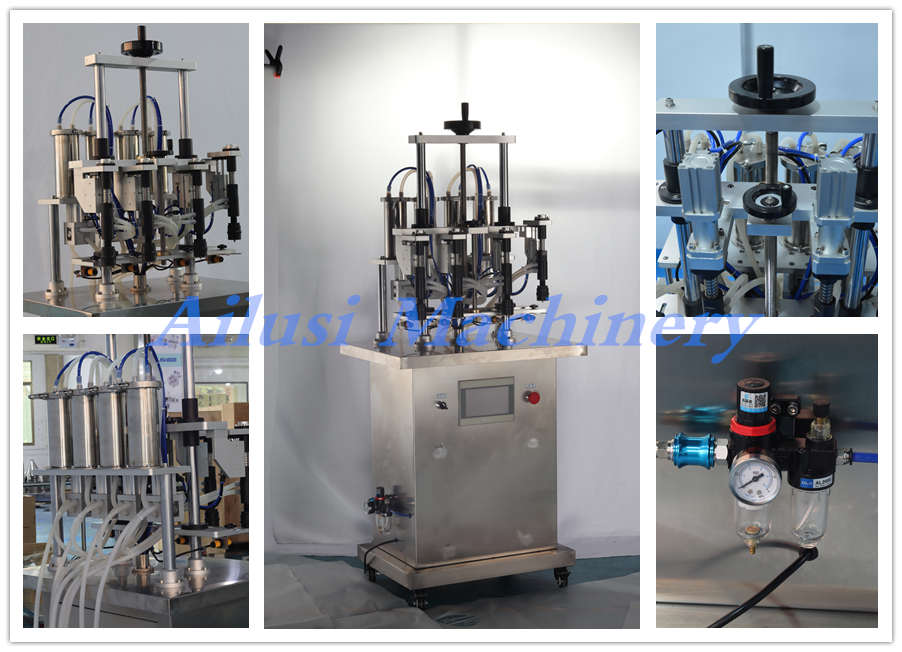

4 Nozzles Perfume filling machine


Product Parameters:

Item
Description
Bottle height
≤250mm
Bottle Mouth Maximum Diameter
≤20mm
Minimum Diameter
≥4.5mm
Adjustable liquid High-Level
26-50mm
Profile Dimensions
660*470*1330mm
Adaptable environment temperature
0-30℃
Power
380V/50Hz
Vacuum pump
XD-020(Explosion-proof type2X-4A)
Pumping rate
5.5L/S(Explosion-proof type 4)
Motor power
0.75KW

Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.


Company & Factory Qualification:

Company license

Factory license

SGS certificate

CE
