ETL dual switching power supply 12V 28V 200W SMPS
Description:
This K26B-UP200D seriesswitching power supplies are 200W AC/DC enclosed type power supplies with universal AC input voltage and 100% full load burn-in test, it is widely used to the stage lights,power amplifer and POE switch.
Features:
1, 200W high efficiency switching power supply;
2,200W dual output power supply with wide range of AC input voltage;
3, Over load, short circuit protection,over-temperature protection;
4, 200W small size power supply built-in active PFC function.
|
Parameter
|
|
Item NO.
|
K26B-UP200D12+5
|
K26B-UP200D24+5
|
K26B-UP200D12+28
|
|
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+12V
|
5V
|
+24V
|
5V
|
+12V
|
28V
|
|
Rated Current
|
15A
|
3A
|
7.5A
|
3A
|
12.5A
|
1.8A
|
|
Current Range
|
0-16A
|
0-3A
|
0-8A
|
0-3A
|
0-15A
|
0-2A
|
|
Rated power
|
195W
|
195W
|
200.4W
|
|
Ripple (Note 3)
|
200mVp-p
|
100mVp-p
|
240mVp-p
|
100mVp-p
|
200mVp-p
|
280mVp-p
|
|
Adjustable output range
|
CH1:10.8-13.2V
|
CH1:21.6-26.4V
|
CH1:10.8-13.2V
|
|
Output accuracy (Note 2)
|
±1%
|
±5%
|
±1%
|
±5%
|
±1%
|
±5%
|
|
Line Regulation
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
|
Load Regulation
|
±0.5%
|
±5%
|
±0.5%
|
±5%
|
±0.5%
|
±5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,10ms
|
|
Input
|
Input voltage range
|
90-264V AC
|
|
Input Current
|
1.2A @ 220V AC
|
|
Frequency
|
47-63 Hz
|
|
Efficiency
|
>90%
|
>91%
|
>91%
|
|
Power factor
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start 15A/115V，30A/230V
|
|
Leakage Current
|
<0.35mA@240V AC
|
|
Protection
|
Overload protection
|
110~200%,Hiccup protection, automatic recovery
|
|
Output overvoltage protection
|
CH1:30-35V
|
CH1:42-46V
|
CH1:55-60V
|
|
Over temperature protection
|
>105 ° C, the output is turned off and automatically restored.
|
|
Other function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943.1,EN60950-1.EN60335-1
|
|
Withstand voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
EN55015 CLASSB，EN55032 CLASSB，EN61000-3-2
|
|
Others
|
Demension
|
148*60*38mm CASE：K826B
|
|
Weight
|
0.4Kg
|
|
Remarks
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

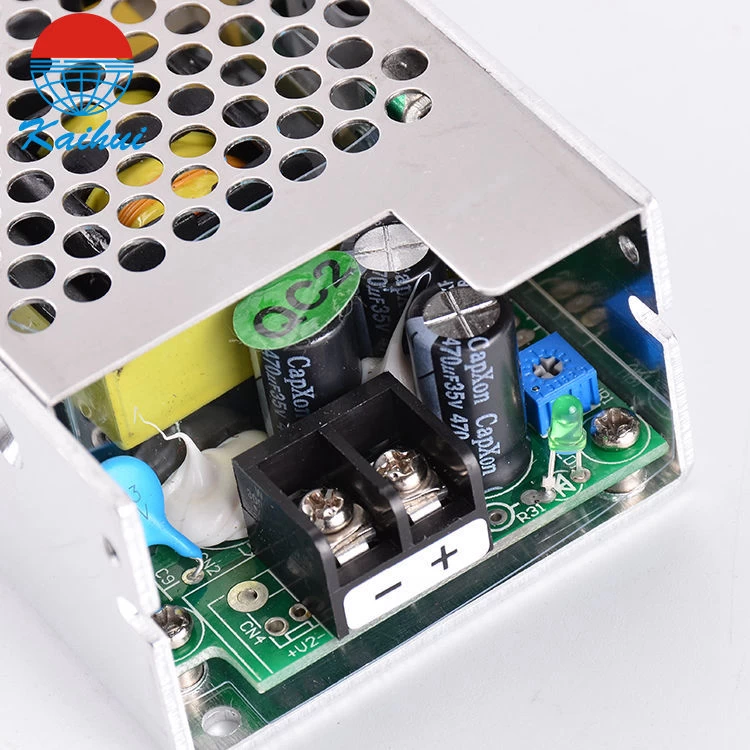

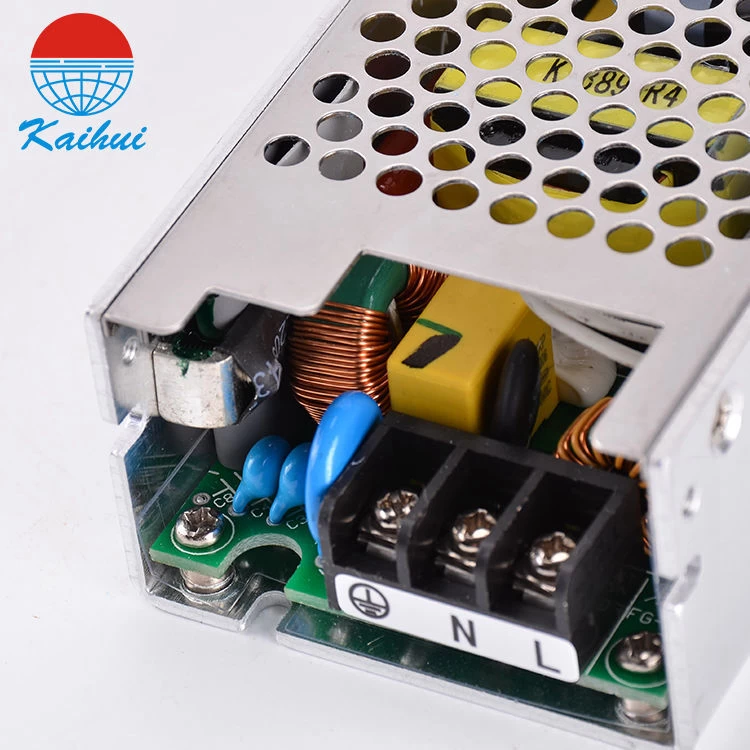

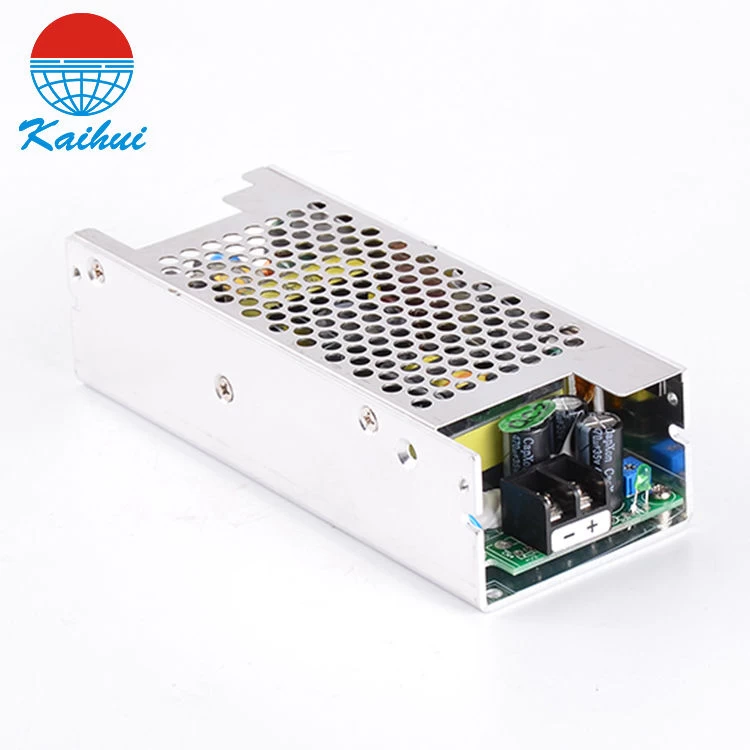

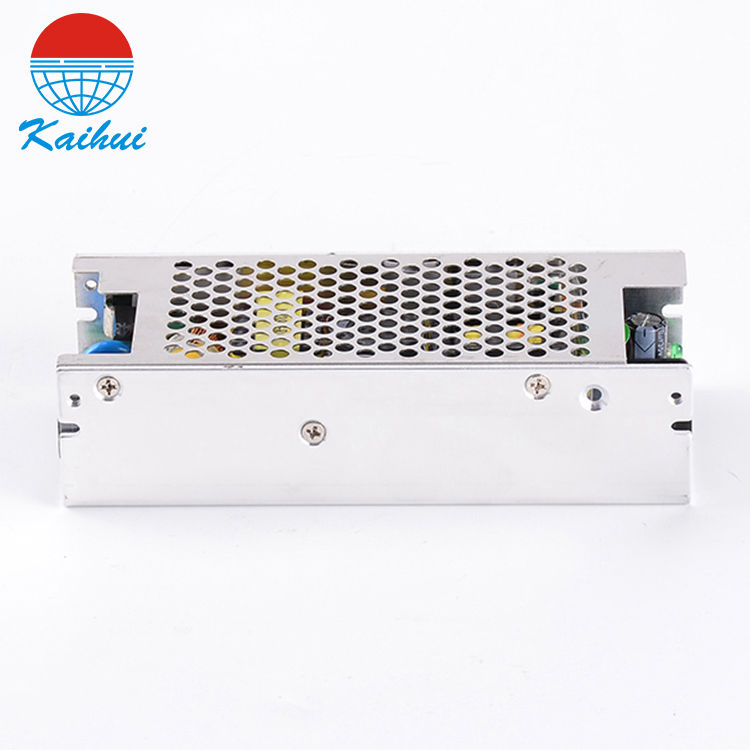

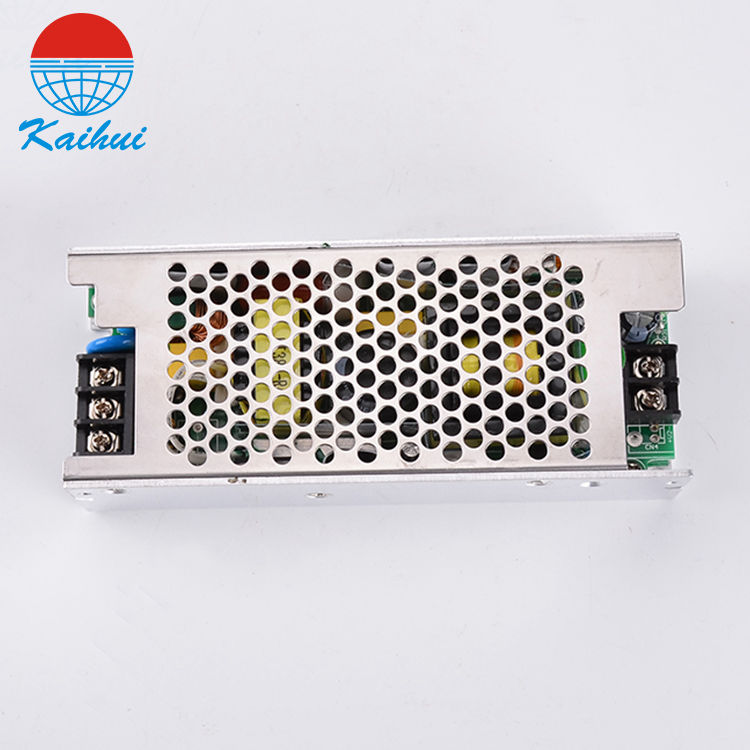

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
