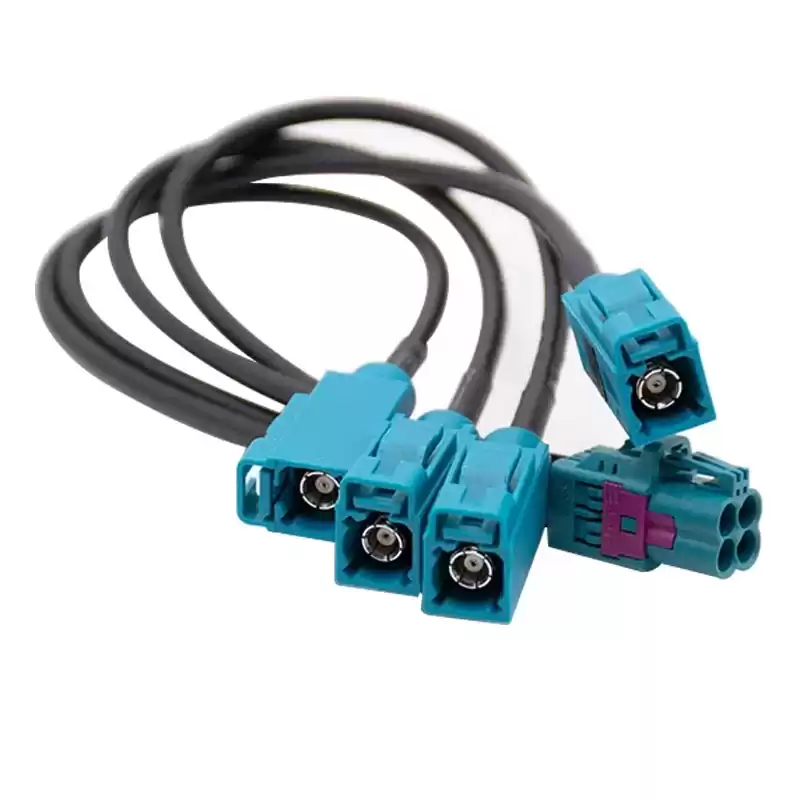

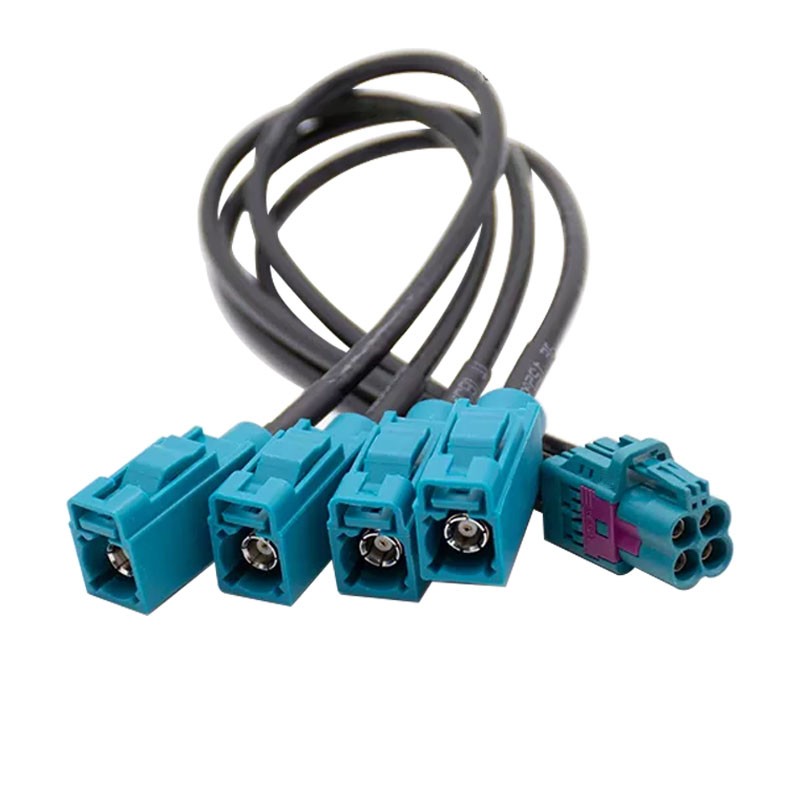

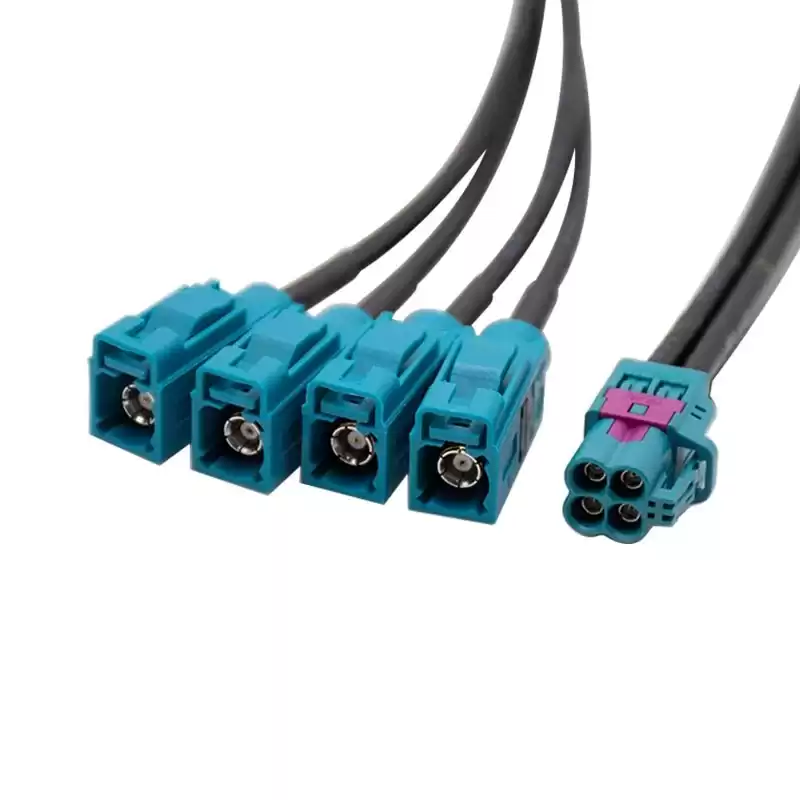

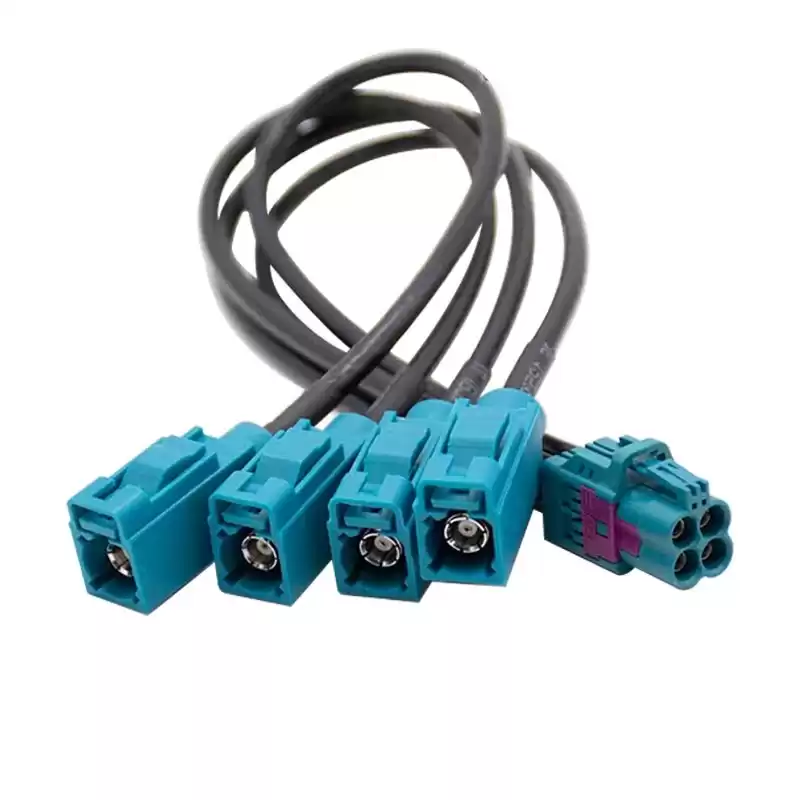

Fakra Z Jack Female to 4 Pin Mini Fakra HFM Plug Male Connector Automotive Cable Assembly

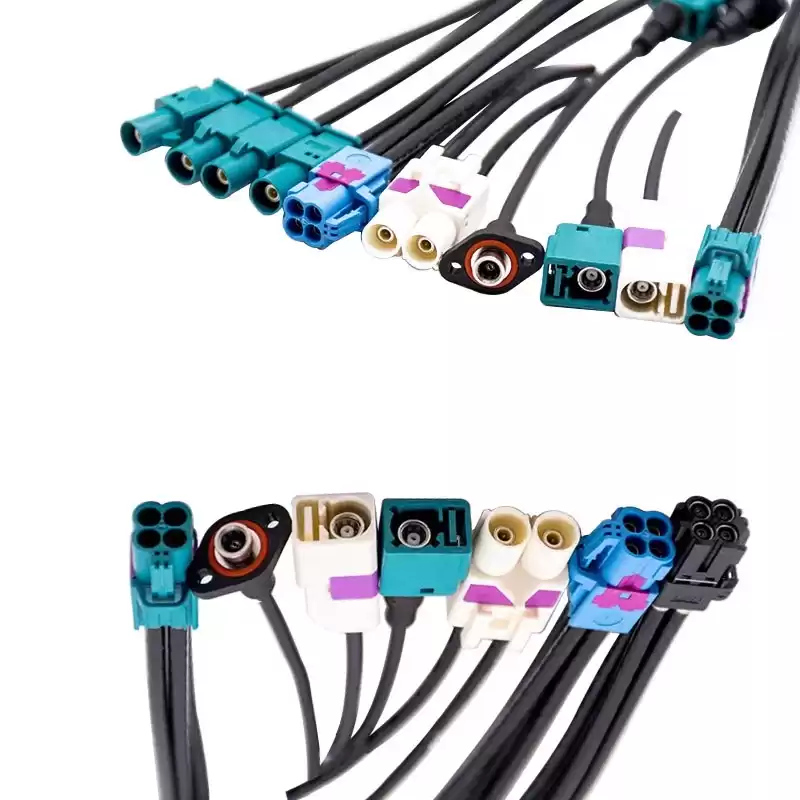

The Fakra cable assembly can use flexible coaxial cable such as LMR100, RG174, RG188 or RG316 cable; the body of Fakra to Fakra cable assembly is right angle or straight connectors which is jack to jack, jack to plug, plug to jack or plug to plug gender. This Fakra jack to 4 pin mini Fakra HFM plug cable assembly uses a 50ohm straight Fakra for connector 1 and a 50ohm Fakra for connector 2, Cable is 50ohm flexible cable type 1.13mm or RG174 or RG178 or RG58.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
Fakra Z |
| Connector 1 Style |
Str Jack |
| Cable Type |
1.13mm or RG174 or RG178 or RG58 |
| Connector 2 Series |
4 Pin Mini Fakra |
| Connector 2 Style |
HFM Plug |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
| Body Material |
PA / PBT & PA / LCP |
| Body Finish |
Black / White / Blue / Violet / Green / Brown / Blue / Gray/ Beige / Curry / Green / Orange / Green
|
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Advanced Driving Assistant System (ADAS)
- Telematics, multimedia
- Infotainment, GPS
- Navigation and camera
- Body control, safety, security and comfort
