Introduction

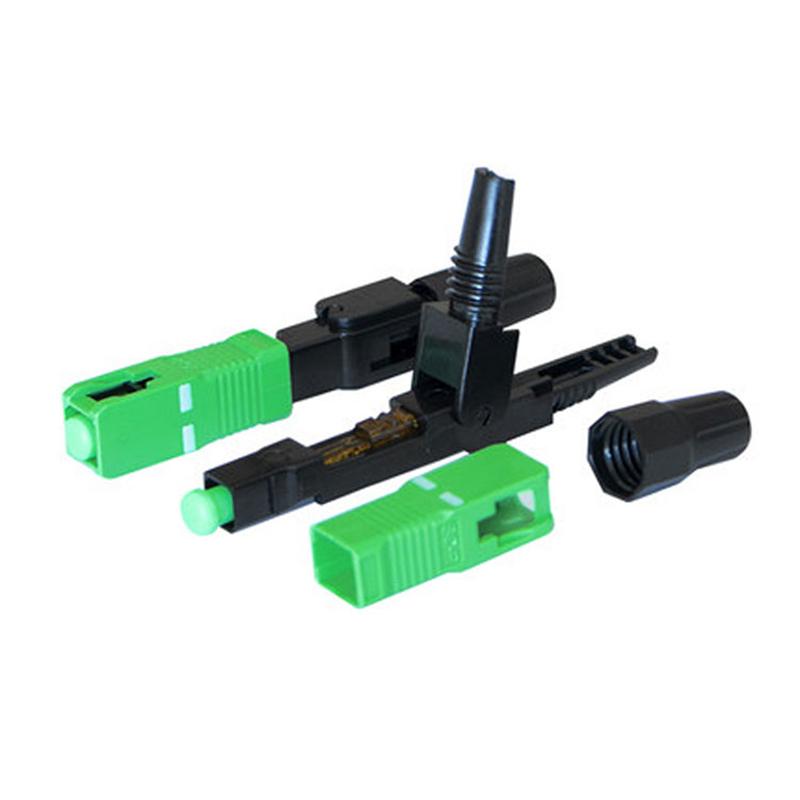

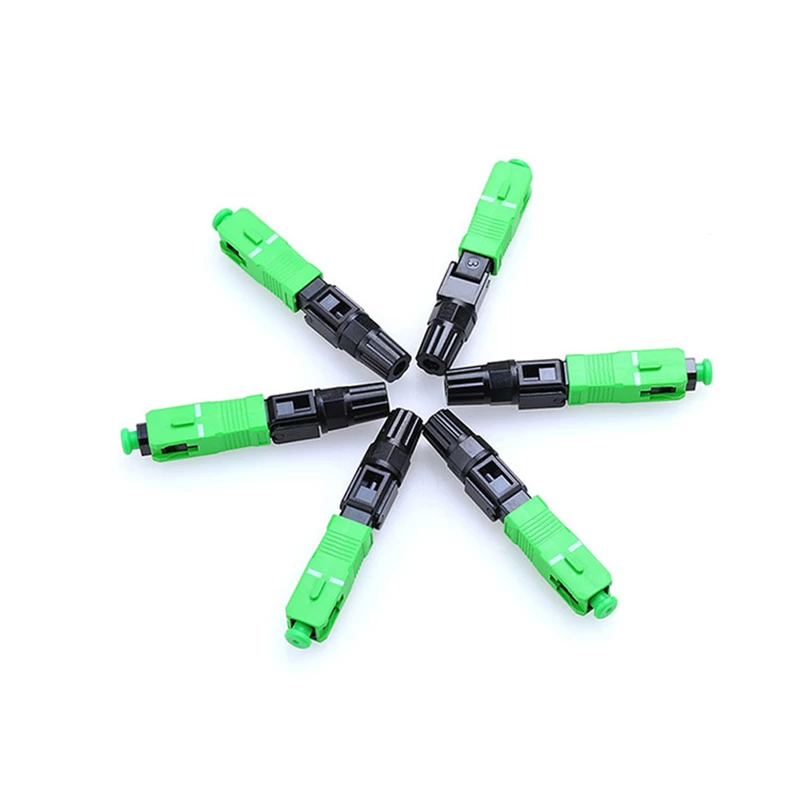

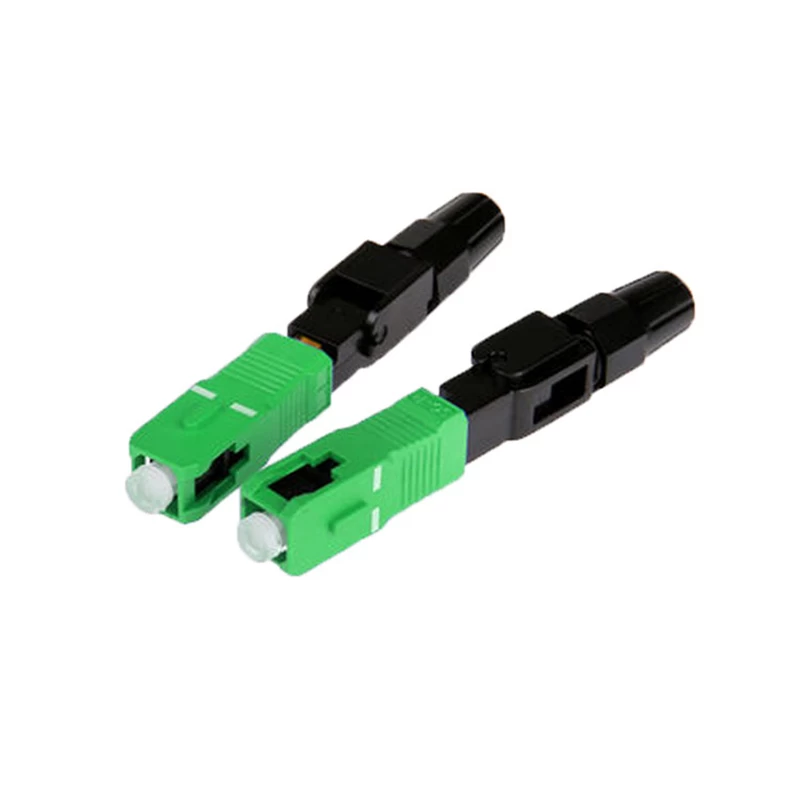

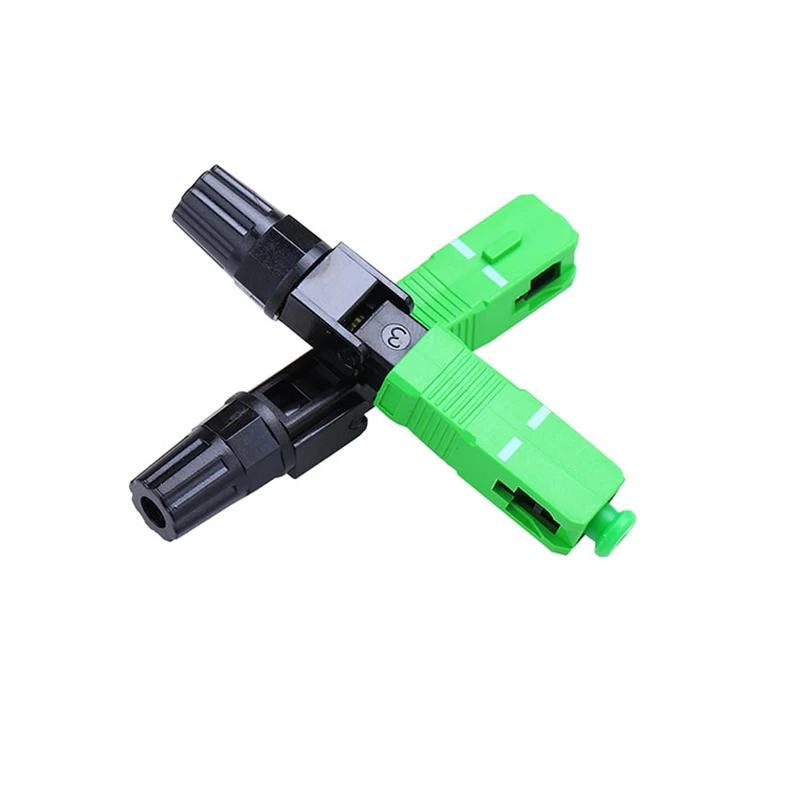

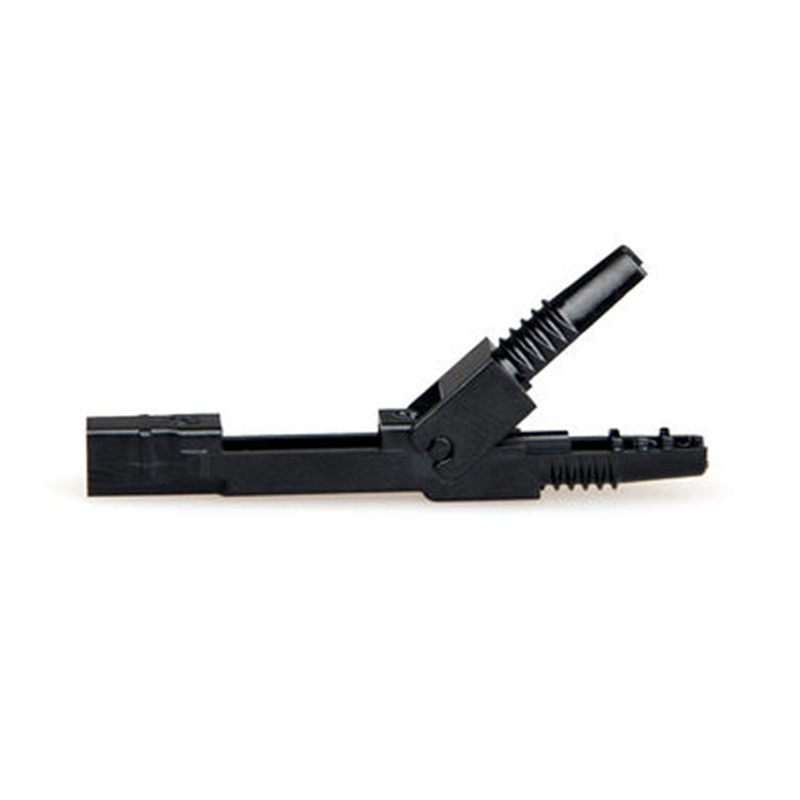

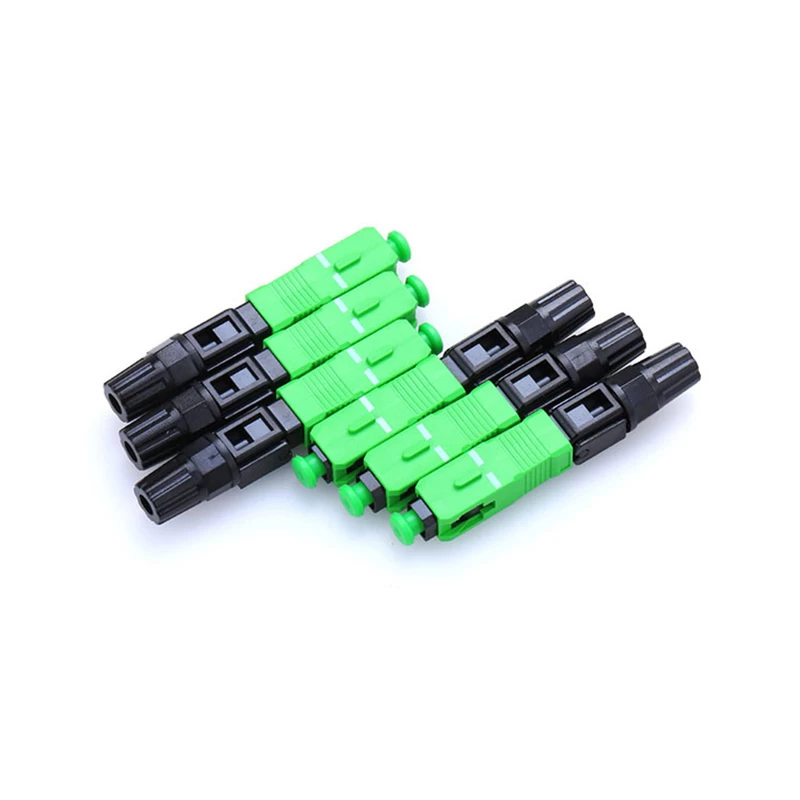

High Quality IR 0.3dB FTTH Fiber Optic SC Fast Connector takes use of the latest generation of Rapid Ready-Terminal technology. After terminating, both the optical and mechanical performances reach the standard for patchcord and meet the demand for making patchcord on site by mechanical splicing.
Features
-
FTTH project usable
-
Fast, easy, accurate
-
Cost effective
-
Portable
-
Reliable and superior optical performance
-
Cable Tensile test complies with Telcordia GR-326-CORE
Application
-
Distribution frames
-
Maintenance or emergency restoration of fiber networks
-
Patch panels
-
FTTH
-
Field word
|
Applicable
for
|
Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
|
|
Optical fiber diameter
|
SM(9/125), MM(50/125, 62.5/125), 125μm
( 657A & 657B )
|
|
Tight buffer diameter
|
250μm
|
|
Fiber mode
|
Single mode
|
|
Operation time
|
About 100s(no fiber cut)
|
|
Insert loss
|
≤ 0.3dB(1310nm & 1550nm)
|
|
Return loss
|
> 50db(PC), > 55db(UPC), >
65db(APC)
|
