fast medium wave infrared emitters with gold coating for glass cutting

Fast medium wave infrared heaters can design twin tube IR emitters with different filament configurations such as single side connection cable and two sides connection cable, one heating channel and two heating channels. The Max. length is up to 4.0 meters and all the fast medium wave IR heat lamps can be fixed white ceramic or gold reflector directly on the quartz tube.

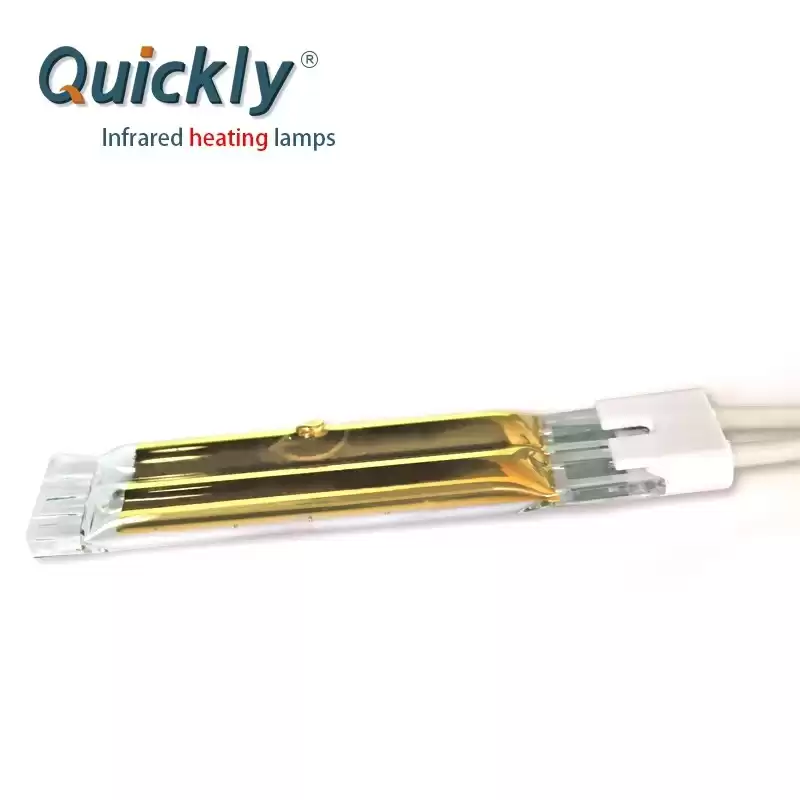

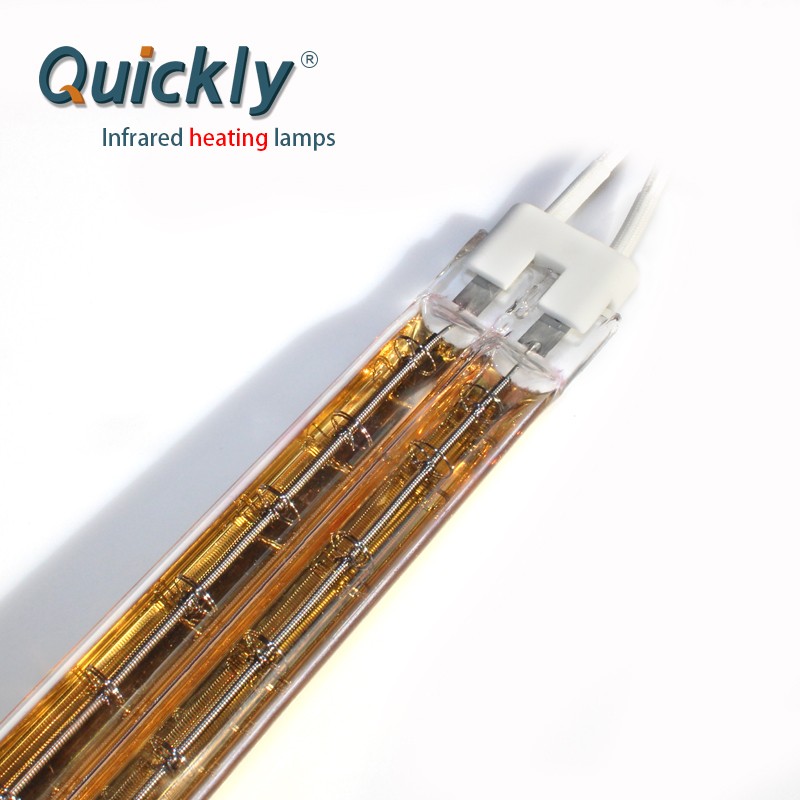

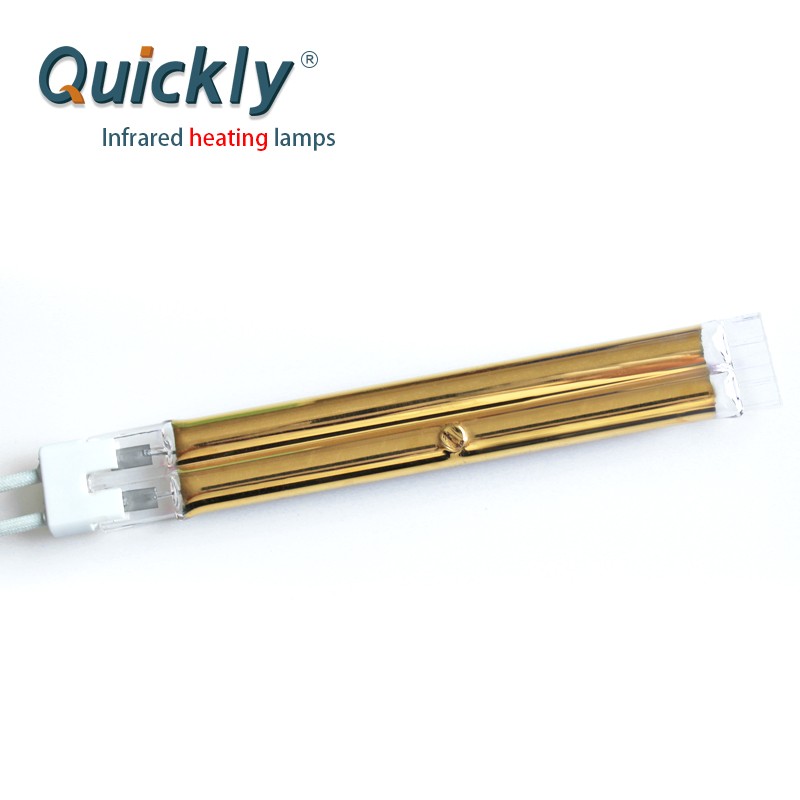

Fast Medium Wave Infrared Emitters with Gold Coating for Glass Cutting

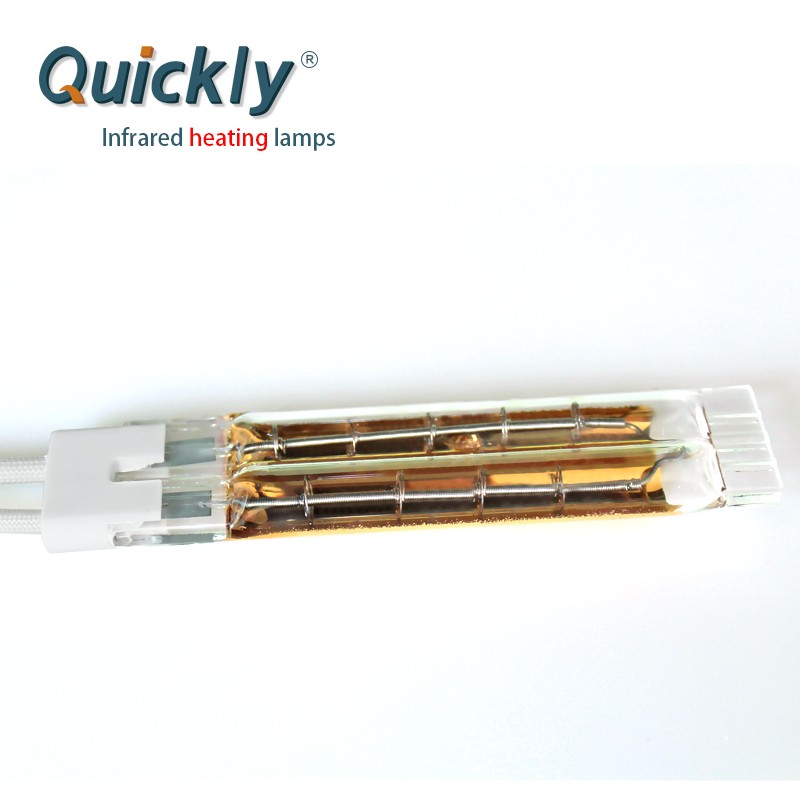

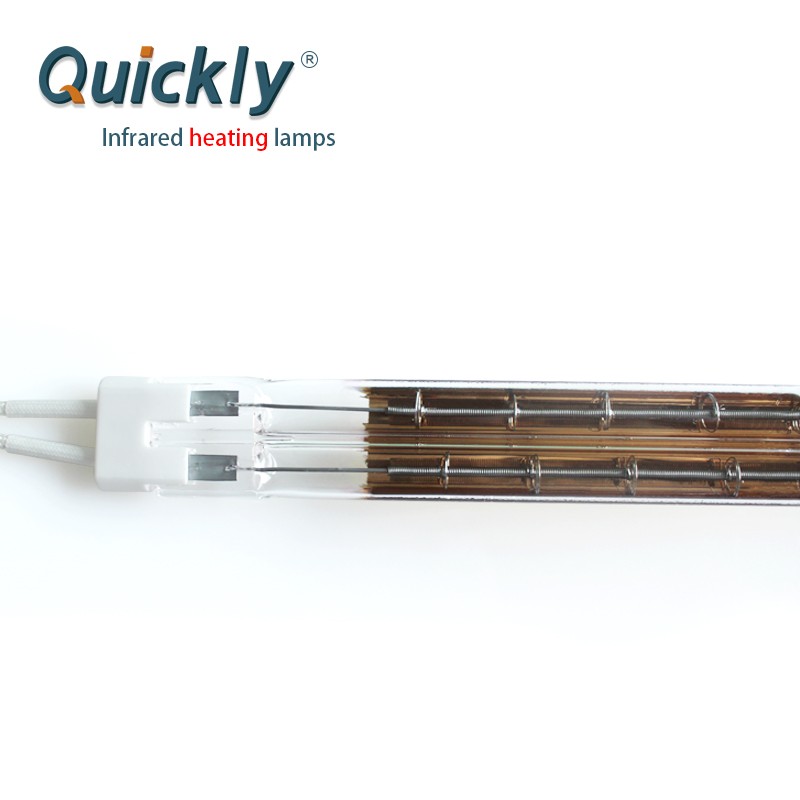

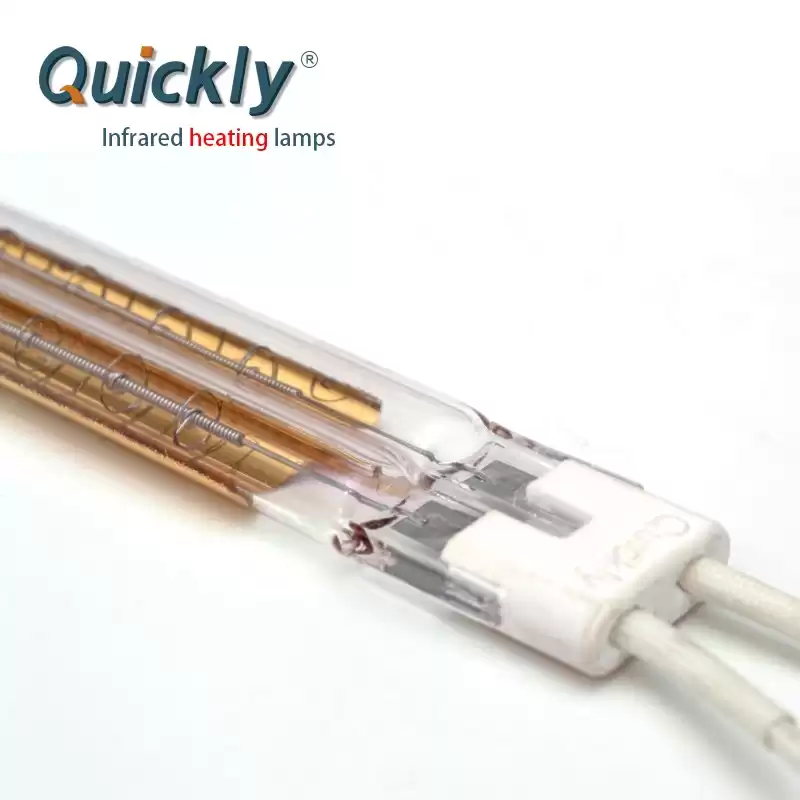

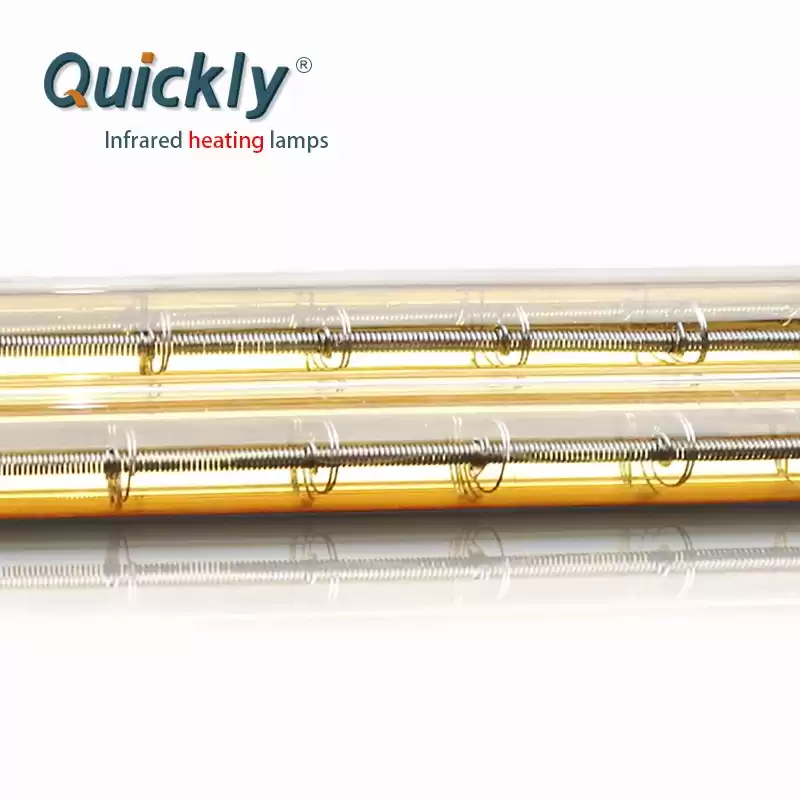

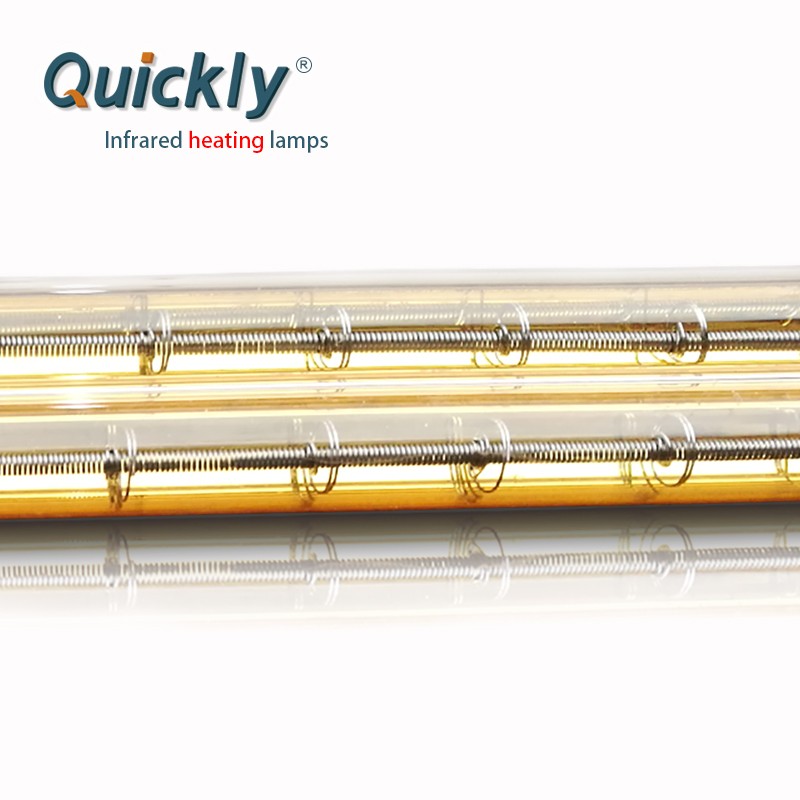

Twin-Tube infrared lamps are manufactured of 8-shape high-purity clear quartz twin tub, each tube has heating coil of tungsten material which runs in U shape in the tube which is filled with halogen gas. Gold reflector or white coating can be applied on tube surface for maximum efficiency, due to reflector heat loss from backside is prevented and thus power saving is achieved. And double tubes design provides the infrared emitters with numerous advantages such as higher radiation density and improved mechanical stability, better focus and so on. Dimensions of all the infrared emitters are manufactured to match the requirements.


Quick look

Fast response medium wave infrared emitters have same product processing as short wave infrared lamps, made up from coiled tungsten filament and surrounded by a quartz glass and kinds of halogen gas. It belongs to vacuum lamp.

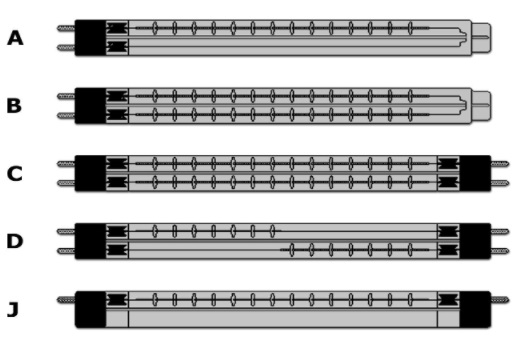

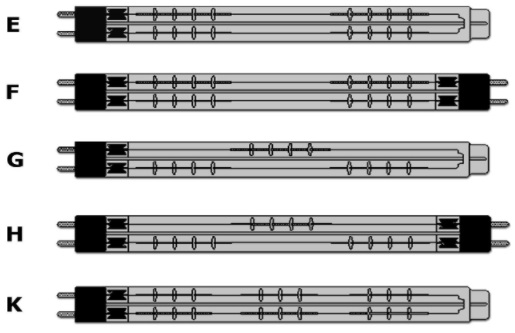

Fast medium wave heaters can design twin tube IR emitters with different filament configurations. This allows extraordinary flexibility both in terms of heated area modularity and lead wire position. The picture below represents some of the most common filament configuration.

The main characters of fast response medium wave IR emitters

· Twin tube standard section 23 x11mm & 33 x 15mm

· Filament temperature 1500 - 1800 °C

· Peak wavelength 1.4 - 1.6 µm

· Maximum power density 50 W/cm

· Maximum surface power 120 kW/m2

· Universal operation (standard horizontal operation, but are modified for vertical )

· Heaters can be one-side and two-side connected.

· Gold and ceramic white coating on the heater quartz tube ensures that the effective radiation is virtually doubled.

· Standard, custom and OEM models available

Product applications

Laminted glass cutting

PET preform heating in Stretch blow moulding machines

Powder coating curing

Resins Hardening, Rubber coating drying

Adhesives - End polymerization

Food - Pasteurization / Sterilization

Paper Industry - Humidity Control

Industrial Drying - Paint , Varnishes , Dyeing

Semi Conductor Industries - Heating of wafers

Printing - Printing ink drying in screen and offset machines

Plastic welding

Drying of Water-Repellent Coating on Fabric

Textile Embossing and Laminating

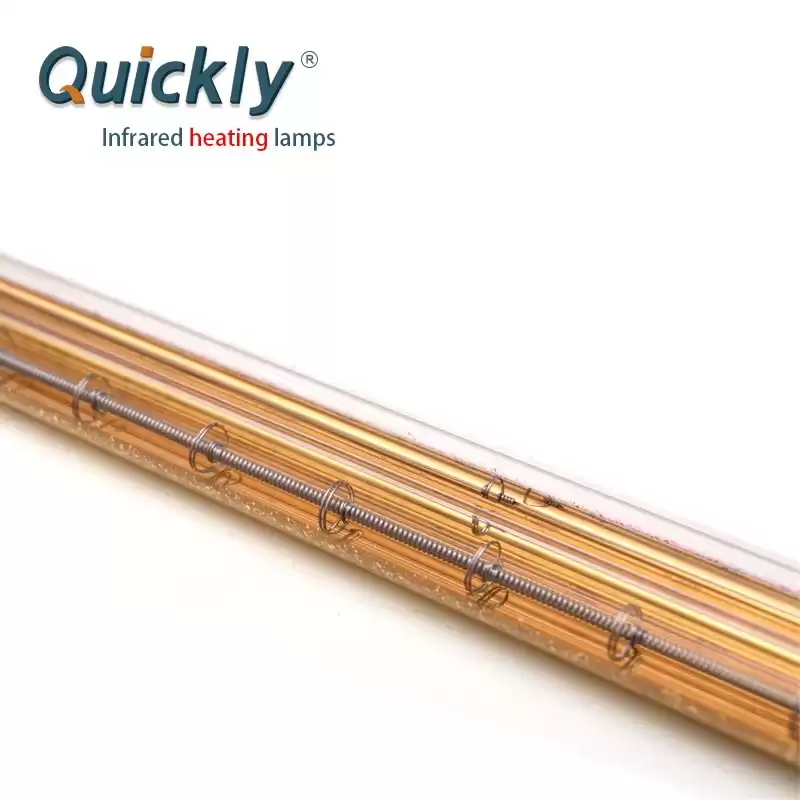

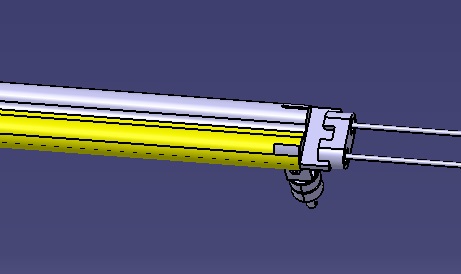

Coating on quartz tube surface

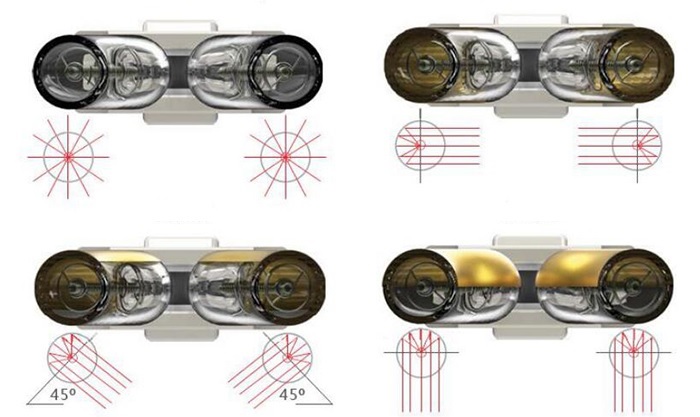

QUICKLY offers infrared emitters which coated with gold and white reflector , they can emit heat directly to the product. A gold or white coating on the infrared emitters reflects the infrared radiation. Consequently the infrared radiation impinging on the product is virtually doubled, increasing the effectiveness of the heat output.

The reflection efficiency of gold coating is higher than white coating, while for the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as reflector because the temperature resistance is up to 1000°C .

In addition to 180° (half-tube) coating, we also manufacture 270° coating or other customer specified degrees.

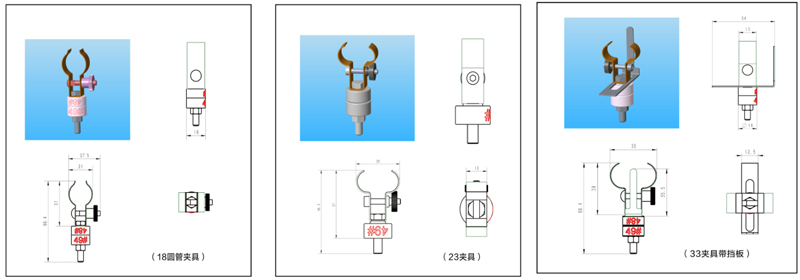

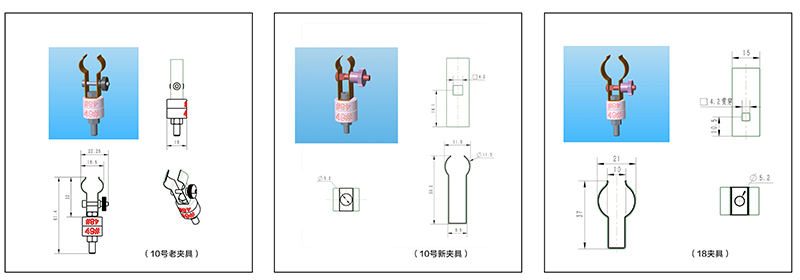

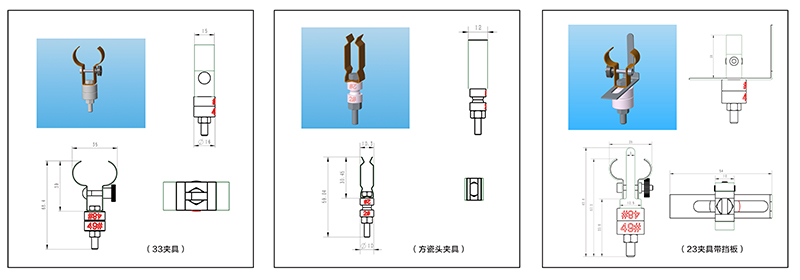

Mounting clips for infrared lamps installing

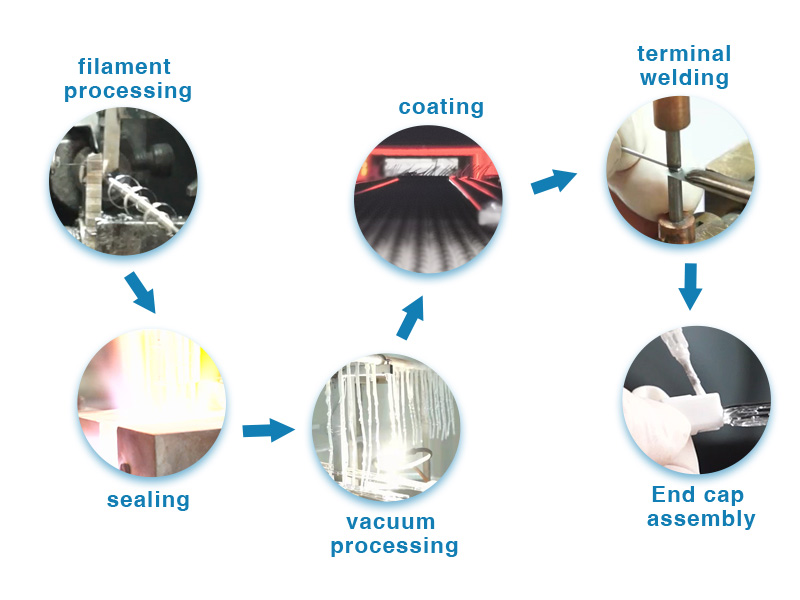

The main processing steps of vaccum infrared emitters

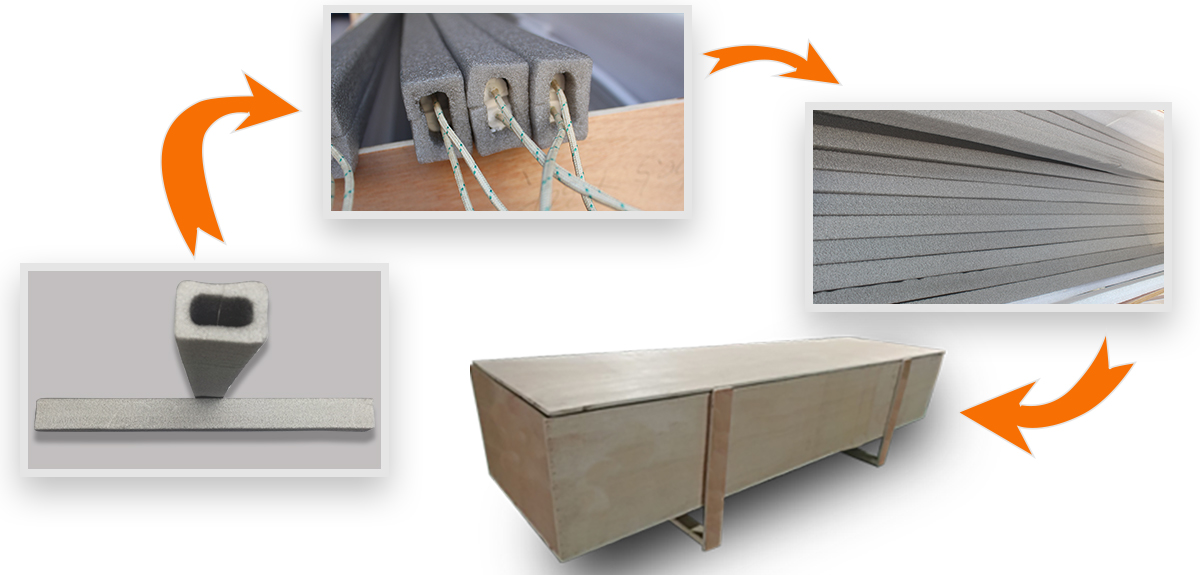

Safe packing way for lamps

Why QUICKLY ?

  1. The materials used for our lamps are at good quality approval UL testing

  2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

  3. We are factory, so we can control the delivery date, material, quality directly
  4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

  5. Safe package to protect lamps from being broken during shipping

  6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)

  7. Various Payment methods like wire transfer, paypal, western union

  8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea
