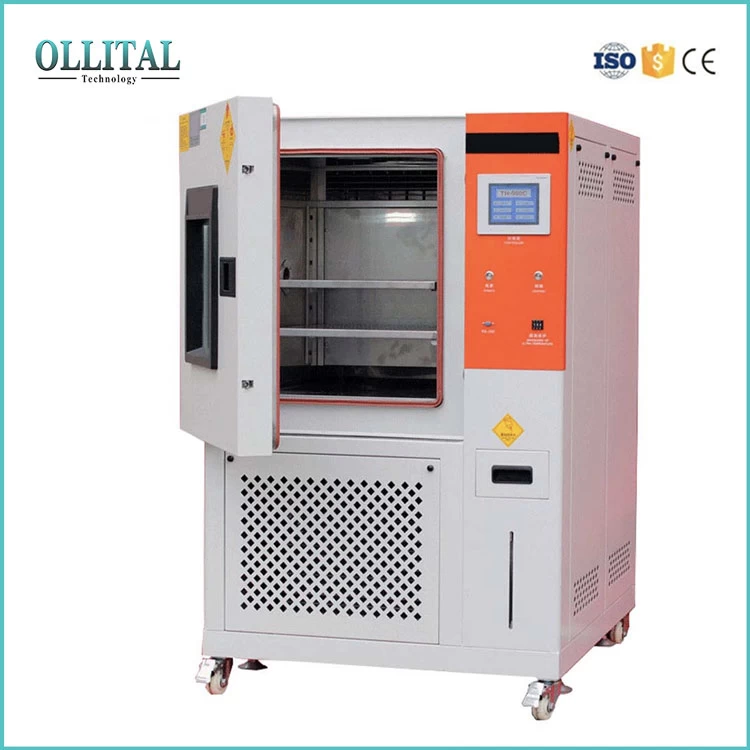

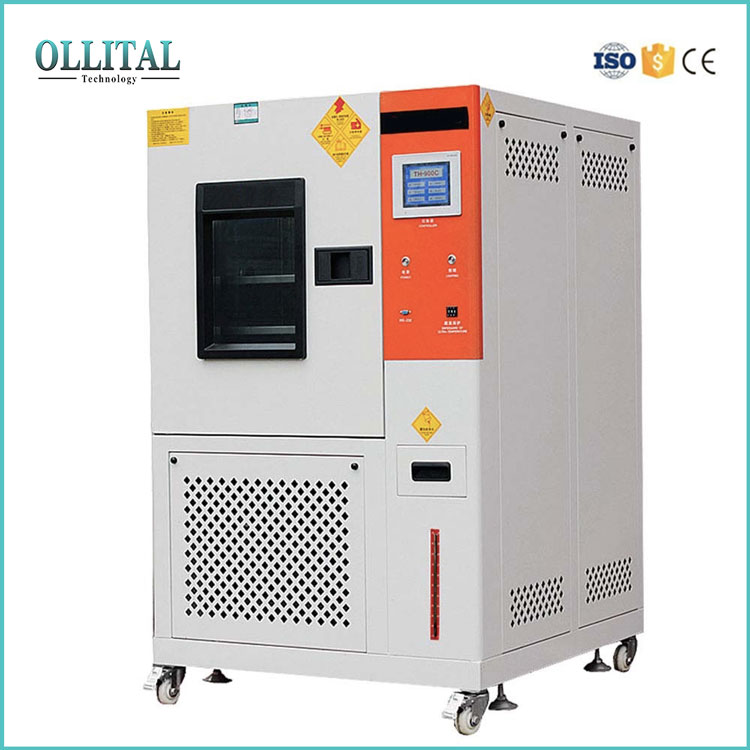

Fast Temperature Change Cycle test Chamber

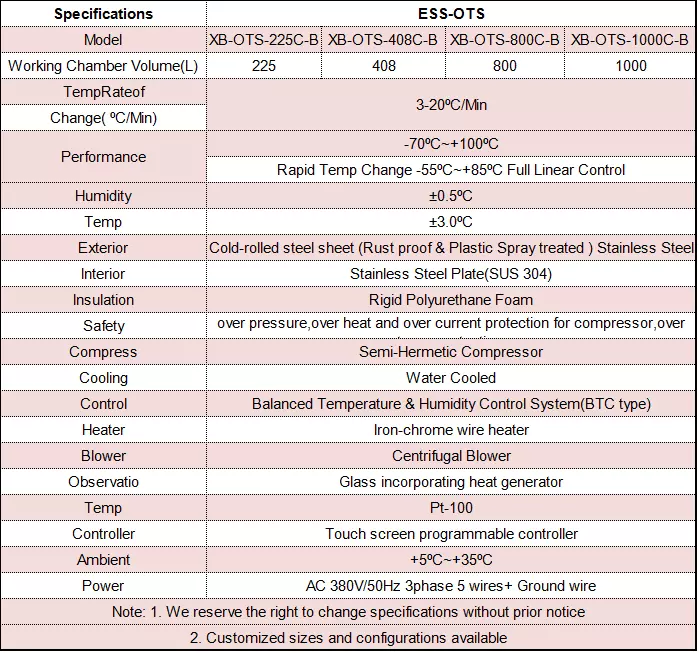

  • Model NumberXB-OTS-800C-B
  • ComplianceCE Certified
  • Minimum Order Quantity1
  • Operation method
  • Screen
  • Capacity800L
  • Oscillating Frequency
  • Speed
  • Voltage108V-380V 50/60HZ
  • Power
  • Warranty3 year
  • Temperature range
  • Dimension(L*W*H)
  • Weight
  • Packaging DetailsStandard export wooden box
  • Delivery Time 8-10 Days
  • 2
  • 3
  • 4

Fast Temperature Change Cycle test Chamber

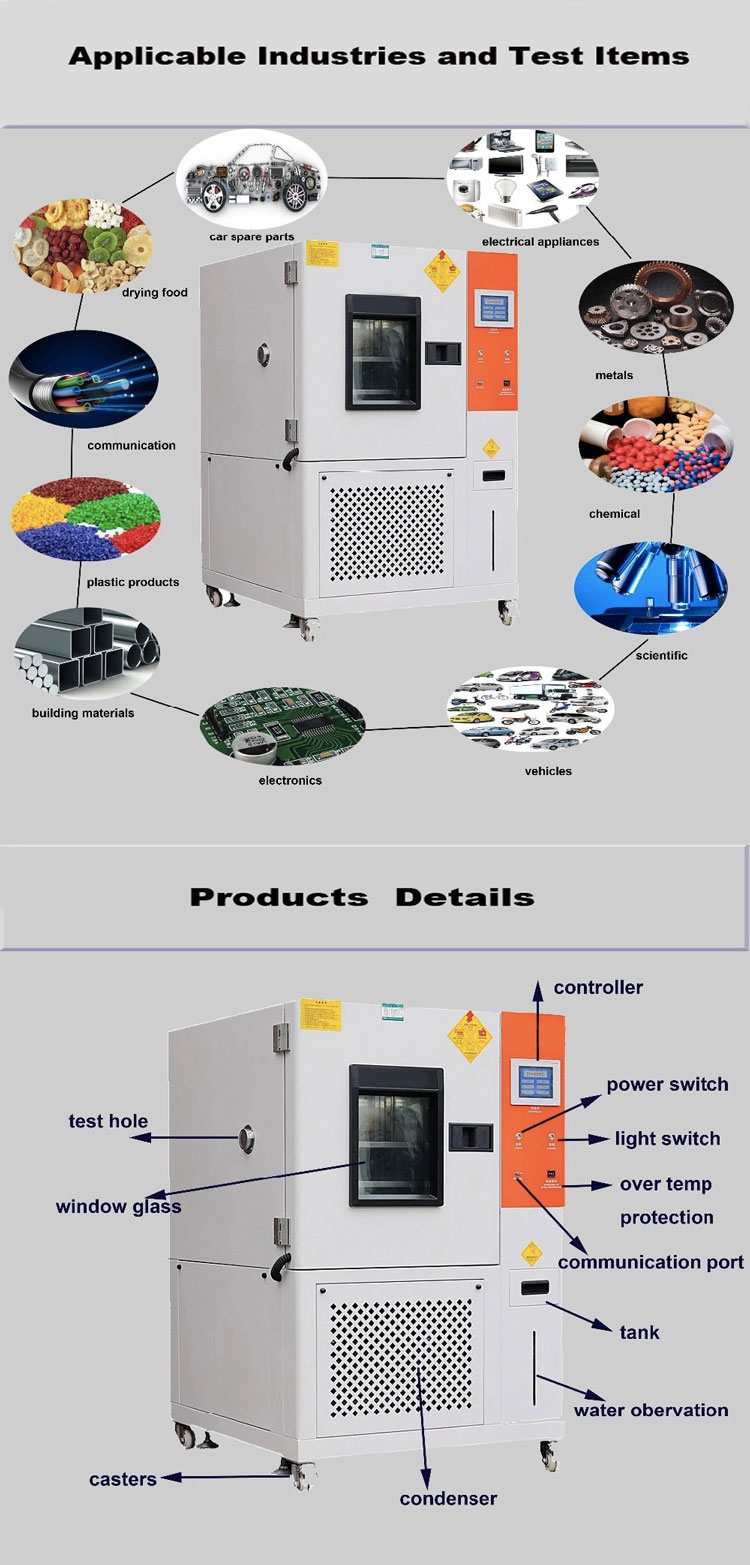

Rapid Rate Change Temperature Test Chamber is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.

Ess Fast Temperature Change Environmental Testing Equipment Climatic Rapid Rate Temperature Cycling Test Chamber


1.Reasonable structural design, rapid cooling rate.
2. Imported refrigeration system, internal with SUS#304 high temperature resistant stainless steel.

3. More than 30% energy saving is achieved.

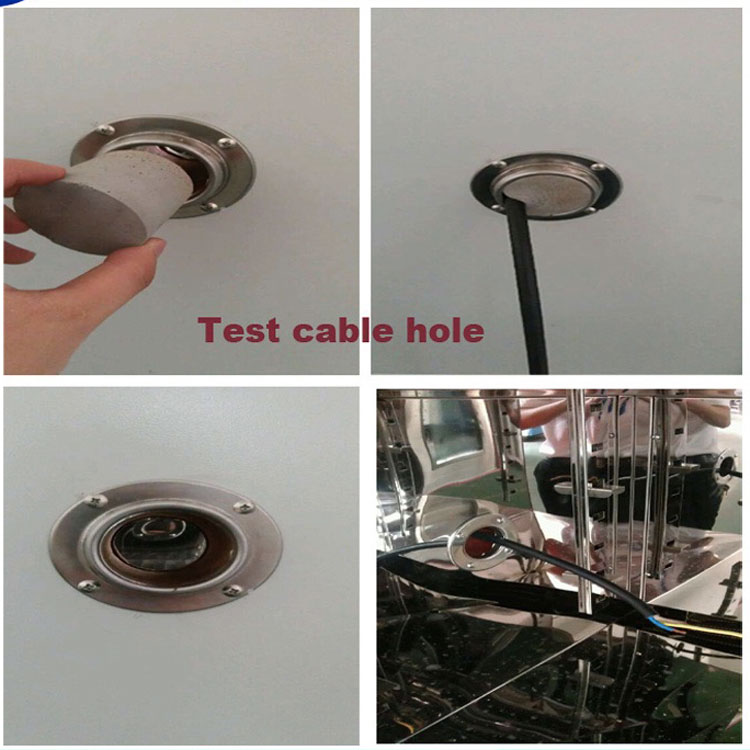

4. The test specimen can be easily observed via observation window,
5. Easy to Operate, install and maintain.
6.ational Construction and fast cooling rate
7.Frequency conversion control of wind speed.
8.Adopts international brand of imported parts for cooling system to improve operation reliability
9.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
10.Standards Implemented and met
11.GB10592-89 Technical requirements for high and low temperature test chamber
12.GB2423.1-1989 Low temperature test
13.GB2423.2-1989 High temperature test mode

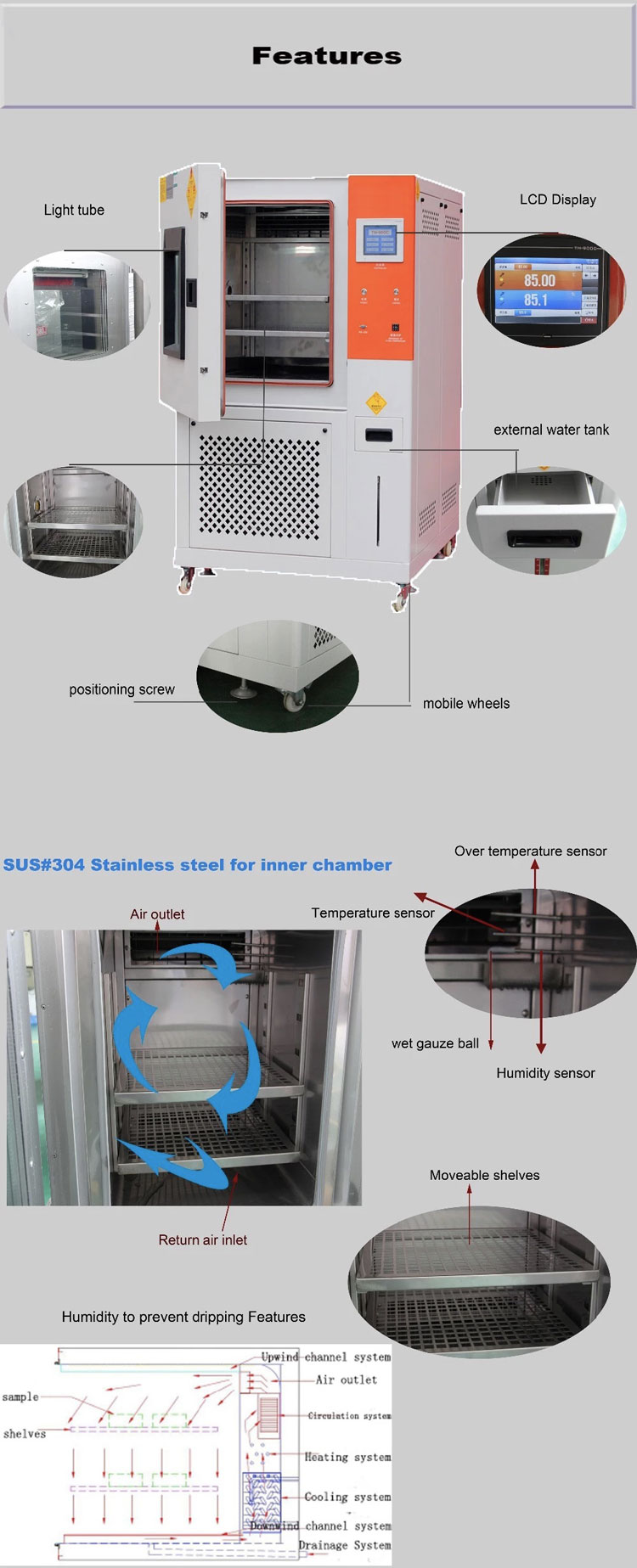

*High-texture appearance, the body adopted an arc shape, surface matte stripes processing, and flat-handle, easy to operate, safe and reliable.

*Rectangular multi-layer glass View window, the use of guinea pigs observed in the test window witt  anti-sweat heaters device prevents water gas condensate ,Knot, water droplets, PL fluorescent lamps to keep the

inside lighting.

*Door bunk isolated airtight packing, can be effectively isolated from the internal temperature of the leak

*With external water supply system, convenient to supplement the cylinder water supply, and automatic

recovery using.

*Compressor cycling system used Franceβ€œTecumseh”brand which can effectively remove condenser pipe and between  capillary Lubricating oil and whole series adopt environmental protection refrigerant

 (R23, R404, R507)

*Controller uses the imported LED display screen, can display measured values and setting time

*Controller with multisegment program editor and temperature and humidity can be fast (OUICK) or slope

(SLOP) controlled.

 *Built-in mobile wheels allow easy movement and placed and has a strong positioning screw position.

Standard:

 GB11158                                    GB10589-89

 GB10592-89                               GB/T10586-89

 GB/T2423.1-2001                       GB/T2423.2-2001

 GB/T2423.3-93                           GB/T2423.4-93

 GB/T2423.22-2001                     IEC60068-2-1.1990
