feminine product machinery Main Parameter
1、 Overall size: 30.8m x 6.3m x 3.2m (for reference only)
2、 Machine size: 21.6m ×2.3m ×2.5m(based on the product provided by client)
3、 Design speed: 1500pcs per minute
4、 Stable work speed:1000-1200 pcs per minute
5、 Rejection rate:≤2%（excluding scrap caused by hot melt, materials splicing or joint)
6、 Power source: 380V,50/60HZ(3phase,4lines+ground wire)
7、 Machine capacity: 220KW approximately
8、 Air pressure:0.6-0.8 Mpa
9、 Machine weight:58 Tons approximately
Configuration
1、 Product structure; Flat（or textile edge） Topsheet, ADL(blue core), Pulp or Airlaid core
(mix with SAP), Backsheet, Absorbent paper, Release paper, Pouch film, Easy tape.
2、 Product size: 240mm to be customized.
3、 Program system: Servo driven, inteligent HMI touch screen man-machine interface.
4、 Tension system: Tension control with buffer system, automatic web guiding system, to ensure materials stable working at ZERO speed splice.
5、 Driven system; Servo drive, digital size change, ensure run synchronously at full process.
6、 Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
7、 Auto Packing system: Auto stacker and packaging machine to be defined by customer need.
8、 Web guiding system: Germany BST/USA FIFE. Customized function available

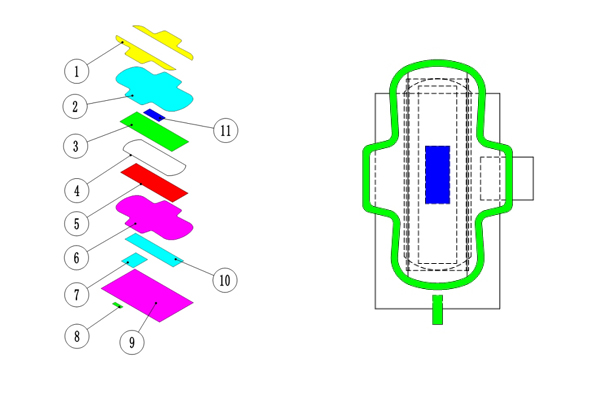

Product structure
|
1.Hydrophobic non woven
|
7.Wing release paper
|
|
2.Top sheet non woven
|
8.Easy tape
|
|
3.Upper tissue
|
9.Pouch film
|
|
4.Cotton core(absorbent paper)
|
10.Back release paper
|
|
5.Lower tissue
|
11.ADL
|
|
6.PE film non woven
|
|
