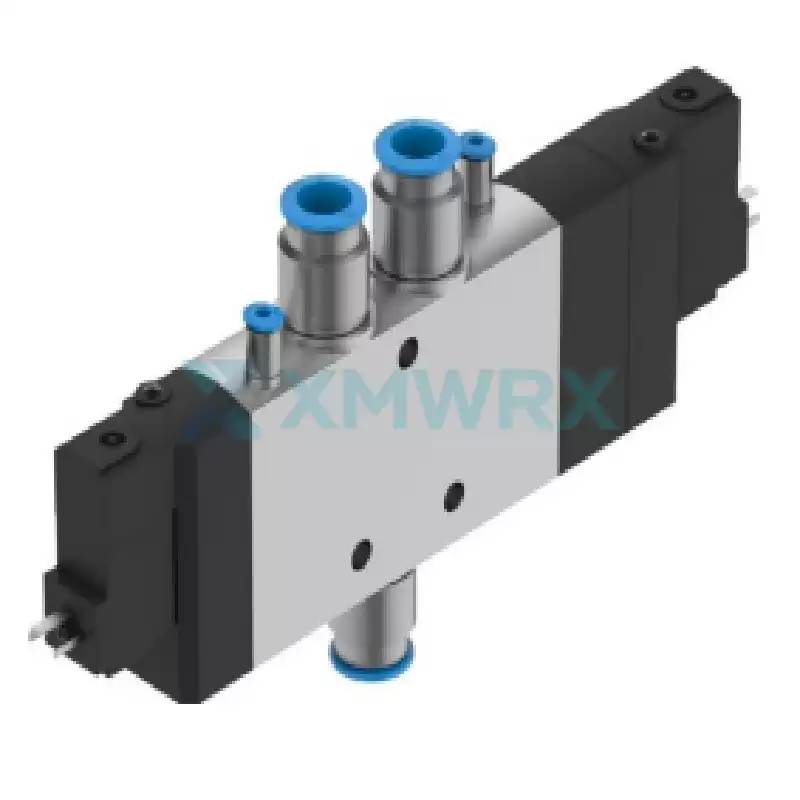

FESTO CPE24-M1H-5/3GS-QS-12 170278 24mm wide 5/3 position solenoid valve

✔ IN STOCK ✔ New Original
  • Delivery time: Shipped in 3 days after payment
  • Condition: Brand New & Original FESTO Factory Sealed
  • Warranty: 12 Months Standard Warranty
  • Quality Guarantee: 30-Day Return and Exchange Policy
Part Number

CPE24-M1H-5/3GS-QS-12 170278
Product Type 24mm wide 5/3 position solenoid valve
Product Origin Hungary
Shipping Port Xiamen
Weight 1..28 lbs

Facebook Twitter Pinterest LinkedIn 分享

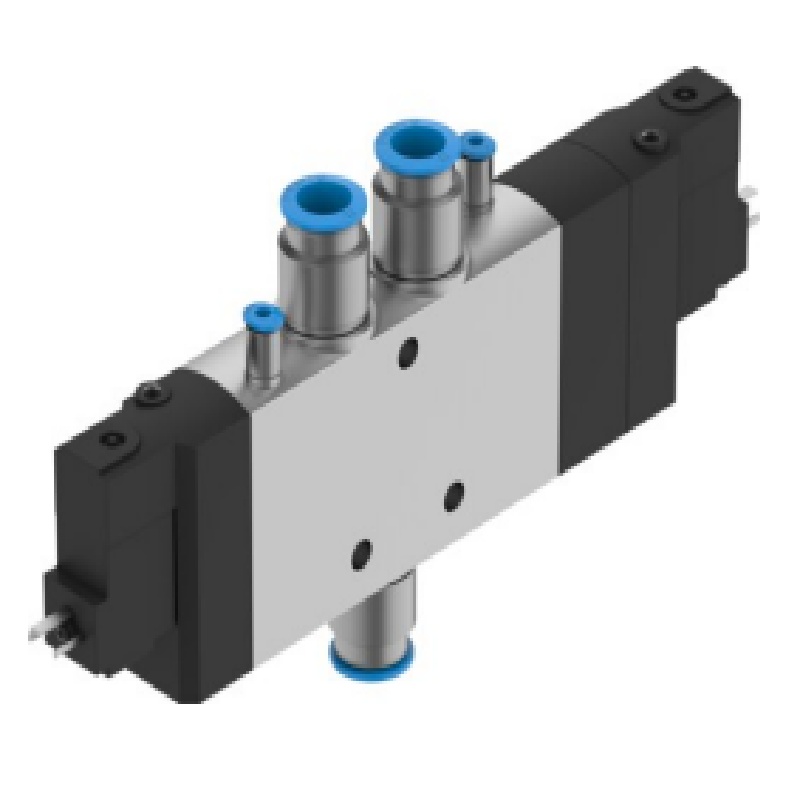

The Festo CPE24-M1H-5/3GS-QS-12 (order number 170278) is a 24mm wide 5/3-position solenoid valve, with all ports closed in the neutral position.

It is electrically pilot-operated, equipped with a QS-12 quick-connect fitting, and supports operating pressures from -0.9 to 10 bar, with a standard rated flow rate up to 1650 l/min. The valve has an IP65 protection rating, and its die-cast aluminum housing and NBR seals provide good durability and moderate corrosion resistance.

100% Original & Authentic In-Stock & Fast Shipping Expert Technical Support 12-Month Warranty
Bosch Rexroth MS2N03-B0BYN-CMSG1-NNNNN-NN Servo Motor

Core Features

  • ✓  Neutral Stop Function: 5/3-position valve structure; all ports are closed in the neutral position, enabling precise cylinder position holding or emergency stop.
  • ✓  High Flow Capacity: Standard rated flow rate up to 1650 l/min, suitable for pneumatic systems requiring rapid action and high efficiency.
  • ✓  Pilot-Operated Electronic Control: Employs electronic pilot drive with a coil power of only 1.5W (24V DC), and includes a manual auxiliary device for easy adjustment.
  • ✓  Integrated Quick-Connect Interface: Ports 1, 2, and 4 use QS-12 quick-connect connectors for quick connection to 12mm tubing, simplifying installation.

Technical Specifications

Brand

FESTO
Model / Part Number CPE24-M1H-5/3GS-QS-12
Order No. 170278
Valve Function 5/3 position, neutral closed
Width 24 mm
Standard Rated Flow Rate 1650 l/min
Pilot Pressure 2.5 bar ... 10 bar
Operating Pressure -0.9 bar ... 10 bar
Operating Temperature -5 ~ 50℃
Operating Voltage 24V DC, Power: 1.5W
Protection Rating IP65 (requires socket)

Frequently Asked Questions

Q: What are the suitable applications for CPE24-M1H-5/3GS-QS-12?

A: Suitable for applications requiring precise position control of a double-acting cylinder, such as automated assembly lines, clamping devices, or equipment requiring emergency stop functionality. The neutral stop function allows the cylinder to lock in any position in the event of power failure.

Q: Can this valve be used in vacuum systems?

A: Yes. Its operating pressure range is as low as -0.9 bar, making it suitable for vacuum adsorption or gripping systems.

Q: What type of electrical plug is used with this valve?

A: It requires a Form C plug conforming to EN 175301-803 (also known as industrial standard Type B) for establishing a 24V DC power connection. The socket must be ordered separately.
