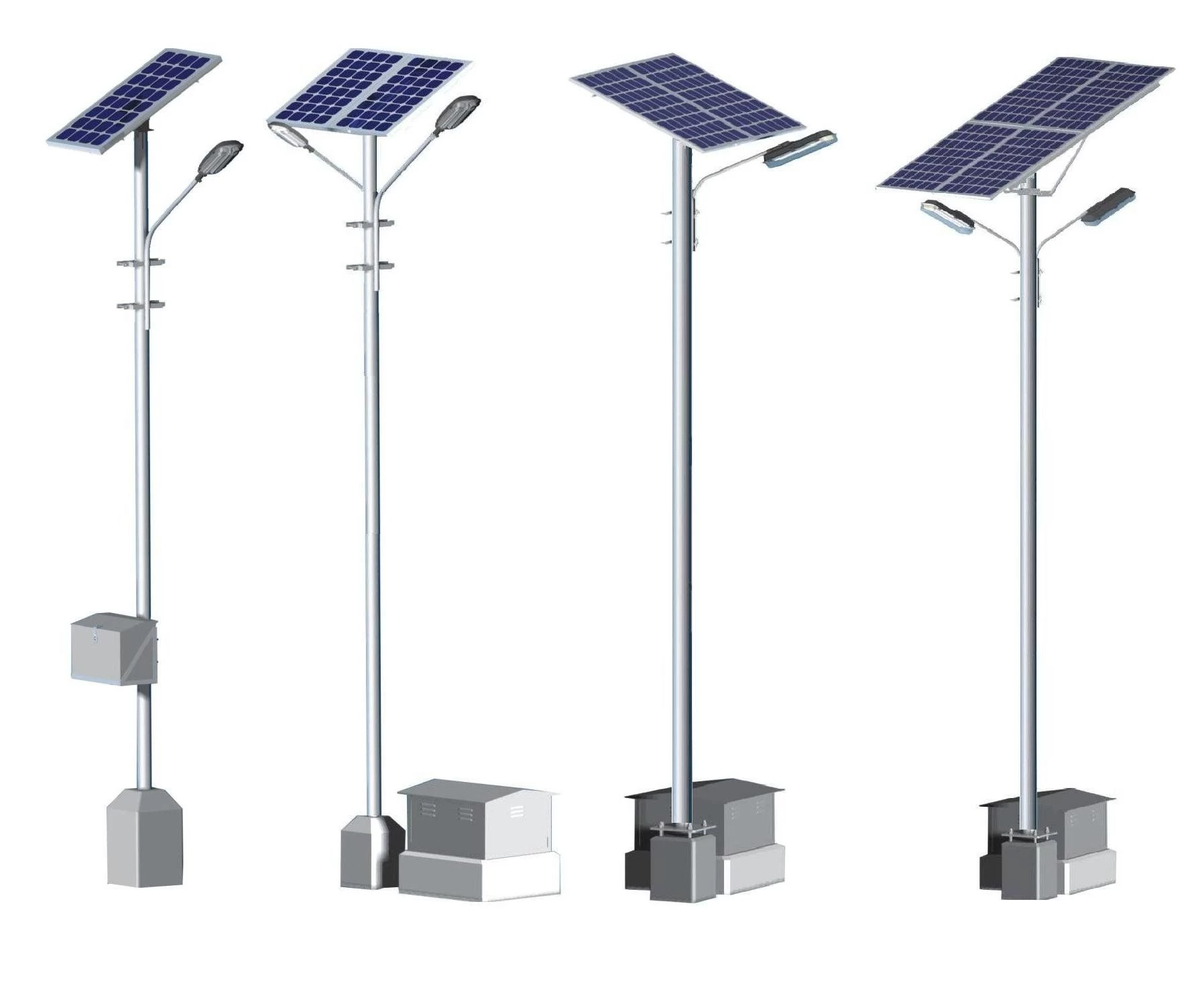

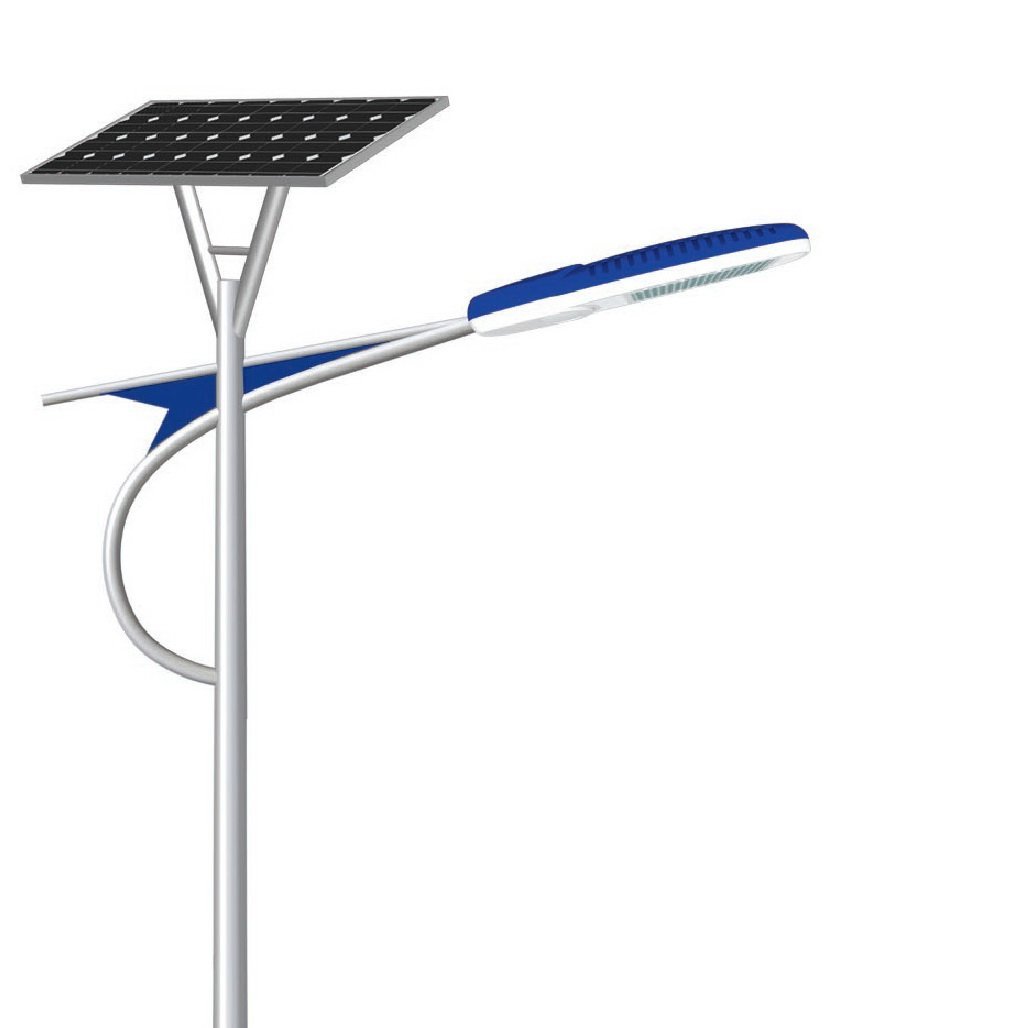

Solar Power Systems for Street Lighting
Each FGET solar powered street lighting system is supplied with a self-contained solar power package sized to operate the specified solar luminaire according to customer-defined requirements. Our team designs each system based on the power consumed by the luminaire and the available sun provided by the geographic location of the installation. The backup battery provides a minimum of five days of battery life for extended battery life and takes into account local weather conditions.

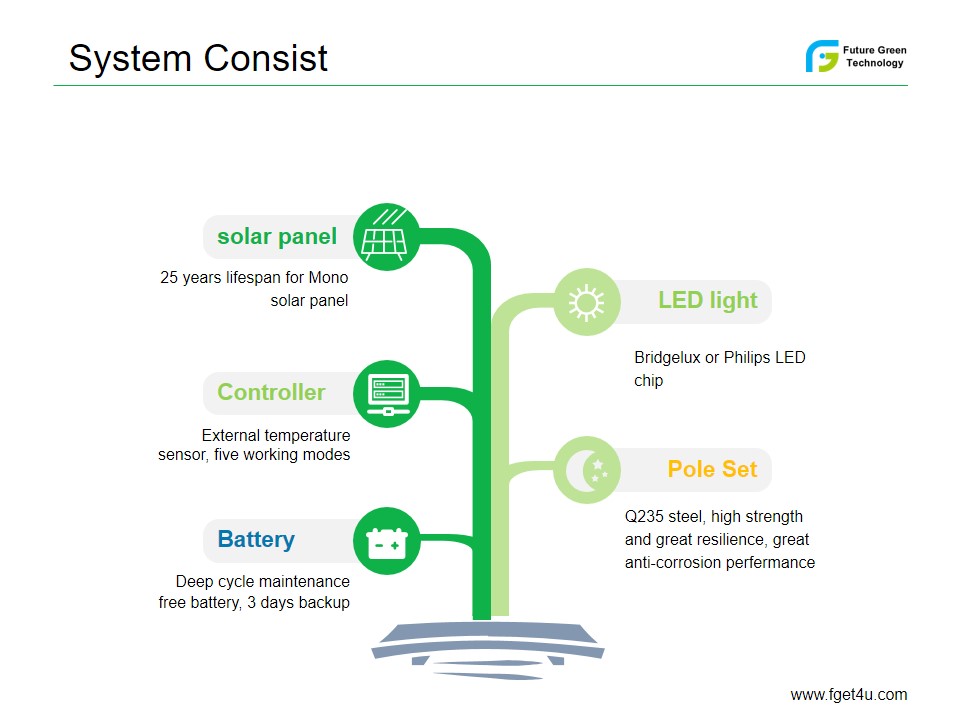

Each self-powered solar energy assembly includes:
Unique solar panel panel
Optional Full Covered Ventilated Aluminum Panel Panel
Welded rear channel mounting bracket
Ventilated aluminum battery console with sealed GEL batteries
All the control electronics
Welded aluminum power supply to bolt to a pole or wall
Feature:
1) All in one intelligent design
2) Long lighting time up to 36-48 hours
3) Energy Saving LED garden/street lights
4) Different Motion sensor with timer
5) Pole optional, easy to install
6) Have photo sensor turn on at nite, turn off daytime, also can according customer design the working time
|
Working Mode
|
5-13 working hours per day, 2-7 rainy days back-up
|
|
Solar Panel
|
A GRADE high efficient
Monocrystalline: 30W to 310W, efficiency of more than 18.5%
Polycrystalline: 30W - 270W, efficiency of more than 17.8%
Hydrophobic layer with higher light absorption and minimal surface dust
Lifespan: 20 years; 5 years warranty
|
|
Gel Battery
|
Capacity: 40ah - 120ah
Better Weather-ability (-20 ºC ~ 50 ºC)
Fully sealed construction, maintenance free
Lifespan:5-8 years, (3200 cycles @ 30% DOD)
|
|
Controller
|
PWM / MPPT waterproof ip67
Over-charging/discharging Protection, Reverse-connection Protection
Lifespan:5-10 years
|
|
LED Lamp
|
LED Power: 60w~240w; LED module;
Lumen efficiency: 130lm/w(3030) or 150wlm/w(5050) avaiable
IP Rate: IP67
Lifespan: >50000Hrs
|
|
Light Pole
|
Hot-Dip Galvanized, powder coating
Lifespan: More than 20 years
Equipped With Arm, Bracket, Flange, Fittings, Cable
Resistant to Wind: ≥150KM/H
|
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
