Fiber Adapter LC with Shutter UPC APC Simplex Duplex Quad SM Multimode OM3 OM4 OM5

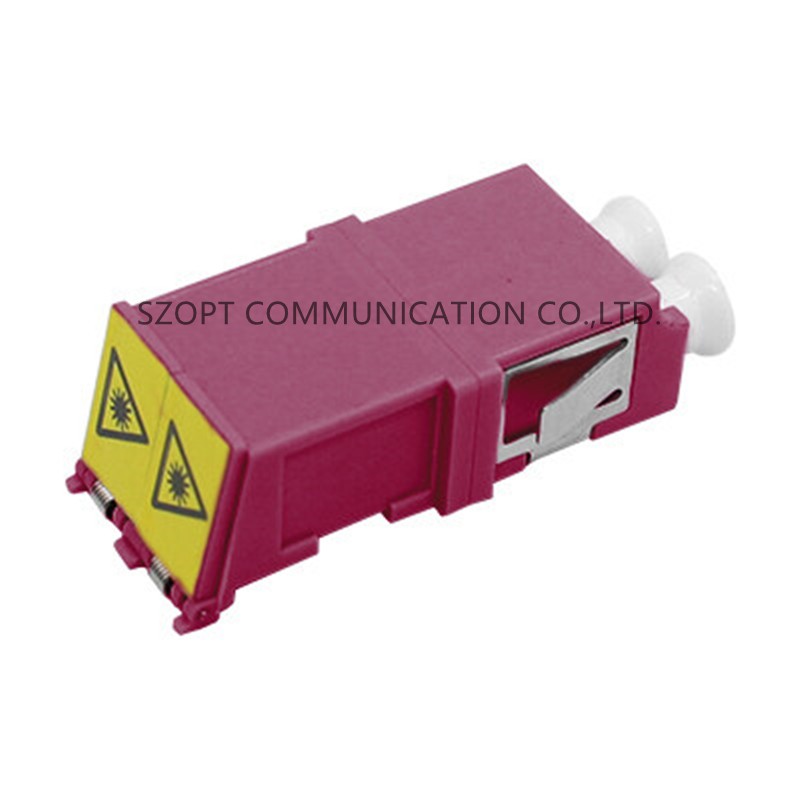

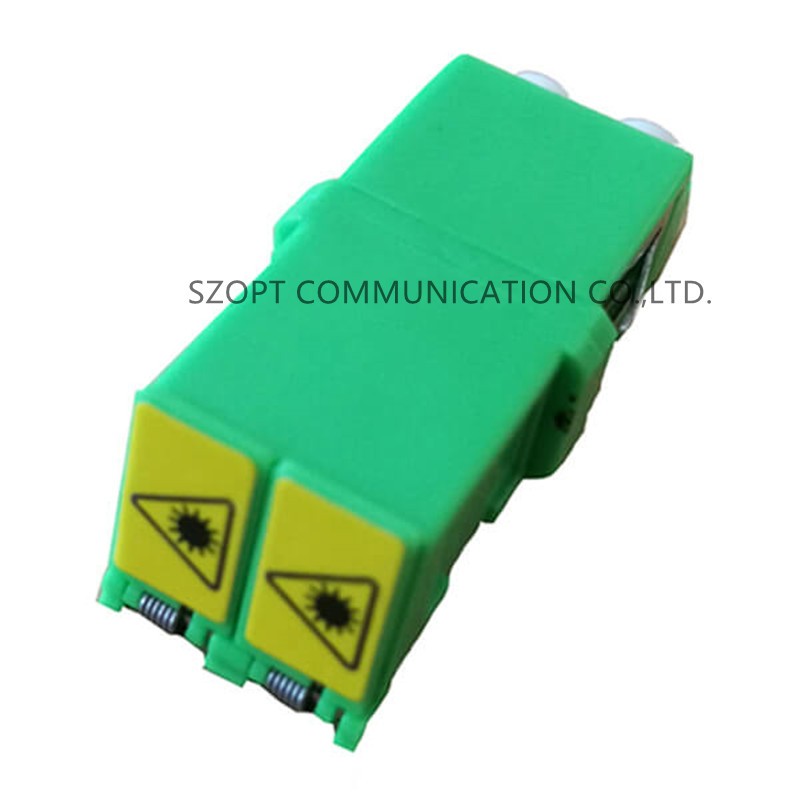

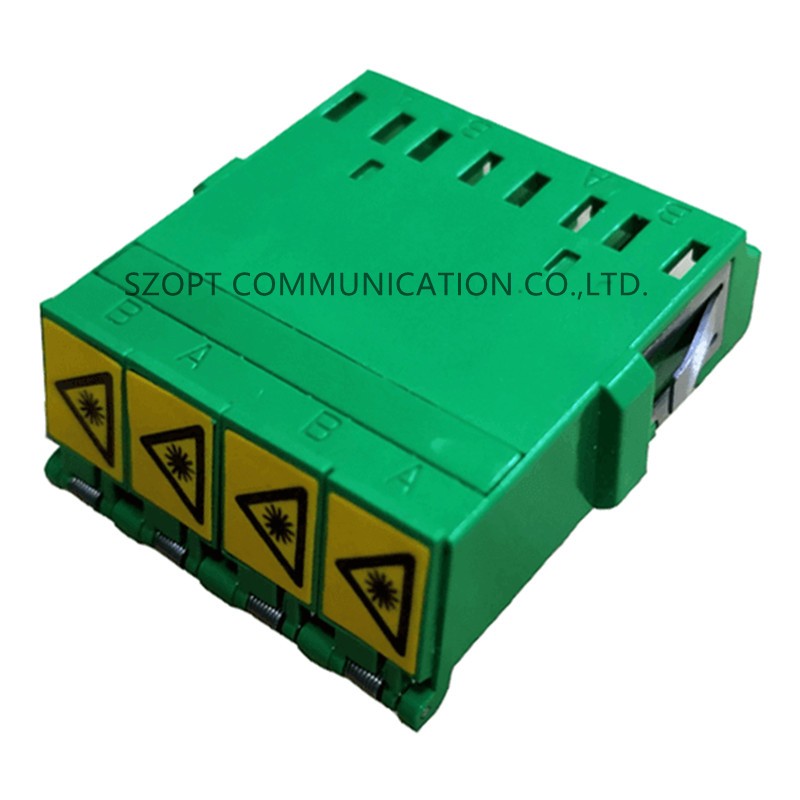

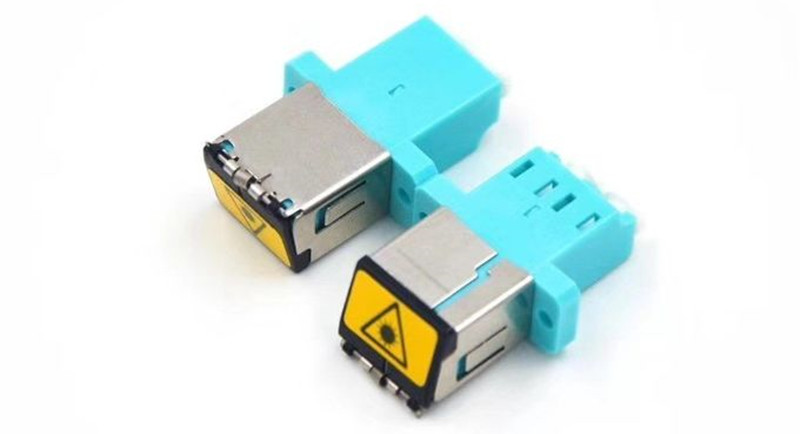

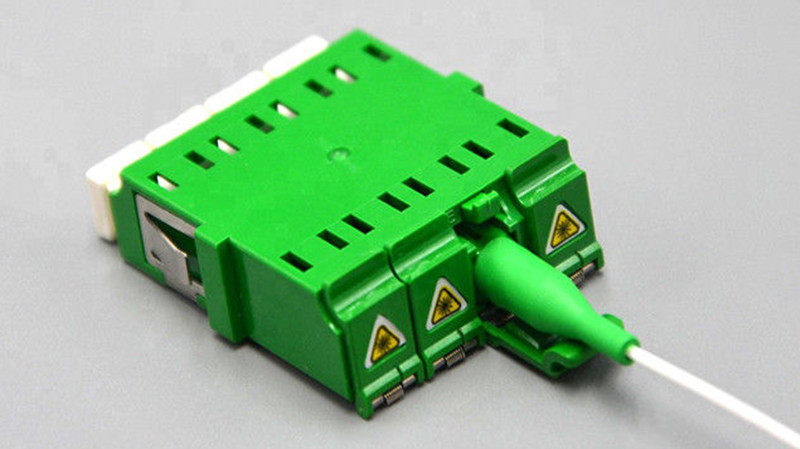

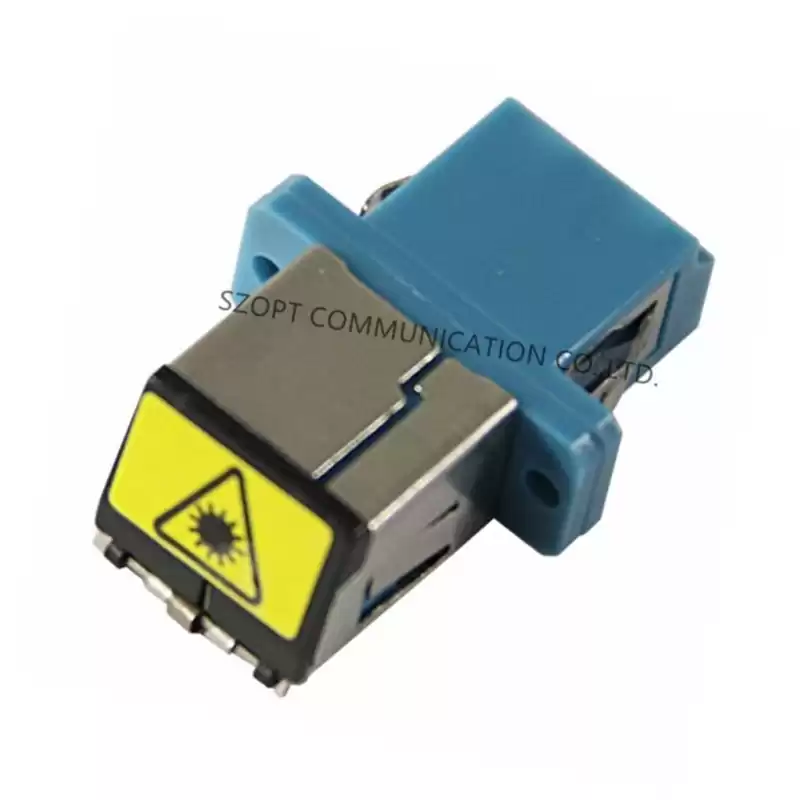

Fiber adapters LC with shutters are usually duplex or quad types with or without flanges. They are available in
two versions, one is integrated build in type , the other is with removable
shutter to meet flexible installation requirement, and avoids laser beam hurting.SZOPT
offers a comprehensive range of fiber adapters with shutters to meet your fiber
service.Please reach us for details.
Application:
LAN
Fiber Optic
Transmission System
CATV Network
Telecommunication
Instruments
Feature:
Compact design
Low insertion loss
Durability(Recycles):500
High Reliability
and Stability
Package:
25pcs per blister box,then put into a carton box.
Specification:
|
Parameter
|
Unit
|
SM-UPC
|
SM-APC
|
MM
|
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Return Loss
|
≥50
|
≥60
|
≥35
|
|
Exchangeability
|
≤0.2
|
|
Repeatability
|
≤0.2
|
|
Durability
|
Times
|
>1000
|
|
Plug and unplug force(g/f)
|
G
|
200-600
|
|
Operating Temperature
|
°C
|
-40~75
|
|
Storage Temperature
|
-40~85
|
