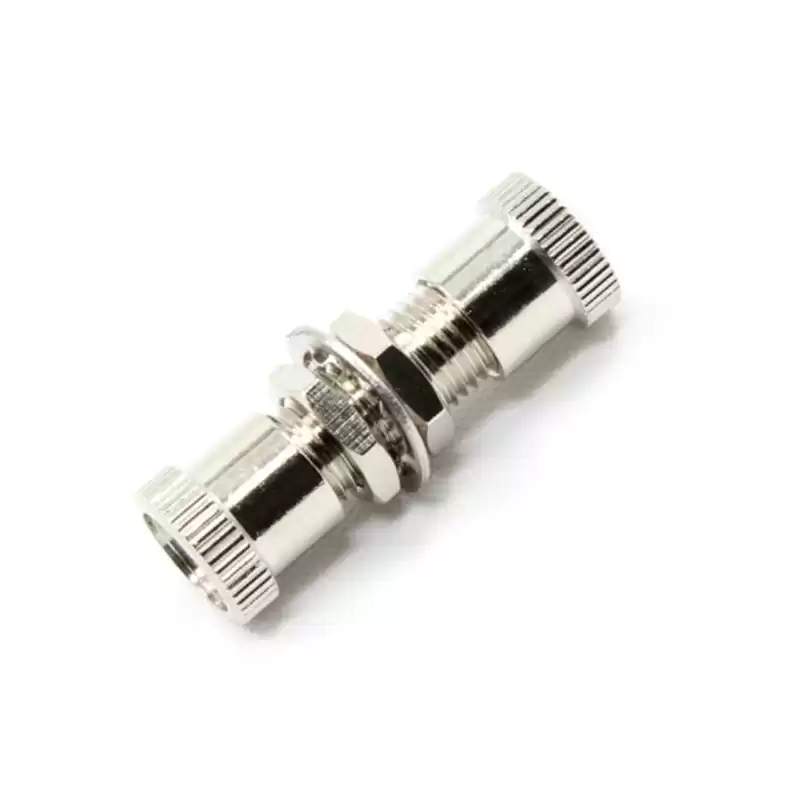

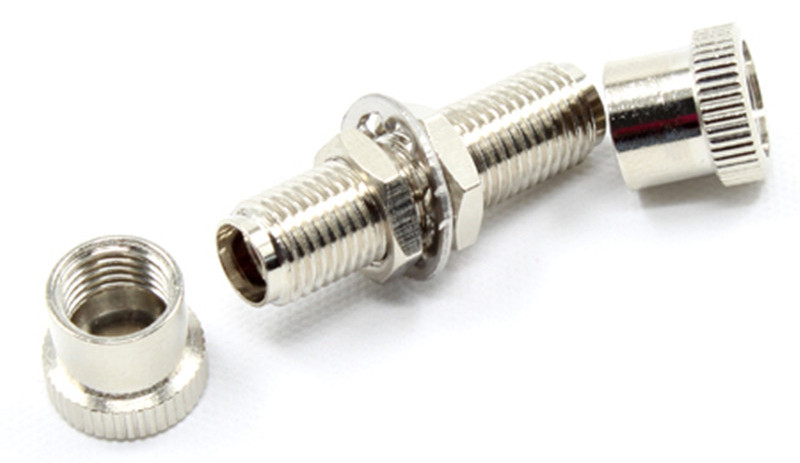

Fiber Adapter SMA SM Multimode OM3 OM4 OM5
Fiber
Adapter SMA features providing the connection between SMA patch cord with SMA patch cord, SMA fiber adapters are metal housing.Please reach us for details.
Application:
LAN
Fiber Optic
Transmission System
CATV Network
Telecommunication
Instruments
Feature:
Compact design
Low insertion loss
Durability(Recycles):500
High Reliability
and Stability
Package:
25pcs per blister box,then put into a carton box.
Specification:
|
Parameter
|
Unit
|
SM-UPC
|
SM-APC
|
MM
|
|
Insertion Loss (Typical)
|
dB
|
≤0.2
|
≤0.2
|
≤0.2
|
|
Return Loss
|
≥50
|
≥60
|
≥35
|
|
Exchangeability
|
≤0.2
|
|
Repeatability
|
≤0.2
|
|
Durability
|
Times
|
>1000
|
|
Plug and unplug force(g/f)
|
G
|
200-600
|
|
Operating Temperature
|
°C
|
-40~75
|
|
Storage Temperature
|
-40~85
|
