Fiber Laser Cutting Machine for Coils and Sheets Application and Uses

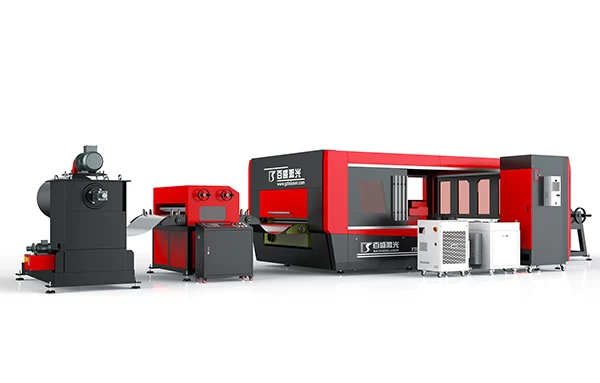

China Fiber Laser Cutting Machine for Coils and Sheets.The steel coil cutting laser using fiber optic laser sources ,the decoiler,Straightener,Roller table for insertion of pre-cut sheets,Feeder,Baisheng laser cutter ,offloading system for finished parts.




Fiber Laser Cutting Machine for Coils and Sheets Application and Uses

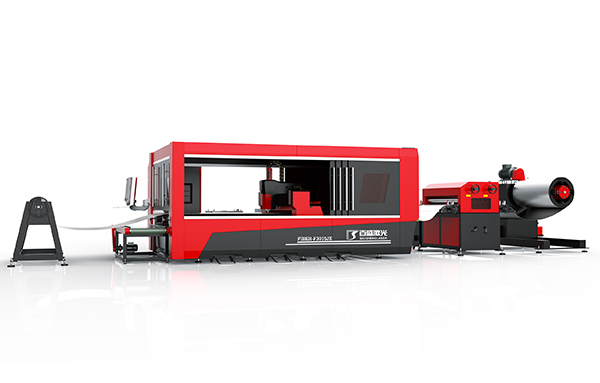

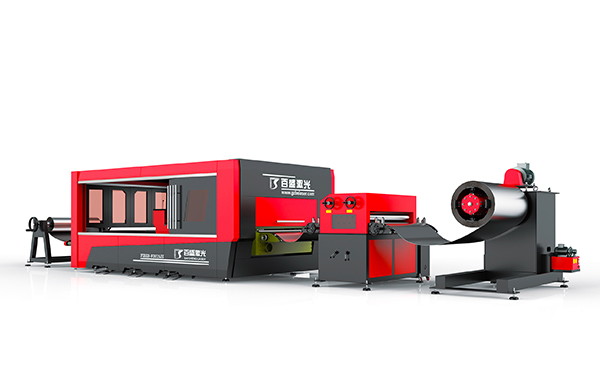

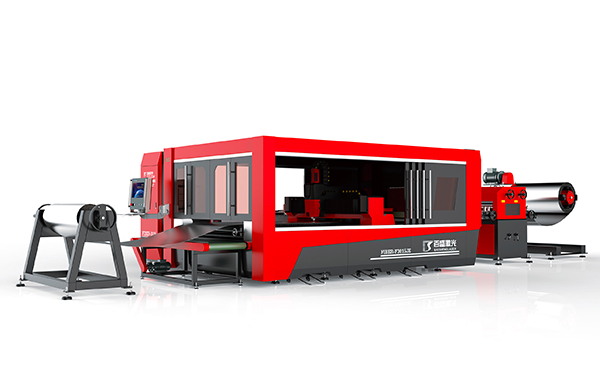

Baisheng laser F3015JE/F3015JDE

Fiber Laser Coil processing  solution is the most advanced combination of coil-fed automation and high-speed laser cutting for surface-sensitive metal blanking.


Baisheng laser coil cutting machine offers a user-friendly process and more possibilities than many traditional laser machines on the market today.

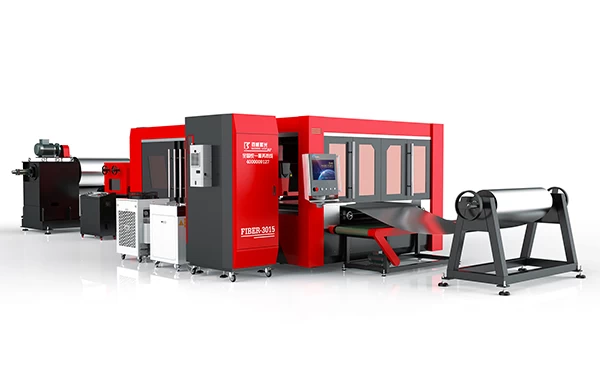

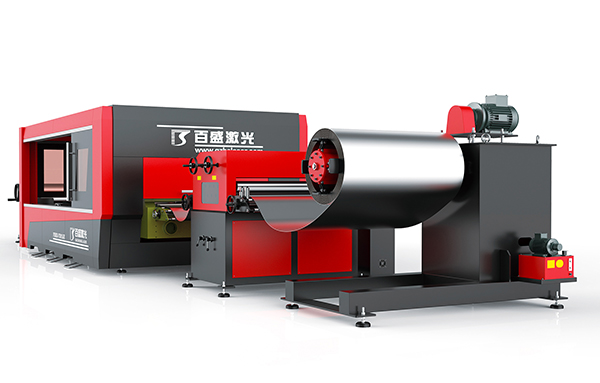

When processing from coils, rolled steel.the material is unwound by a decoiler and then paid out by the feeder into the machine. When processing standard or pre-cut sheets, the sheets are placed on a roller table at the inlet of the machine. The sheet is then inserted into the processing area and Cypcut system establishes the position of the sheet corners and edges, immediately starting the machining process.


  • Decoiler: When processing coils, the decoiler acts as a material storage system with capacities of 6, 8 or 10 tons.Baisheng F3015JE JDE  machines offer all the advantages of coil-fed production, including automated production, 100% optimization of material and extremely high-speed cutting.
  • Straightener: The straightener receives the material from the coil and eliminates the curvature caused by being wound on the reel. The straightener is built directly into the feeder in the standard LXN versions, offering an extremely compact footprint.
  • Roller table for insertion of pre-cut sheets: With this optional element, sheets of different materials and thickness can be machined up to 4 meters long. Larger roller tables are also available for feeding single sheets up to 12 meters long.
  • Feeder:The feeder inserts the material either continuously or step-by-step into the machine to allow sequential machining of the material.

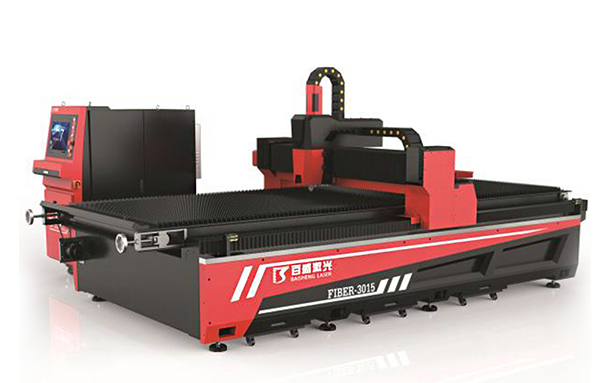

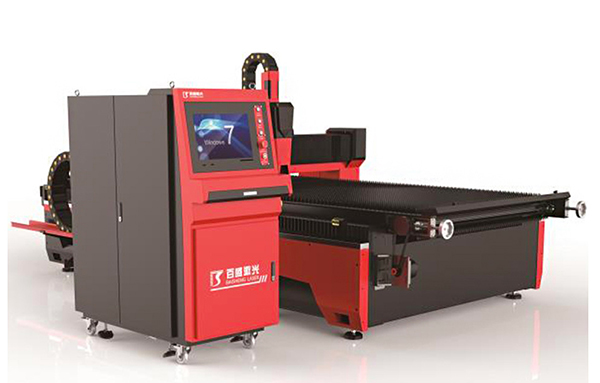

  • JE JDE laser cutter: the laser cutting machine with or without a protective cover.The steel coil plate finally arrives on the laser cutting table, which is suitable for max coil width 1300mm and sheet 1500mm..The laser head moves along the X and Y axis to cut the raw material as programmed.
  • Programming:sheerly by China Cypcut control .
  • Unloading and separation systems:equipments for collecting the finished parts and nest plate.

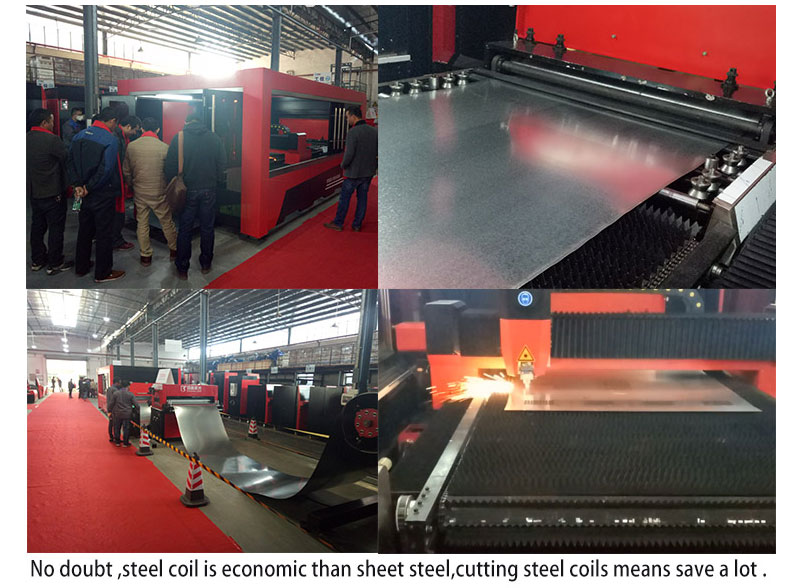

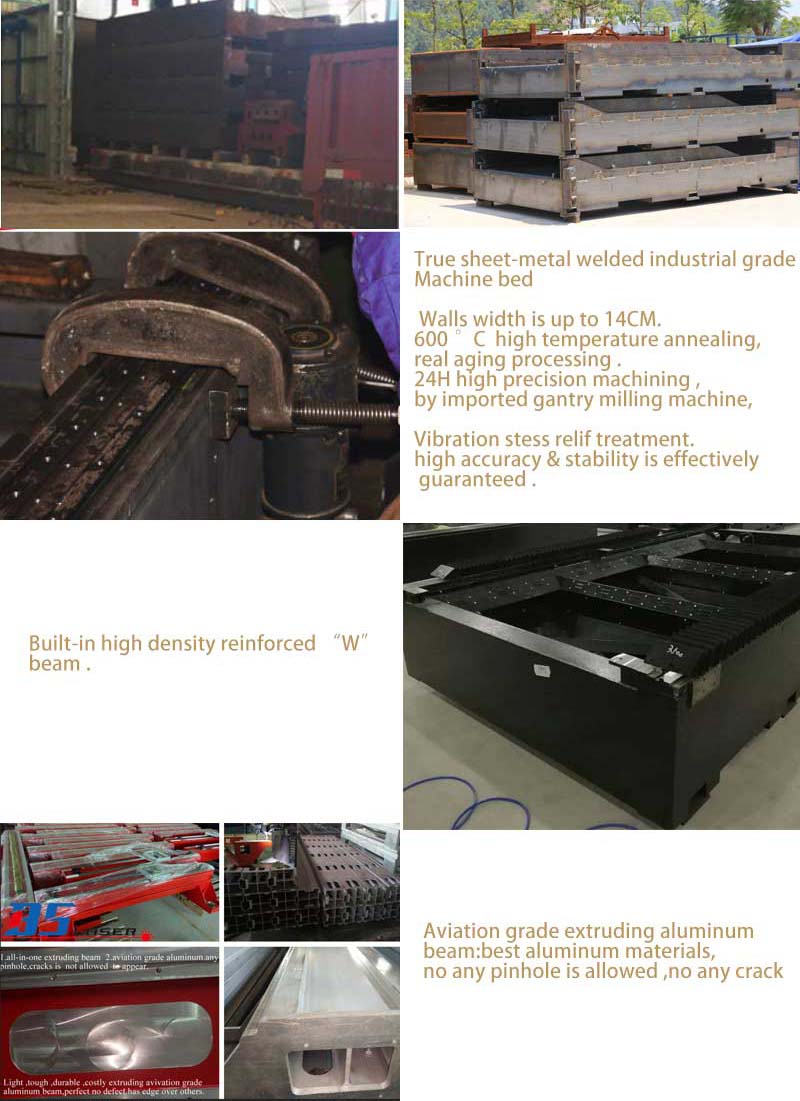

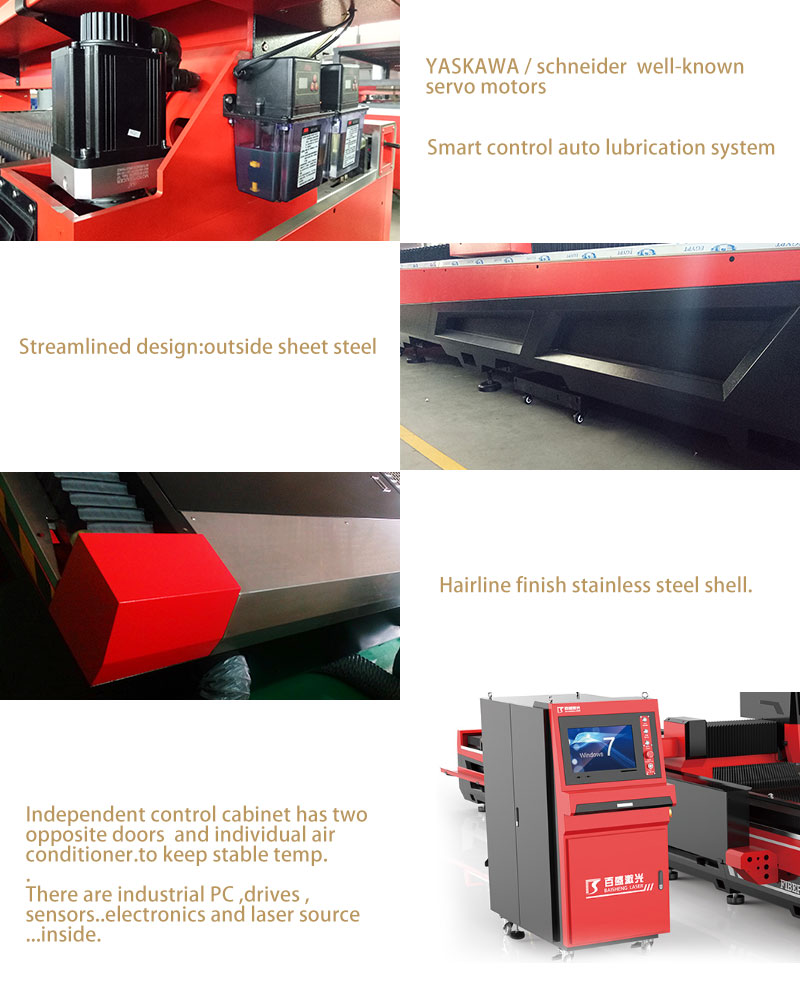

Steel coil laser cutting machine details Photos:
