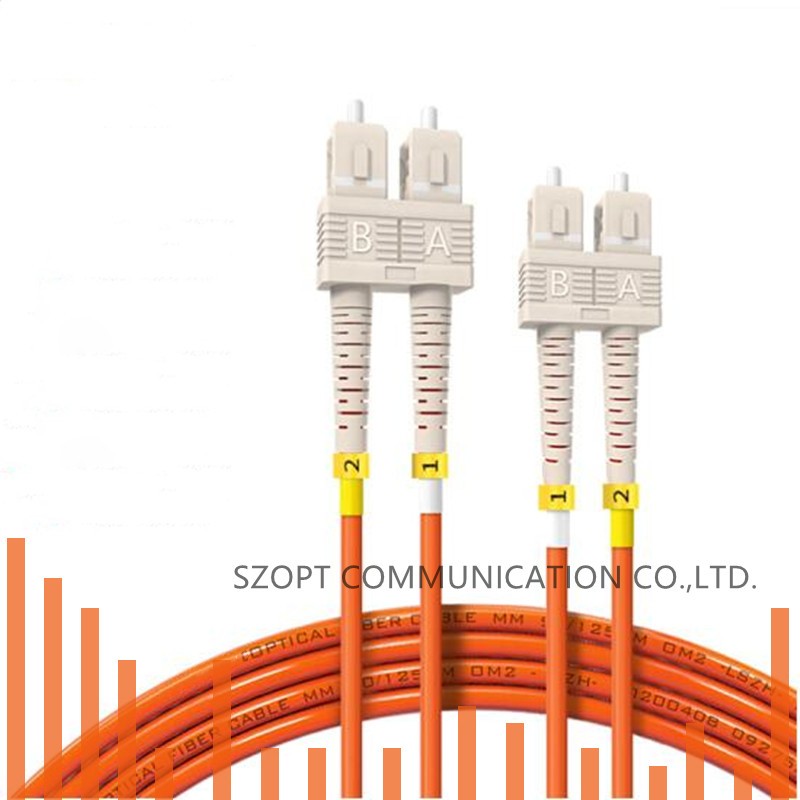

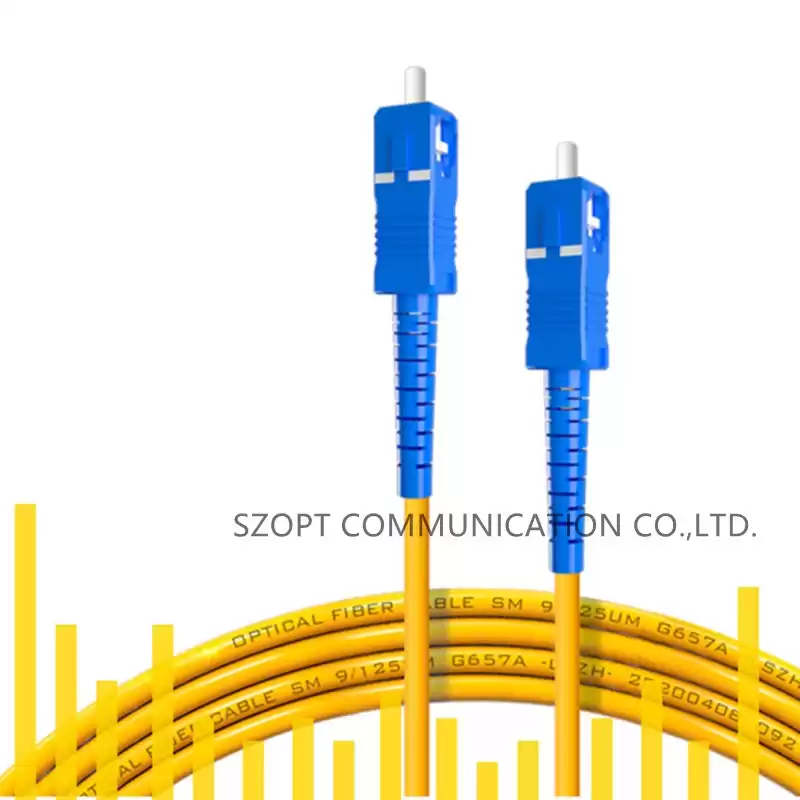

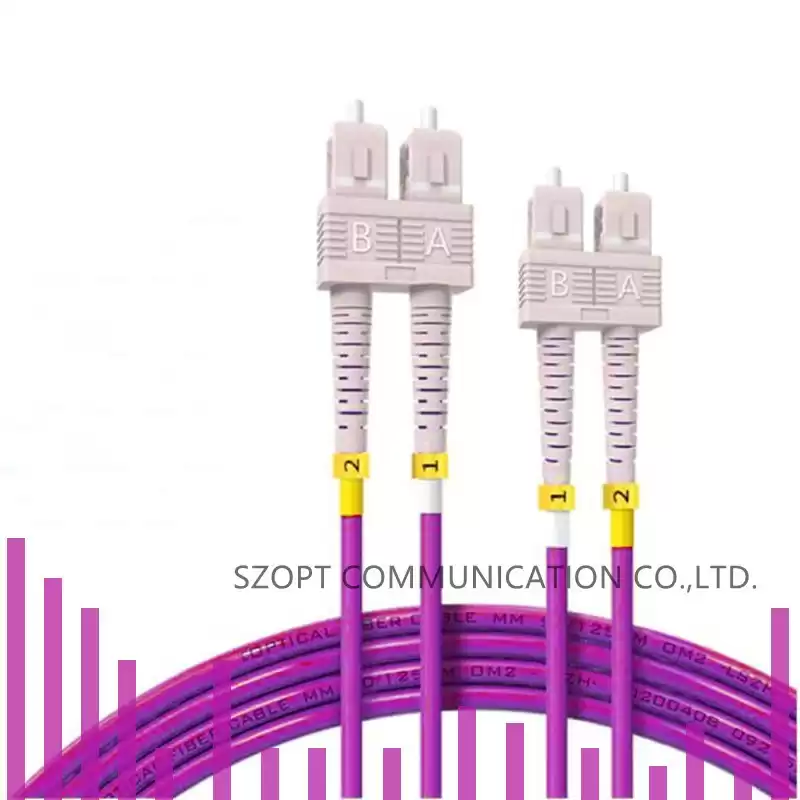

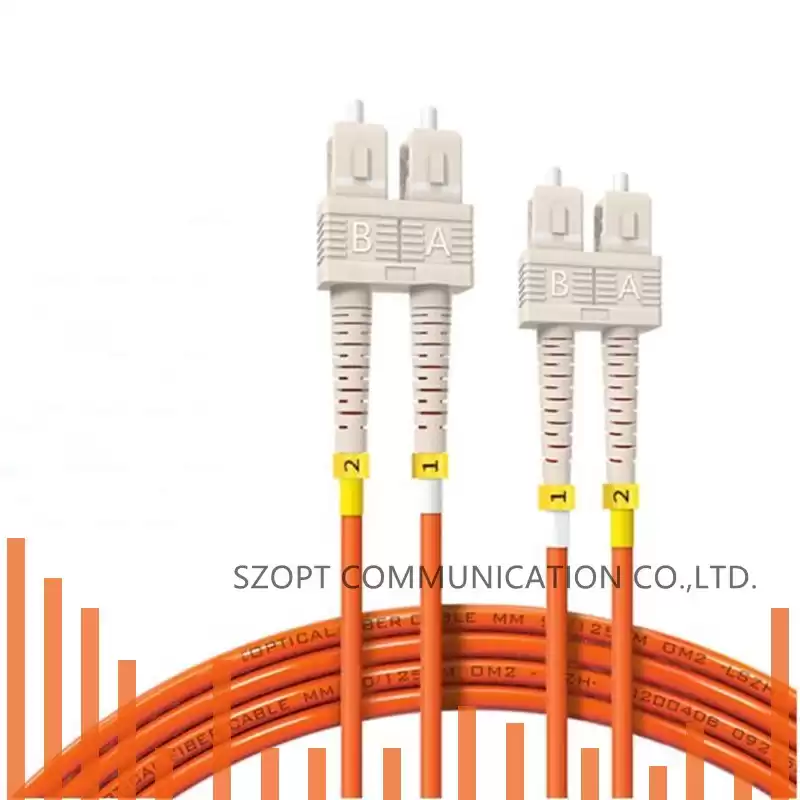

Fiber Patch Cords SC-SC Simplex Duplex Singlemode Multimode

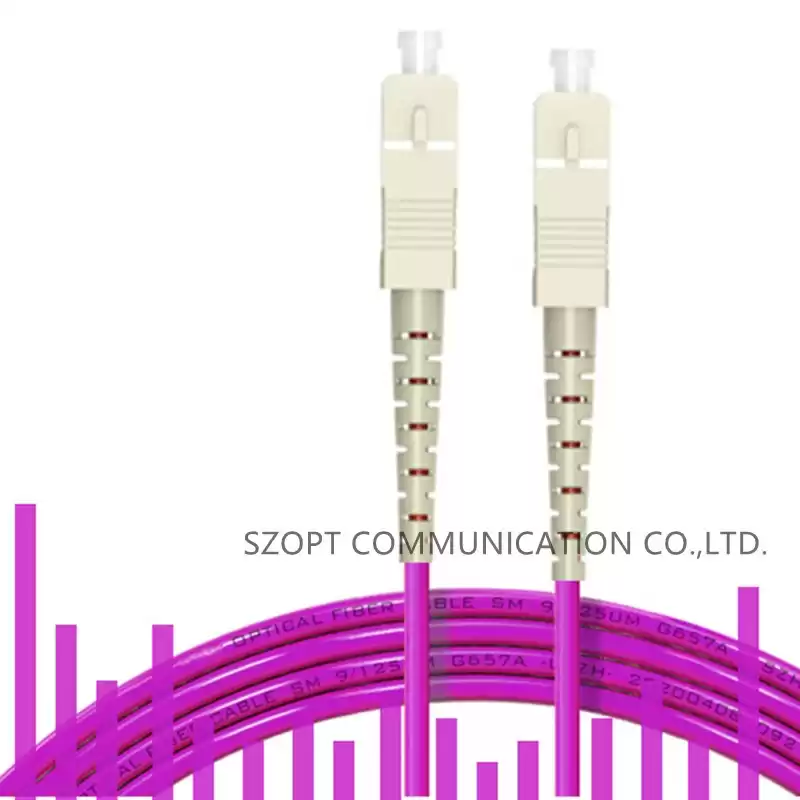

Fiber Optical Patch Cord SC-SC has SC/UPC connectors on both ends,with PVC,LSZH,OFNP jacket in yellow(SM);orange(OM1/OM2),aqua(OM3), magenta(OM4),lime green(OM5) or custom,the cable diameter is 3.0mm,2.8mm,2.4mm,2.0mm,1.8mm,1.6mm,1.2mm,0.9mm,etc.

Facebook Twitter Pinterest LinkedIn 分享

Fiber Patch Cords SC-SC Simplex Duplex Singlemode Multimode


Fiber patchcord SC-SC SM/OM1/OM2/OM3/OM4/OM5 Duplex is a patch cord that has fiber connectors SC/UPC on both ends. General use of these yellow,orange,aqua,magenta,lime green or custom color cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.

Zirconia Ferrules

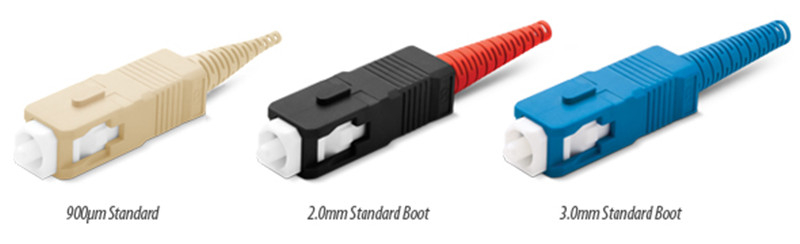

Fiber Connectors SC UPC

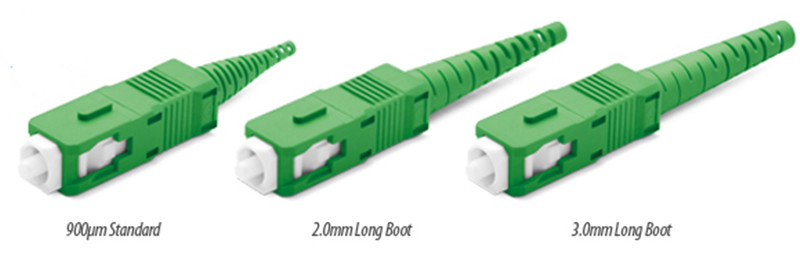

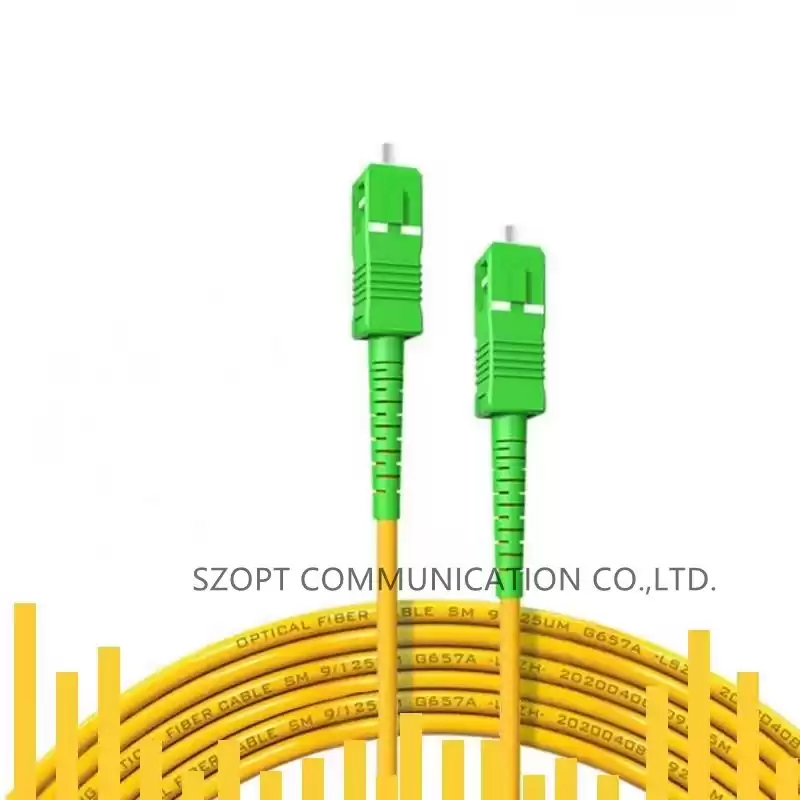

Fiber Connectors SC APC

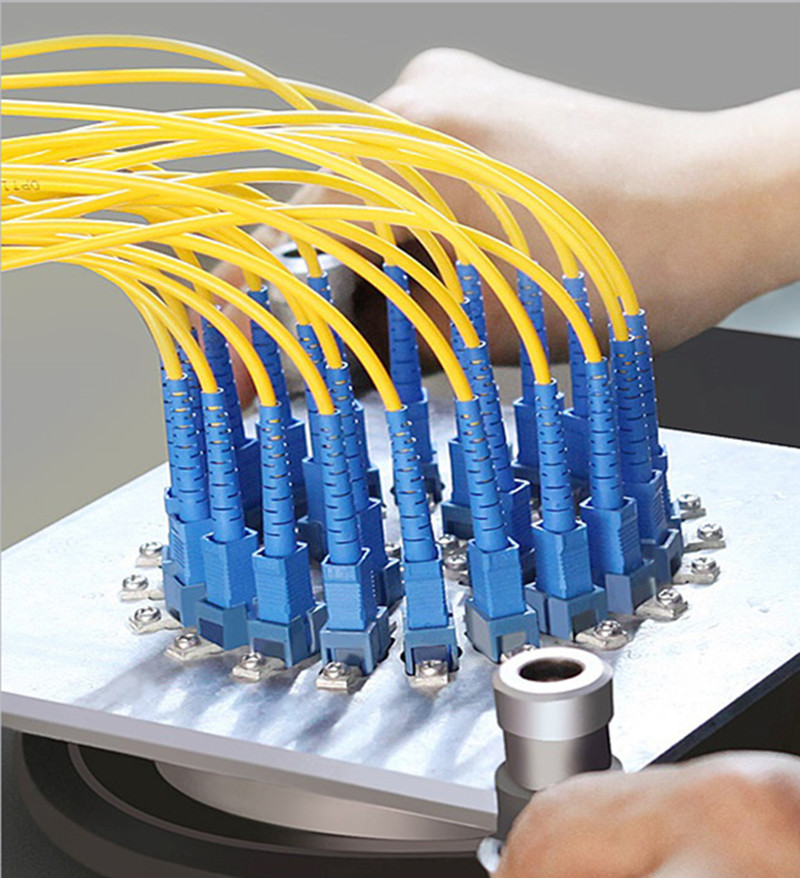

Polishing Station

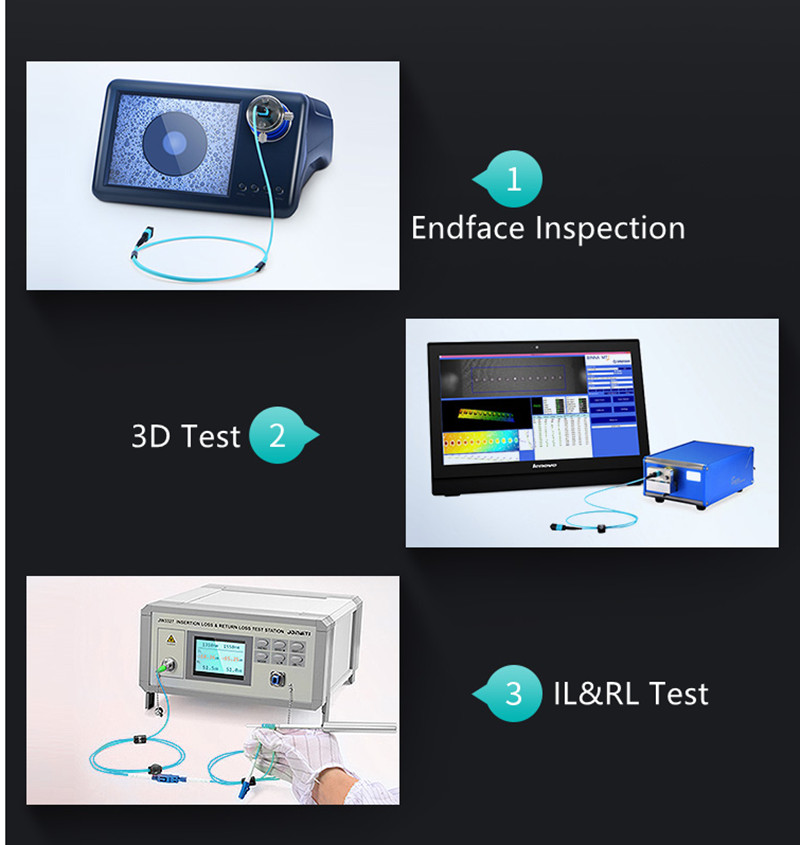

Test of Fiber Patch Cords

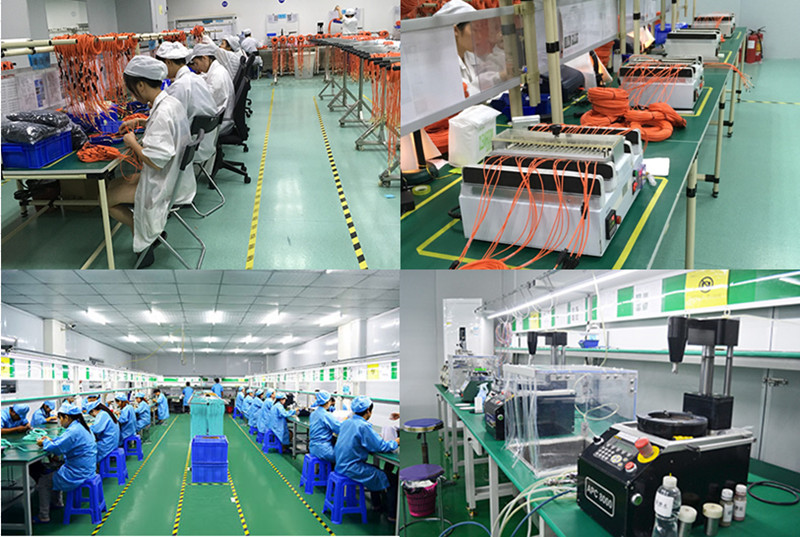

Workshop of Fiber Cords

Fiber Patch Cords Appliance

Goods Ready to Ship

Application:

Telecommunication System

Testing Equipment

CATV System

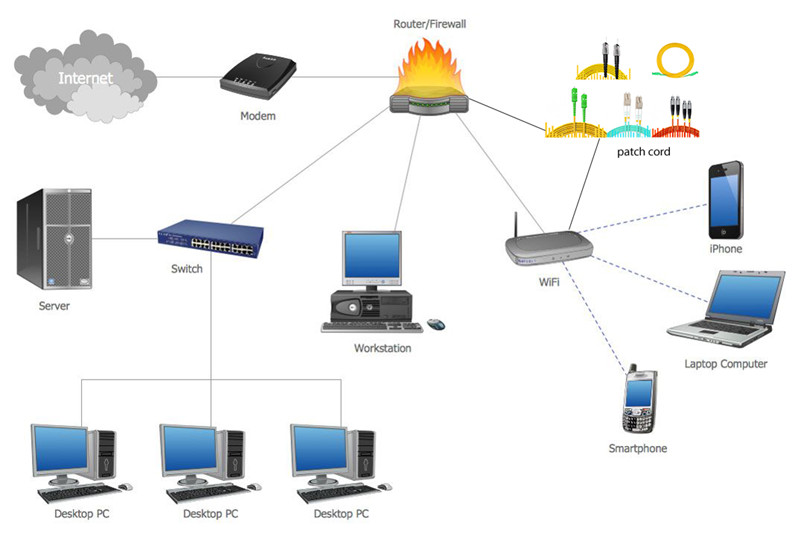

LAN System


Feature:

Low Insertion Loss

High Return Loss

High Reliability and Stability

0.9mm,2.0mm,3.0mm or custom diameter cable available


Package:

Each piece in a small PE bag,then some pcs in a bigger bag,finally put into a carton box.


Specification:

Connector Type

Performance Data

Connector

Polishing Mode

IL(dB)

RL(dB)

SC/LC/FC/ST/MU/E2000

SM

UPC

≤0.3

≥50

APC

≤0.3

≥60

MM

PC

≤0.3

≥35

MTRJ

SM

PC

  ≤0.5

≥50

MM

PC

≤0.5

≥35
