Filler and single color master batch large output capacity plastic extruder

 Filler and single color master batch  large output capacity plastic extruder

HS CODE: 8477.2010

This machine line is large output capacity of plastic granules making machine line.

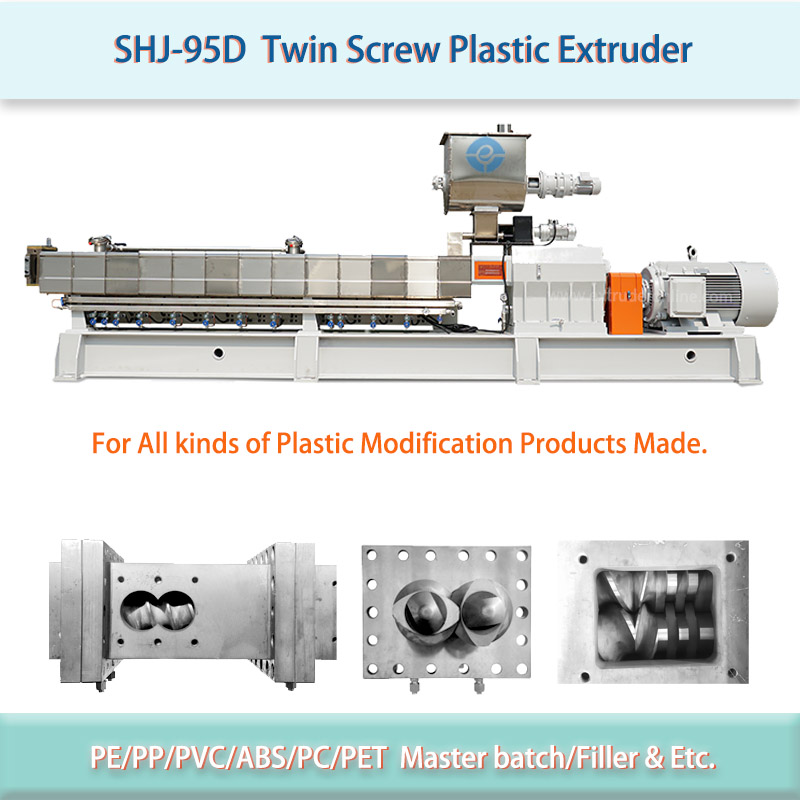

Filler and single color master batch Extruder Twin Screw Plastic Extrusion Machine with large output capacity

Model: SHJ-95B, SHJ95D, SHJ95G

HS CODE: 8477.2010

EVA MACHINE

This machine line is large output capacity, if you need special request and pay the extra cost of the parts, it could be equipped vector( loss in weight scale),  Henschel barnd gearbox, Biby brand coulplings, Siemens barnd large power motor, also it  could be set PLC + Touch Screen + Temp. controlling module and Etc.

Technical Parameter:

MODEL: SHJ-95B

Screw Speed: 500rpm

L/D: 48:1

Output Capacity: 600-900Kgs/h

Main Motor Power: 280KW Wannan brand ( optional: 315KW WanNan Brand/400KW , Siemens brand);

Gearbox: Standard type; (optional: Henschel brand, Model: TGE 3-95-DOS-LX-3.75)

Die Head: Standard type;

Purpuse: Color Master batch, Filler, Engineering and Etc.;

Heater:  Copper casting;

Air cooling chain convoying system: 24M;

Air Knife: 2 Heads type



EVA GRANULATING MACHINE

HS CODE: 8477.2010

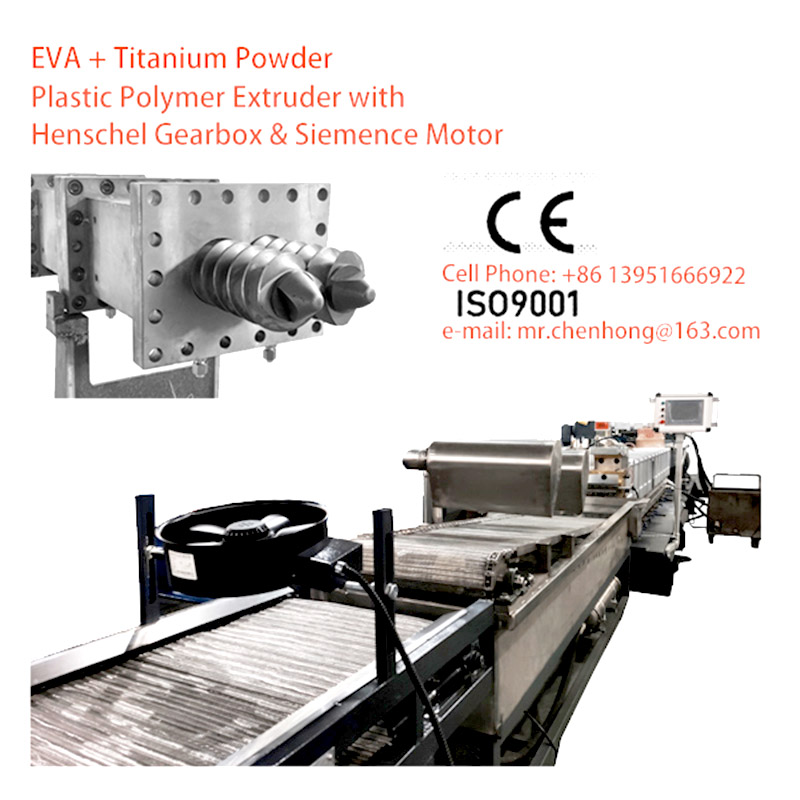

EVA Granulating with Titanium Powder Machine Twin Screw Plastic Extruder large output capacity

EVA Granules Twin Screw Plastic Extruder SHJ-95 with large output capacity

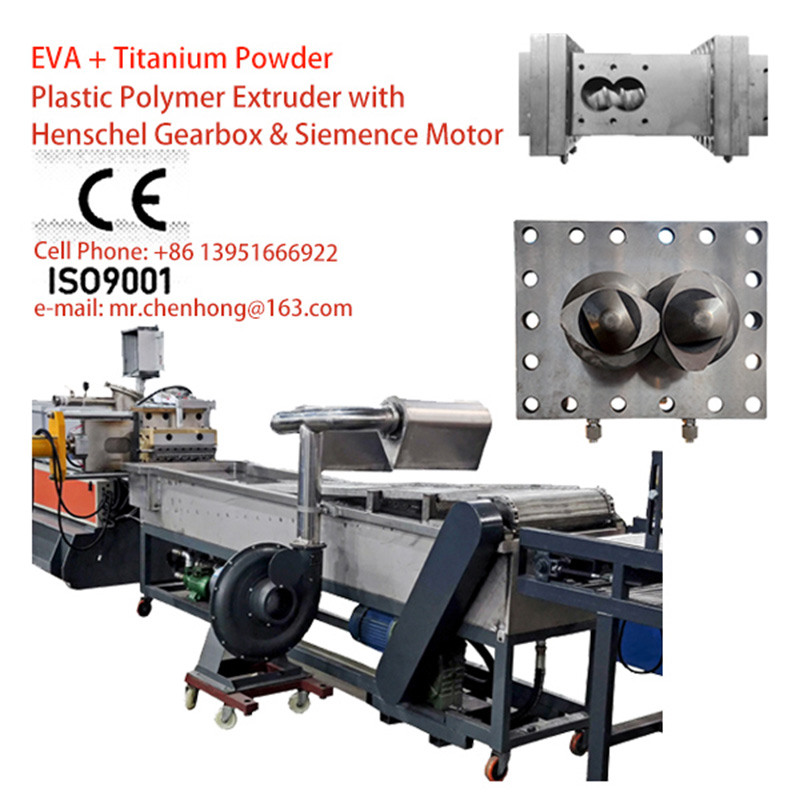

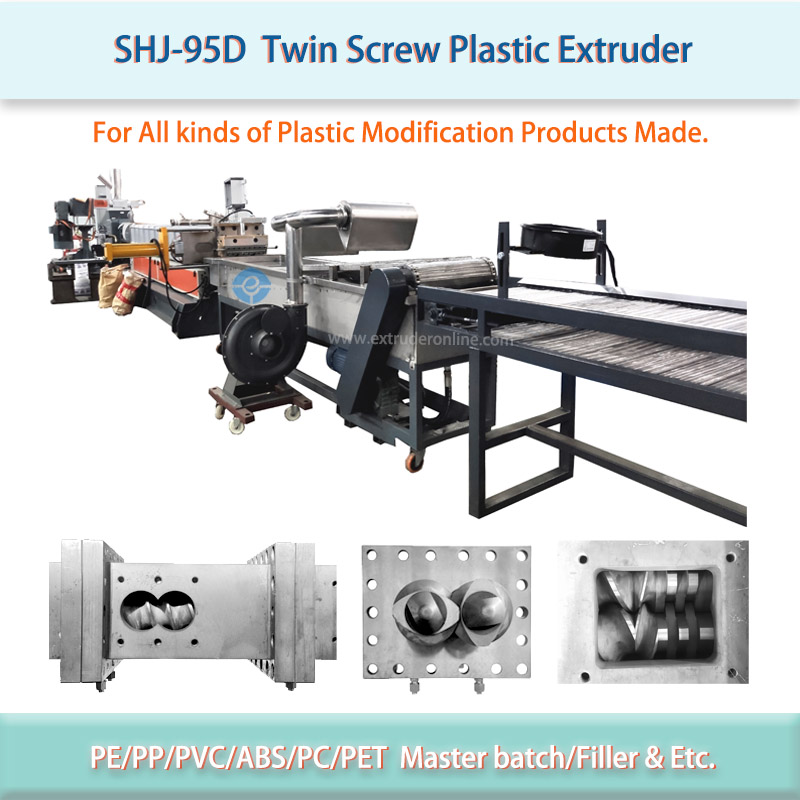

The machine line equipped half sink in water climbing(uphill) type  belt convoying systme before the air cooling belt convoying devices.

EVA GRANULATING MACHINE

*. Field of application:

SHJ series co-rotating twin screw extruders are mainly applied in polymer processing. To meet the increasingly demand from new materials and process, our company has been providing more new technologies and products accordingly.

Filling modification/  Cables & Wires/ Powder-coating / Blending  Degassing   / Reinforcing modification

Master-batch preparation /  Reactive Extrusion &  Other Applications

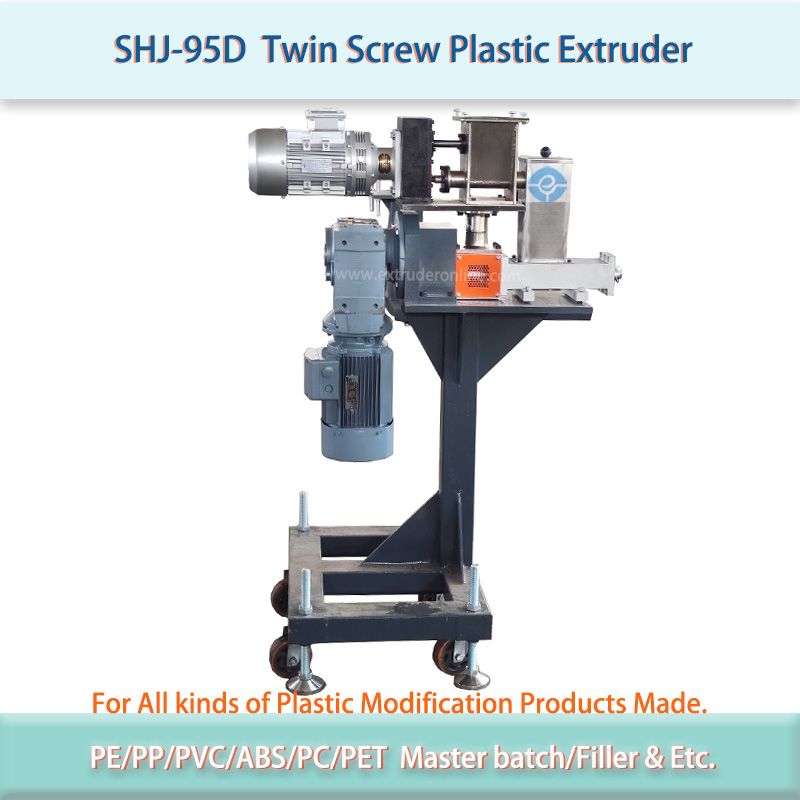

Following image is two stages of  side feeing system.

SIDE FEEDER

This machine can make EVA, EVA plus Titanium/French chalk/CaCO3 and other powder's filler, color master batch ( large output capacity with single color, it means that one color with large quantity orders, like black or white, or red...... just one color by large output capacity wanted. If you have multi colors and total quantity is small, then this machine is not a good choice for you.

EVA GRANULATING MACHINE

*. This Twin screw plastic extruder is for PLA/PET strand making, after by the pelletizer working, the strand will be the granules. This machine line also can make other different kinds of plastics, like to say PET, PE, PP, PVC, ABS and so on.

Our machine can process the following materials:

Process

Representative materials

Mixing nature-changing

PE,PP,PS+SBS,PA+EPDM,PP+NBR,EVA +Silicon rubber, etc.

PE,PA,PC,CPE+ABS(alloy),PBT+PET,PP+ PE etc.

Filling nature-changing

PE,PP,EVA, etc.+ Calcium carbonate, talcum powder, titanic powder

ABS,PC,PS, etc.+ aluminum hydroxide, magnesium hydroxide, antimony oxide.

PP,PA,ABS +ferrous powder, sulphuric powder ceramic powder

Functional machine pellets

PP,PA,ABS,PBT, etc+ anti-burning agent and other auxiliary agents: combustion-supporting machine pellets

PE,PP,PS, etc+ starch: de-composing machine pellets

PE+ fog-preventing dipper, stabilizer: dual-prevention machine pellets

PE,EVA=ABS etc+ carbon black: black machine pellets

Colored machine pellets

PE,PP,ABS,AS,PA,EVA,PET +pigment and auxiliary

Intensified glass fibers and carbon fibers

PP,PBT,ABS,AS,PA,PC,POM,PPS,PET etc.+ long fibers, small fibers, carbon fibers, crystals and so on, etc.

Various cables

HDPE,LDPE,LLDPE,MDPE,EVA,PVC,PP, etc. insulating cables,coatings,

PE peroxide silicon alkyl crossing cables: radialization crossing cables

Special materials

EVA heat-melting glue, polyurethane, fluorine rubber, fluorine plastics, PP cigarette filtering material and TPR sole material

Reaction extruding

Poly-amide condensate, poly-amide melting polymerization, poly-amide polythene-adding, poly-carbonate condensate, etc.

Exhausting and volatilization

Polystyrene oxide, high-absorbing resin, chlorine sulphur polyethylene

Powder paint

Polyester, ring oxide, lactide, polyurethane, acrylate



Material: Metal

Origin:China.

Production Standard: Export Standard

1) FCL: Metal frame on the bottom for transportation by lift when loading or unloading into/from the container to workshop; wrap film cover whole machine and parts; if it has meter or PLC outside, then will pack it carefully avoide crush.
2) LCL: Wooden case for package, but we will charge the packing cost to the clients.

Quality Guarantee: 1 year from B/L issued date, except quick-ware parts (like segments, heaters, shafts, sensor and Etc., we will list them on delivery packing list; We will collect the cost of the replace parts if the problem by man-made damage.

Installation and debugging charges: will be collected, please ask for our clerks in overseas markets department.

Documents presentation: B/L, INVOICE, PACKINGLIST, C/O and Insurance policy (If CIF terms);

We also present the following SHJ series plastic extrusion machine, the detailed technical parameter is as follows:

Model

Screw Dia.
(mm)

 Screw Rotary
Speed (rpm)

 Motor Power
(kw)

 L/D

Output Capacity
(kg/h)

 SHJ-20

 21.7

 600

 4

 32-60

0.5-15

 SHJ-35

 35.6

 500

 11-15

 32-60

15-40

 SHJ-50

 50.5

500

 45/55/75

 32-60

135-225

 SHJ-65

 62.4

500/600

 55-75-90

 32-60

 25-375

 SHJ-75

 71.0

500-600

 90/110/132

 32-60

330-550

 SHJ-95

 93.0

400-500

 250/315

 32-60

750-1250



Both screws and barrels are designed according to the principle of building block type. Let the machine line has excellent dispersion, mixing and compounding performance, controllable material duration of staying time in the barrels.  In the meantime, this design also has good exhaust release performance, excellent interchangeability, self-cleaning, flexible module combination and other characteristics, to achieve a wide range of muti-function, multi-purpose and specific requirements of the specific unity。

New Mixing & Extrusion Elements (segments)

The SHJ series extruders have newly developed screw elements (segments) for good distributive and dispersive mixing and extrusion process. The special screw elements will be greatly conductive to the even shearing stress, even axial elongation rate, and low temperature distribution. All these factors will determinately lead to the final material or products’ quality.

The SHJ series extruders have unique features with a balanced shaft drive mechanism, a solution offering decisive advantages over the conventional gearing chain with a simple split of the driving torque. In the new solution the torque for the second screw is split again in half to drive two auxiliary shafts at levels above and below the second screw shank. Consequently the balanced gearing shafts have to bear the 25% torque of the overall. The extreme load ability connected with this type of gearing chain enable to work with the kind of torques required to achieve high output rates at lower screw speeds that will be decisive to the final performance of the mixing polymer.
