Finished Tea Leaf Winnowing Sorting Machine 6CFX-40

DL-6CFX-40 tea leaf winnowing sorter sorting machine can use for all most kind tea, such as green tea, black tea, oolong tea and so on.

Grade4 Level
Total power2.6 KW
Voltage/frequency380/50 V/Hz
Dimension4080×760×2130 mm

Facebook Twitter Pinterest LinkedIn 分享

Description

Description:

1. It adopts large air volume fan and can be equipped with adjustable speed motor 5. It can be used for sorting different materials;
2. Stainless steel hopper environmental protection and sanitation;
3. The inlet and outlet of the hoist are equipped with vibration drop, and the blanking material is more dispersed and more uniform.

Application:

Finished tea leaf sorting process sorter machine can use for many kind tea, such as green tea, black tea, oolong tea, white tea, dark tea and so on.

Parameter:

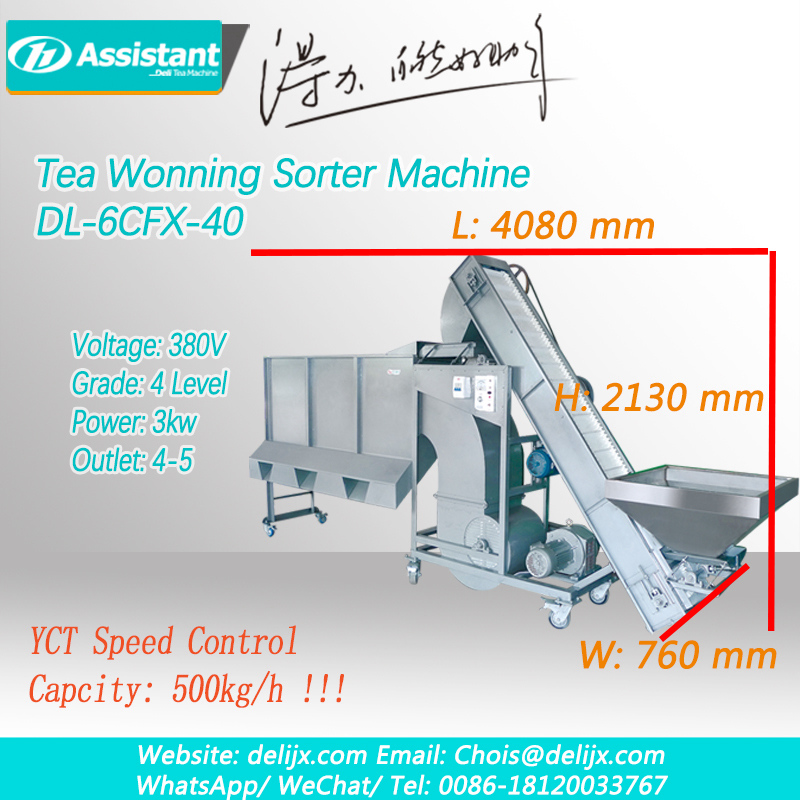

DL-6CFX-40 tea winnowing sorting process machine specification:

Model		DL-6CFX-40
Dimensions (LWH)		4080×760×2130 mm
voltage / frequency		380/50 V/Hz
Feeding method		Hoister
Grade		4 Level
Fan speed control mode		YCT speed regulation
Fan power		1.5 kW
Motor speed		1400 r/min
Rated voltage		380 V
Hoist Power		1.1 kW
Lifting Height		1560 mm
Conoveying Bandwidth		225 mm
Output per hour		500 Kg/h

The above data is based on fresh tea leaf water content of 75-80%.

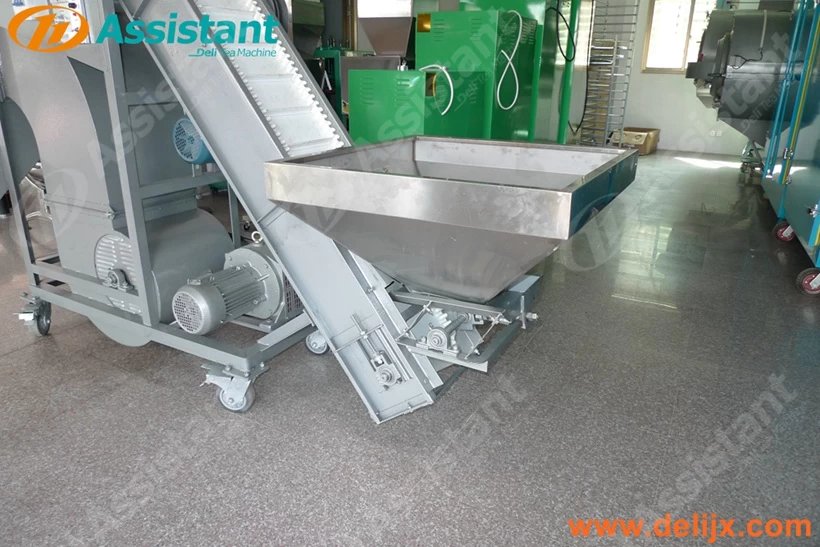

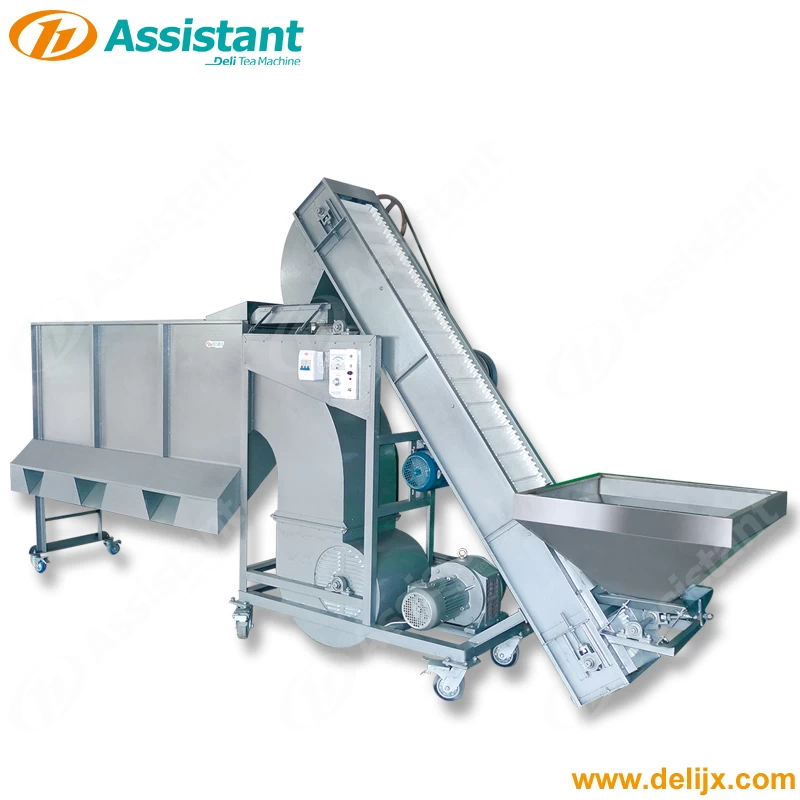

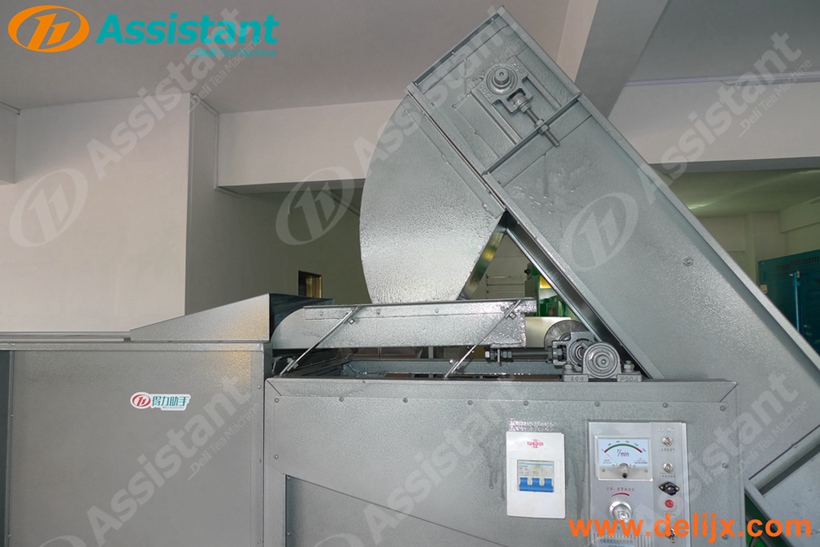

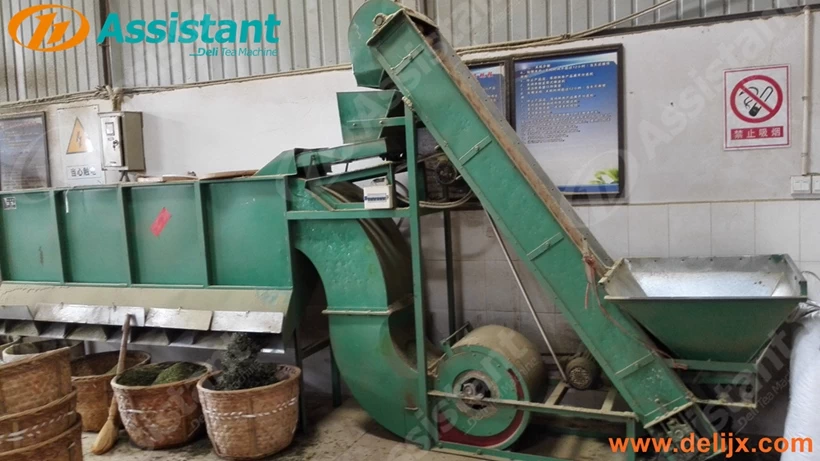

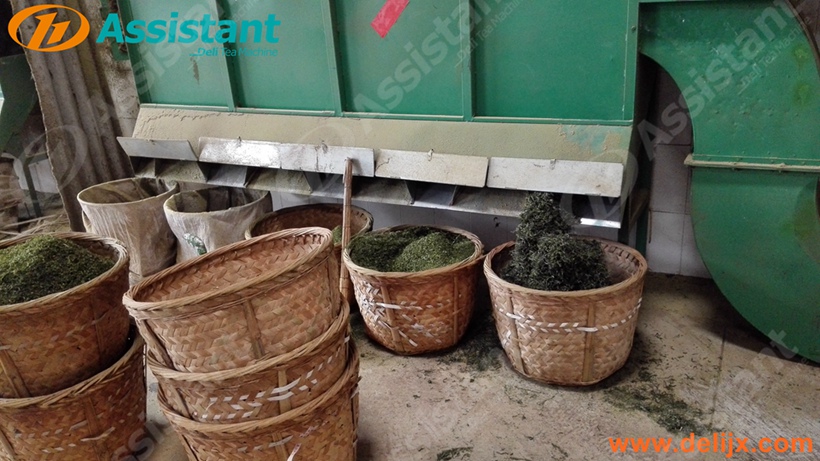

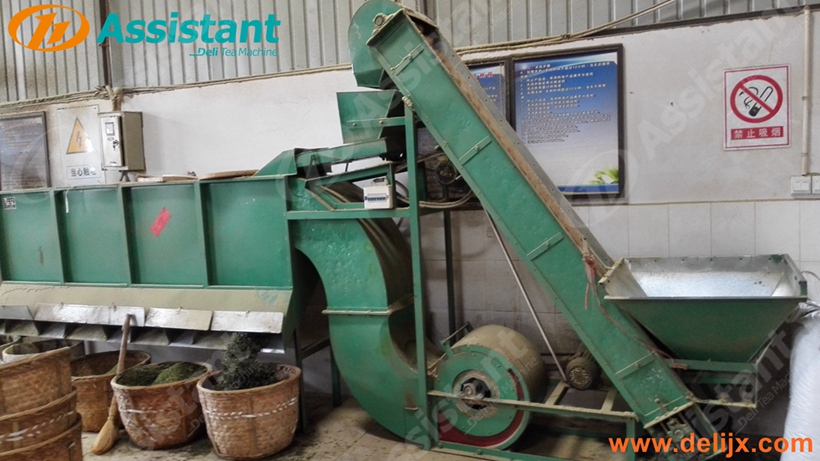

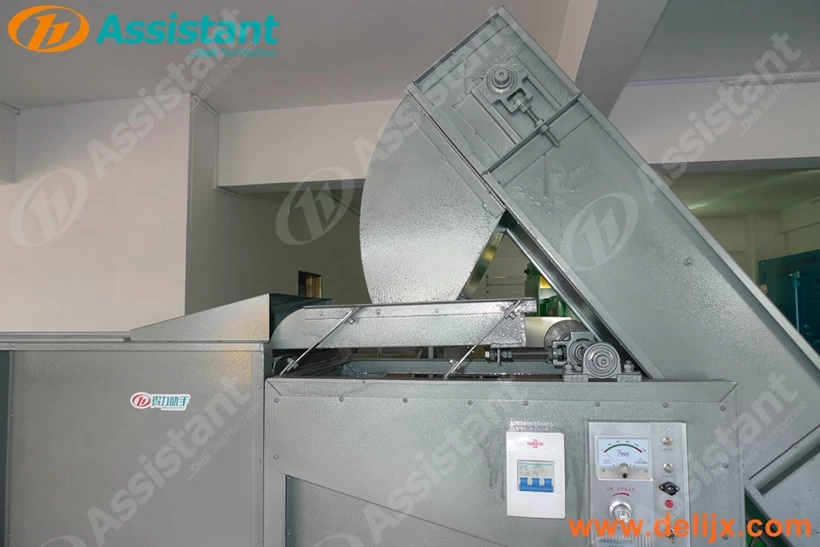

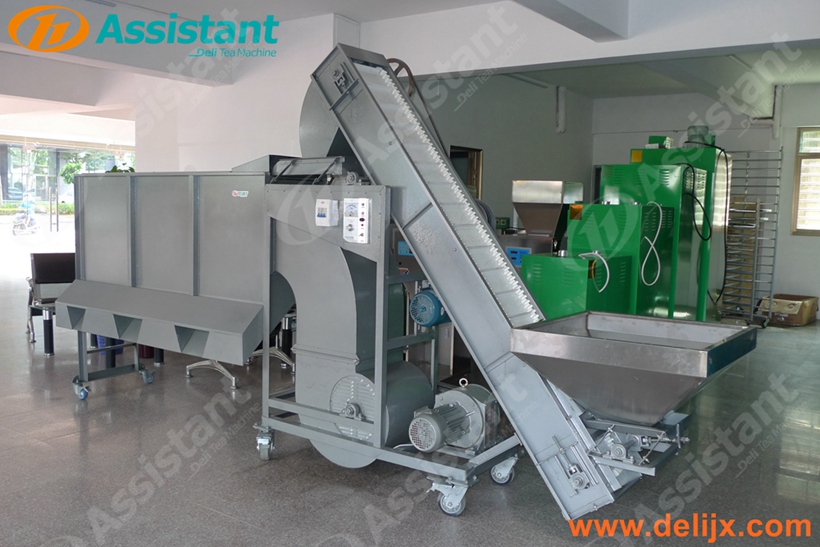

DL-6CFX-40 tea leaf winnowing sorter machine photos:

Finished Tea Leaf Winnowing Sorting Machine 6CFX-40

Tea Leaf Sorter Sorting Process Machine China Manufacturer 6CFX-40
