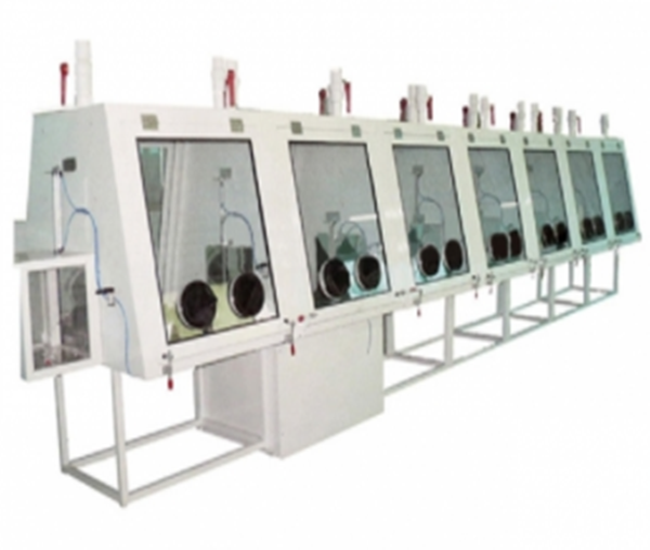

Modular Design Glove Box Price For Lithium Battery Production
Functions
● This equipment is mainly used for drying room after the working process of the glove box production line, generally for multiple box combination form a relatively closed space, through operating the glove box to make the internal and external isolation. By connecting into the wind duct to the box body internal ventilation with low humidity wind, so as to maintaining product processing such as (inject electrolyte, standing, pre-seal) technical requirements: such as temperature and humidity, cleanliness and working environment
Features
● Glove box is modular design, can be combined freely as required.
● Feeding the material box connected to the drying room not mixing plant and support.
● Work station of stainless steel 304, anti-corrosion.
● The barrel type transition warehouse, ensure internal vacuum - 90 Mpa.
● Gas spring switch on both sides of the door, convenient maintenance and cleaning.
● Automatic electrolyte-mixing system, remove air bubbles, prevent note liquid drops.
Technical Parameters(for reference)：
|
ITEM
|
MAIN PARAMETERS
|
|
Measure
|
L*W*H:2000*1600*1900mm
|
|
Weight
|
1T
|
|
Power
|
AC220V ±10% 50HZ/60HZ, 1.0KW
|
|
Air source
|
≧0.6Mpa,30L/S
|
|
Applicable range
|
W≤300KG,H≤900mm
|
