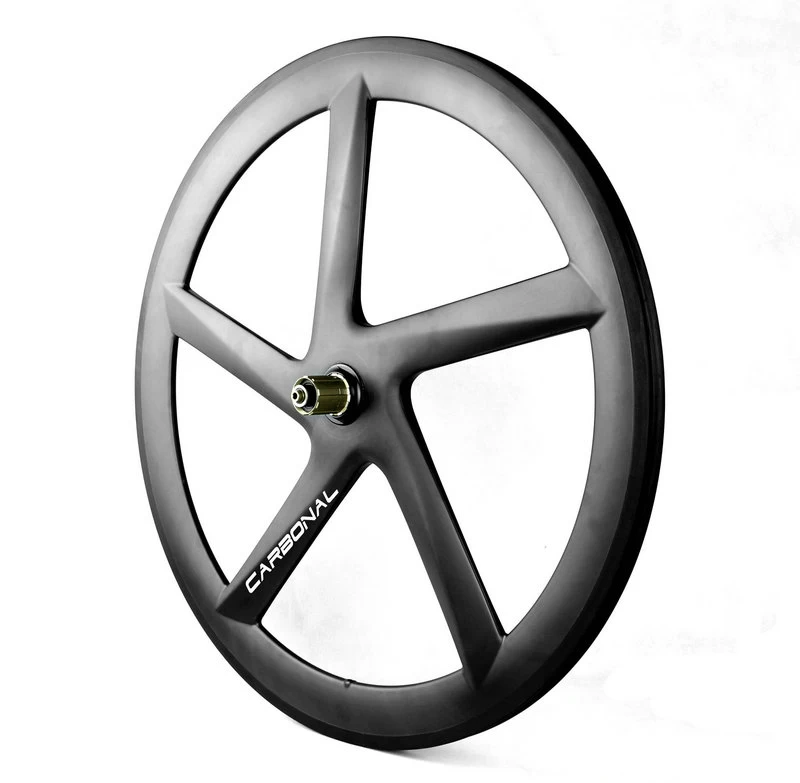

Five spoke wheels carbon 55mm deep tubular 23mm wide rear wheel

Item DT501-R, weight: 9105g ~1020g ±30. This carbon 5 spoke wheel 23mm wide 55mm deep tubular rear wheel is aerodynamic design and outstanding stiffness provides protimum power transfer, perfect for tt testers and triathletes.


  • Max weight limit130kg
  • Depth55mm
  • Width23mm
  • Weight910~1020g
  • TypeTubular
  • Materialfull carbon Toray T700
  • Size700C

Product Item: Five spoke wheels carbon 55mm deep tubular 23mm wide rear wheel

carbon five spoke wheel rim profile

Specification:

 Item:
 DT501-R
 Use:
 Road, tt, fixed gear, track
 Rim type:
 700C tubular - rim brake
 Material:
 Toray T700 carbon fiber
 Rim width:
 23mm
 Weight:
 910g ~ 1020g±30 *
 Rim depth:
 55mm
 Weave:
 UD, 3k, 6k, marble
 Min tire pressure:
 90psi / 6.5 bar
 Finish:
 Matte, glossy
 Decal:
 Customized
 Standard:
 EN standard


* Weight: Road, tt - 910g; Fixed gear, track - 1020g.

* Hub spacing: 130mm (Road/TT), 120mm (Fixed gear, track).

* Rim brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

carbon rim with basalt & 3k twill brake track




5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal Quality Control.
