Fixed Angle Solar Mounting Brackets

SunRack fixed angle solar mounting brackets can be be customized for your pv ststem maximum power.Besides,it is quite competitive with simple drawing and maximum optimized material.







Using SunRack , Enjoying Sunshine!



Using SunRack not only help you determine the best racking solution for solar power project,but also ensure you win the highest investment return and the most efficient of Enjoying Sunshine.



1. Lower cost, Incomparable value ;

2. Faster installation, Flexible attachment ;

3. More Perfect Service, Complete technical support ;

4.10 years limited warranty , 20 years design life .



SFS-FR-01 SunRack Fixed Angle Flat Roof Mounting System






SunRack Solar Flat Roof Racking System Technology adopts with a simple and dignified appearance, exquisite and stable structure, on-site installation without welding can be achieved, and with high reliability; to meet the structural carrying capacity features combined with practical, optimize the use of materials. Part of the battery plate connection with the use of rail mounting, suitable for all kinds of solar panels, and convenience for installation; greatly increased the efficiency of field construction, and save cost.

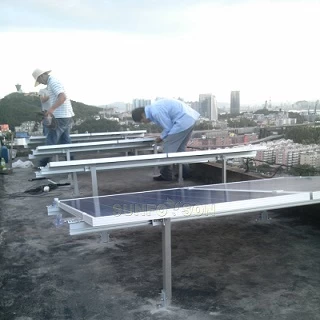

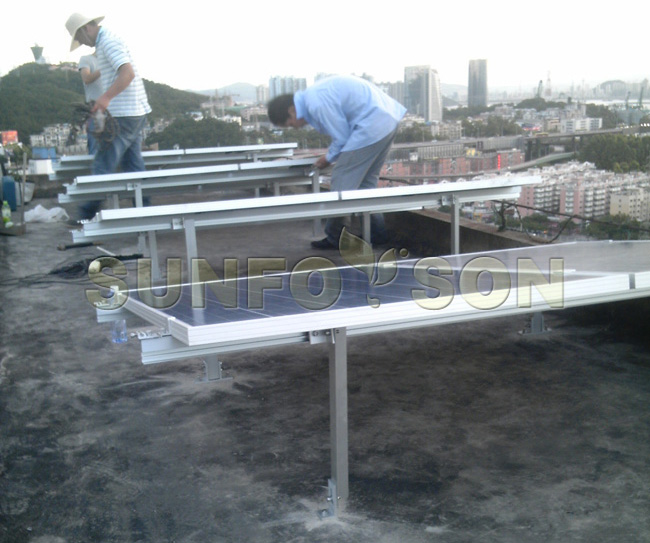

    Installation Site: Flat roof

    Applicable Roof Cladding: Suitable for most types of cladding
    Installation Angle: Customized
    Max. Building Height: Up to 65ft(20m)
    Wind Load: 130mph(60m/s)
    Snow Load: 30psf(1.4kN/m2)
    Applicable Module: Framed
    Module Orientation:  AS/NZS 1170;
    Material: Aluminum, stainless steel
    Warranty: 10 years on material

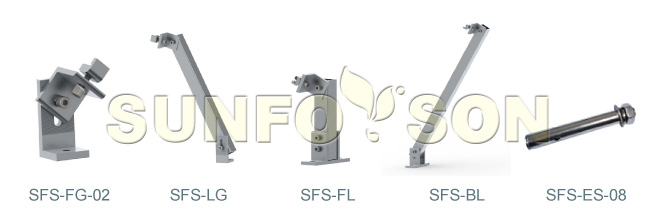

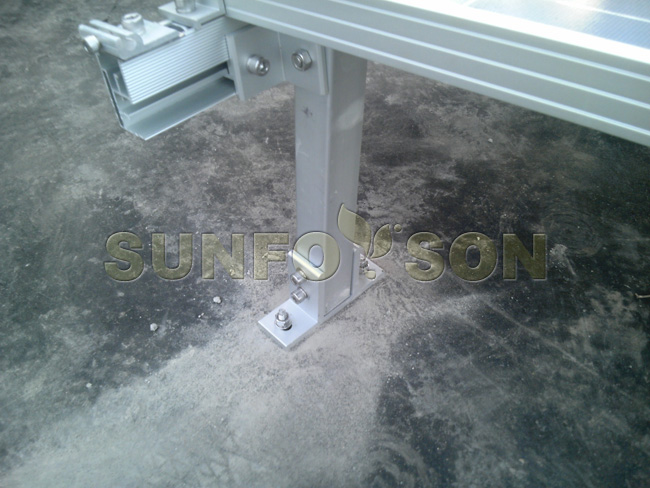

Overview of system components












1.Easy Installation

The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The SolarRoof system is aided by a very high level of pressembly.The G-Screw module and unique rail extension method allow greatly reduced installation times.



2.Great Flexbilitity

With the Sunforson Solar Roof,frammed photovoltaic modules can be easily mounted on pitched roofs.The Solar Roof system has mounting accessories designed for use on almost every roof cladding available wiht unique rail .Excellent Compatibility.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.


3.High Accuracy

Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Excellent Adaptability

The height adjustment of the rails from Sunforson allows a level PV array to be established,no matter how uneven the roof.Engineered To High Standard Sunforson SolarRoof is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.

5.Maximum Lifespan

All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.

6.Guaranteed Durability

Sunforson provides a guarantee of 10 years on the durability of all components used.









A Full Commitment To Quality

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
