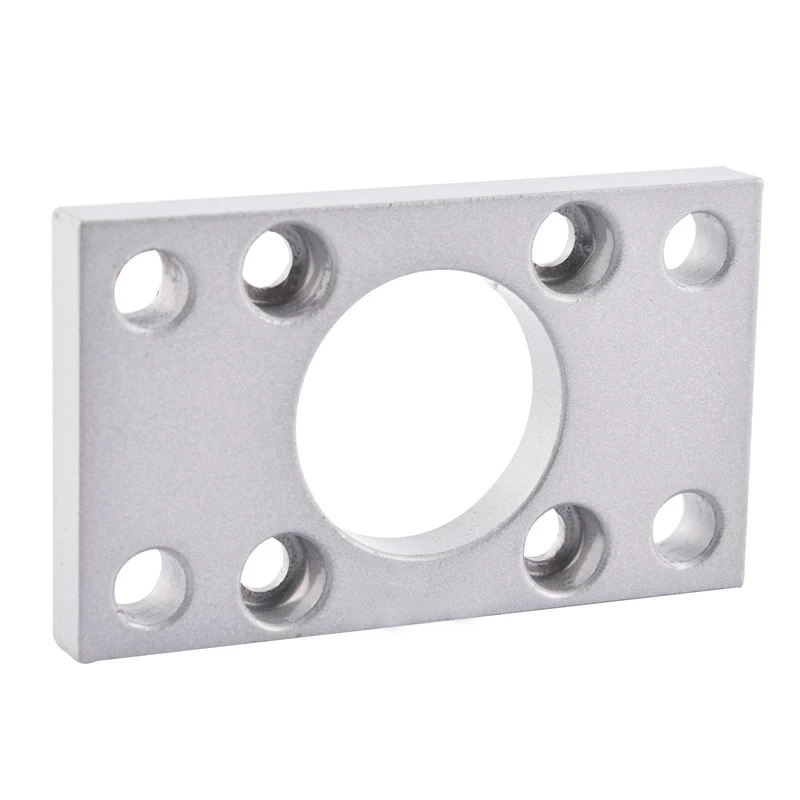

Flange Mounting Plate ISO-FA/FB



ISO-FA/FB ( Flange Mounting Plate )


Facebook Twitter Pinterest LinkedIn 分享

Flange Mounting Plate ISO-FA/FB

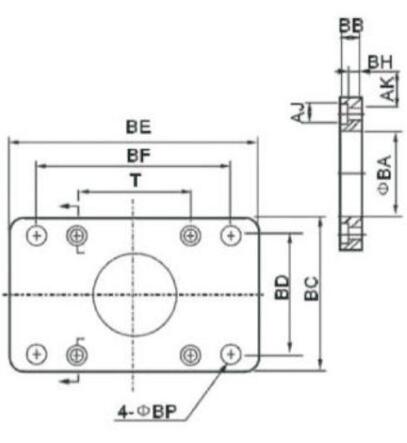

Symbol
Bore
32 40 50 63 80 100 125 160 200
AJ 11 11 14 14 17 17 19 25 25
AK 7 7 9 9 11 11 13 17 17
BA 30.5 35.5 40.5 45.5 45.5 55.5 60.5 65.5 75.5
BB 10 10 12 12 16 16 20 20 25
BC 47 53 65 75 95 115 140 180 220
BD 32 36 45 50 63 75 90 115 135
BE 80 90 110 125 154 186 224 280 320
BF 64 72 90 100 126 150 180 230 270
BH 4 4 4 6 6 6 8 8 12
BP 7 9 9 9 12.5 14.5 16.5 18.5 24
T 32.5 38 46.5 56.5 72 89 110 140 175
