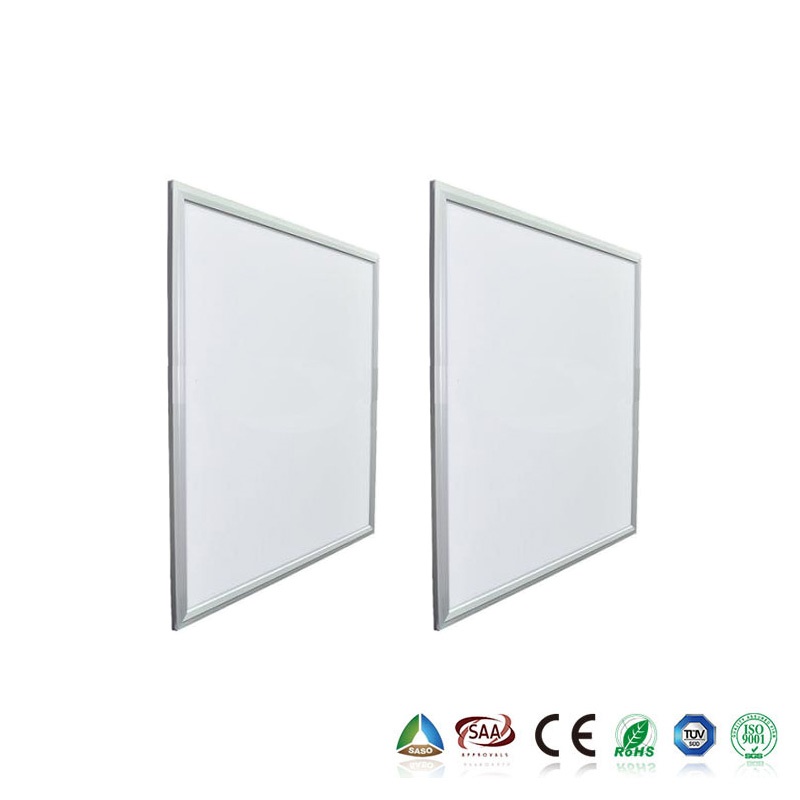

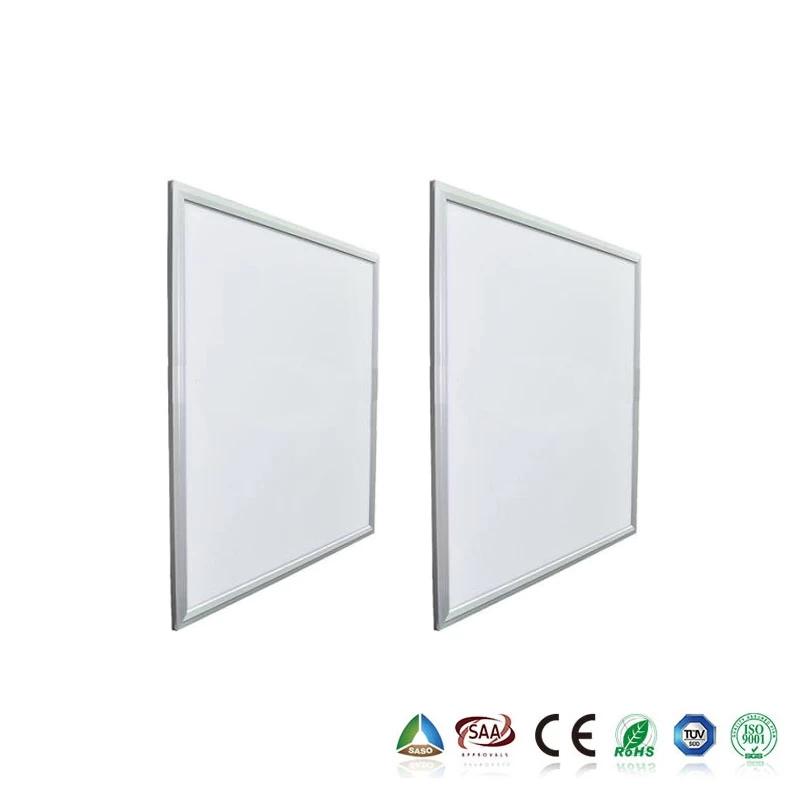

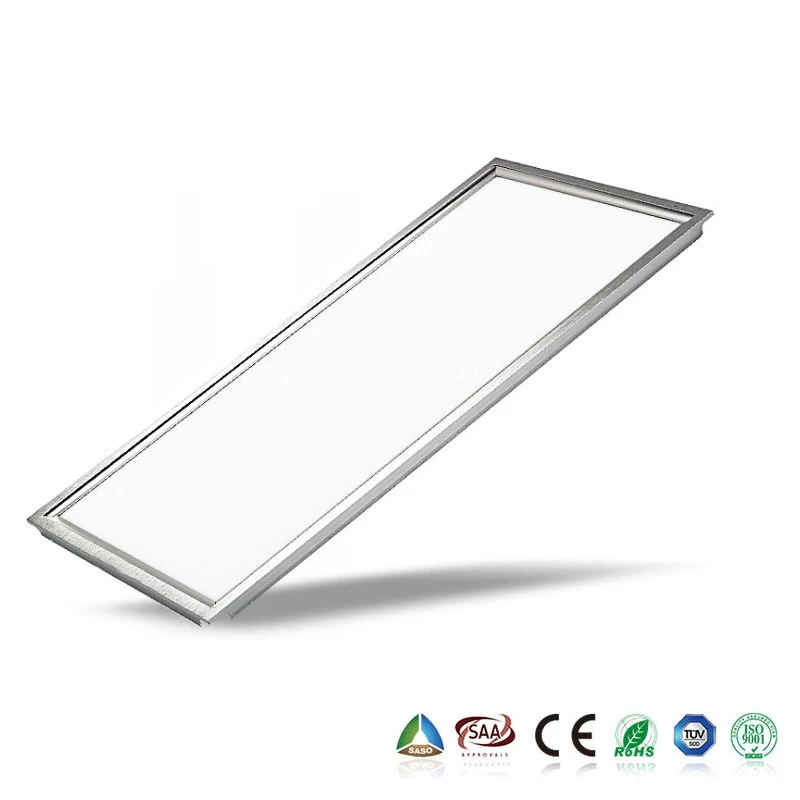

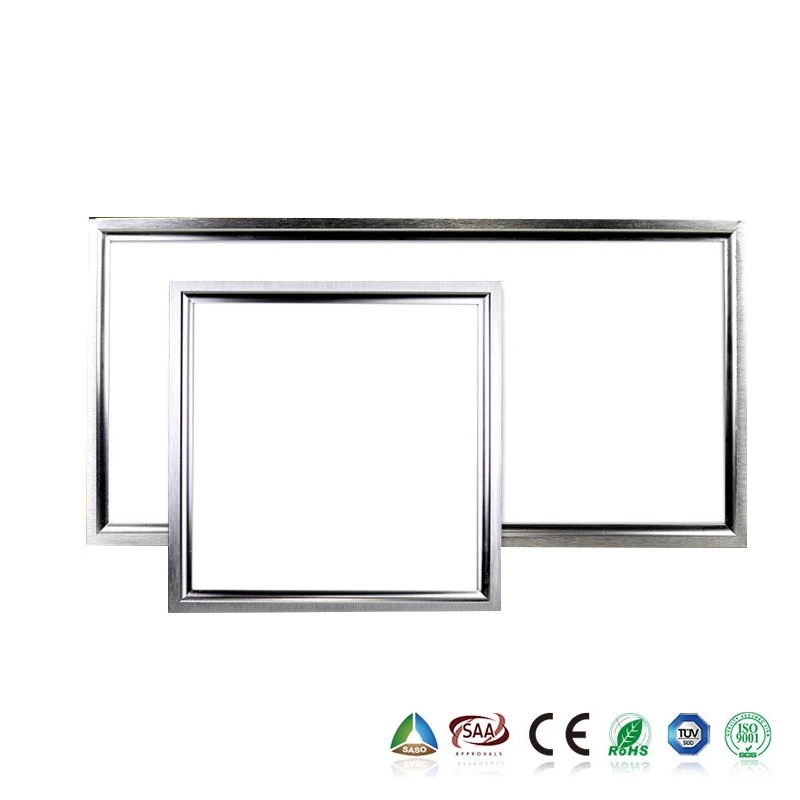

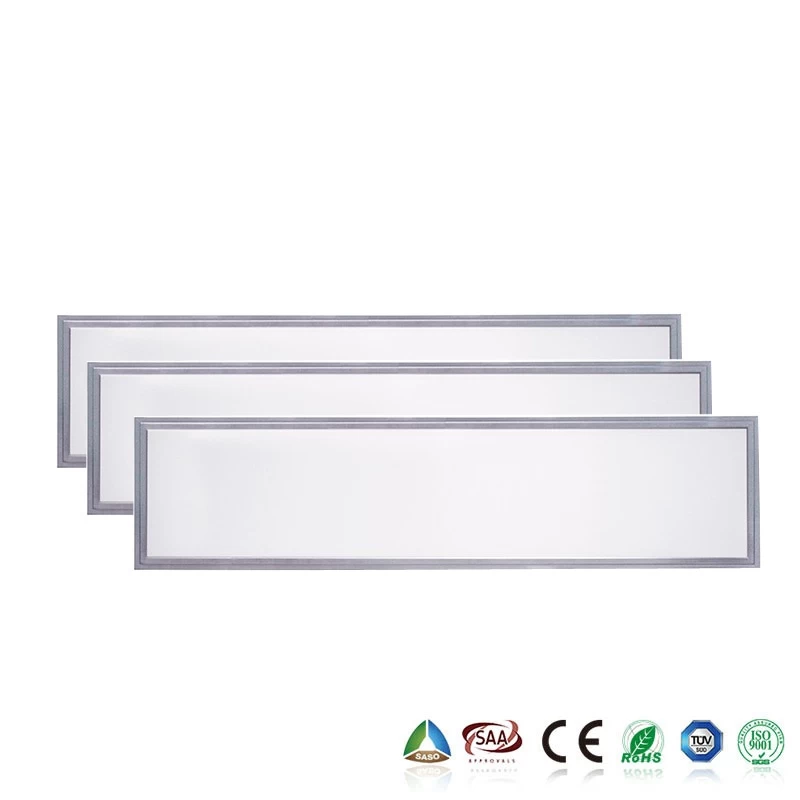

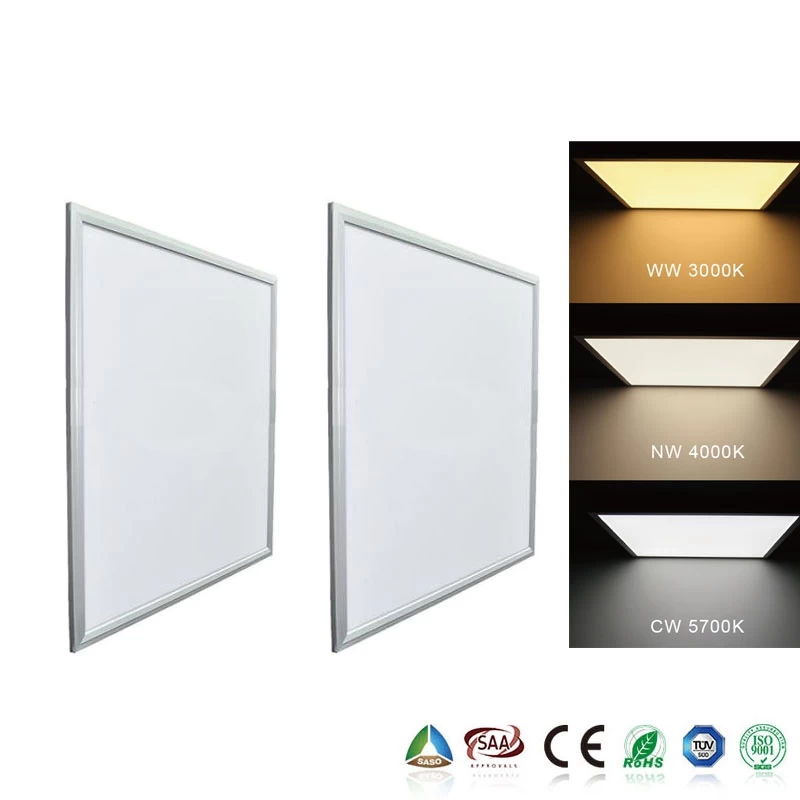

Flat LED Panel Mounted Ceiling Light 300X300 600X600 300X1200 600X1200
Feature:
1.Adopt high quality aluminum and acrylic material .
2.Epistar SMD2835 led chip ,100-130lm/w,high brightness and lighting dimmable
3. The products are exported to North America, All products with certificate ETL/DLC
4.10mm thinckness super slim and stylish design, have good heat dispation.
5.Long life with over 50000 hours lifespan.
6. 5 year warranty.
Barco LED Panel Parameters:
|

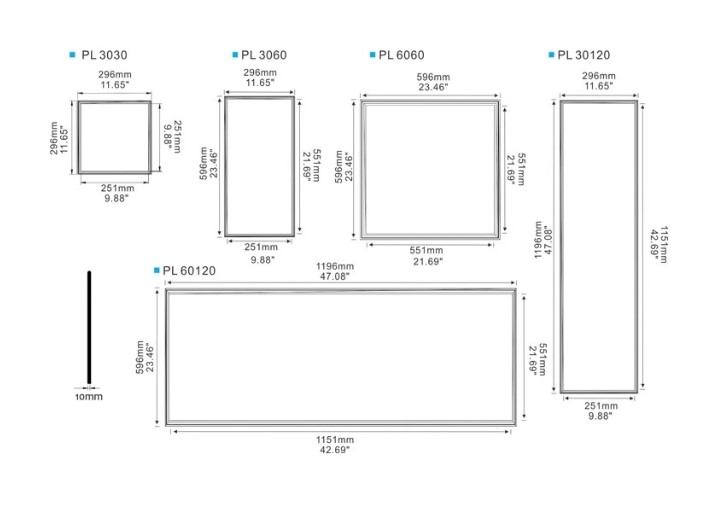

Size
|
300x300mm
|
600x600mm
|
300x120mm
|
600x120mm
|
|
Power
|
12W 16W 20W
|
36W 40W 48W
|
18W 24W
|
36W 40W 48W
|
|
LED Qty(pcs)
|
60/80/100
|
180/200/240
|
180/200/240
|
360
|
|
Beam Angle
|
120 degree
|
|
CRI
|
>80
|
|
AC Input
|
85-265V/200-240V
|
|
Color Temperature
|
3000K/4000K/5000K/6000K
|
|
Efficiency
|
100-120lm/w
|
|
Packing
|
20pcs/Ctn 15Kg
|
5pcs/Ctn 15.5Kg
|
6pcs/Ctn 18.0Kg
|
5pcs/Ctn 35.1Kg
|
Product features:
1. Energy-saving luminaries, power source are attached
2. High-purity aluminum lamp housing, Epistar LED chip
3. Excellent connector, pursue a detail perfect
4. no noise, no flicker; no ultraviolet or infrared light beam, mercury-free
5. Advanced constant current driver, professional thermal management
BarcoLED Panel Lighting Datasheet Parameters:
|
Power
|
30W-75W
|
|
IP Rating
|
IP44
|
|
Input Voltage(V)
|
100-277V AC
|
|
Driver
|
Meanwell
|
|
CCT
|
2700-6500K
|
|
Light Source
|
Epistar
|
|
Lumen
|
4000LM
|
|
Size
|
Customize
|
|
Power Factor
|
0.96
|
|

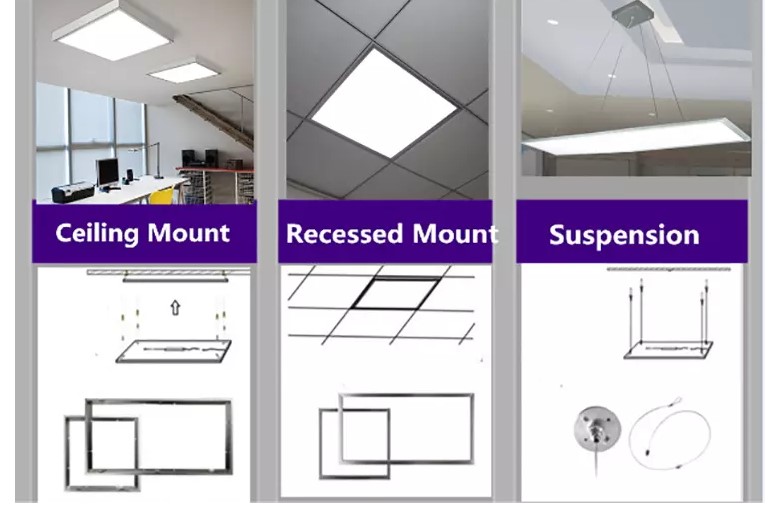

Installation
|
Suspended, ceiling, recessed
|
|
Product Keywords
|
48w led panel 1200x300 , square led panel light
|
Packaging Size and Weight Detail Information:
|
Size
|
Power
|
CCT
|
Dimmable
|
Lumen
|
Over-all Size(mm) L x W x H
|
Certification
|
Voltage Input
|
|
1x 4'
|
40W
|
2700-6500
|
Yes/No
|
4000lm
|
1210*303*10
|
ETL/DLC
|
100~277V ac
|
|
2x 2'
|
40W
|
2700-6500
|
Yes/No
|
4000lm
|
603*603*10
|
ETL/DLC
|
100~277V ac
|
|
2x 2'
|
60W
|
2700-6500
|
Yes/No
|
6000lm
|
603*603*10
|
ETL/DLC
|
100~277V ac
|
|
2 x 4'
|
50W
|
2700-6500
|
Yes/No
|
5000lm
|
1210*603*10
|
ETL/DLC
|
100~277V ac
|
|
2 x 4'
|
75W
|
2700-6500
|
Yes/No
|
7500lm
|
1210*603*10
|
ETL/DLC
|
100~277V ac
|
