Flat Roof Solar Ballasted Mount System

Flat Roof Solar Ballasted Mount System is suitable for concrete flat roofs.


  • Fastener MaterialStainless steel SUS304
  • Bracket materialAL6005-T5(Anodized Oxidation)
  • Design standardAS/NZS1170,JIS C 8955-2017
  • Module OrientationHorizontal, Vertical
  • Applicable module typeMono-crystalline, Poly-crystalline, Double wave and Thin film
  • Distance from module lowest point to the groundRoof height
  • Snow load1.4KN/m²
  • Wind load60m/s(216kmh/133mph)
  • Installation angle5°-35°
  • Installation foundationConcrete foundation
  • Installation locationConcrete flat roof
  • BrandWintop
  • Warranty10 years
  • Service Lifemore than 20 years

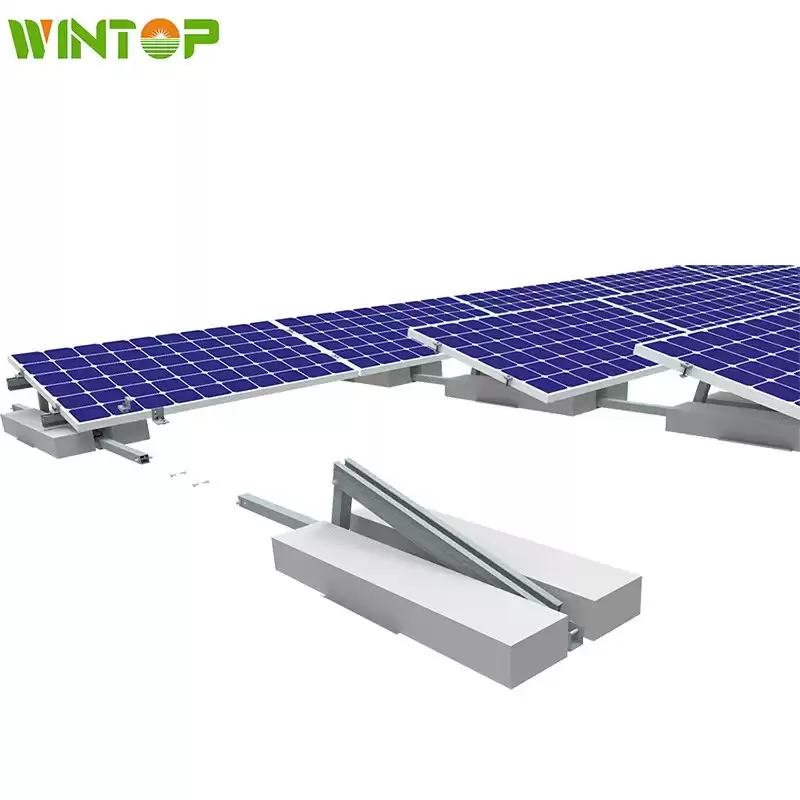

Flat Roof Solar Ballasted Mount System

solar tin roof mount


Product Description

Flat roof ballasted solar mounting systems is a flat roof racking system, This ballasted system can also be used for installation on flat ground. It has the advantages of low price, easy and fast installation.

The Wintop ballast mounting system is designed by experienced engineers according to AS/NZS 1170 and other international common standards to withstand extreme weather conditions. The main load-bearing parts of the system have undergone various tests to ensure its structural bearing capacity.


Technical Parameters

Installation location Concrete flat roof
Installation foundation Concrete foundation
Installation angle 5°-35°
Wind load 60m/s(216kmh/133mph)
Snow load 1.4KN/m²
Distance from module lowest point to the ground Roof height
Applicable module type Mono-crystalline, Poly-crystalline, Double wave and Thin film
Module Orientation Horizontal, Vertical
Design standard AS/NZS1170,JIS C 8955-2017
Bracket material AL6005-T5(Anodized Oxidation)
Fastener Material Stainless steel SUS304
Warranty&Duration 10 years&More than 20 years


Features & Benefits

  • High corrosion resistance and salt tolerance;
  • Fixed with concrete ballast to achieve strong wind resistance ;
  • Many solutions to meet different customers' requirements.

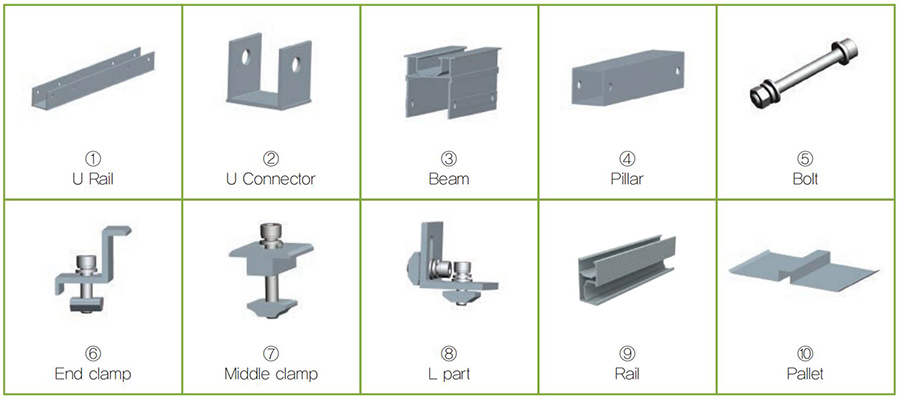

Components

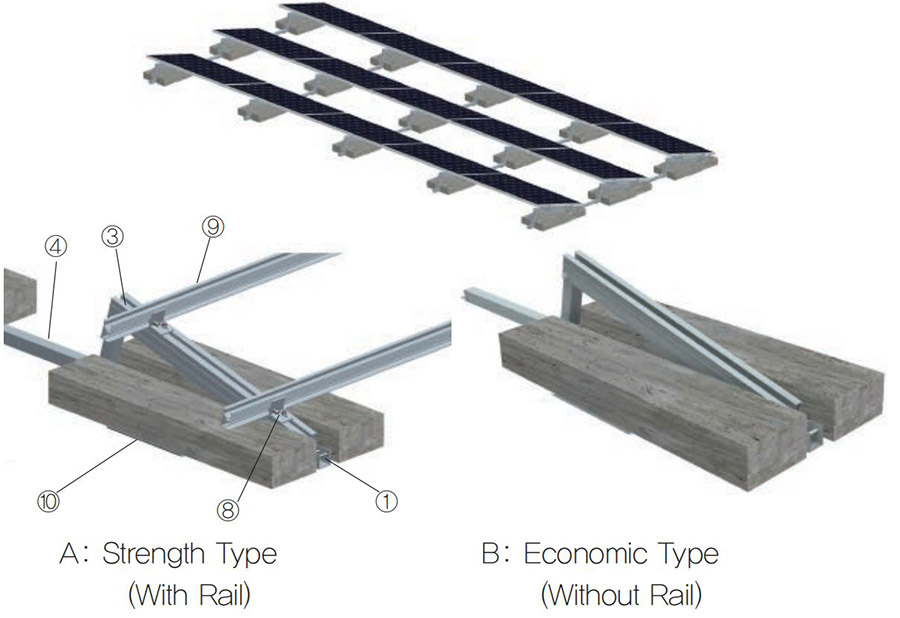

solar ballasted system

solar ballasted system part

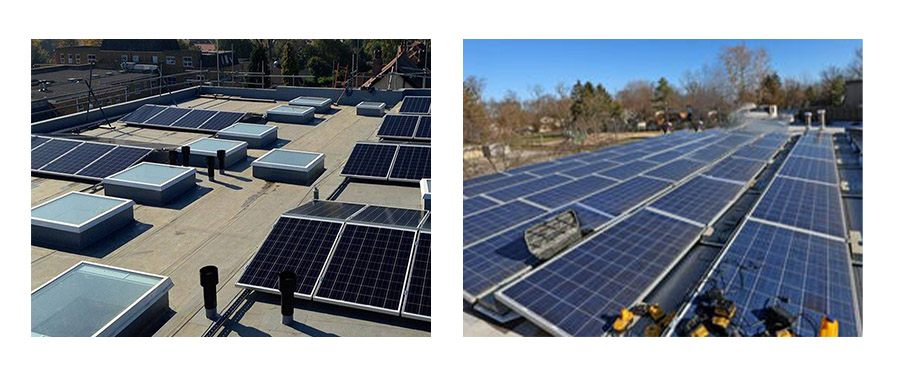

Project

solar ballasted system case

Certificate






QC

WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.


FAQ

(1) Will the solar panels cause my roof to leak?

No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.

(2) Where is your factory located?

Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.

(3) How can I get to your factory?

When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.

(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?

It’s always my pleasure, hotel booking service is available.

(5) What is your minimum order quantity, can you send me samples?

Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
