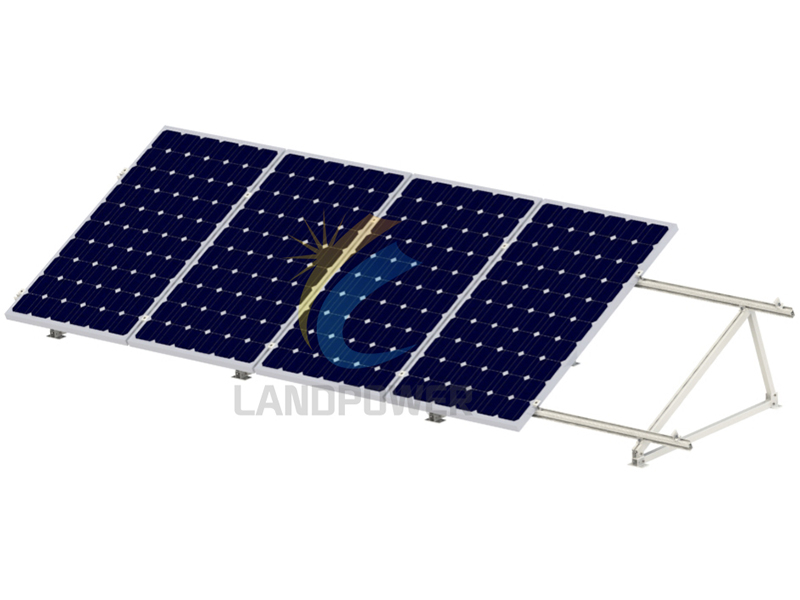

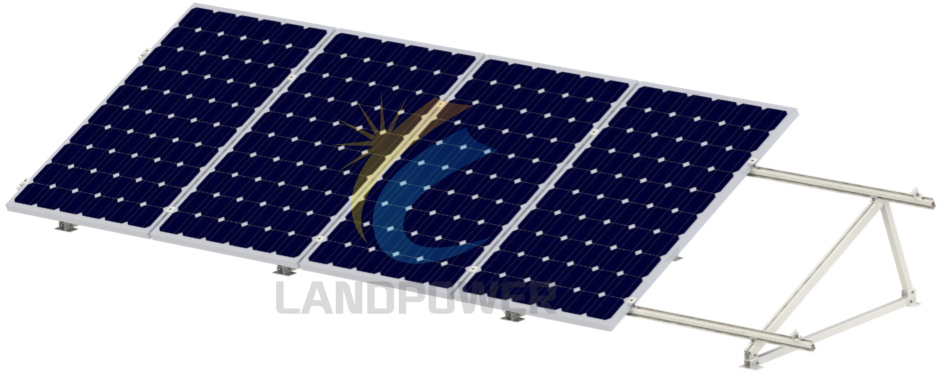

Portrait Flat Roof Solar Mounting System is design for portrait installation on flat roof. It comes with rail,end clamp,mid clamp and pre-assembled triangle supports,very convenient to install. It can be angle adjustable by adding some parts to triangle, anti-slide design, compatible with uneven roof surface and muti foundations optional make it more flexible in flat roof installation.
TECHNICAL INFORMATION
Install site ：Trapezoidal Metal Roof
Tilt Angle ：Flushed with the roof （10~60 deg）
Building Height：Up to 20 m
Max Wind Speed：<60m/s
Snow Load：<1.4KN/m2
Standard ：AS/NZS 1170 and other international Standard
Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: Anodized aluminum & stainless steel
Warranty：12 years warranty and twenty- year service life

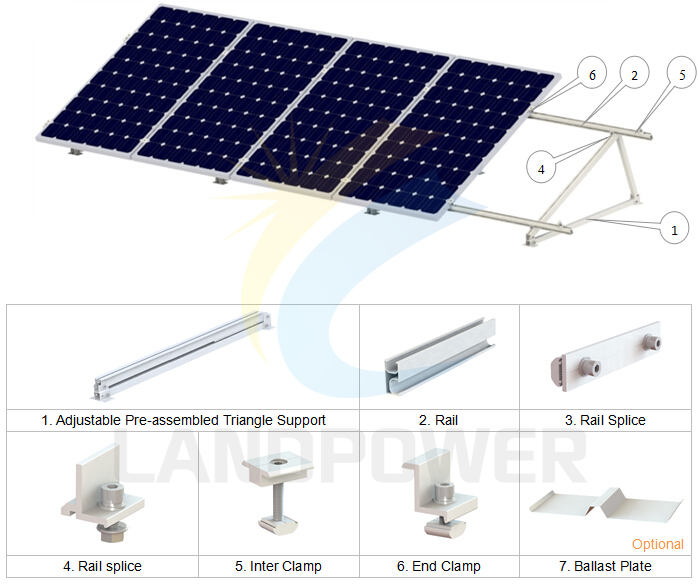

Portrait Flat Roof Mounting Main Components:

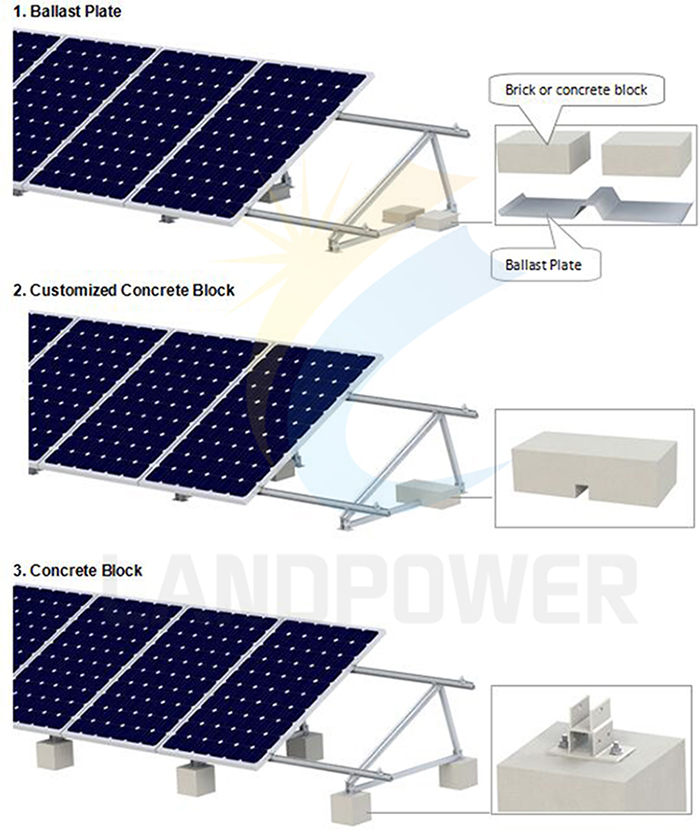

Various Foundation Options:
Landpower Flat Roof Mounting Benefits:
-
Highly Pre-assembled Most
Most of components are highly pre-assembled,less work requested on site,save time and labour cost.
The tilt angle of tripod can be adjustable or the fixed angle can be customized.Compatile for most of condtitions.
Less component requested for most of installations and engineered for adverse conditions.
Flat Roof Solar Mounting Installation Video Demo.:
Landpower design various racking for different flat roof installation, like landscape ballasted flat roof mounting, adjustable angle flat roof, east and west flat roof etc, pleased feel free to email us your project details.
