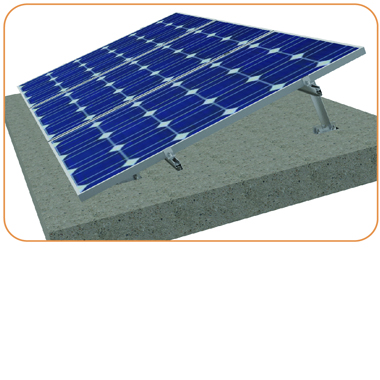

Triangle roof mount-without bottom beam is easy installation and perfect for flat concrete roof.It is light and could be installed quickly.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

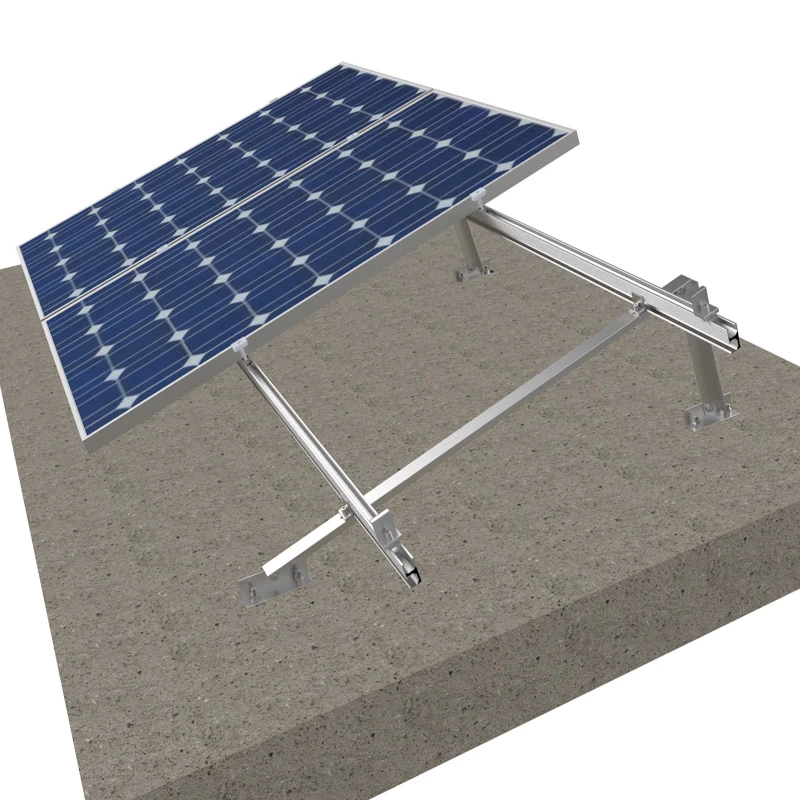

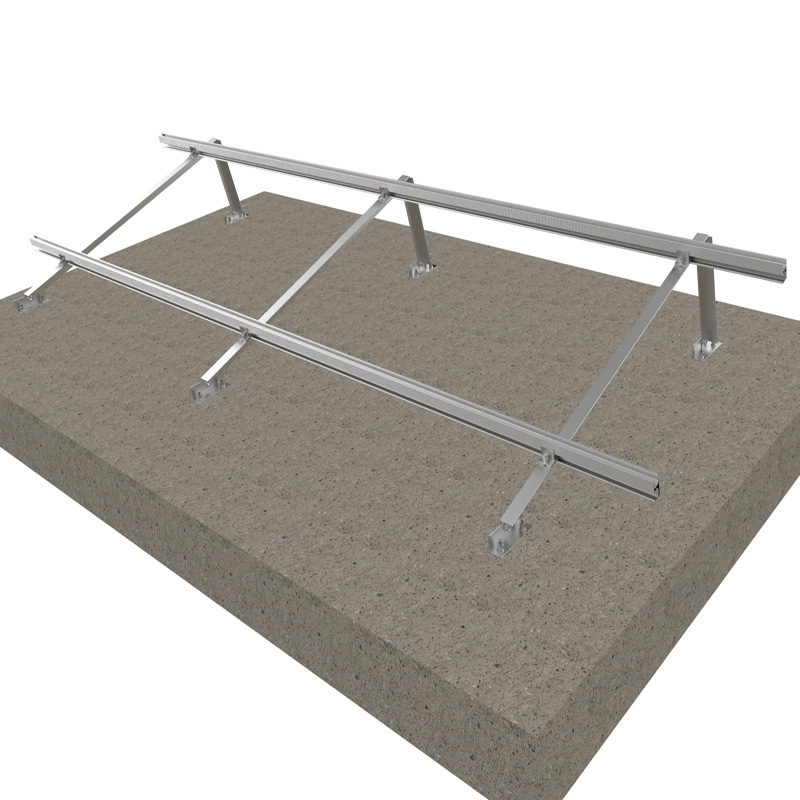

Triangle roof mount-without bottom beam

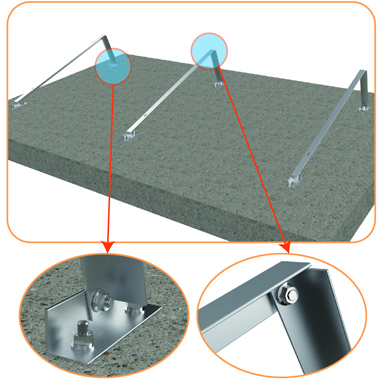

Feature:
1. A base is made by two
aluminum angular,save one piece of
aluminum angular,more cost-effective
2. A base is fastened in a whole
concrete block
3. Every base is fasten by two expanded bolt,which make the whole
triangle mounting system more strong
and reliable
Advantage
High strength,anti-uv,high frequency insulation(design standard:JIS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
Chemical resistance&weatherablity(certificate:AS/NZS 1170,MCS,CSA etc);
Max wind speed:up to 60m/s;
Material:Al 6005-T5;
Anti-corrosive:anodized;
Warranty:12 years;
Duration:25 years.

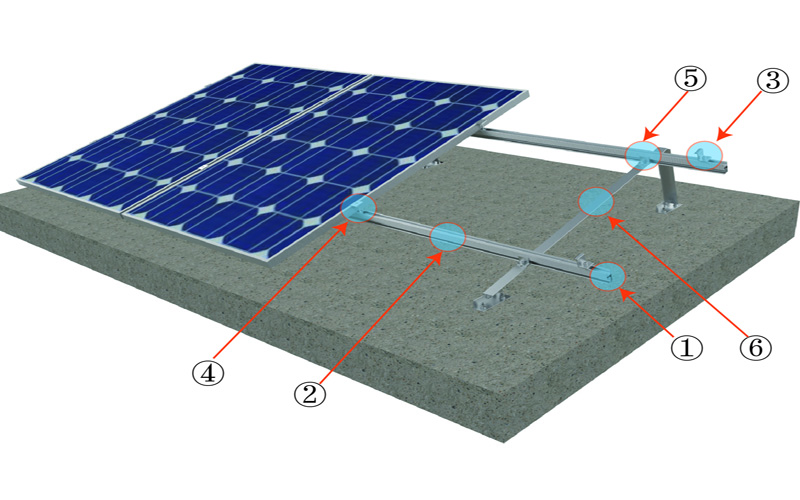

Component photos of flat roof solar mounting-triangle roof mount
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp

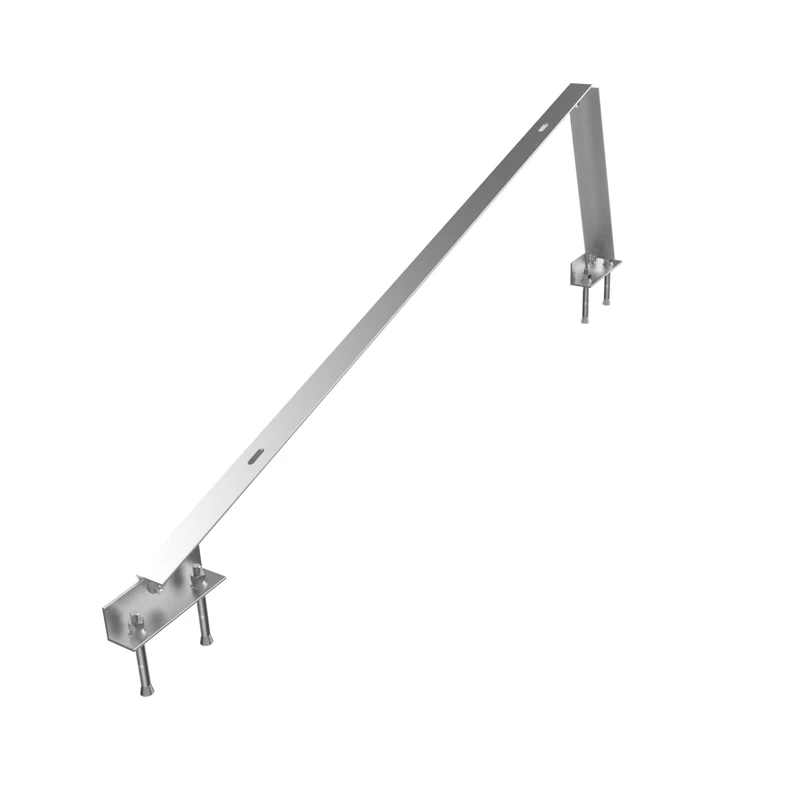

5. Solar rail clamp 6. Triangle without bottom beam

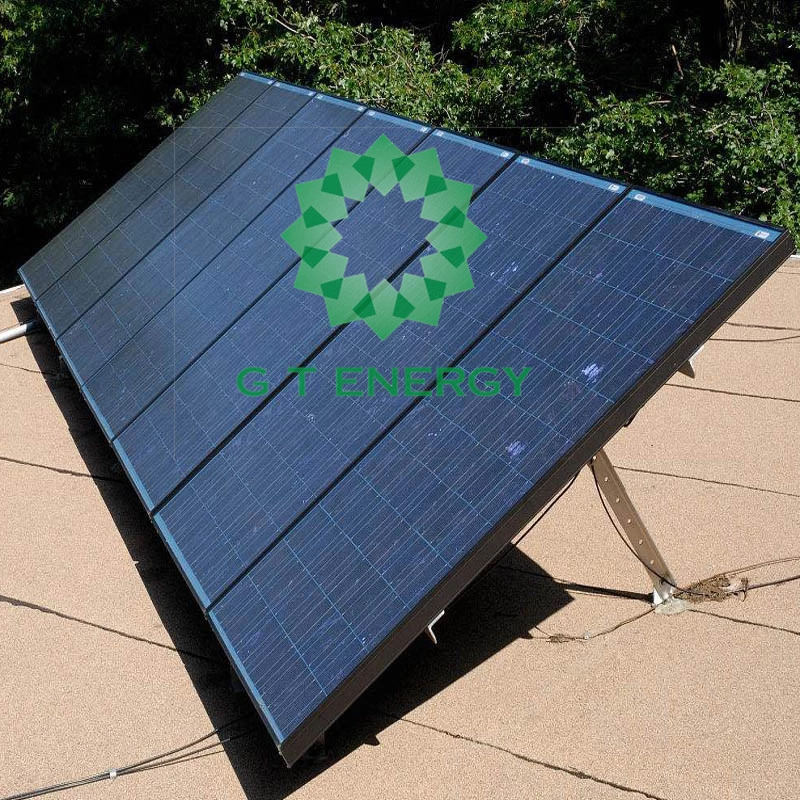

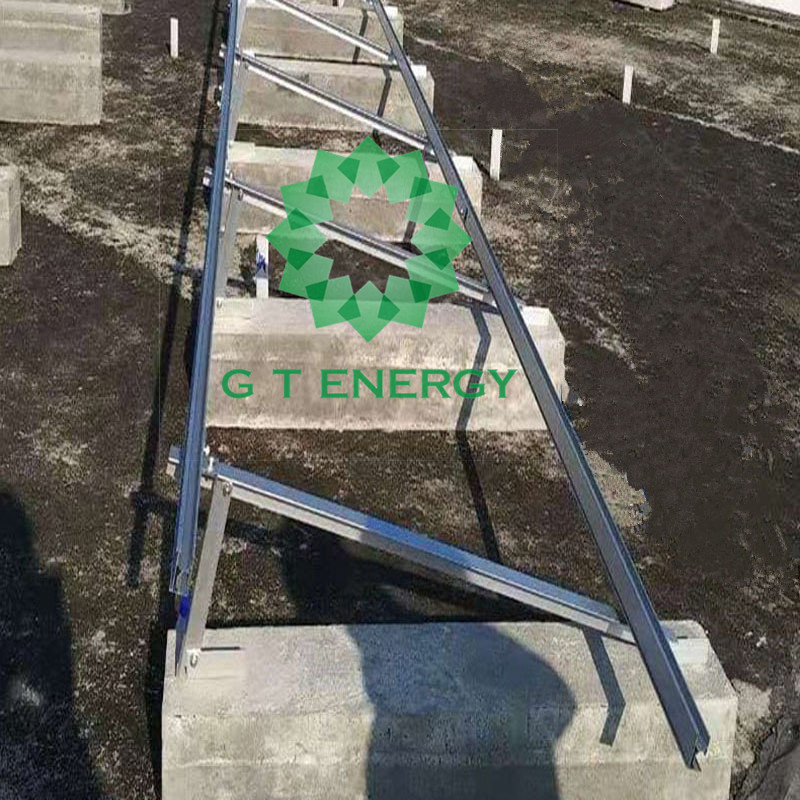

Installation photos of triangle roof mount-without bottom beam

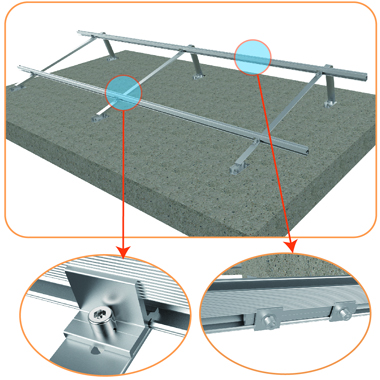

Step1：Install triangle according to the drawing Step2：Install roof rails and rail splices
Install expansion bolt Install triangle Rail clamp Rail splice

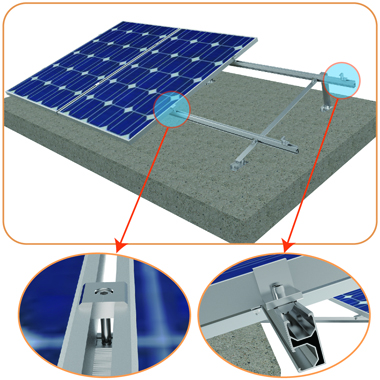

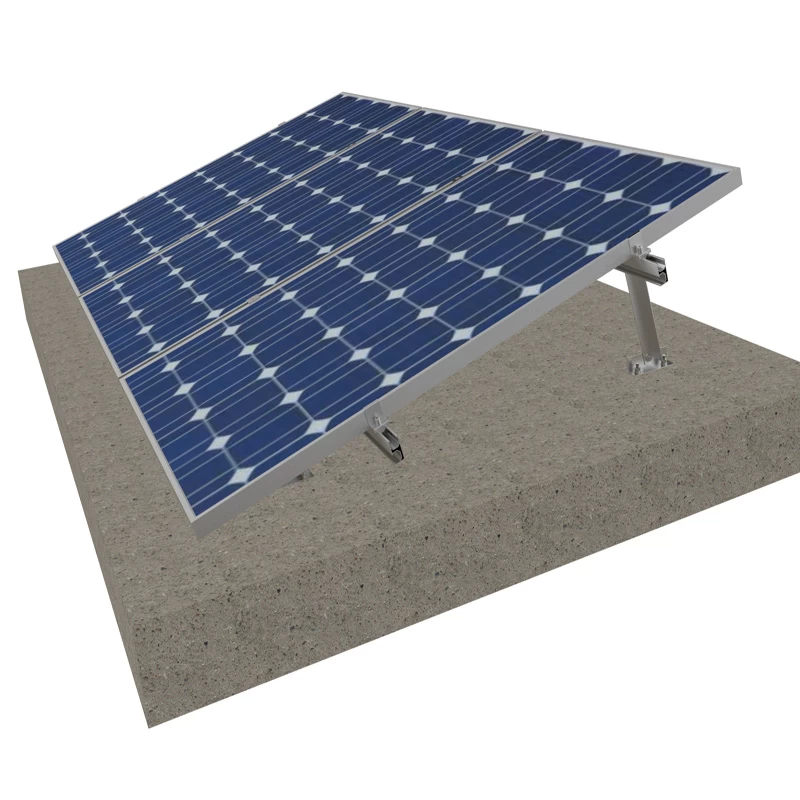

Step3：Fasten panel by inter clamp and end clamp Step4： Installation completion diagram
Inter clamp End clamp
