Flat Roof Solar Panel Mounting Structure System

Flat roof solar PV mounting system meet different roof projects demands. Quick installation and stable structure are assured by the modular Patented design.


  • Warranty10-Year Warranty
  • MaterialAl6005-T5(Anodized)Or Q235B(Hot-dip galvanized)
  • FastenerSUS304 &Zinc-Nickel Alloy Electroplated Steel
  • Small ComponentsAl6005-T5(Anodized)
  • ColorSilver or Customized
  • Panel LayoutPortrait or Landscape
  • Applicable Solar ModuleFramed or Frameless
  • Snow Load1.6KN/㎡
  • Wind Load60m/s
  • Tilt Angle0-60°

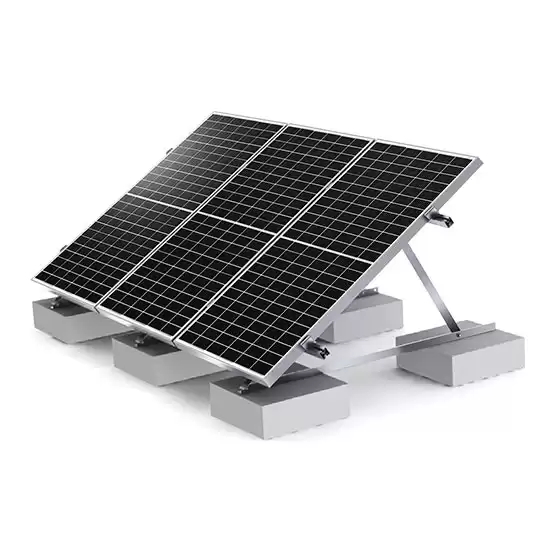

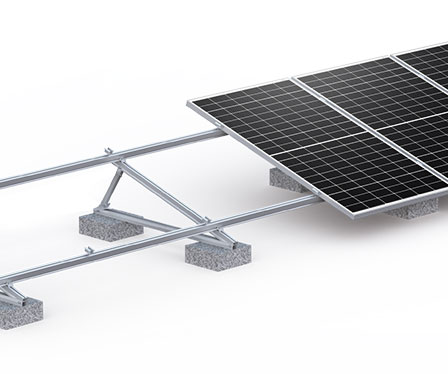

Angle Tripod Support

(Aluminum Or Hot-dip galvanized)

--System Compatibility

Components mostly are preassembled in factory to assure quick and reliable installation on site.

Suitable for different flat rooftop, and compatible to different types of solar modules.

--Unique Mudsill Design

The mudsill can be fixed to flat roof or pitched roof with concrete foundation or steel foundation.

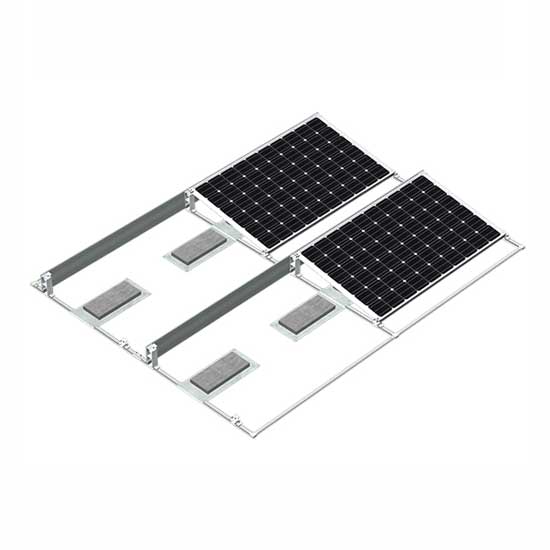

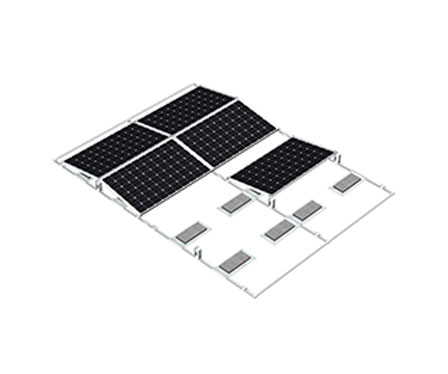

Ballasted Matrix

(Aluminum Or Hot-dip galvanized)

--High Durability Ensure the Structure Strength
Professional structure design and high-density aluminum material ensure the stability and strength of the structure.
--Unique Matrix Design for your solar PV system
The matrix design further assures the stability of the whole system,and flexibly compatible with concrete block or ballast foundation.

--Reasonable Installation and Package Design
Simplified components configuration lead to quicker installation and smaller package size,

saving installation cost and freight.


Component List

Rail: Spec:43*50*L. 3100/4100/5100mm

Splice for Rail: Length:260mm,Hexa Self-Tapping Screw,ST6.3*19

End Clamp Kit: End Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt
Inter Clamp Kit: Inter Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt
C Clamp Kit: C Clamp,Cross Module,Spring Washer M8,Hex Socket Head Bolt
Angle Aluminum Tripod Support: Single Tripod, Double Tripod,Adjustable Tripod

Beam, Back Support, Inclined Support: Q235B(Hot-dip galvanized)
Beam Connector: Spec:L200, Q235B(Hot-dip galvanized)

Front Support, Back Support: Spec L60, Al6005-T5 (anodized)
Wind Deflectors: Flat washer M8,Spring washer M8,MHexagon Socket Head Bolt


Flat Roof Mountings System Meet Certifications:

Certified by TUV, SGS and qualified consultants in AU, JP, ASEAN, CN, UK, EU, US
